Audi A4 oil leak, resolved.

An Audi A4 came in leaking engine oil with the level dropping. The oil sump gasket had let go and the oil level sensor was faulty. The sump was resealed and the sensor replaced, the leak stopped.

Job done

Mechanical Repairs Engine Repairs Audi Specialist

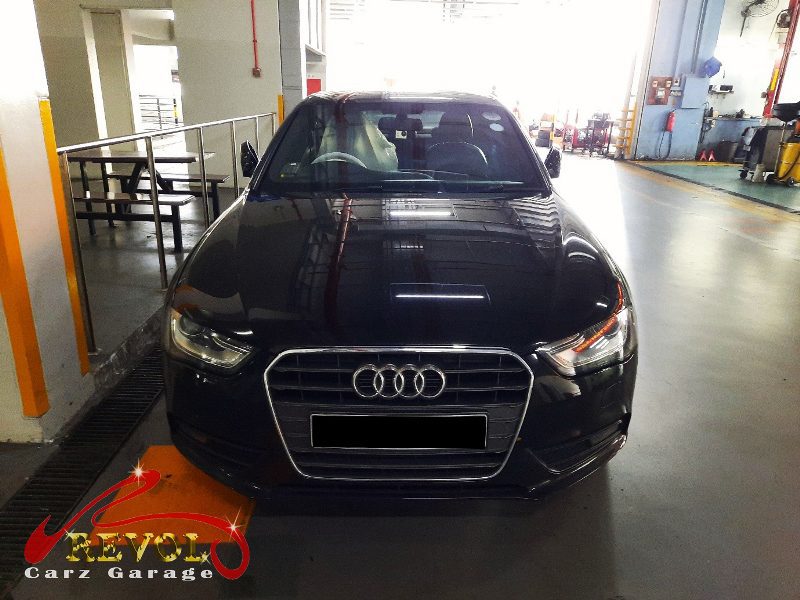

Audi A4 parked at the workshop, in for an oil leak diagnosis.

The brief

The A4 was leaking engine oil, a film building up under the engine and the level dropping between checks, and the oil level reading on the dash had gone unreliable too. He brought it in, which is the right call, an oil leak only spreads and an engine low on oil is an engine at risk. The trail pointed at the oil sump, the pan at the bottom of the engine that holds the oil, and the oil level sensor that sits low in the sump and reports the level. The sump seals to the block with a gasket or sealant bead, and over the years the heat cycles harden it so it lets go and oil weeps out the join; the level sensor, sitting down in the oil, can fail too and report wrong. So with the sump coming off anyway to reseal it, the sensor gets done at the same time.

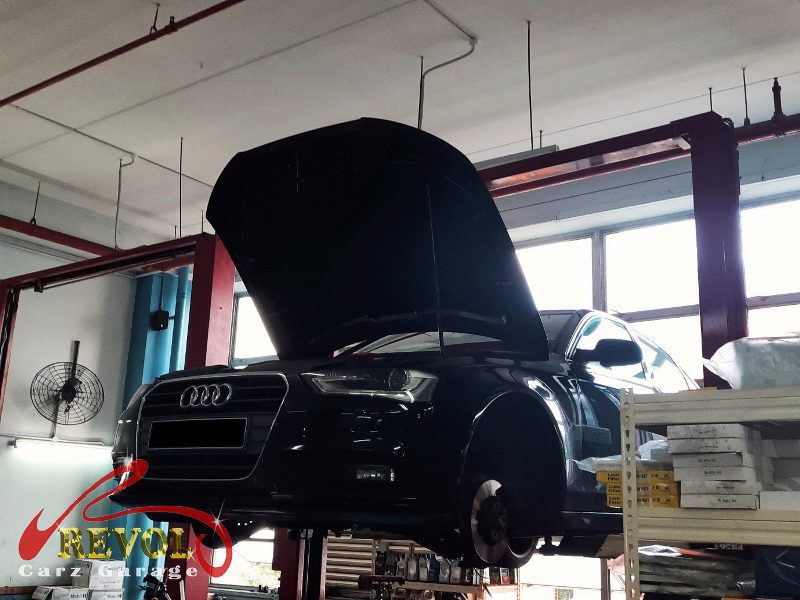

The oil leak traced to the sump gasket on the Audi A4.

The diagnosis

With the engine cleaned off and run, the leak traced to the sump gasket, oil weeping from the seam between the pan and the block, and the oil level sensor was reading erratically, confirmed faulty. The rest of the engine's seals checked out dry, so it was the sump gasket and the sensor. That's a reseal of the sump with a fresh seal, and a new oil level sensor while the pan's off and accessible.

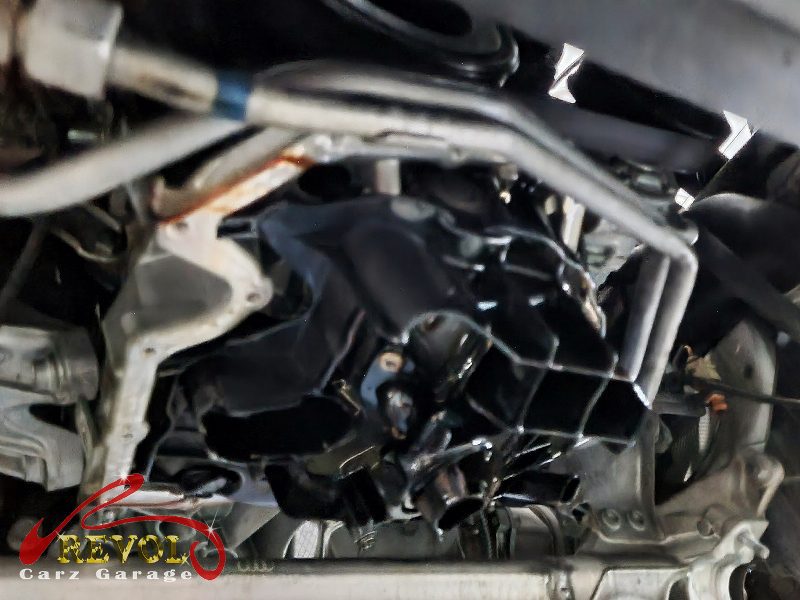

The sump pan removed showing the old gasket and the oil level sensor.

The work

The undertray came off, the oil was drained, and the sump pan unbolted and removed. The faulty oil level sensor was replaced with a new genuine Audi part, both mating faces on the pan and the block were cleaned right back, the oil pickup checked clear, and the sump refitted with a fresh seal to the manufacturer's spec, every bolt torqued in sequence. Fresh oil to level, and the engine run and checked warm for any weep. A road test confirmed the sump was dry, the level held, and the oil level reading was steady and correct.

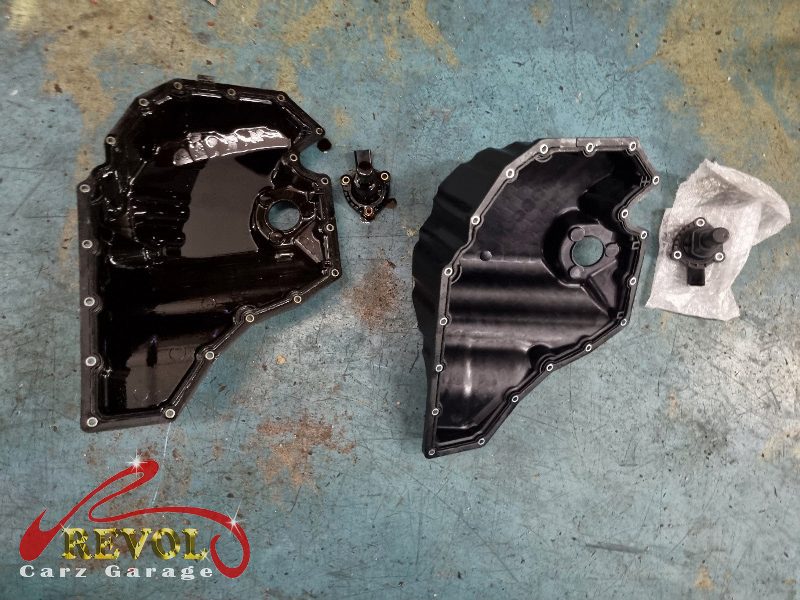

The new genuine Audi oil level sensor and a fresh sump seal ready to fit.

The outcome

No more oil under the engine, the sump sealed and dry, the oil level reading correctly, and the level holding between checks. The A4 went home with the leak resolved. A weeping sump gasket only worsens and a faulty level sensor leaves you guessing, so pulling the pan, resealing it properly and renewing the sensor sorted both at once.
