Audi Case Study · 125

Audi A3 oil separator, replaced.

An Audi A3 came in burning oil, smoking from the exhaust, idling rough with the check engine light on. The oil separator had failed. Replaced, the smoke and the rough idle gone.

Job done

Mechanical Repairs Engine Repairs Audi Specialist

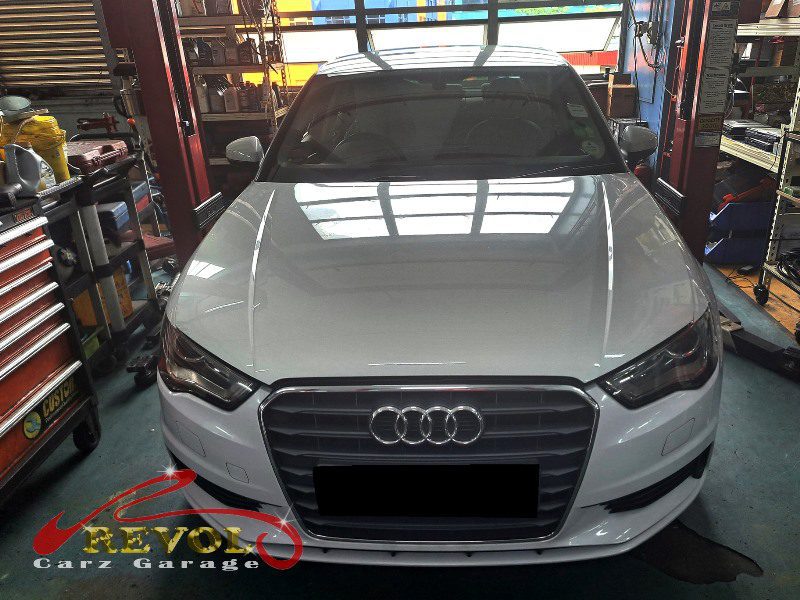

Audi A3 parked at the workshop, in for an oil separator diagnosis.

The brief

The A3 had a stack of symptoms going at once: bluish or grey smoke from the exhaust, oil disappearing faster than it should between changes, sluggish acceleration, a rough, uneven idle that occasionally threatened to stall, and the check engine light on. He brought it in. That combination points squarely at the oil separator in the crankcase breather. As the engine runs, oily mist builds up inside the crankcase, and the breather system vents that back into the intake to be burned cleanly, with the separator catching the oil so only the gases go through. When the separator fails, raw oil mist gets pulled straight into the intake and burned, that's the smoke and the oil consumption, and the failed unit upsets the crankcase pressure, which roughens the idle and trips the light. A failed oil separator doesn't recover, so it needs replacing.

Diagnostics on the Audi A3 showing the crankcase ventilation fault codes.

The diagnosis

Diagnostics confirmed it, fault codes for the crankcase ventilation system and a lean mixture, and a check showed the separator wasn't holding pressure as it should, pulling oil through the breather into the intake. The intake, the injectors and the rest of the engine checked out, the oil burning was coming through the breather, not past the rings. That's a replacement. The separator and its diaphragm are sealed into the breather unit, you don't rebuild it on the car, so the call was a complete unit.

The old oil separator removed from the engine.

The work

The old oil separator was removed and a new genuine Audi-spec unit fitted with fresh seals, the breather hoses checked over while everything was apart. Then the fault codes were cleared and the engine's fuelling adaptations reset so it could relearn against a breather system that was working. A road test confirmed a steady idle, no smoke from the exhaust, the light staying off, and the response back.

The new Audi-spec oil separator ready to fit.

The outcome

Steady idle, clean response, no smoke from the exhaust, no warning light, and the oil consumption back to normal. The A3 went home running properly again. A failed oil separator quietly feeds the engine its own oil and keeps the idle unhappy the longer it's left, so changing it and letting the engine relearn put the running right.
