Audi Case Study · 131

Audi A1 front shock absorbers, replaced.

An Audi A1 came in riding rough, bouncing over bumps, swaying through corners, with uneven tyre wear. The front shock absorbers were worn out. Pair replaced as a set, settled again.

Job done

Mechanical Repairs Suspension Audi Specialist

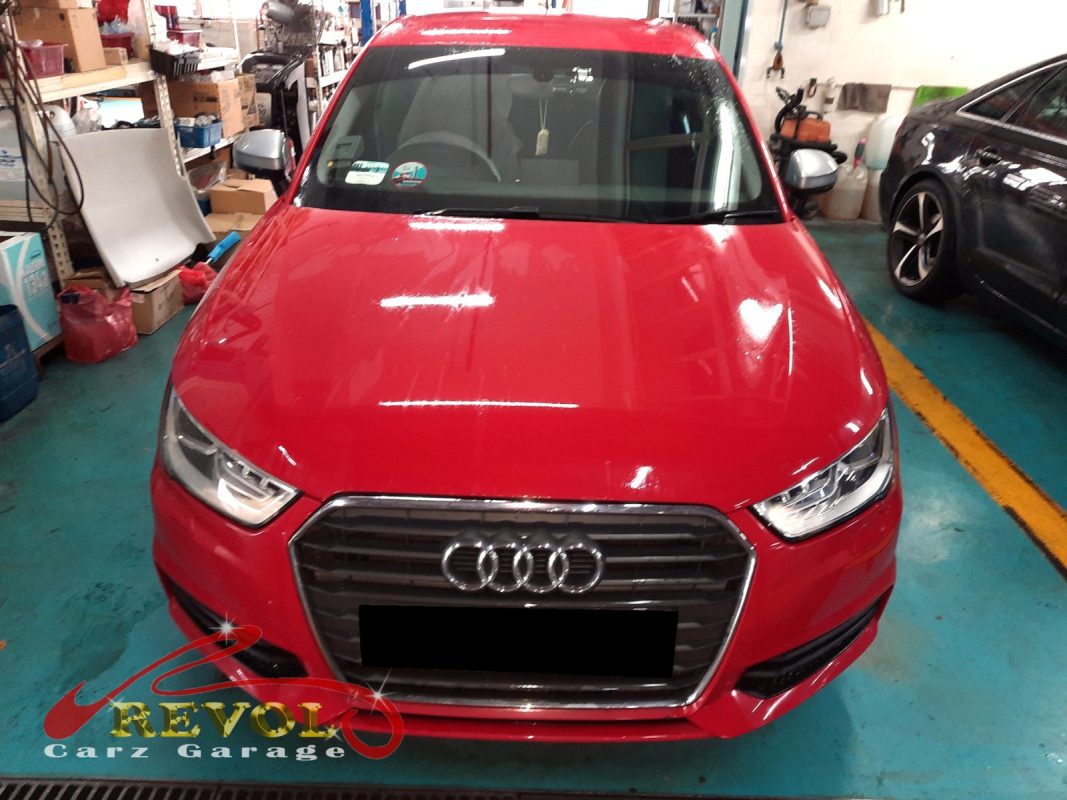

Audi A1 parked at the workshop, in for front shock absorber inspection.

The brief

The A1 had gone choppy: a rough, bumpy ride, bouncing on after every bump instead of settling, leaning through corners, and the front tyres wearing unevenly. He brought it in. That's worn front shock absorbers. The shock, or strut on the front of these, is what damps the spring, it stops the car carrying on bouncing after a bump and keeps the tyre pressed on the road through corners and over rough surfaces. As it wears, the damping fades, so the body floats and bounces, it sways more in corners, and the tyre skips along instead of staying planted, which is the uneven wear. Shocks fade gradually so you get used to it, but it's a ride-quality and a grip issue, so worn ones need changing.

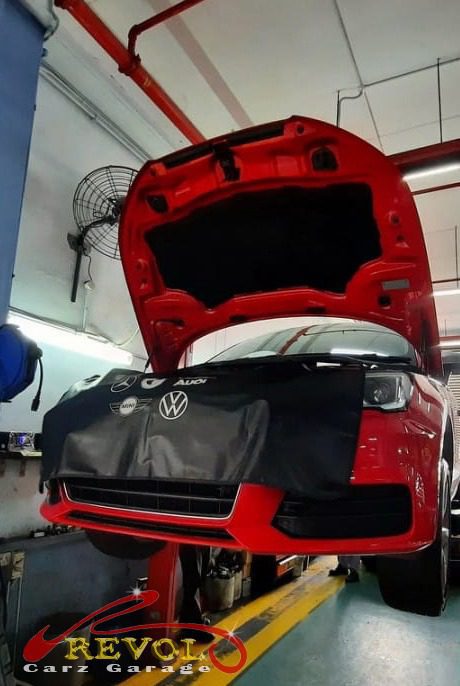

The worn front shock absorber on the Audi A1, weeping and weak.

The diagnosis

On the lift each front shock got a bounce-and-inspect. Both were past it, weak damping, weeping, the body carrying on after a push instead of settling in one. The rears were still doing their job, but a worn shock makes the matching corner's tyre work loose, hence the wear pattern. When the pair on an axle have gone together, you do them as a set, a fresh shock next to a tired one gives you a car that handles differently side to side, so the call was both fronts.

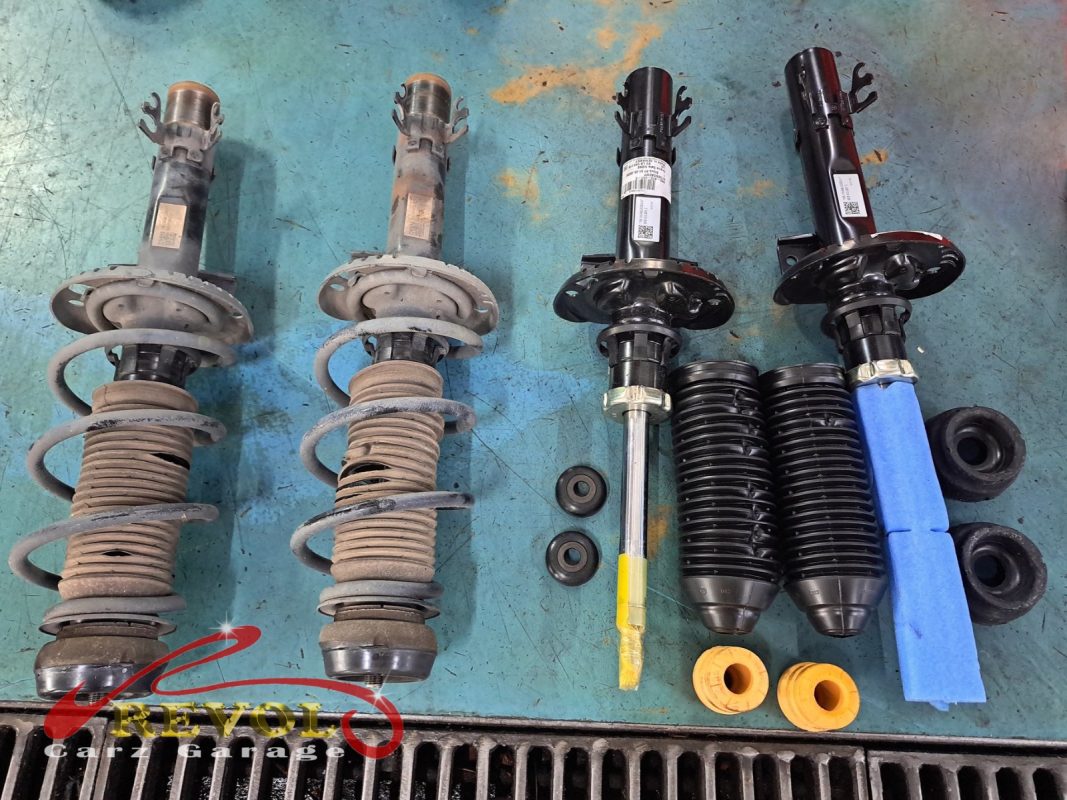

Both old front struts removed and lined up against the new pair.

The work

Both front struts were unbolted and removed, and a new genuine Audi-spec pair fitted, with the top mounts checked and renewed as needed, every fastener torqued to the manual figures. With both sides back together, the front geometry was checked and set so the new shocks weren't fighting a misaligned corner. A road test confirmed the ride had settled, no float, no excess sway, the front planted again.

The new Audi-spec front struts ready to fit.

The outcome

A composed ride, the body settling in one motion after a bump, flat and stable through corners, and the front tyres back to wearing evenly. The A1 went home riding properly again. Worn shocks only get softer and they take tyre life and grip down with them, so doing the pair as a set reset the front end rather than leaving one side lagging the other.
