Audi Case Study · 155

Audi A5 parking brake button, replaced.

An Audi A5 came in with the electronic parking brake not engaging reliably and a warning on the dash. The parking brake button had failed. Replaced and the system reset.

Job done

Electrical Repairs Brakes Audi Specialist

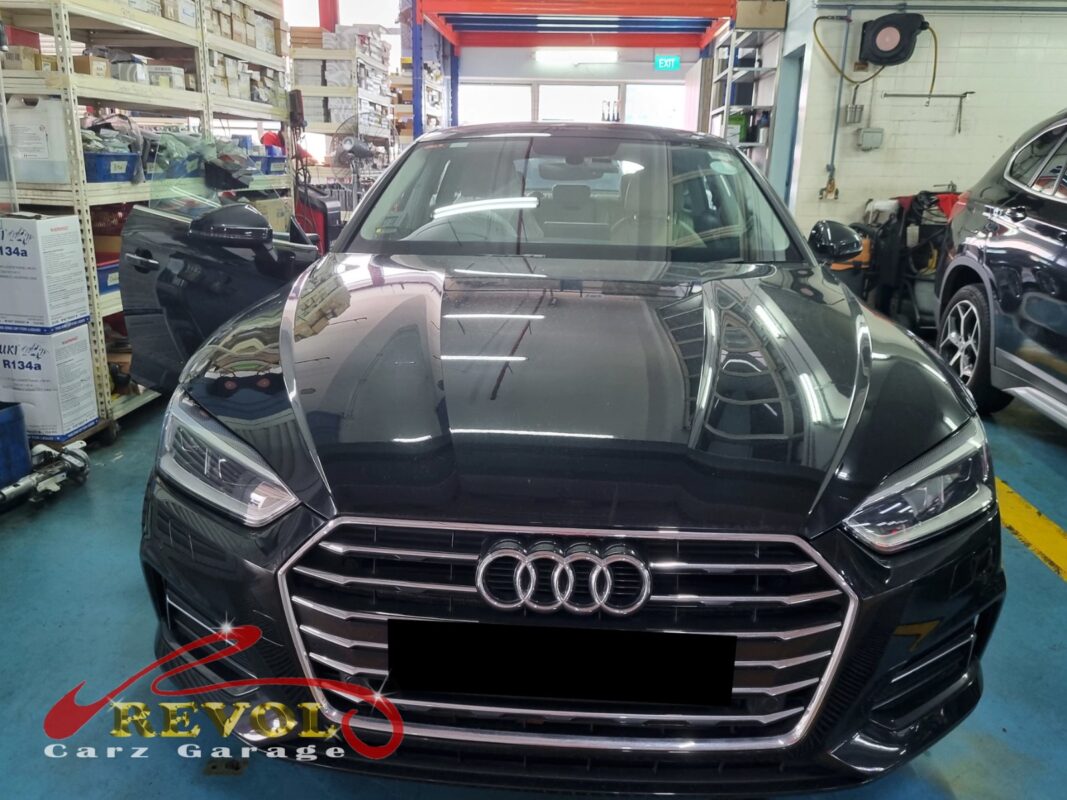

Audi A5 parked at the workshop, in for parking brake button replacement.

The brief

The A5's electronic parking brake had got unreliable, sometimes not engaging or releasing on the first press, with a warning coming up on the dash. He brought it in. On these the parking brake is electronic, applied and released by motors at the rear wheels, and you operate it with a button in the centre console. That button is a switch like any other, and over time the contacts inside it wear and it stops sending a clean signal, so the system doesn't respond reliably and flags a fault. The brakes themselves are fine, it's the switch that's not telling them what to do. A parking brake you can't trust is one you fix, so it came in.

The diagnostic scan showing the parking brake switch fault on the Audi A5.

The diagnosis

A scan showed the fault sitting with the parking brake switch input, not with the brake motors or the calipers, and a check of the button confirmed it was giving an intermittent signal, dropping in and out when pressed. That's a switch replacement. You don't rebuild the button, so the unit gets changed and the system reset.

The old parking brake button removed from the console.

The work

The trim around the parking brake button was removed, the old switch unplugged and taken out, and a new genuine Audi-spec parking brake button fitted, the connector clicked back home and the trim refitted. Then the stored fault was cleared and the parking brake cycled on and off several times on the scanner to confirm the new switch was registering cleanly. A check confirmed the parking brake engaged and released first time, every time, with no warning.

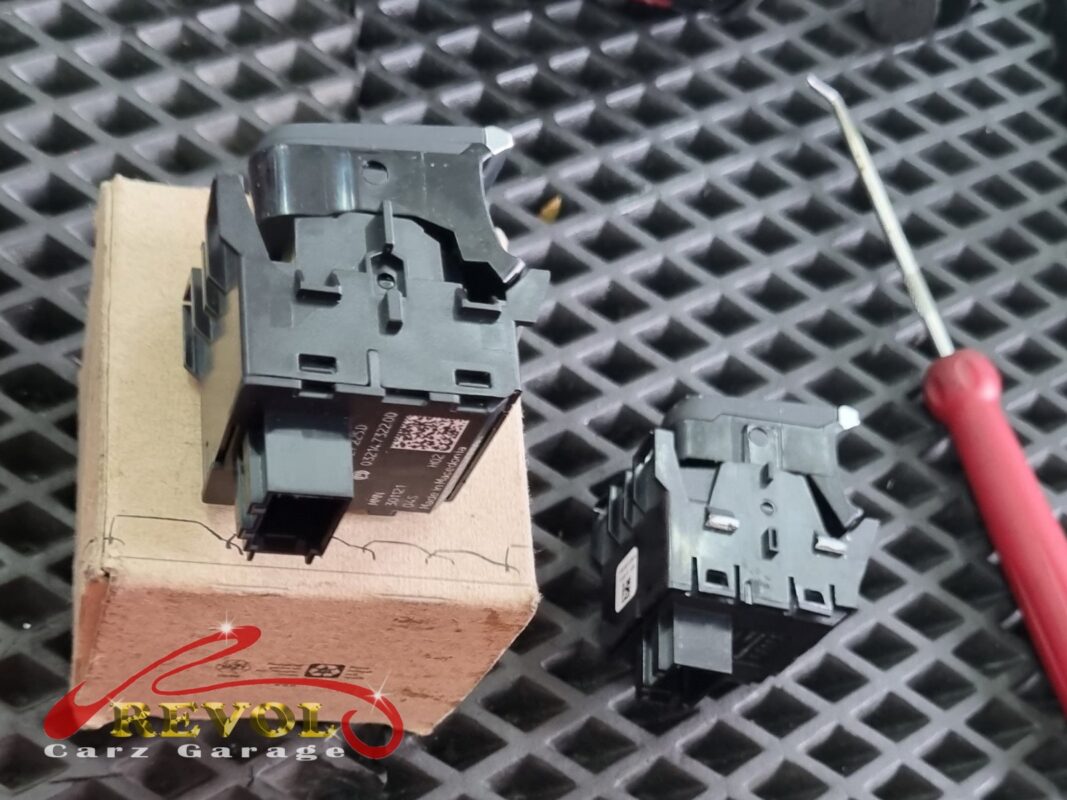

The new Audi-spec parking brake button ready to fit.

The outcome

The parking brake engaging and releasing reliably on the first press, and the dash warning gone. The A5 went home with the parking brake working as it should. A flaky parking brake switch is the kind of thing that's easy to keep wrestling with until it leaves you stuck, so swapping the button and resetting the system put it right for good.
