The brief

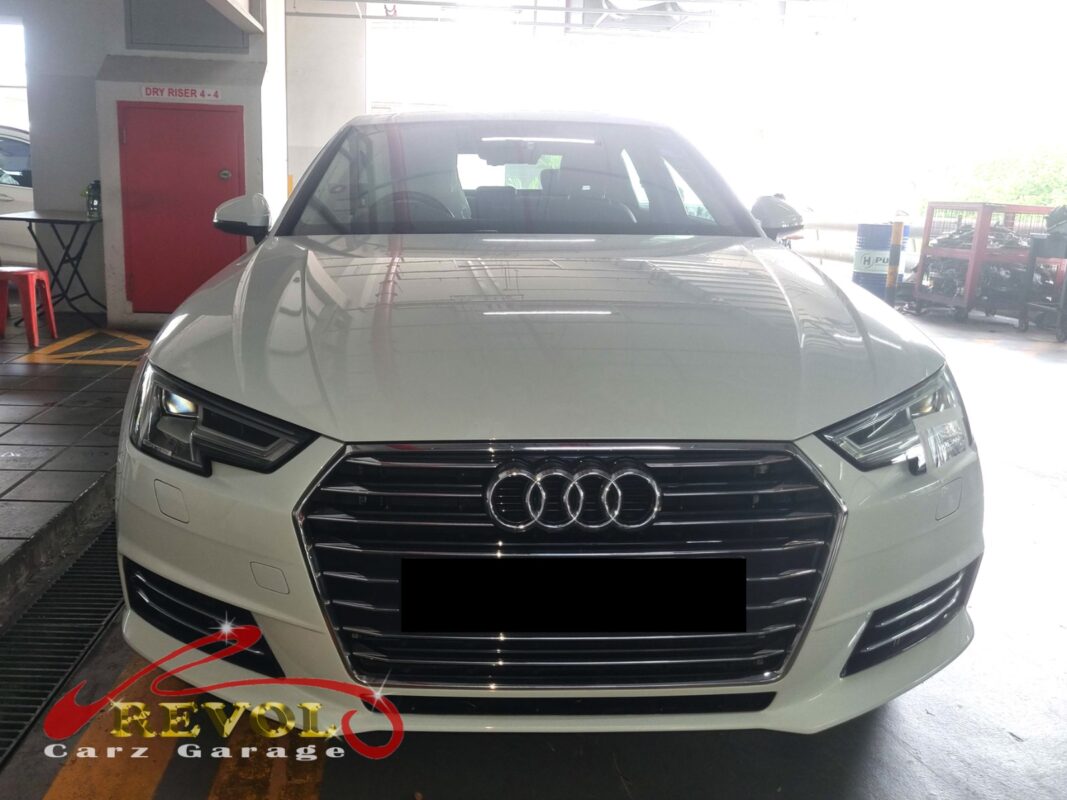

The A4's owner had been finding small reddish-brown drips under the gearbox area. The shift from first to second had grown hard under light throttle. And the ATF dipstick was reading below the low mark when warm.
Three symptoms, all about the gearbox. Reddish-brown fluid is automatic transmission fluid, ATF, so a drip of that colour under the gearbox is a transmission leak. A hard shift and a low fluid level follow: a gearbox running low on ATF cannot build proper hydraulic pressure for clean shifts.
The leak was the root of it, and it needed finding before the level dropped far enough to damage the transmission.
The diagnosis

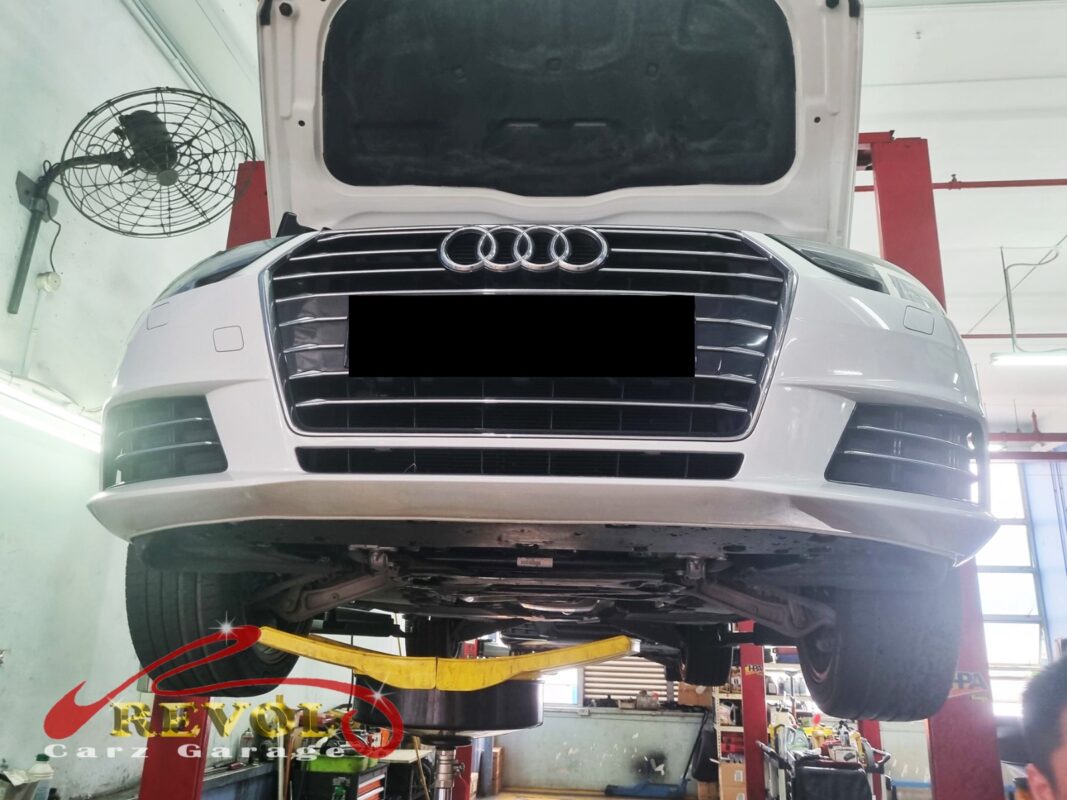

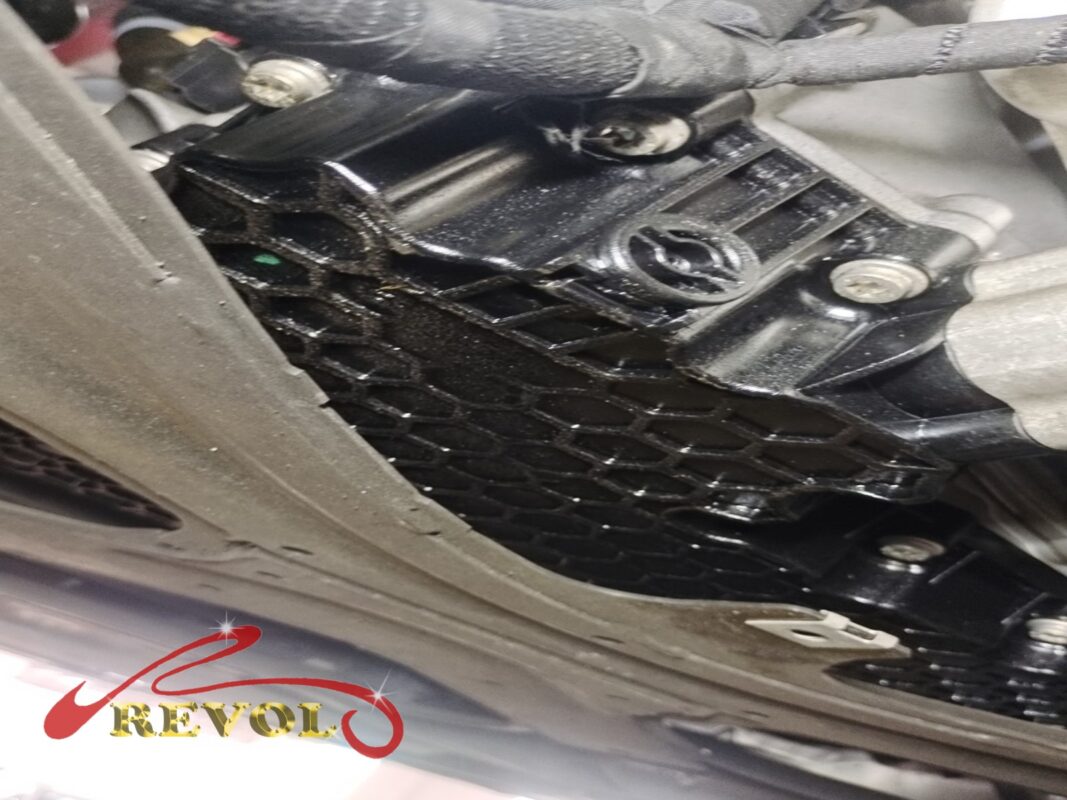

On the lift, the leak traced to the ATF pan gasket, with a couple of the pan bolts having loosened over time and a small distortion at one bolt seat, which is a common ageing issue on these plastic pans.
That made the call straightforward. The pan was no longer sealing reliably, and a re-torque alone would not fix a distorted seat. With the pan coming off anyway, replacing it as a unit, and replacing the integrated filter at the same time since it lives inside the pan, was the right scope. A pan-off job that does not also do the filter is leaving easy value on the table.
The work

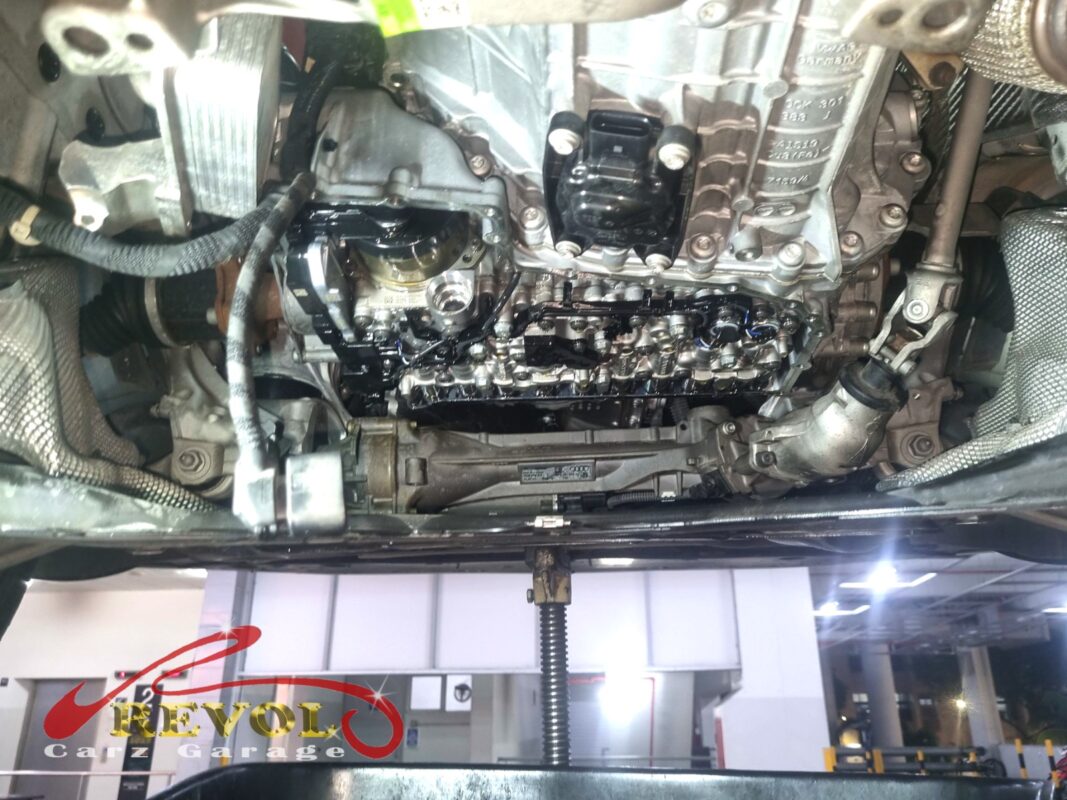

Drained the ATF, dropped the pan, and cleaned both mating surfaces.

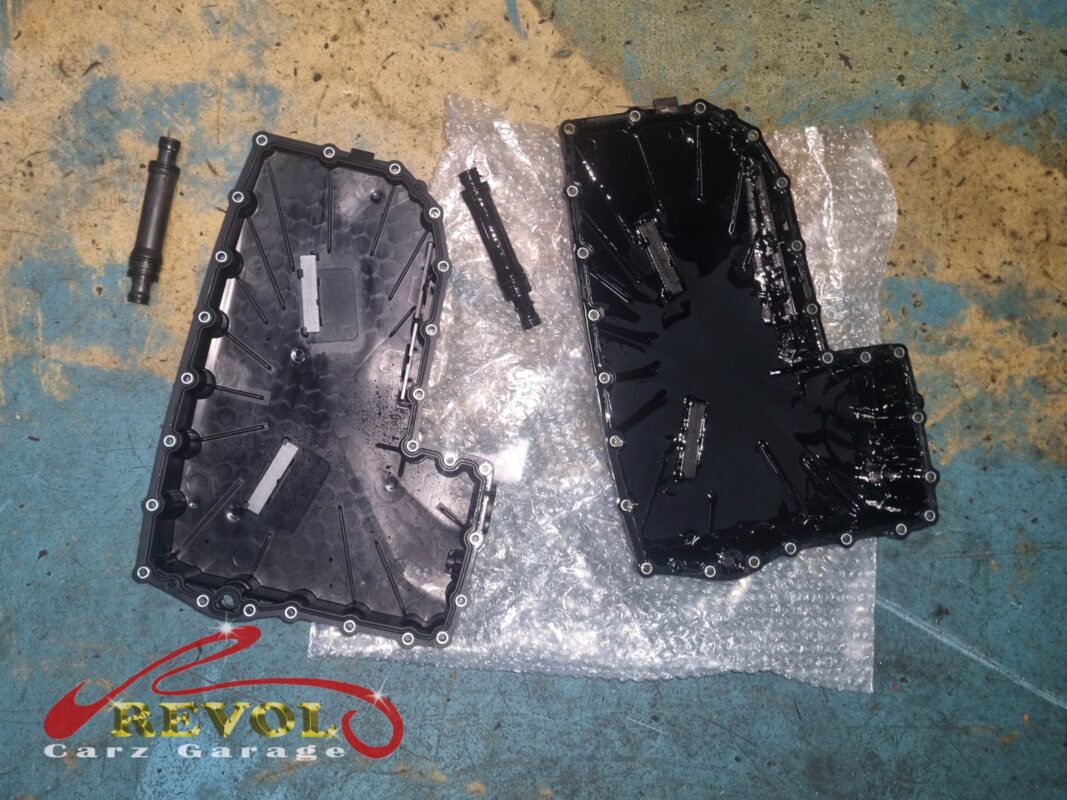

Fitted a new VAG-spec ATF pan with its integrated filter and a fresh seal, torqued to spec. Refilled with the correct ATF spec to the right level, set on a warm setpoint, because ATF level on these gearboxes is checked at a specific fluid temperature, not just by eye.
Then ran the gearbox adaptation routine on the scanner, so the transmission control unit re-learned a clean shift map rather than working from the old worn one. That step is what gets the shifts feeling right again rather than just stopping the leak.
The outcome
Pan dry, no leaks. The shifts smoothed out across the rev range, including that first-to-second change under light throttle. Adaptation re-learned.
The A4 went home with the gearbox sealed and shifting properly again. For the owner, that means no more drips under the car, no more hard shift at low speed, and a transmission that is being run with the right amount of clean fluid rather than slowly starving.
Catching an ATF leak at the drip-and-hard-shift stage is the cheap version of this story; running a gearbox low on fluid is the expensive one.
