Audi A4 engine and gearbox mounts, replaced.

An Audi A4 came in with the engine moving around and vibration through the cabin. The mounts had hardened and sagged. Full set replaced, the shake gone.

Job done

Mechanical Repairs Suspension Audi Specialist

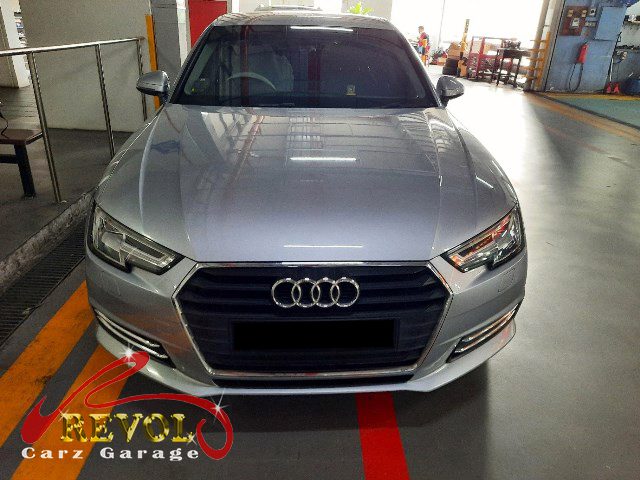

Audi A4 parked at the workshop, in for engine and gearbox mount replacement.

The brief

The A4 had developed bad vibration through the cabin and you could see the engine move around more than it should. He brought it in, the right call, hardened or bad engine mounts only get worse and they can stress the parts around them. The engine and gearbox sit on rubber mounts that hold their weight and absorb the shake, keeping it out of the cabin. As the rubber ages it hardens, sags and cracks, and once it does the drivetrain moves around more than it's meant to: the vibration comes straight through, the engine note climbs in the cabin, and the slack lets it knock against its stops. Mounts that have gone together produce exactly that, so they need changing as a set.

The hardened, sunken engine mount with cracked rubber on the Audi A4.

The diagnosis

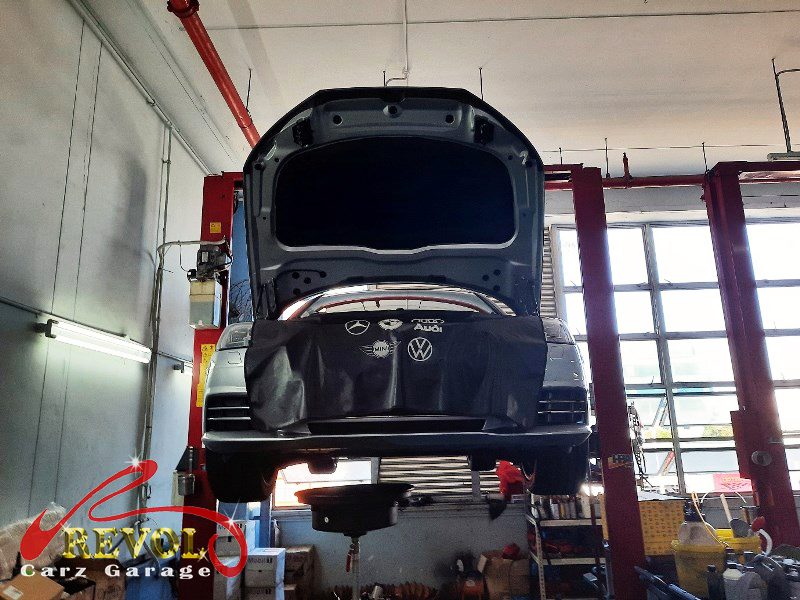

On the lift each mount got a pry-test. The engine mount and the gearbox mount had hardened and sunk with cracked rubber, the play obvious under load. All of the drivetrain mounts were tired at the same time. When they go together like that, you do them as a set, fitting one fresh mount next to a sagging one just loads the new one harder, so the call was the full set.

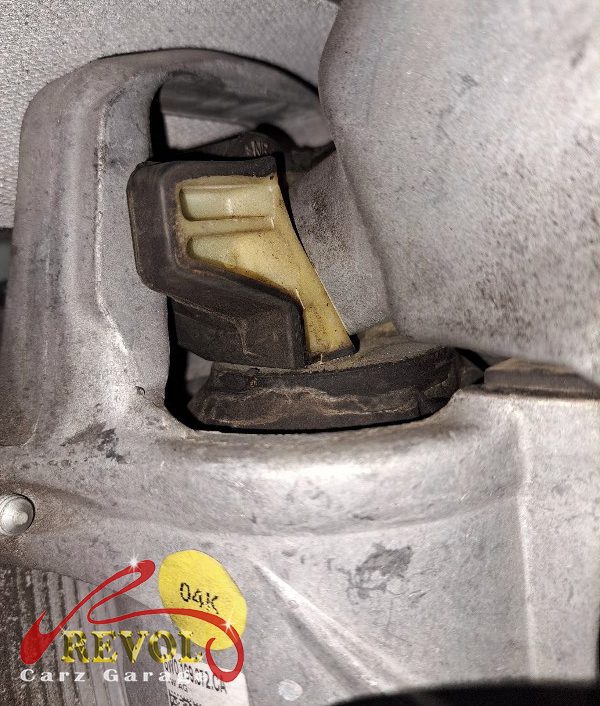

The gearbox mount removed showing the play under load.

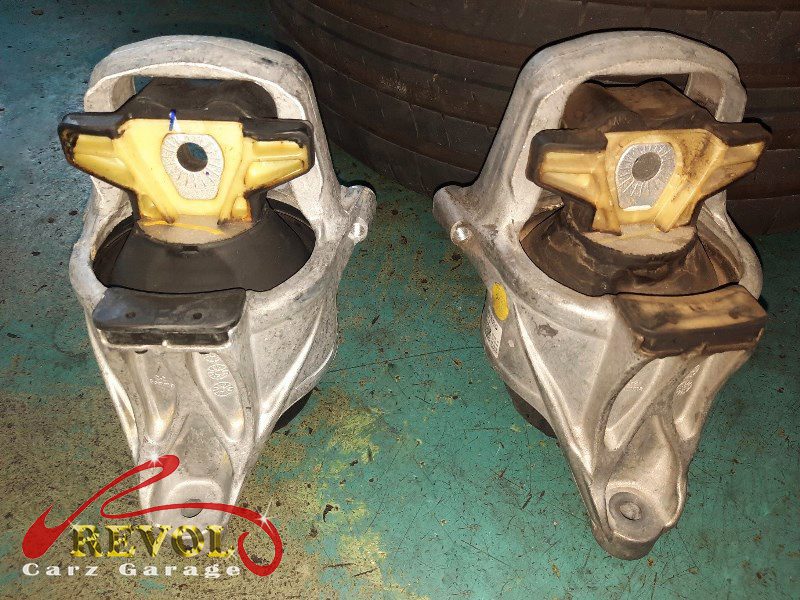

The new genuine Audi-spec engine and gearbox mounts ready to fit.

The work

The engine and gearbox were taken onto transmission jacks to take their weight, and each tired mount came off in turn. New genuine Audi-spec mounts went in across the set, every fastener torqued to the manual figures. With everything bolted up, the drivetrain was checked to be sitting square in the bay before the engine was let down to load onto the fresh mounts. A road test confirmed the vibration was gone.

The new mounts installed and the drivetrain aligned in the bay.

The outcome

Smooth at idle, no clatter on shifts or over bumps, no vibration through the cabin, and the engine note back to normal. The A4 went home with the drivetrain held properly again. Engine and gearbox mounts wear as a set and they take the rest of the drivetrain's refinement down with them, so doing the whole set together resets the lot rather than chasing the next sagging one a few months later.

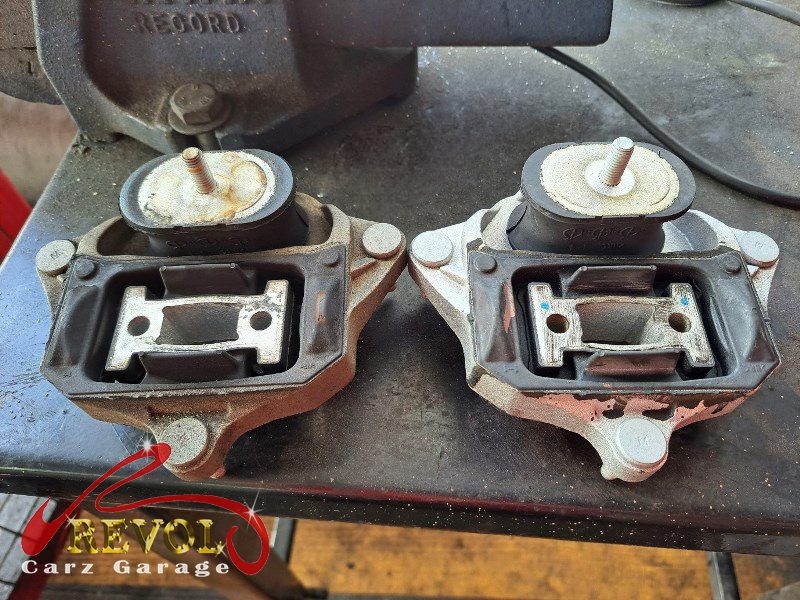

The drivetrain settled on the new mounts.
