BMW Case Study · 114

BMW 116d ABS sensor, replaced.

A BMW 116d came in with the ABS warning light on and the anti-lock system deactivated. A wheel speed sensor had failed. Replaced on the affected corner, the system back online.

Job done

Mechanical Repairs Brakes BMW Specialist

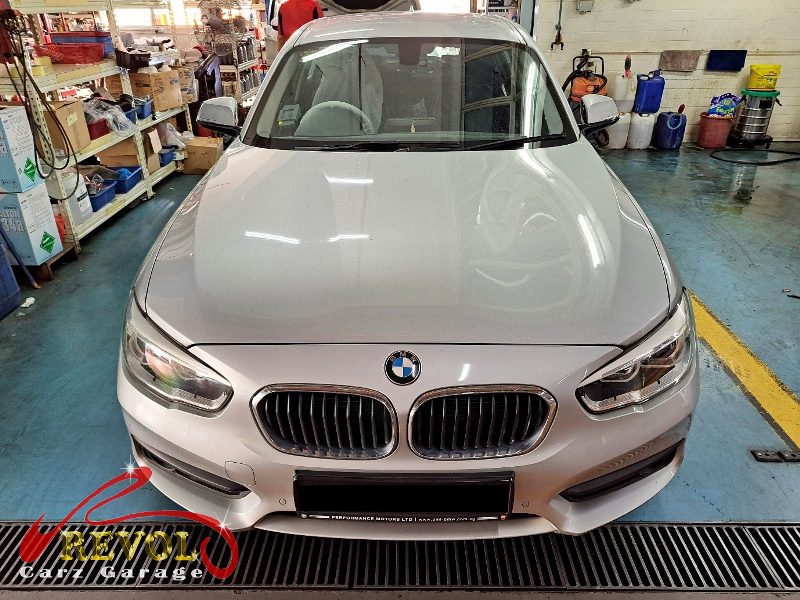

BMW 116d parked at the workshop, in for an ABS sensor diagnosis.

The brief

The 116d had its ABS warning light on, and with it the anti-lock braking deactivated, so it was down to plain brakes. He brought it in, which is the right call, ABS is a safety system and a warning means it's offline. The usual cause is a wheel speed sensor. There's one at each wheel, and they tell the ABS module how fast each wheel is turning so it can step in if one locks under hard braking. The sensors sit down by the hubs, exposed to heat, water and road grime, and they fail, the element going or the wiring corroding. When one stops giving a clean signal the module can't trust the data, so it shuts ABS down and lights the dash. A failed sensor doesn't recover, so it needs replacing.

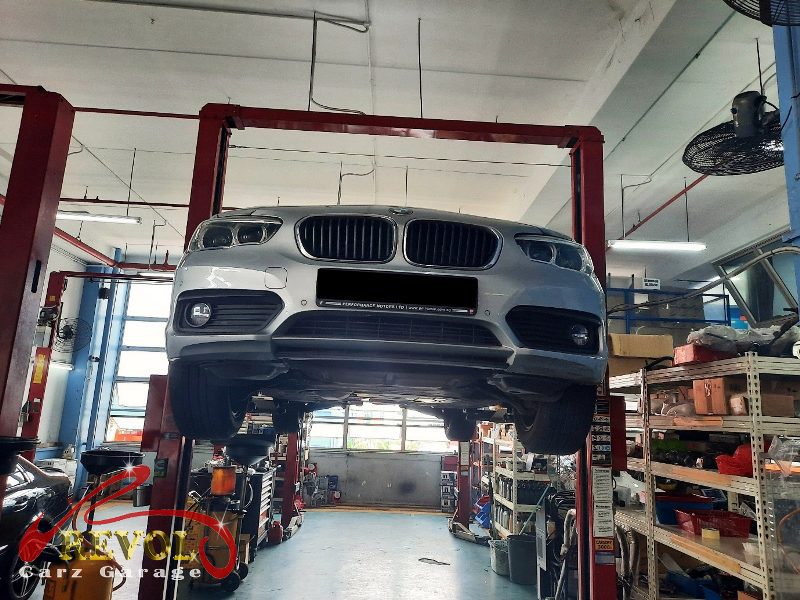

Diagnostic scan on the BMW 116d pointing to the failed wheel speed sensor.

The diagnosis

A diagnostic scan pulled the fault straight to a wheel speed sensor on one corner, no clean signal coming from it, which is exactly what trips the ABS light and deactivates the system. The other three sensors and the brakes themselves checked out, it was that one sensor. That's a sensor replacement on the affected corner, you don't repair a failed speed sensor, so the call was a new genuine sensor, fitted and the codes cleared.

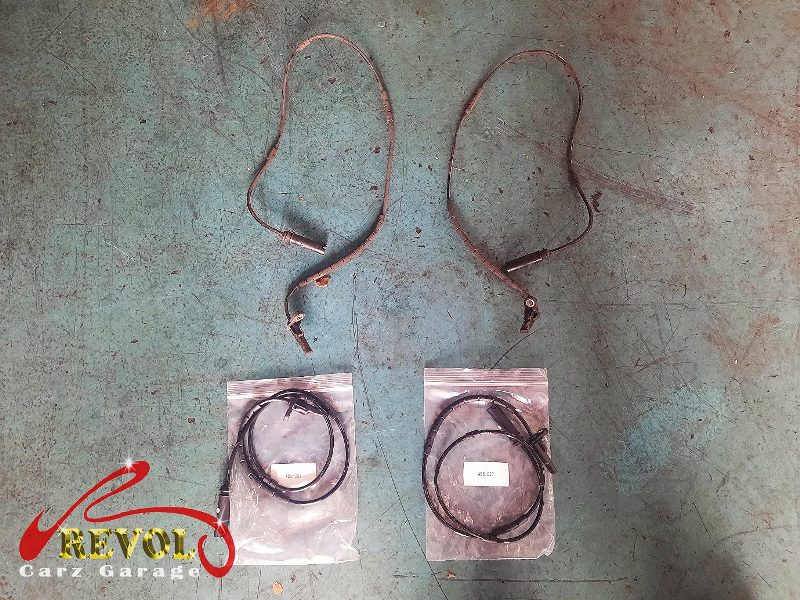

The old ABS sensor removed from the hub.

The work

The wheel came off, the failed ABS sensor was removed from the hub, the mounting cleaned up, and a new genuine BMW-spec wheel speed sensor fitted and routed properly so the wiring's protected. The system was scanned to confirm a clean signal from all four wheels and the stored ABS codes cleared. A road test confirmed the ABS warning light stayed off and the anti-lock system was active again.

The new genuine BMW-spec wheel speed sensor ready to fit.

The outcome

No ABS warning, the anti-lock braking back online, and a clean signal from every wheel. The 116d went home with the safety system working again. A failed wheel speed sensor takes ABS offline until it's fixed, so changing it on the affected corner and clearing the codes put the braking system back where it should be.
