Mr. Lim BMW 520i having air con not cold and many including Mr. Lim might thought it is the air con compressor.

With BMW original handset, our BMW specialist are able to narrow down accurately and nail down the issue.

We replaced the Blower motor resistor and the air con is back to its usual coldness.

Extra tips do check on your air con blower cover during every car servicing to ensure it is not worn else unwanted dirt will trap inside the air con filter.

At Revol Carz Garage, you can be sure we always have your interest in mind!

Car returned to Mr. Lim with a Complimentary car wash and vacuum done.

Nick BMW 135i was having an engine check light and needed a car servicing too!

The engine check light is on.

At times even with a BMW original handset, you still need BMW experience to ensure we nail the issue accurately to prevent unnecessary replacement.

The engine check light is trigger when there is irregular air fuel ratio mixture, hence our experience BMW specialist detected the air leak from one of the turbo air hose.

During our full safety check, we also discover the wiper pump bush is faulty too and we get them replaced as well.

Car returned to Nick with a Complimentary car wash and vacuum done.

Mr. Dennis BMW X3 come over for car servicing with complain of power loss at times.

After scan, it revealed the air mass sensor is having issue. But we also discover a FRM fault code registered which in normal cases indicate the FRM is faulty.

We replaced the air mass sensor as it is revealed it is having issue.

Like reminding you to replace your air con filter when it’s badly needed!!!

Mr. Clarence BMW 520i complained vibration during cold start and also while driving.

Our BMW specialist hoisted the car and checked the usual engine mounting and gearbox mounting.

Replaced the sinked engine mounting.

And the worn gearbox mounting.

As Clarence car is reaching a 5 years mark hence battery replacement is done as well to prevent the car not able to start.

Always take note it is a MUST to perform an IBS registration after battery change to ensure the algorithm is being reset back to optimal charging voltage for the specified battery to prevent overcharging.

Eugene BMW x5 was having an engine fault.

Engine fault displayed on the screen.

An engine haul will be need to ensure the full performance of the car.

The BMW N55 engine is being brought down swiftly by our BMW specialist.

The engine overhaul begins.

The N55 timing chain.

More stripping are needed to ensure the engine piston rings are able to removed and replaced.

When we say engine overhaul we are serious to ensure all carbon are being cleaned off to ensure a brand new engine feel which we stripped bare to the block.

And we meant it with thoroughly washing.

The main culprit oil pump replacement.

Professional installation with warranty assured.

Car returned back to Eugene with a Complimentary car wash and vacuum.

Mr. Lawrence drop by our workshop with signs prompting to top up engine oil.

Our BMW specialist discover the engine oil level sensor have worn and engine oil is leaking which caused it having issue.

We replaced the engine oil level sensor and all works fine now.

Lawrence car battery is close to 5 years and we get it replaced with BMW original Battery as well before it have issue starting.

Always take note it is a MUST to perform an IBS registration after battery change to ensure the algorithm is being reset back to optimal charging voltage for the specified battery to prevent overcharging.

Car returned to Mr. Lawrence with a Complimentary car wash and vacuum done.

Oil sump leak.

Flywheel and torque convertor oil seal leak.

Oil sump cover needs to be removed before the replacement of the oil sump gaske.

That is how a BMW 520i oil sump looked like if you have not seen it before.

The gearbox must be dropped down in order to replace the flywheel oil seal and torque convertor oil seal.

Torque convertor oil seal replacement.

New flywheel oil seal fitted.

Professional installation with warranty assured.

Mr. Eric BMW 5 series came to us with a parking brake fault code at our BMW servicing center on fine morning.

It shows the parking brake failure.

With BMW original handset we diagnosed the left parking actuator that is faulty.

We replaced with a brand new BMW actuator.

Car returned to Mr. Eric with a Complimentary car wash and vacuum done.

Mr. Chia BMW 316i came to our workshop with a heavy steering wheel.

In normal cases, replacing a wheel speed sensor will be able to resolve the job but for Mr. Chia case will need to replace the abs pump control unit.

Fault code reveal the non-usual wheel speed sensor fault code but he abs pump control unit.

Replaced the BMW abs pump and did a coding into the ecu system.

Car returned to Mr. Chia with a Complimentary car wash and vacuum done

Mr. Amit’s BMW 318i visited our workshop with concern having to see oil stains on the floor after parking.

Our experience BMW technician discover the leak from the flywheel oil seal.

The gearbox need to be dismantle before the flywheel oil seals replacement.

The flywheel connect between the torque convertor and the gearbox.

Can see the badly needed flywheel oil seal replacement.

Car returned to Mr. Amit with a Complimentary car wash and vacuum done.

Mr. Kelvin’s BMW 535i visited our bmw servicing center workshop for engine oil leakages issue.

We hoisted up the car and discover the engine oil sump is leaking.

The engine oil sump leaking traces.

The metal oil sump have to be removed before we can replace the oil sump gasket.

This is how the BMW 535i oil sump look like after the cover is begin removed.

Our company protocol is to wash every oil sump cover after it have been removed.

Kenneth sent in his BMW 520i for car servicing with slightly high than usual engine temperature.

Our eagle sharp eyes technician detected the worn fan belt and also the need to replace the coolant pump and thermostat which caused the usual high engine temperature.

Replaced the new coolant pump.

And the fan belt and tensioner too as if the fan belt break the car will be in a stalled mode.

Car returned to Kenneth with a Complimentary car wash and vacuum done.

Jackson’s car came to our workshop with unusual sound coming in the front.

We detected front absorber was losing pressure from the oil leakage.

And after a careful inspection due to the prolong uneven drive the anti-roll bar also need to be replaced in order to ensure no more sound in the front.

The new and used front absorber set.

New and used anti roll bar replacement.

Car returned to Jackson with a Complimentary car wash and vacuum done.

Mr. Su visited us for car servicing and also mention see lots of white smoke appearing in the rear.

With years of experience we narrow down and checked the oil separator which indeed is the culprit.

The new oil separator replacement.

Rear brake disc replacement is needed too.

With rear pad replacement too.

Car returned to Mr. Su with a Complimentary car wash and vacuum done.

Mr. Boo BMW 520i come to our workshop for car servicing and auto transmission fluid replacement.

The auto transmission oil pan is being replaced as well.

When reaches a higher mileage it is not a bad idea to replace the Engine Oil Cooler as a preventive measure.

Auto transmission Oil cooler is recommended to replace during the 2nd round of auto transmission fluid.

It is the mechatronic aka BMW gear control unit if you have not seen it before.

Mr. Alan’s BMW 640i is having a misfiring visited our workshop.

After checking, our experience BMW specialist confirmed the timing gear screw is having issue and work begin swiftly.

As expected the aluminum screw from the timing gear have broken and hence explain the misfiring due to irregular engine timing.

The new version however have recognized the problem and have been changed to metal screw which will not break so easily.

BMW Special tools is needed to reset back the engine timing variation.

As usual of our company protocol, we will wash clean the valve cover after removing it.

Car returned to Alan with a Complimentary car wash and vacuum done.

Royton sent his BMW 740i to our workshop with a transmission fault code.

Transmission fault code appearing on iDrive.

Our BMW specialist team swiftly proceed to beings works of the Mechatronic replacement.

This is the BMW and the old mechatronic if you have not seen it before.

Can see the difference between the new and used BMW mechatronic.

Car returned to Alan with a Complimentary car wash and vacuum done.

A BMW 520i arrives at Revol Carz Garage with mechatronics failures.

The car is lifted to access the mechatronics in the transmission box.

As the car left not many months to go we are confident to replace the just the mechatronic instead together of the valve body.

Mechatronics overhauling works in progress.

Old and new mechatronics plates lying side by side.

Valve body pistons awaiting replacement.

Mechatronics overhaul is successfully completed.

A BMW 730i arrives at Revol Carz Garage for a total gearbox overhaul.

Extensive cleaning works begins

The car is lifted for 360 degree undercarriage safety inspection.

This is how the ultra-cleaned interior of the gearbox looks after careful cleaning.

The whole gearbox is systematically dismantled from the car.

Here is another section of the gearbox after cleaning.

Components inside the gearbox are professionally dismantled.

The packing and repair kits are on standby for replacement. At Revol Carz Garage.

The old and new Mechatronic components sit side by side waiting for replacement.

The replacement of Mechatronic components in progress.

The Mechatronic components are now successfully installed.

A BMW X3 came to our workshop with air conditioning problems. A faulty car air conditioner can be difficult to diagnose and repair.

We lifted the BMW X3 to carry out a routine undercarriage safety inspection and preventive maintenance also.

Minor leaks of refrigerant in the air conditioning system are normal. However if the leak increases over time, you should consult your mechanic promptly.

Many of the modern models have external filters to keep the dust particles from reaching inside the car. But with time, these filters can get clogged and reduce the air flow. Good maintenance is making sure the filters are cleaned or replaced at regular intervals, especially if we live in a dusty place.

In the case of this BMW X3, we had to dismantle the dash board and steering wheel to replace the damaged parts.

The car air-conditioner gets a lot of usage but we may not think much about the compressor working overtime to bring us cool comfort.

The compressor does exactly what the name implies. It compresses refrigerant and sends it to your car’s air condenser.

A new original cooling coil at the right is ready for replacement. We don’t compromise on the quality of replacement parts.

All the parts are sensibly assembled back to its original positions with precision. It is also important that having a profession to fix back the parts carefully to prevent any unwanted loose noise.

After all the repair works are completed, we also provide a complimentary car wash and vacuuming of the interior.

A BMW X5 arrived at Revol Carz Garage.

The vehicle is lifted for repair works followed by thorough safety inspection.

The inexperienced technician from other workshop failed to place back the protective cover properly. The carelessness caused rain water to seep in and damaged vital electronic components.

Rain water flooded the battery compartment causing severe damages.

A rusted and damaged HKL Circuit Board model was damaged by water seepage.

The DME circuit board module was also damaged by water contamination.

The BMW had to be towed to our workshop as its automatic gears were failed to engage.

The transmission fault code is displayed.

Replacement of the auto transmission sensor includes replacing the auto transmission fluid and filter.

Resolving the gearbox issue promptly within the same day is as exhilarating for us as for the customer.

This feature ensures the vehicle offers a consistent height and maximum comfort ride.
Air suspensions however, are subjected to wear and tear over the years.

Some car owners may experience tilting or uneven level when the car is parked.

Some totally worn out air suspension will have error message displaying.

Can you see the difference between the new and used air suspension?

After replacement of the air suspension, we are glad the beautiful 7 series had revived its original comfort driving.

Car wash done and it’s ready for collection.

A BMW 520i showed up being towed to Revol Carz Garage for not able to start.

We take holistic diagnosis of the issue and confirm it is the EKPM (Fuel Control Pump Module) failure.The valve cover gasket is being checked for leaks.Some leakage occurred on the valve cover gasket.The new set of valve cover gasket (ready in the package) whilst the worn gasket set had been removed.

Which one is the new EKPM module? Answer: Yes the one at the right is original and brand new.The old and new fuel pumps are ready for exchange too.

With after all the failed components are professionally replaced and reprogrammed, the engine is cleaned and awaits our QC endorsement.

The BMW520i is ready for collection at Revol Carz Garage. The repair is completed in the fastest turnaround time and the BMW goes home with an after-repair guarantee.

The main culprit oil pump replacement.

Professional installation with warranty assured.

Car returned back to Eugene with a Complimentary car wash and vacuum.

Mr. Kenny’s BMW E90 arrived at Revol Carz Garage.

The starting process of the valve seal replacement.

Valve seals replacement in progress.

Revol Carz Garage has special tools and we use them for special project.

Let’s take a look at the new and used valve seal.

Engine Parts professionally fixed back and we are glad to be able to resolve the car owner issue at a small fraction rate as compare to an engine top overhaul!

Mr. Zuraimi’s BMW E60 arrived our workshop, he was also facing high engine oil top up issue.

Replacement of the valve seal begin swiftly.

Valve cover has to be removed before we could perform the valve seal replacement.

Replacing of the value seals require special tools and the correct expertise.

One of the many valve seals that is badly needed worn out.
The next issue that Mr. Zuraimi have is his gear oil leakage too. This is a bit tricky as the leakage after inspection tells a more complex issue more than just a worn out seal..

With our experience team technician, we make sure we get to the root of the problem and solve the problem once and for all.

Problem detected, a leaking transmission Oil pump.

Replacement of transmission oil pump O ring.

Using a professional caliper torque wrench will ensure better tightening results.

Our professional and friendly car washers ensuring all cars after repair are being washed clean before your collection!

BMW E60 Arrives at our Revol Carz Garage.

Replacement procedures of value seals in progress.

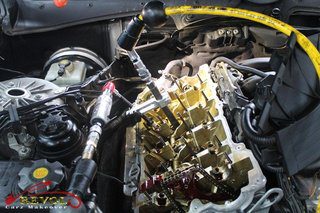

Exposing the internal part of the E60 engine.

Like in a surgery theatre, precision, skills and focus are required to extract the valve seals carefully.

Special tools are required to set the correct timing at the final steps.

The value seals are extracted.

At Revol Carz Garage, we ensure that reassembling the cover and every corresponding fastener is of paramount importance.

The replacement of valve seals job done.

It is our standard that the BMW E60 is washed, refreshed before collection!

The End results? – Another happy Customer problem resolved!
