The brief

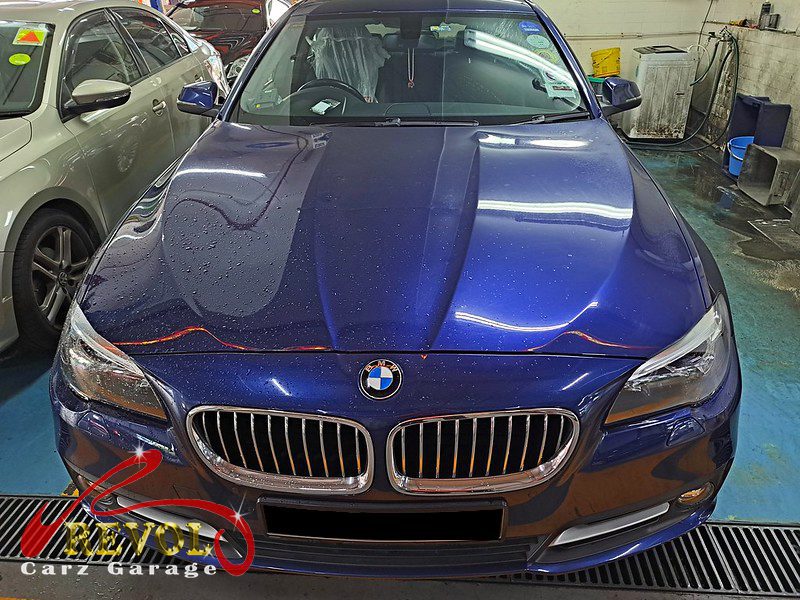

The 520i needed oil topped up between services, with a film building up on the underside of the engine. He brought it in, which is the right call, an oil leak only spreads, the loss adds up, and oil dripping onto hot parts is a smell and a fire risk you don't want. On these the oil filter housing gasket is a common source. The oil filter sits in a housing bolted to the side of the engine, and it seals to the block with a gasket. That gasket heat-cycles for years until it hardens and shrinks, and once it does oil seeps out the join, runs down the block, and drips, sometimes onto the exhaust where it burns and smells. A hardened housing gasket doesn't reseal itself, and the leak only gets worse, so the housing has to come off and go back on with a fresh gasket.
The diagnosis

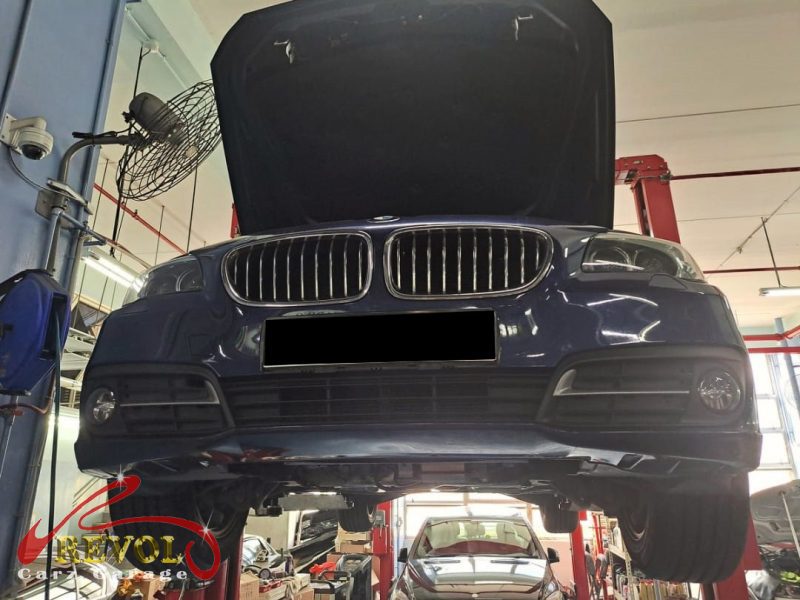

With the engine cleaned off and run, the leak traced to the oil filter housing gasket, oil weeping from the seam where the housing meets the block, running down from there. The valve cover, the sump and the rest of the engine's seals checked out dry, so it was the housing gasket. That's a reseal: pull the oil filter housing, clean both mating faces, and refit it with a new genuine BMW-spec gasket, every bolt torqued to spec.
The work

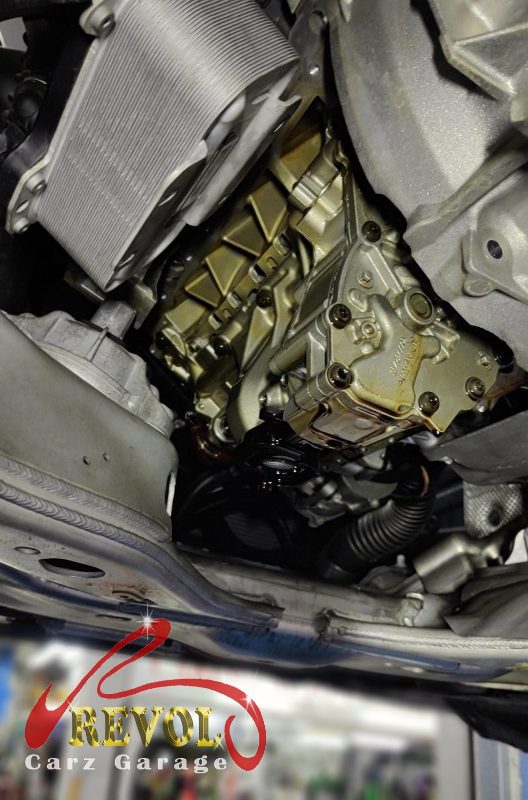

The bits in the way came off, the oil filter housing was removed, both mating faces cleaned back so the new gasket had a clean surface to seal against, and the housing refitted with a fresh genuine BMW-spec gasket, every bolt torqued in sequence. Fresh oil and a new filter to finish, and the engine run and checked warm for any weep. A road test confirmed the housing was dry and the level held.
The outcome

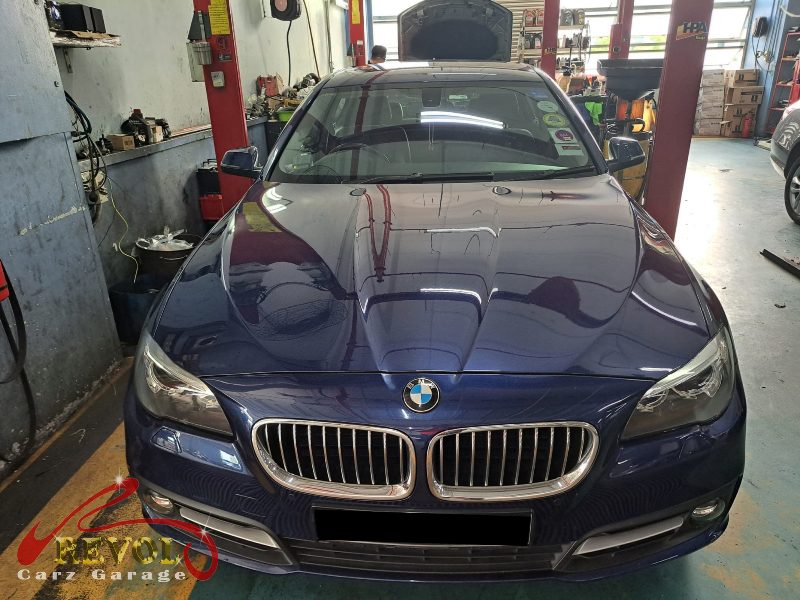

No more oil under the engine, the oil filter housing sealed and dry, no burning smell, and the level holding between checks. The 520i went home with the leak sorted at its source. A hardened housing gasket only worsens and quietly drinks oil, so pulling the housing and resealing it properly stopped the leak and kept the engine where it should be on oil.
