The brief
The 520i had picked up an unusual vibration through the cabin, the engine note had got louder, and the car felt less settled, with the odd clunk from the bay. He brought it in. That's the worn-engine-mount picture. The engine and gearbox sit on rubber mounts that hold their weight and absorb the shake, keeping it out of the cabin. As the rubber ages it sags and cracks, and once it does the drivetrain moves around more than it's meant to: the vibration comes straight through, the engine note climbs in the cabin, the car loses some stability, and the slack lets it knock against its stops. Mounts that have gone together produce exactly that, and left long enough the loose drivetrain stresses other parts, so they need changing as a set.
The diagnosis

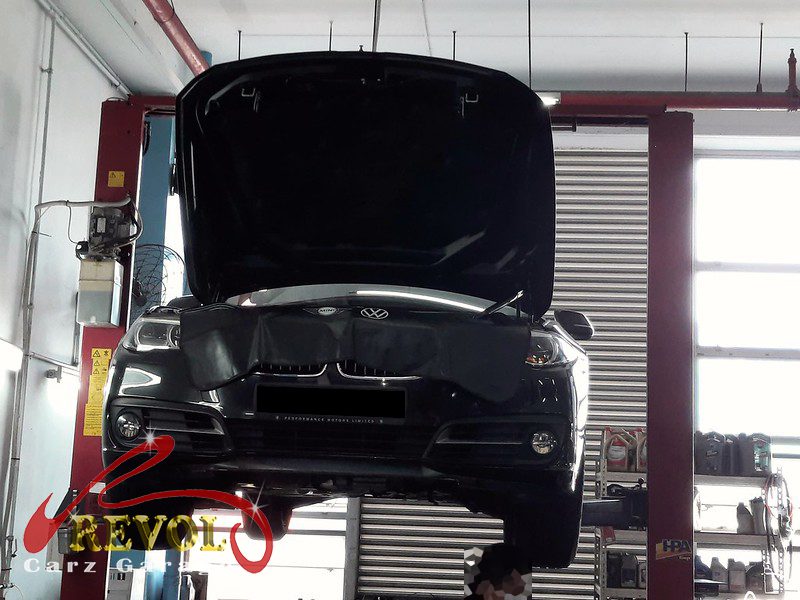

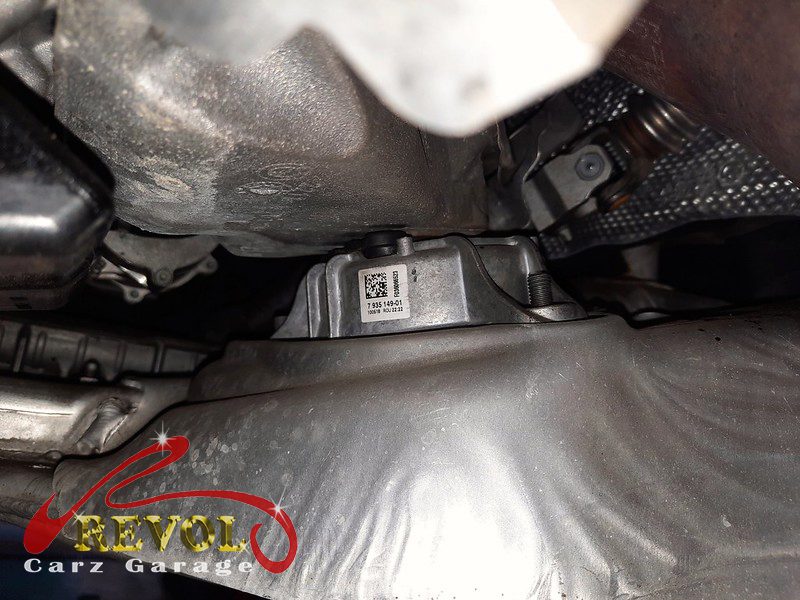

On the lift each mount got a pry-test. The engine mount and the gearbox mount had sunk visibly with cracked rubber, the play obvious under load. All of the drivetrain mounts were tired at the same time. When they go together like that, you do them as a set, fitting one fresh mount next to a sagging one just loads the new one harder, so the call was the full set.
The work

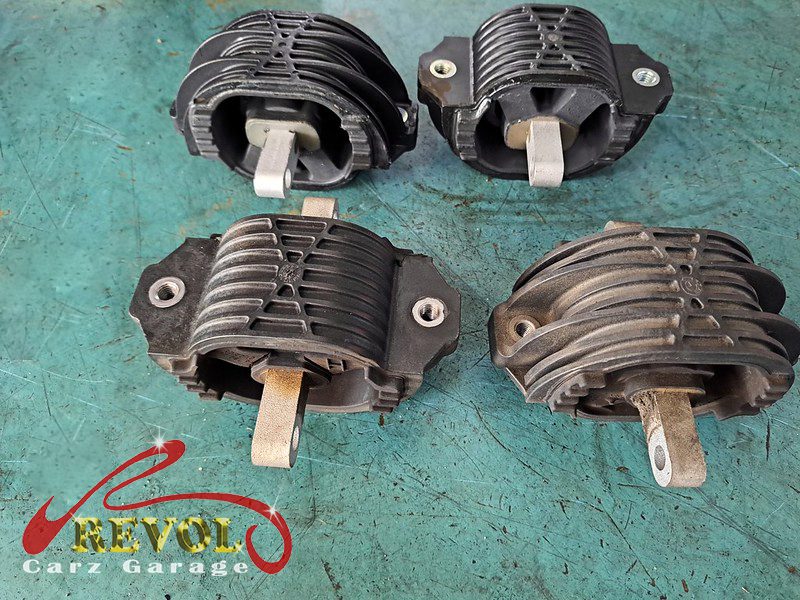

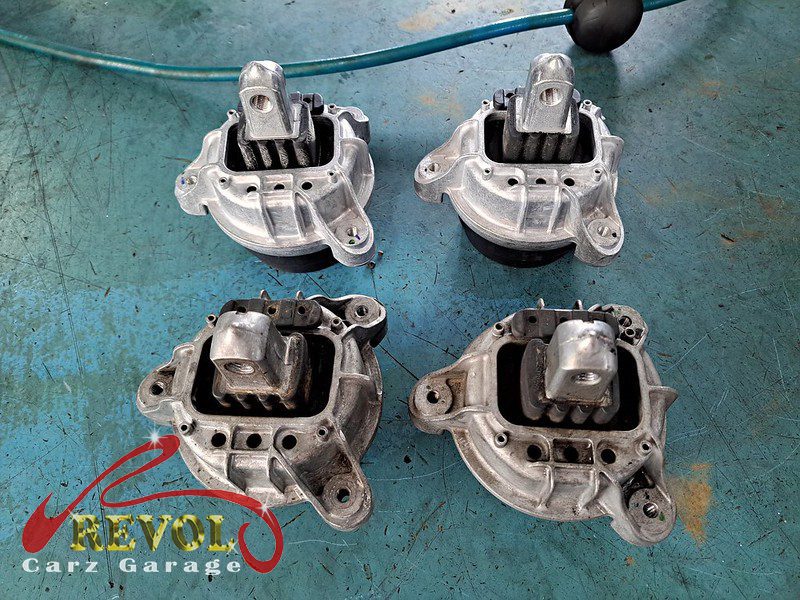

The engine and gearbox were taken onto transmission jacks to take their weight, and each tired mount came off in turn. New genuine BMW-spec mounts went in across the set, every fastener torqued to the manual figures. With everything bolted up, the drivetrain was checked to be sitting square in the bay before the engine was let down to load onto the fresh mounts. A road test confirmed the heavy vibration, the loud engine note and the clunk were all gone.
The outcome
Smooth at idle, no clatter on shifts or over bumps, no vibration through the cabin, and the engine note back to normal. The 520i went home with the drivetrain held properly again. Engine mounts wear as a set and they take the rest of the drivetrain's refinement down with them, so doing the whole set together resets the lot rather than chasing the next sagging one a few months later.
