BMW Case Study · 141

BMW 730i valve cover, replaced.

A BMW 730i came in with a burning oil smell from the engine bay. The plastic valve cover had warped and was leaking onto hot parts. Replaced with a fresh gasket, the leak stopped.

Job done

Mechanical Repairs Engine Repairs BMW Specialist

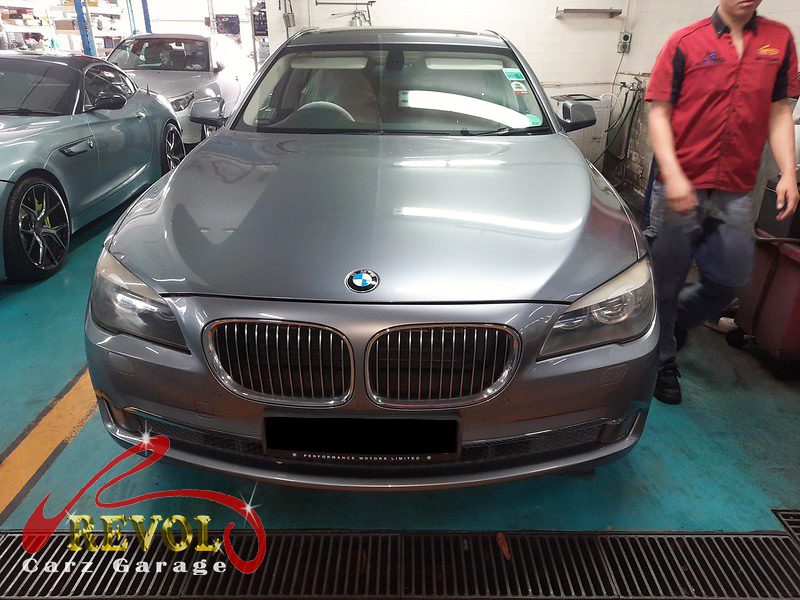

BMW 730i parked at the workshop, in for a valve cover oil leak diagnosis.

The brief

The 730i had a burning smell coming off the engine bay, the unmistakable scent of engine oil cooking on something hot, especially after a run. He brought it in. On these engines that smell usually points straight at the valve cover. The valve cover sits on top of the cylinder head and seals the top of the engine, keeping the oil in. On BMW it's made of plastic, and over years of heat cycling the plastic warps and the integrated gasket hardens, so the seal lets go and oil seeps out the edge. It runs down onto the exhaust manifold or other hot parts and burns off, which is the smell, and if it's left it can drip onto things it shouldn't and the oil loss adds up. A warped plastic valve cover doesn't reseal, so it needs replacing.

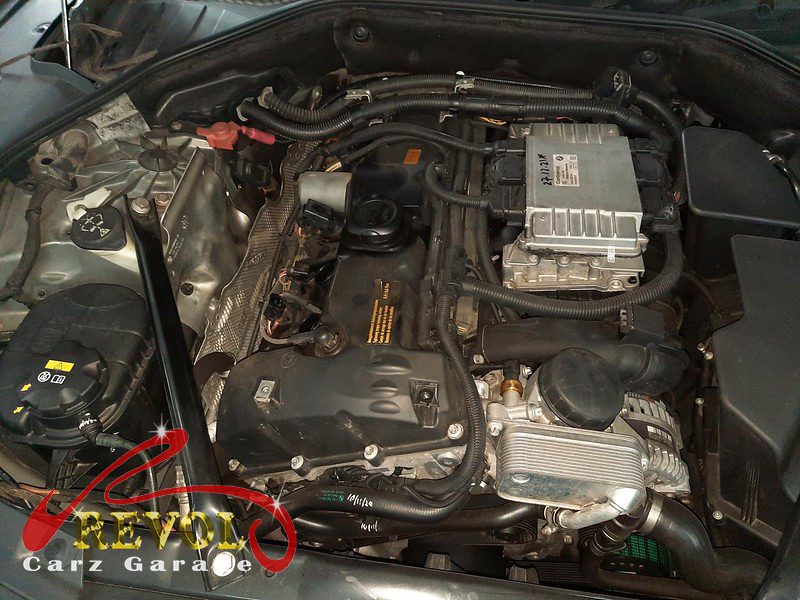

The oil weep traced to the valve cover seal on the BMW 730i.

The diagnosis

A check with the engine warm found it, oil weeping from the valve cover seal, running down onto hot parts where it was burning off and making the smell. The rest of the engine's seals, the oil filter housing, the sump, checked out dry, so it was the valve cover. That's a replacement. The cover is plastic and warped and the gasket is built into it on these, you don't reseal it, so the call was a complete cover with a fresh gasket.

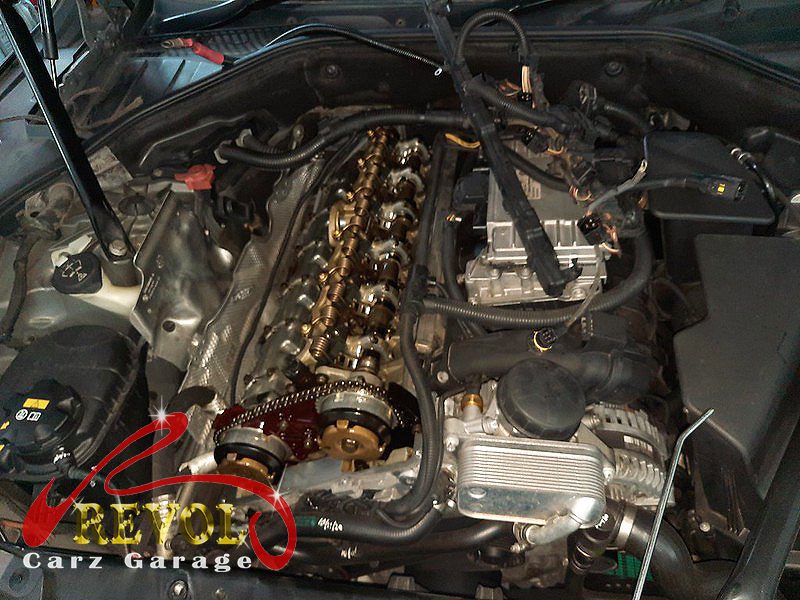

The old warped plastic valve cover removed from the cylinder head.

The work

The intake and the bits in the way came off, the old warped valve cover was removed, the mating face on the head cleaned up properly, and a new genuine BMW-spec valve cover fitted with its fresh gasket, every bolt torqued in sequence to spec so it seats evenly. The oil was topped to level and the engine run and checked warm for any weep. A road test confirmed the burning smell was gone and the cover was dry.

The new BMW-spec valve cover with fresh gasket ready to fit.

The outcome

No more burning oil smell, the valve cover sealed and dry, and the oil staying where it should. The 730i went home with the leak sorted. A warped plastic valve cover only seeps worse and keeps cooking oil onto hot parts, so changing the cover and the gasket stopped the leak at its source, a clean engine and no more smell.
