BMW 520i drive belt set, replaced.

A BMW 520i came in past 100,000 km for a drive belt service. The belt and its tensioner and idler pulleys were replaced as a set before the belt could snap and take other parts with it.

Job done

Servicing Maintenance BMW Specialist

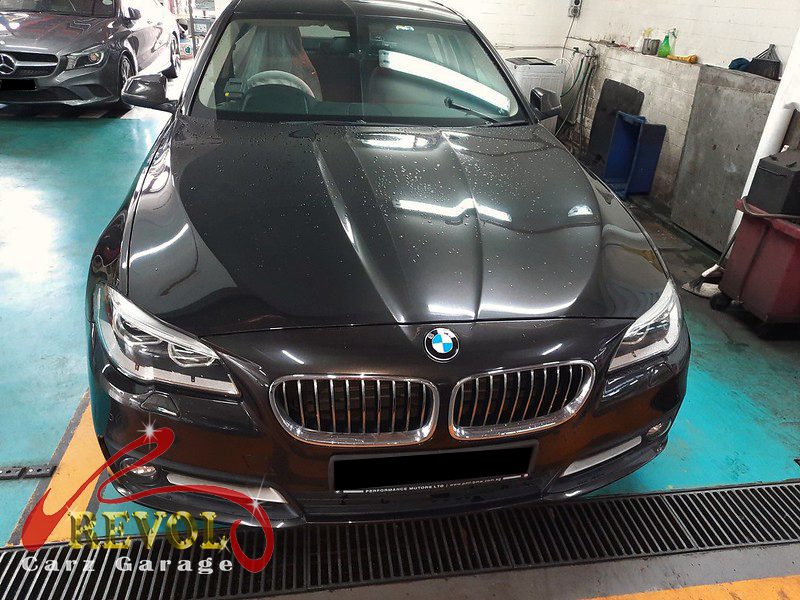

BMW 520i parked at the workshop for a drive belt service.

The brief

The 520i had crossed 100,000 km and the owner wanted the drive belt looked at before it became a problem. That's the smart call, the belt is a wear item, and a snapped one isn't a tidy job, it can wrap up, jam, and damage the components it drives on the way out. The drive belt, the long serpentine belt at the front of the engine, runs the alternator, the water pump on some engines, the power steering, and the air conditioning compressor off the crankshaft. Over the miles the rubber hardens, cracks and glazes, and the tensioner and idler pulleys it runs over get tired bearings. So a proper drive belt service isn't just the belt, it's the belt plus the tensioner and the idlers as a set, because a fresh belt on a worn tensioner doesn't last.

The old drive belt on the BMW 520i, hardened and cracked from its miles.

The diagnosis

A check confirmed it, the belt was hardened with surface cracks and glazing from its miles, and the tensioner had lost some of its spring with a pulley bearing starting to feel rough. The idler was on its way too. So it was a full drive belt set: the belt, the tensioner and the idler pulleys together, not a belt alone that would soon be chirping on the old hardware.

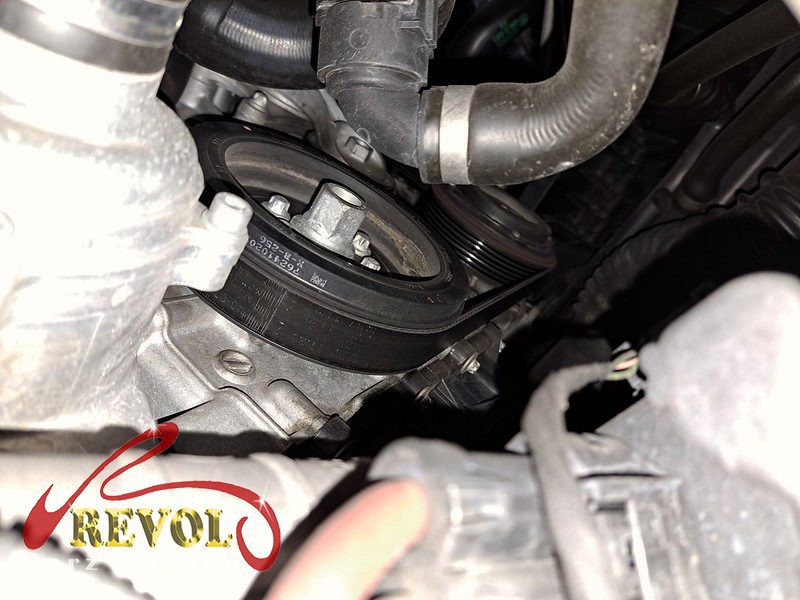

The old tensioner and idler pulleys removed alongside the belt.

The work

The old drive belt was removed, then the tensioner and idler pulleys, and a new genuine BMW-spec belt fitted along with a new tensioner and idlers, the routing checked against the diagram and the belt seated properly across every pulley. With it all back together the engine was run to confirm the belt tracked true and ran quiet. A road test confirmed no chirp, no squeal, and everything the belt drives working as it should.

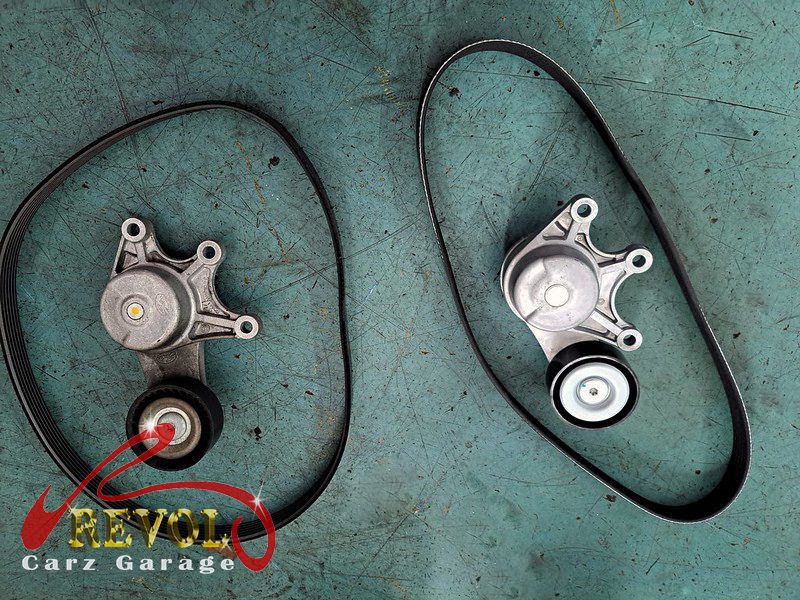

The new BMW-spec drive belt, tensioner and idlers ready to fit.

The outcome

A fresh drive belt running quiet and true, a new tensioner holding it properly, and the accessories, charging, steering and air conditioning, all driven cleanly. The 520i went home with the belt sorted before it could let go. A belt past 100,000 km is living on borrowed time, and the failure mode is the one that strands you and damages other parts, so changing the set is the proactive job that keeps that day from happening.
