BMW Case Study · 152

BMW Z4 aircon compressor, replaced.

A BMW Z4 came in with the aircon not cooling like it used to. The compressor had failed and stopped pressurising the refrigerant. Replaced, system flushed, recharged, cold again.

Job done

Aircon Service Mechanical Repairs BMW Specialist

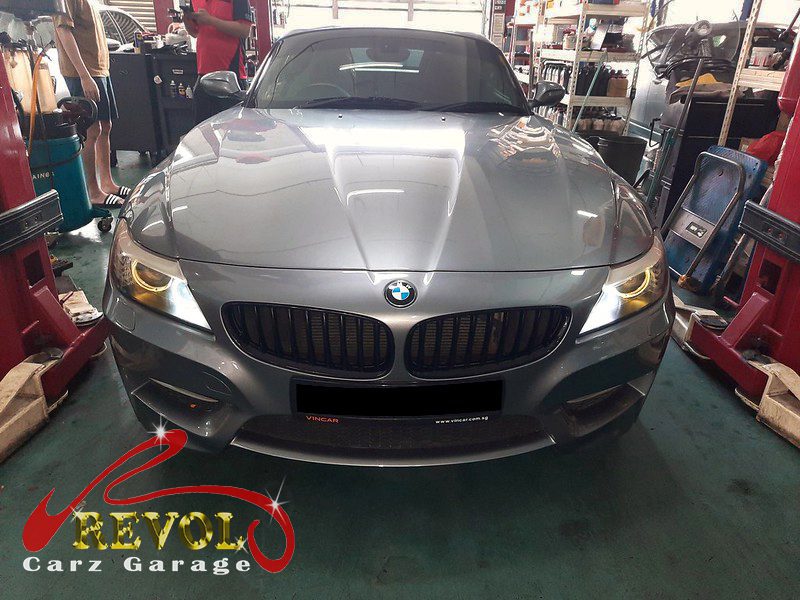

BMW Z4 parked at the workshop, in for aircon compressor inspection.

The brief

The Z4's aircon had lost its bite, not delivering the cool relief it used to, the air coming out weak and warm. He brought it in. Weak cooling like that often traces to the AC compressor. The compressor is the pump that pressurises and distributes the refrigerant around the system, and when it starts failing it can't build proper pressure, so the cooling falls off. A compressor that's breaking up can also get noisy and send debris through the rest of the system if it's left, so it's worth getting checked rather than topping up gas that won't fix a worn pump.

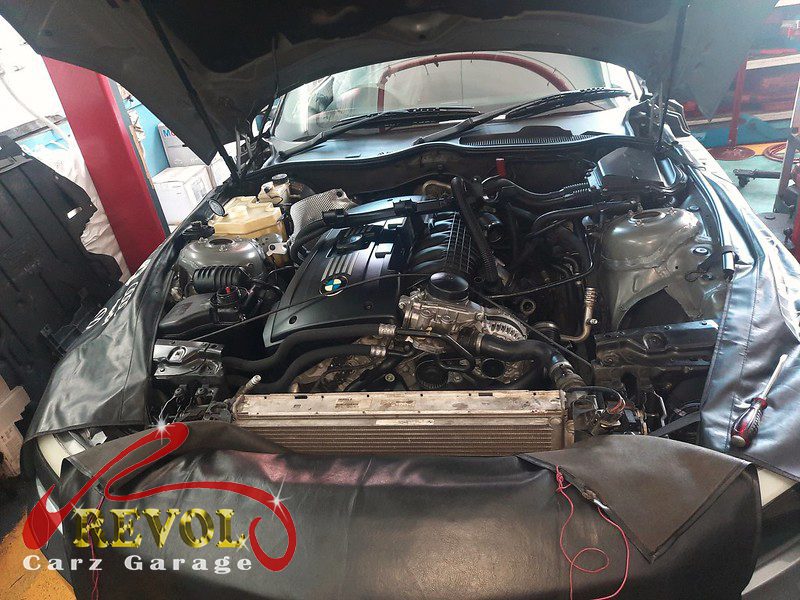

The AC system checked on the BMW Z4.

The diagnosis

A check confirmed it: the compressor wasn't building proper pressure and its internal parts were worn. The condenser, the lines and the evaporator checked out, but with a failing compressor the system gets flushed anyway to clear any debris before the new one goes on. That's a compressor replacement, with a receiver-drier and a flush, not something a recharge alone fixes.

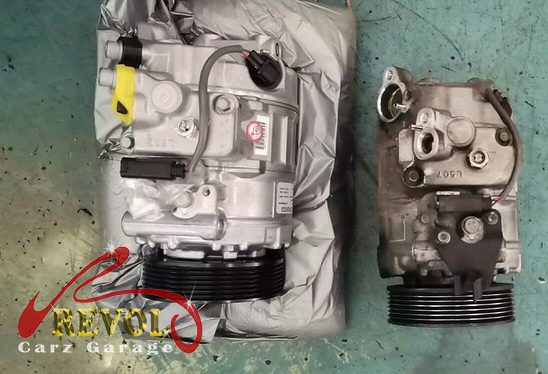

The old AC compressor removed from the engine.

The work

The remaining refrigerant was recovered, the drive belt released, and the failed compressor unbolted and removed. The system was flushed to clear any debris, a new genuine BMW-spec compressor fitted along with a fresh receiver-drier and new O-rings, the belt set back up, the system pulled down to a long, deep vacuum, and recharged with the correct weight of refrigerant and the right oil charge. A check at the vents confirmed cold air at idle.

The new BMW-spec compressor and receiver-drier ready to fit.

The outcome

Cold air at the vents at idle, strong cooling, and the charge holding. The Z4 went home with the aircon working the way it should. A failing compressor only gets worse and can take the rest of the system down with it, so changing it, flushing the system and recharging properly fixed the cooling and protected the rest of the AC.

Got something similar?

Aircon not cooling on your BMW?

If your aircon has lost its cool or there's noise from the compressor, the team can check the system and put it right. Drop us a message.
