BMW Case Study · 165

BMW X1 rear shock absorber set, replaced.

A BMW X1 came in bouncing in the rear over bumps with reduced stability in corners. The rear shocks and their mounts were worn. Replaced as a set, settled again.

Job done

Mechanical Repairs Suspension BMW Specialist

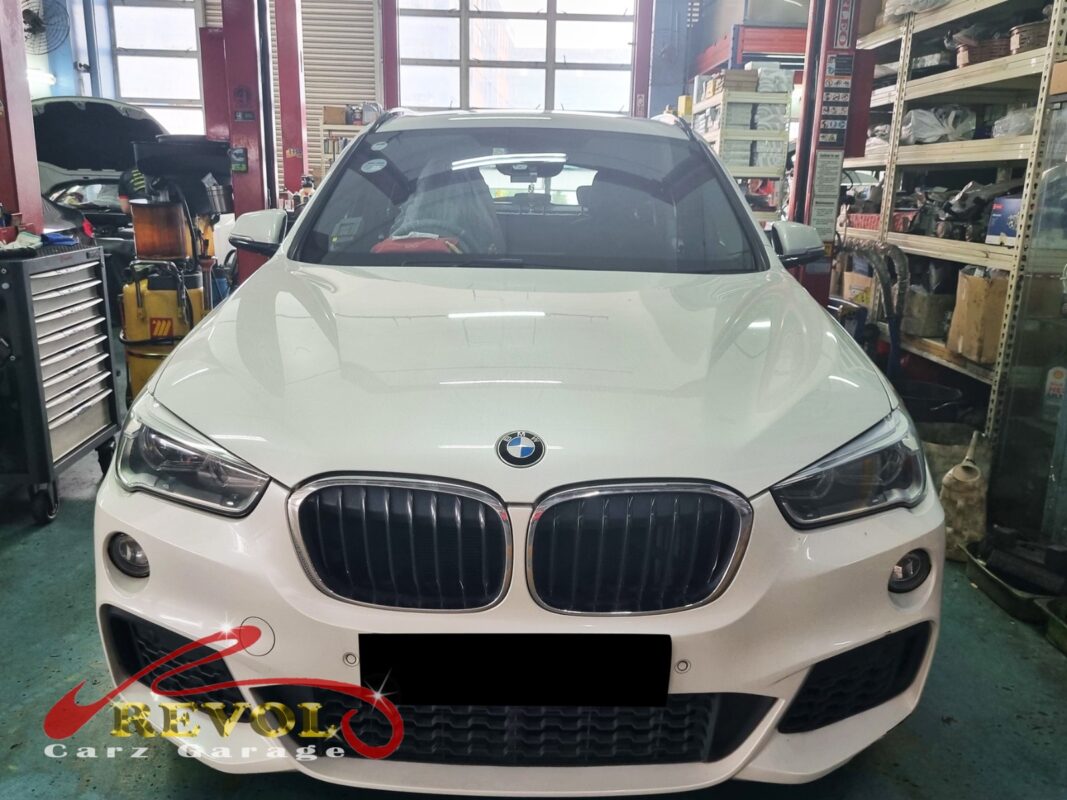

BMW X1 parked at the workshop, in for rear shock absorber inspection.

The brief

The X1 had been bouncing in the rear after bumps, the back end carrying on moving instead of settling, with reduced stability through corners. Those are the signs of worn rear shock absorbers. A shock absorber controls how the spring moves so the body settles after a bump instead of bouncing, working by pushing oil through small valves inside it. When the seals wear and the valving tires, it loses that control, so the rear floats and bounces over bumps and feels loose in a corner because it isn't being kept planted. And the top mounts the shocks sit in wear with them, so on a set job they go in together. Worn shocks only get worse, and they take the ride and the stability down with them.

The worn rear shock absorber on the BMW X1.

The diagnosis

On the lift the rear shocks were checked, and bouncing each rear corner by hand confirmed both had lost their rebound damping past spec, with the top mounts worn too. One side was no better than the other. When both are tired together you do them as a set, shocks and mounts, fitting one fresh against a worn one leaves the rear behaving unevenly, so it was the full rear set.

The old rear shocks removed beside the new BMW-spec set.

The work

Both rear shock absorbers came off, and a matched set of genuine BMW-spec shocks went on with new top mounts, every fastener torqued to the manual figures. A road test confirmed the bouncing was gone, the ride had settled, and the rear stayed planted through corners.

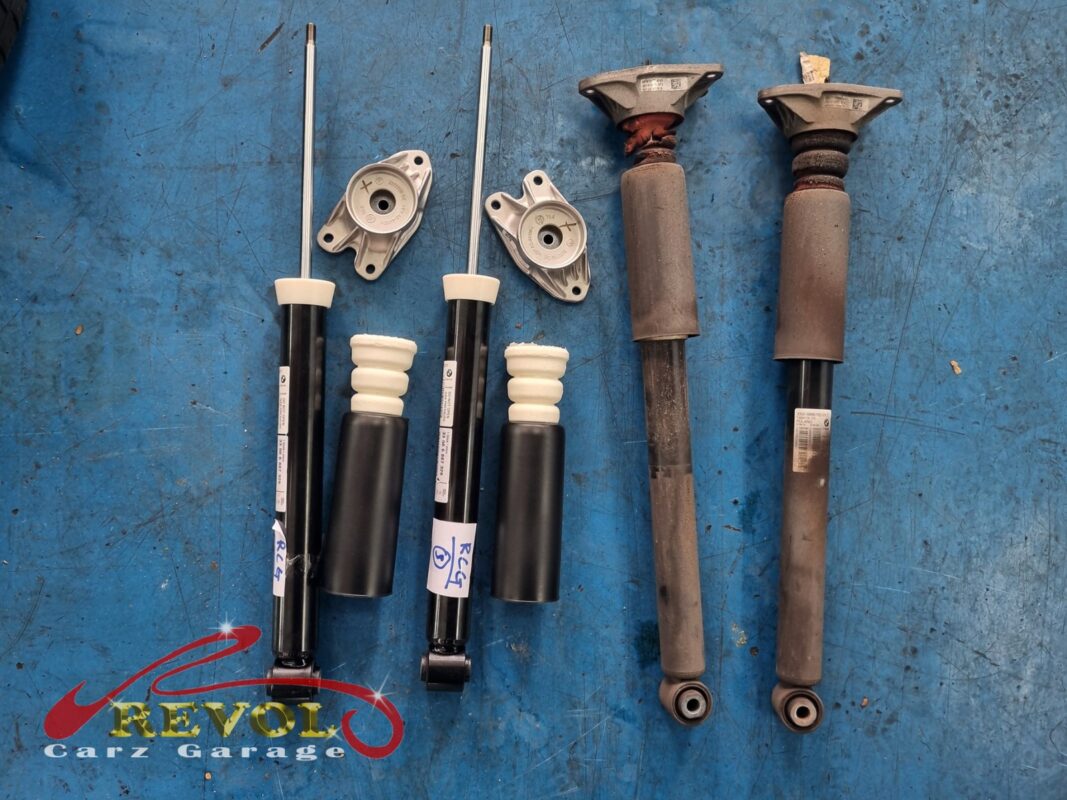

The new BMW-spec rear shocks and top mounts ready to fit.

The outcome

No bounce over bumps, a settled ride, and the rear planted through corners. The X1 went home with the rear suspension back to how it should ride. Shocks and their mounts wear together, so a fresh matched set brought the rear back to spec rather than chasing it part by part.
