BMW Case Study · 198

BMW 216i windshield washer motor, replaced.

216i had wiper fluid dribbling instead of jetting, with a small drip below the tank visible. Washer motor had aged out and an O-ring was leaking. Replaced.

Job done

Mechanical Repairs Electrical BMW Specialist
BMW 216i with the bonnet open for washer motor replacement.

The brief

The 216i's windscreen washers were giving a weak dribble down the glass instead of two proper jets, and the owner had noticed a small drip forming under the washer tank.

Two faults, both at the washer system. The dribble means the pump is not building the pressure it should. The drip means something is leaking, and on this setup it is almost always the seal where the pump body pushes into the tank wall. Neither is a big job on its own, but you want both sorted before the first heavy rain, or a muddy stretch behind a truck, leaves you with a windscreen you cannot clear.

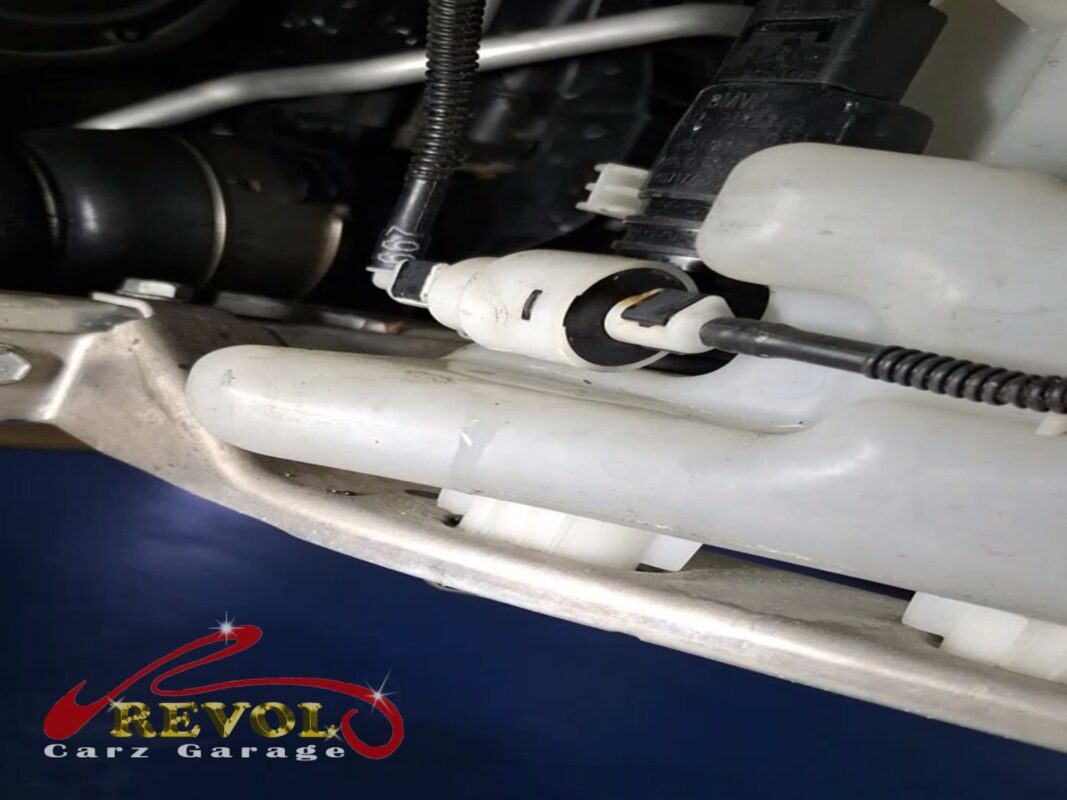

The washer fluid tank in the engine bay, the pump motor seated in its grommet with the supply hose and electrical plug connected.
The washer fluid tank in the engine bay, the pump motor seated in its grommet with the supply hose and electrical plug connected.

The diagnosis

On the bench the washer pump was tested on its own, and it was pumping at well below the pressure it is rated for. The pump element inside had simply worn down, so it could no longer push fluid through the jets hard enough to make a proper spray.

A closer look found the cause of the drip too: the O-ring around the pump body had hardened and was no longer sealing. So both problems traced back to the same part. Fitting a fresh pump with a new O-ring fixes the weak spray and the leak in one go, rather than nursing a tired pump along.

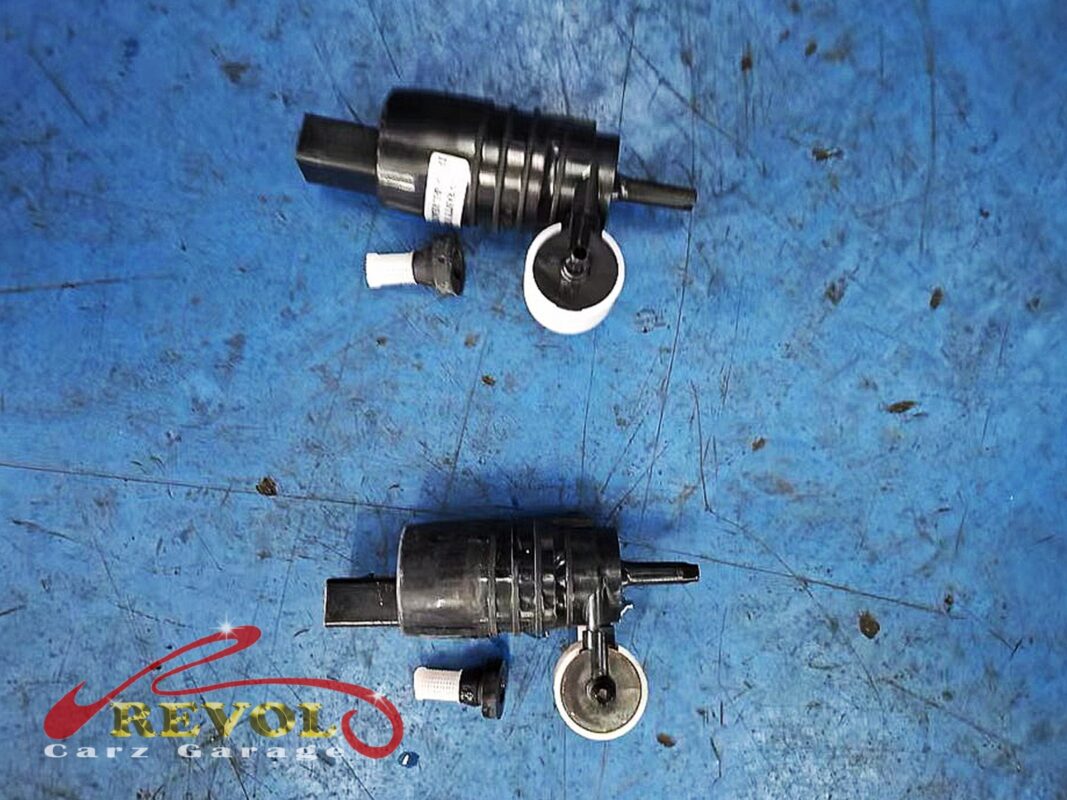

The old washer pump motor next to the new BMW-spec replacement, each with its white filter sock, the worn one no longer building pressure.
The old washer pump motor next to the new BMW-spec replacement, each with its white filter sock, the worn one no longer building pressure.

The work

The under-bonnet trim came off first to get at the tank. Then the old washer pump was eased out, a new BMW-spec unit fitted with a fresh O-ring, and the harness plug and supply hose reseated. The tank was topped back up.

Last job was aiming both windscreen jets, because a washer repair is only finished when the spray actually lands where the wipers sweep it, not low on the glass or up over the roof line.

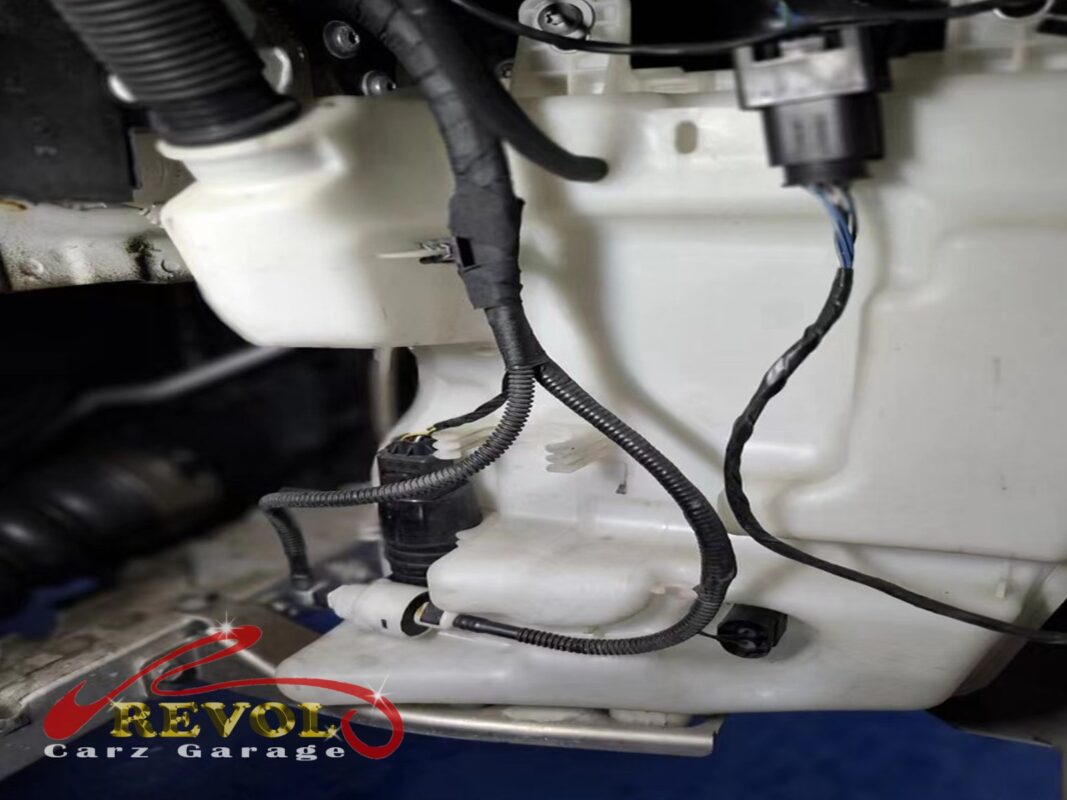

The washer tank back in place with the new pump fitted and the harness and supply line reseated.
The washer tank back in place with the new pump fitted and the harness and supply line reseated.

The outcome

Two strong jets straight up the glass. No more drip under the tank.

The 216i went home with the washers working the way they should. It is a small fix, but it is the kind you appreciate the first time you are behind a grimy truck in the rain and need the screen clear in one sweep. And catching the leaking O-ring at the same time means no more washer fluid quietly draining away under the car.
