BMW Case Study · 221

BMW X3 service, with turbo pipe and battery fixes.

X3 in for a scheduled service that turned into three jobs. Oil change as planned, plus a turbo coolant pipe and oil pipe found weeping on the lift, plus a battery at the end of its life. All done same day.

Job done

Servicing Mechanical Repairs BMW Specialist

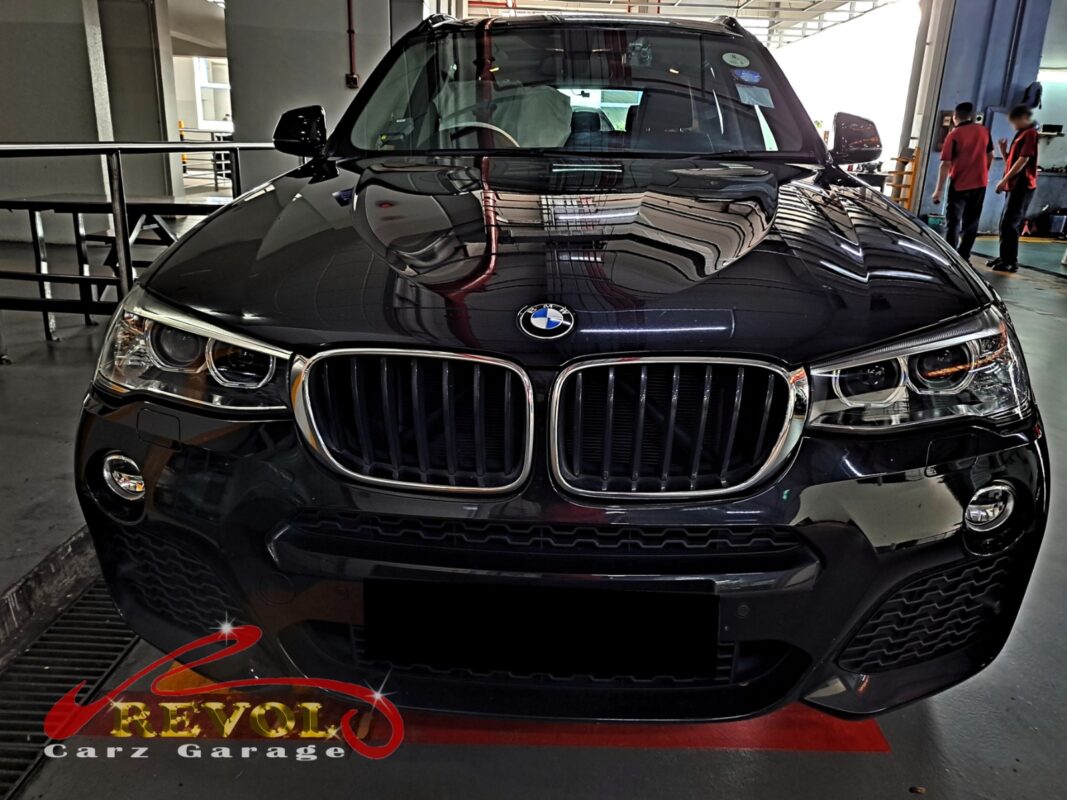

BMW X3 on the workshop lift for full scheduled service.

The brief

The X3 came in for its scheduled service, oil-and-filter as the baseline plus a proper look over the car while it was on the lift. That look paid off: two issues turned up that a quick drive-through oil change would have driven straight past, and a third that was overdue anyway.

This is the case for treating a service as an inspection, not just an oil swap. The fluids and filter are routine; the value is in the half hour with the car in the air and the bonnet open, where the things that have not set off a warning yet, but will, get spotted while they are still small.

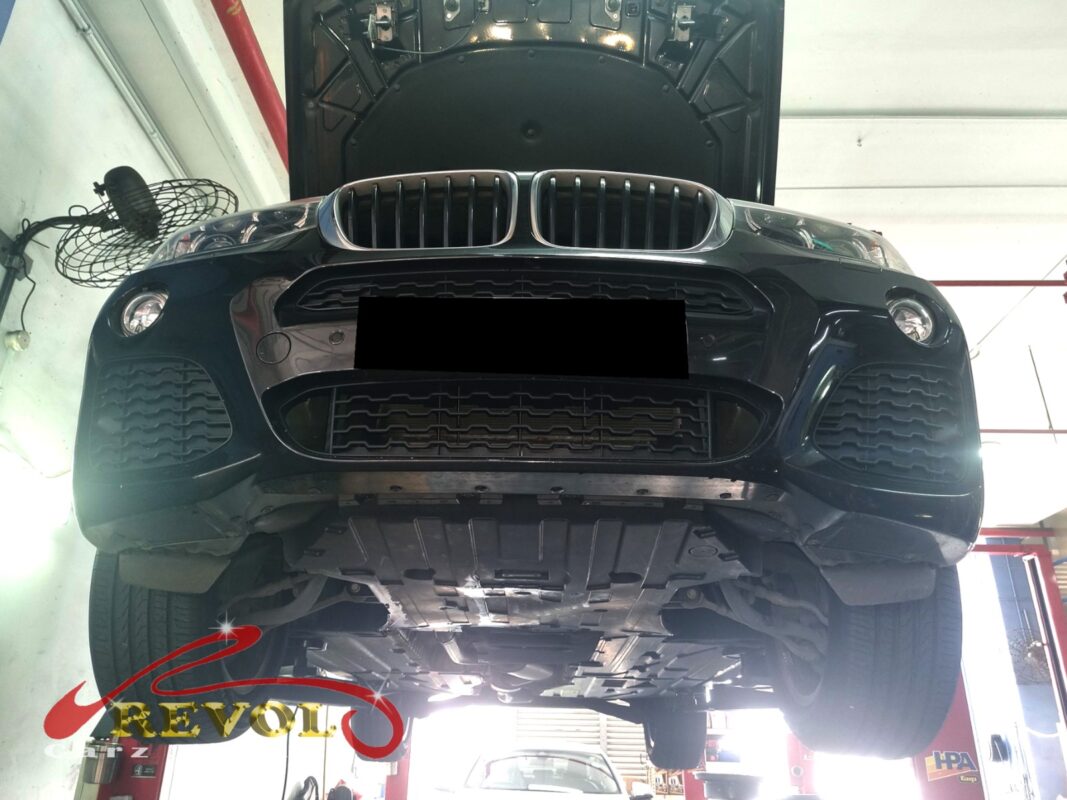

The X3 up on the two-post lift for its scheduled service.
The X3 up on the two-post lift for its scheduled service.

The diagnosis

On the lift the turbocharger had coolant residue crusted around one of its pipe connections, and a closer look found both the turbo coolant pipe and the turbo oil pipe weeping at their joints. Either one on its own would have eventually triggered a warning; both left to run would have meant a bigger, longer job later, plus the risk of running the turbo short of oil or coolant in the meantime.

The battery also came up tired on the load tester, which fit its age, three to four years, the point a lot of them start to fade. Doing all three jobs in this one visit was straightforwardly cheaper than the car coming back twice.

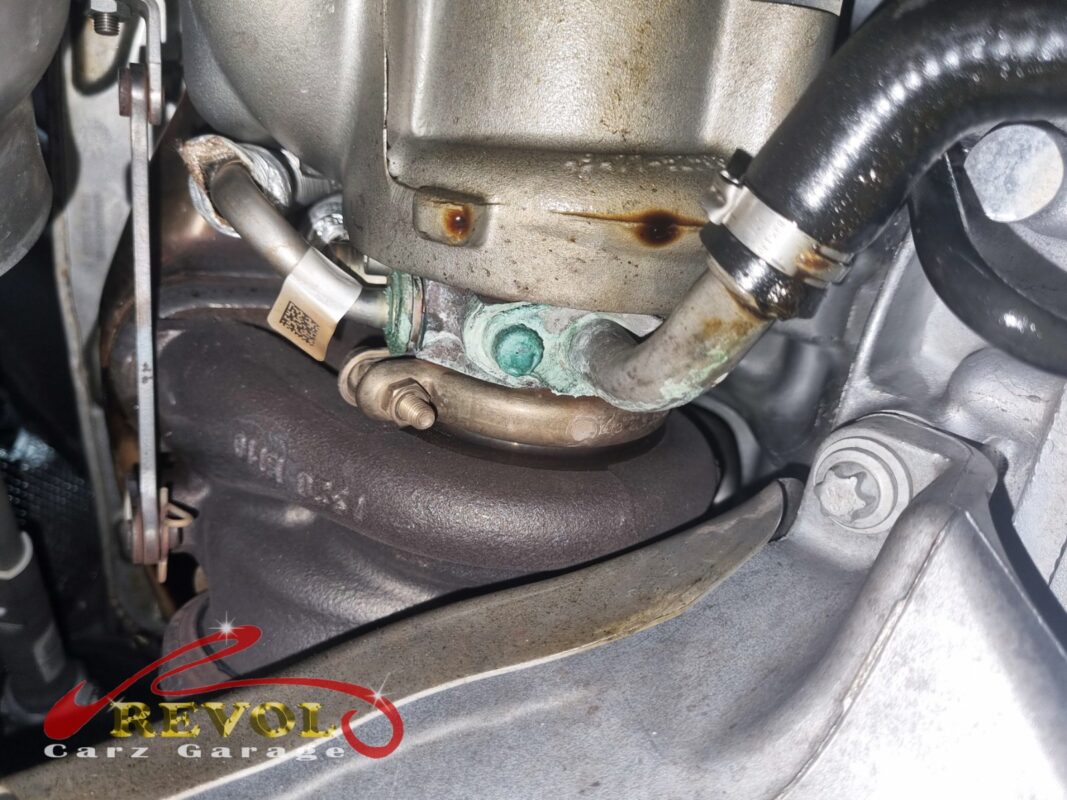

Coolant residue crusted around the turbo coolant line connection, the leak found on the lift.
Coolant residue crusted around the turbo coolant line connection, the leak found on the lift.

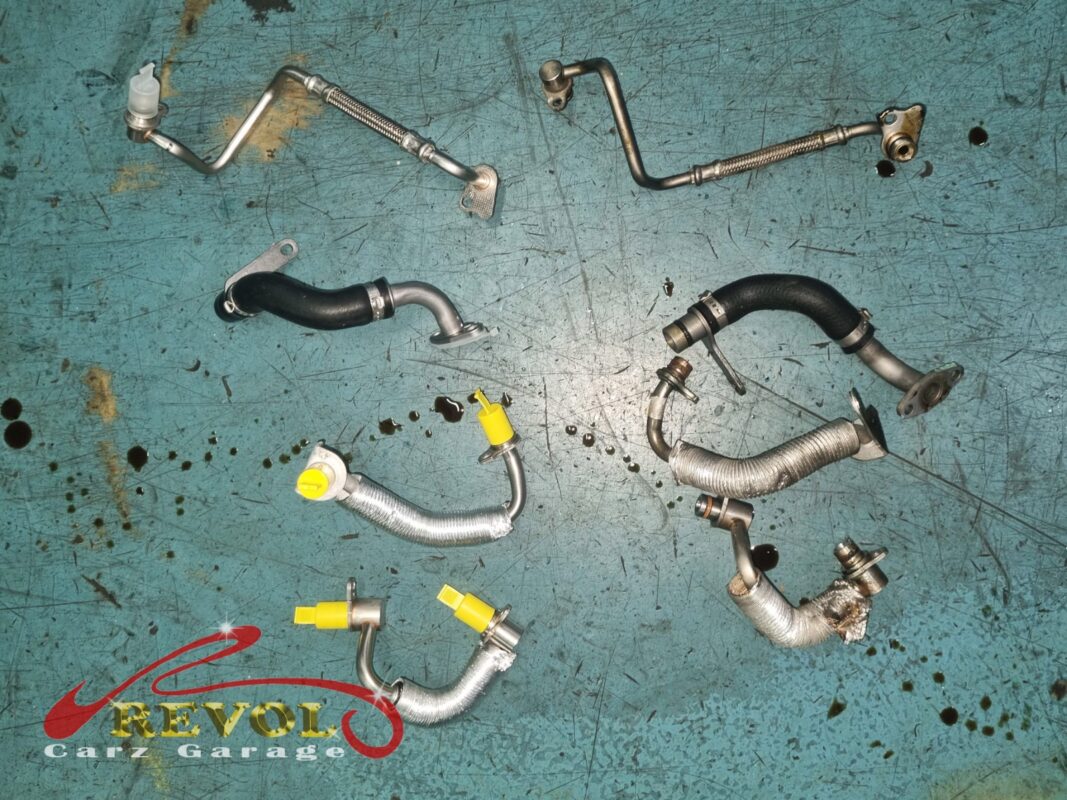

The turbo coolant and oil pipes, the worn ones off the car beside the new BMW-spec replacements with their transit caps.
The turbo coolant and oil pipes, the worn ones off the car beside the new BMW-spec replacements with their transit caps.

The work

The engine oil was drained and refilled with the correct BMW-spec oil, with a new oil filter. Both the turbo coolant pipe and the turbo oil pipe were replaced with BMW-spec parts and new clamps, so the connections were fresh rather than disturbed-and-reused. A new BMW-spec AGM battery went in to replace the tired one, and it was registered on the BMW handset so the charging system knew about the swap.

Then the service indicator on the cluster was reset and the diagnostic scan run again to confirm a clean bill.

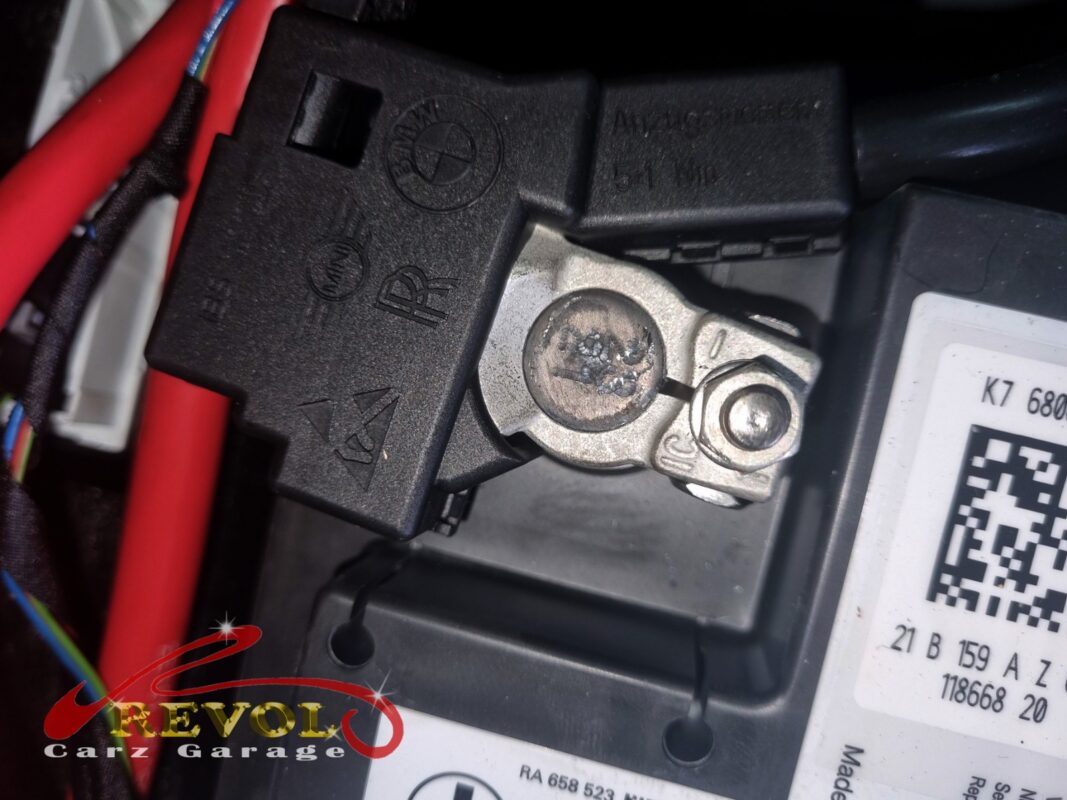

The battery negative terminal, the post crusted with corrosion, the battery nearing the end of its life.
The battery negative terminal, the post crusted with corrosion, the battery nearing the end of its life.

The outcome

No leaks at the turbo, healthy charging readings on the new battery, the service indicator reset, and a clean diagnostic scan.

The X3 went home with the workshop's recommendation list at zero and the next service interval starting clean. For the owner that is the payoff of a thorough service: the turbo pipes caught while they were a weep rather than a warning, the battery replaced before it left him stranded, and all of it sorted in the one visit he had already booked.

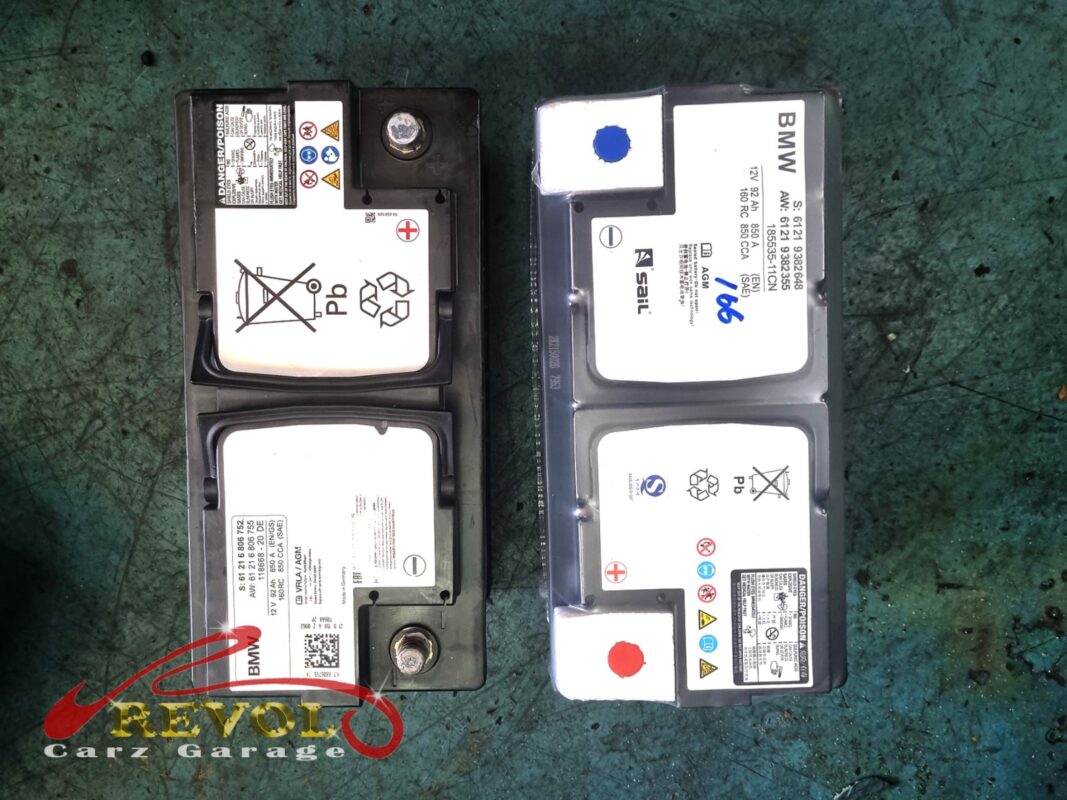

The old BMW battery (left) replaced with a new BMW-spec AGM battery (right).
The old BMW battery (left) replaced with a new BMW-spec AGM battery (right).
