The brief

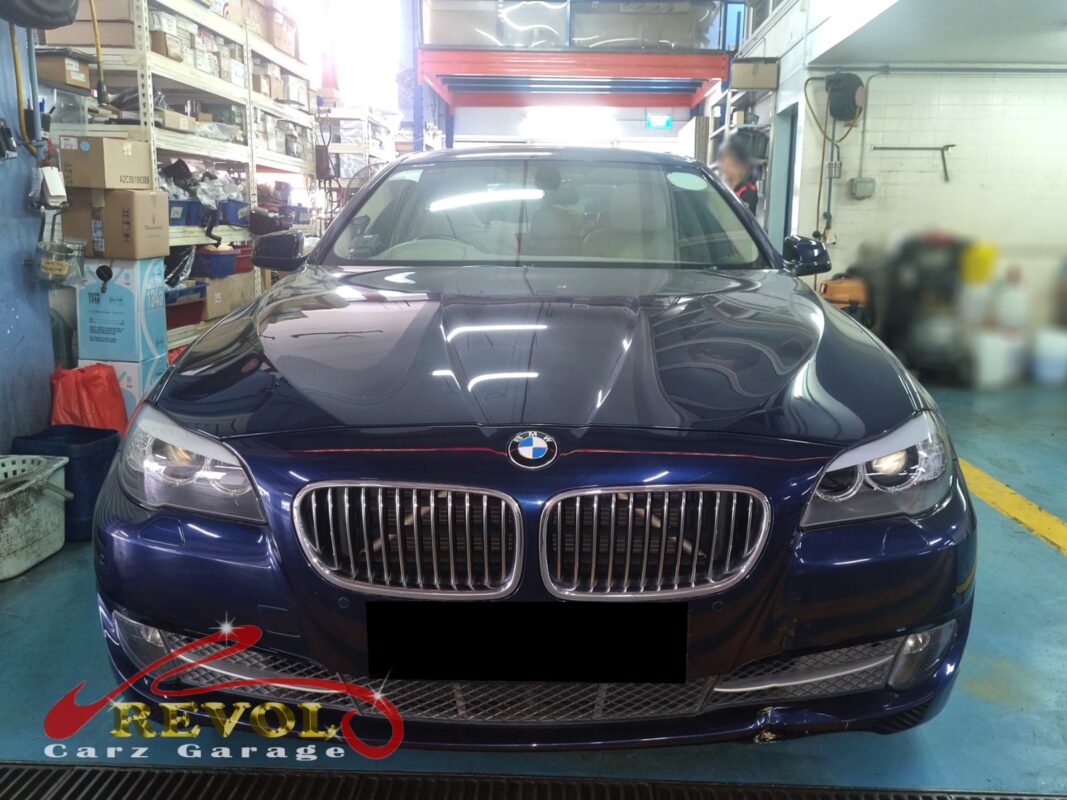

The 523i had developed a clunk that the owner could pin to the front of the car, the kind you hear crossing rough patches and going over speed humps. He brought it in for a proper front-end inspection rather than guessing at parts.
The front suspension on this car uses a set of aluminium arms to locate each wheel, each one carrying rubber bushings and a ball joint. When those wear, the wheel can shift a fraction under load, and that little bit of slack is what you hear as a clunk every time the suspension takes a hit. Finding which arms have gone is a job for the lift, not the driver's seat.
The diagnosis

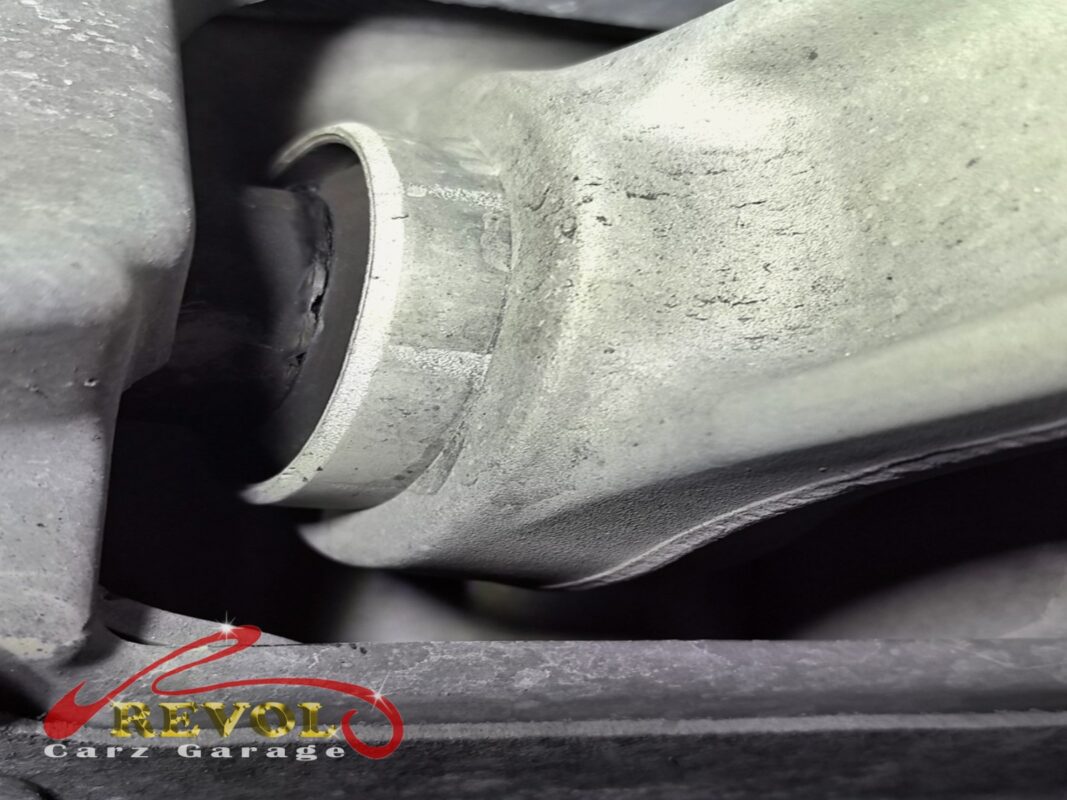

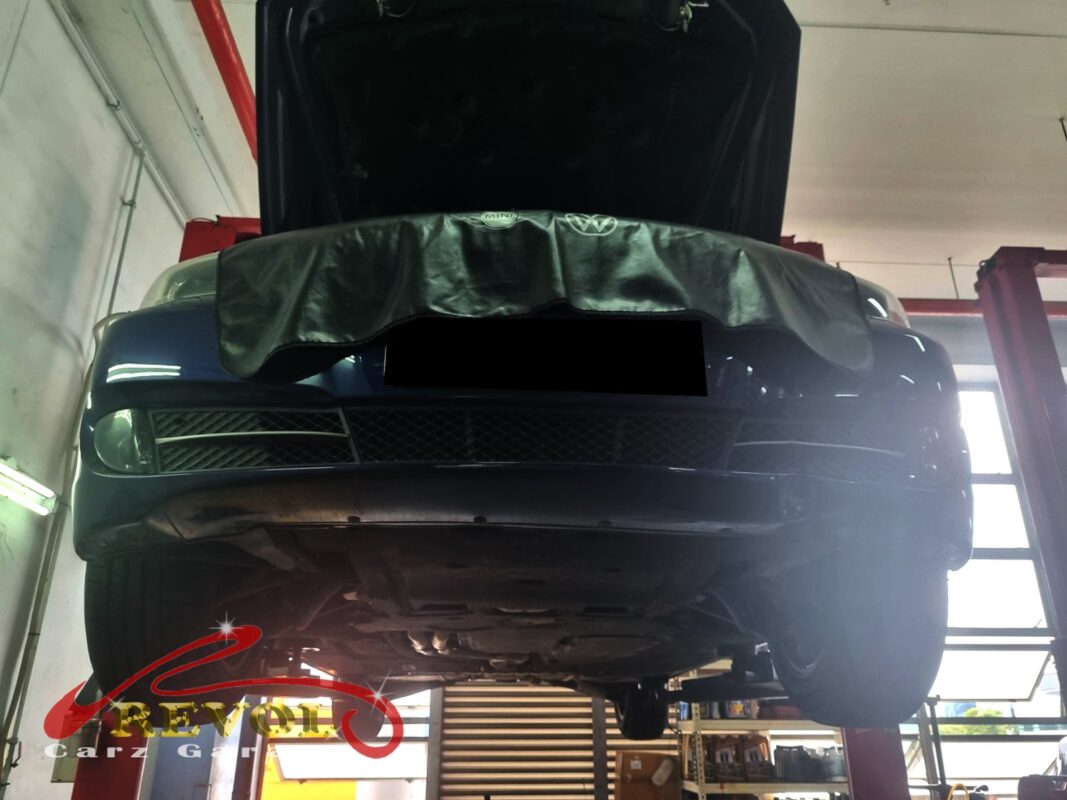

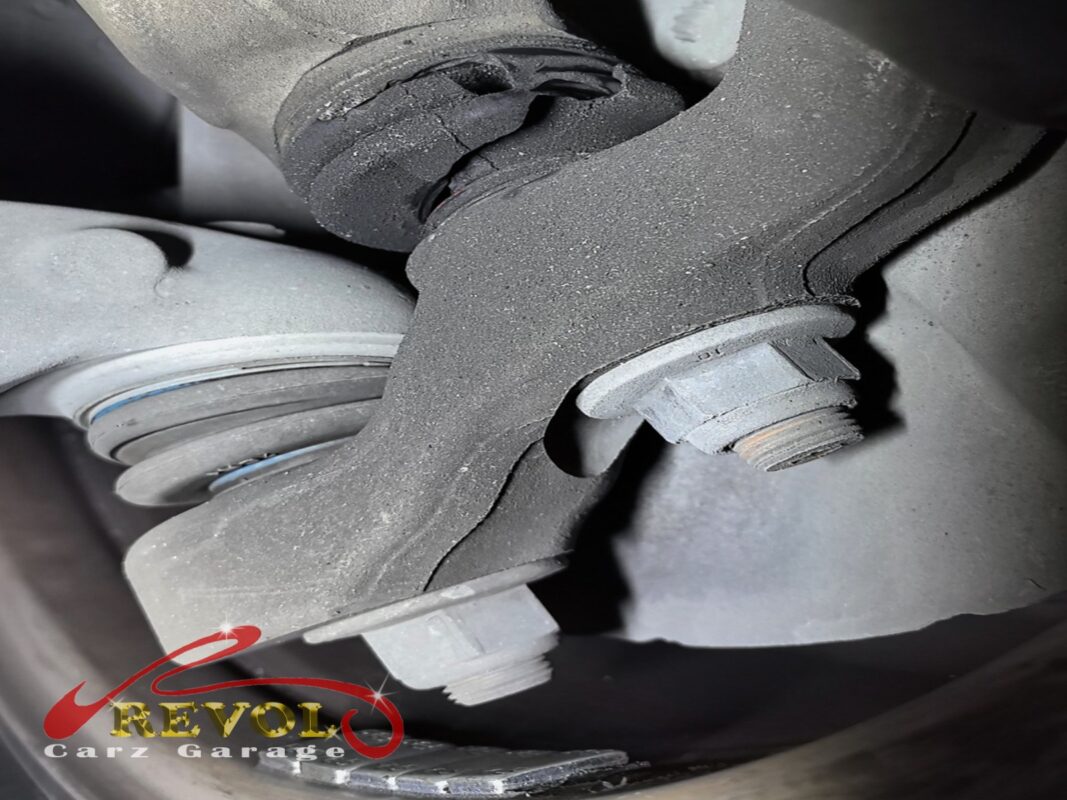

On the lift each arm got checked in turn. One control arm's rubber bushing had cracked right through. The lower arm on the same side had a visible crack in the aluminium near the bushing seat, which is more serious than a worn bush, that is a structural part starting to fail. Both were contributing to the clunk on bump impacts.

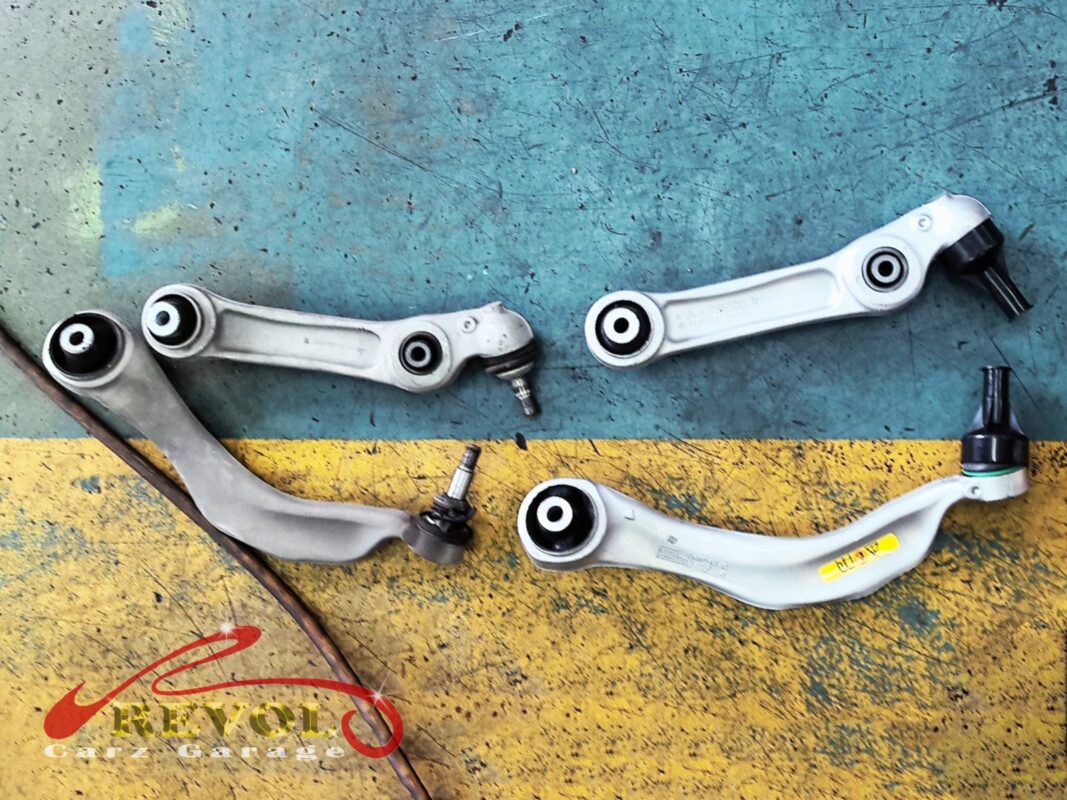

Replacing only the bad side would have left the front feeling lopsided, one corner tight and one corner soft, which on a car like this is something you can feel in the steering. So the right scope was a full matched set of arms across both sides, not just the side that had cracked.
The work

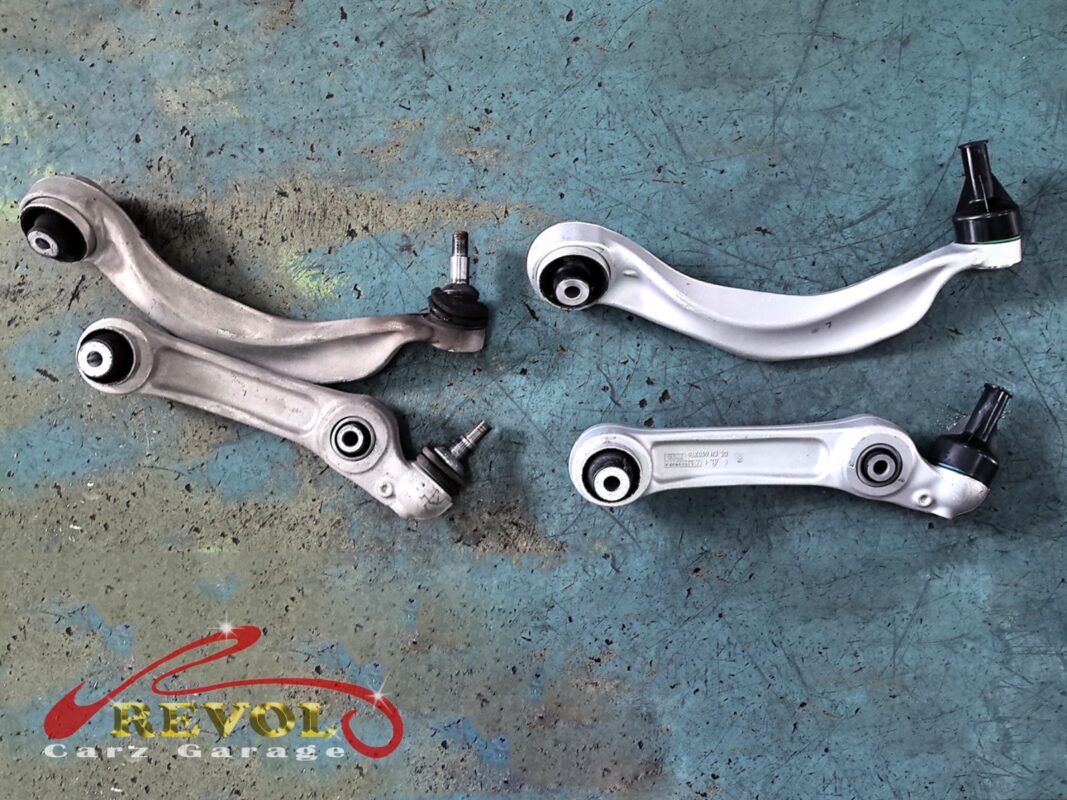

The failed control arm and lower arm came off the affected side first, then the matching pair on the other side. A complete set of new BMW-spec front arms went on with fresh bushings and ball joints, every fastener torqued to the workshop manual values with the suspension at ride height so the bushings settle in their neutral position.
Then the car rolled onto the alignment rack for a full four-wheel alignment, camber, caster and toe brought back to factory, with the before-and-after numbers printed for the owner.
The outcome
The clunk over rough roads and speed humps was gone, the front felt solid with no shimmy through the wheel, and the alignment was back in spec.
The 523i went home with the front suspension behaving as one piece again rather than a collection of worn joints. For the owner that is a car that feels precise and planted instead of loose and noisy. And catching that cracked aluminium arm before it gave way completely turned a maintenance job into exactly that, maintenance, rather than a failure on the road.
