The brief

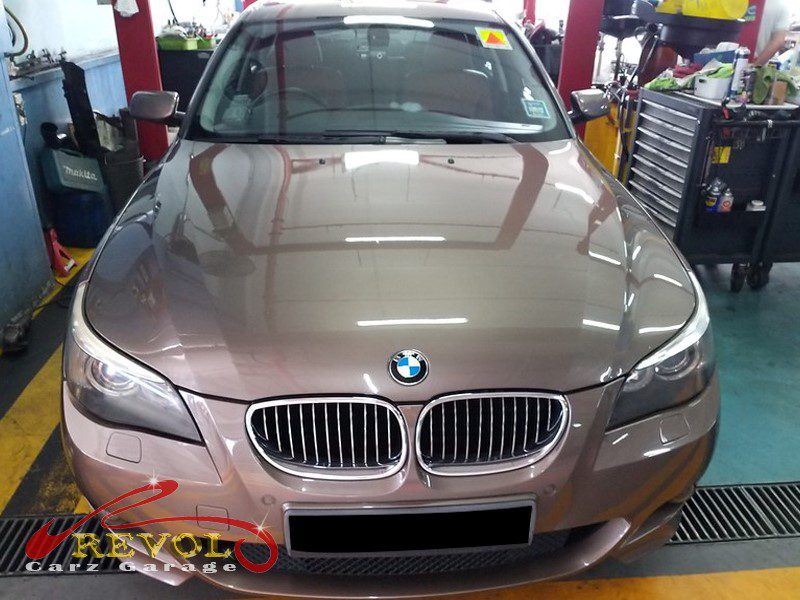

Mr Henry's 520i was into its 13th year and the automatic transmission had started jerking and taking too long between gears, with the BMW handset showing a clutch-ratio fault, internal clutch wear inside the gearbox. He brought it in. That fault on a high-mileage automatic means more than a fluid change. A ZF eight-speed automatic has internal clutch packs that engage the gears, and a hydraulic valve body that controls them. Over a long life and many heat cycles the clutch friction wears and the seals harden, so the shifts go slack, jerky and slow, and the management logs a ratio fault because the gear isn't engaging as it should. By that point the gearbox wants an overhaul, opened up, the worn clutch packs and seals renewed, the valve body cleaned and checked, then rebuilt with fresh fluid and filter and the adaptations relearned.
The diagnosis

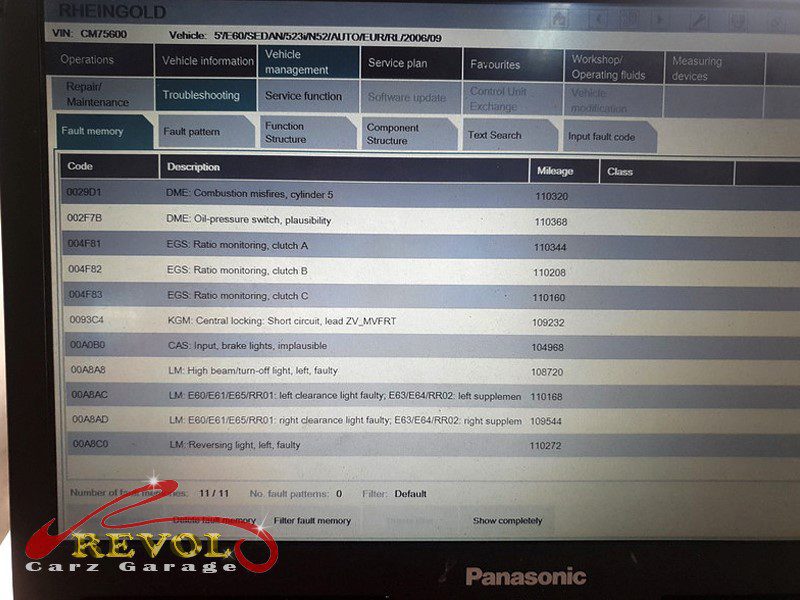

The handset scan and a road check confirmed it, a clutch-ratio fault with the shifts jerking and delayed, the gearbox not engaging cleanly. A fluid and filter service alone wouldn't fix worn clutch friction, so the call was an overhaul. That's a gearbox overhaul: open the gearbox, inspect and renew the worn clutch packs and seals, clean and check the valve body, rebuild to spec, fresh ZF fluid and a new filter, and relearn the adaptations.
The work

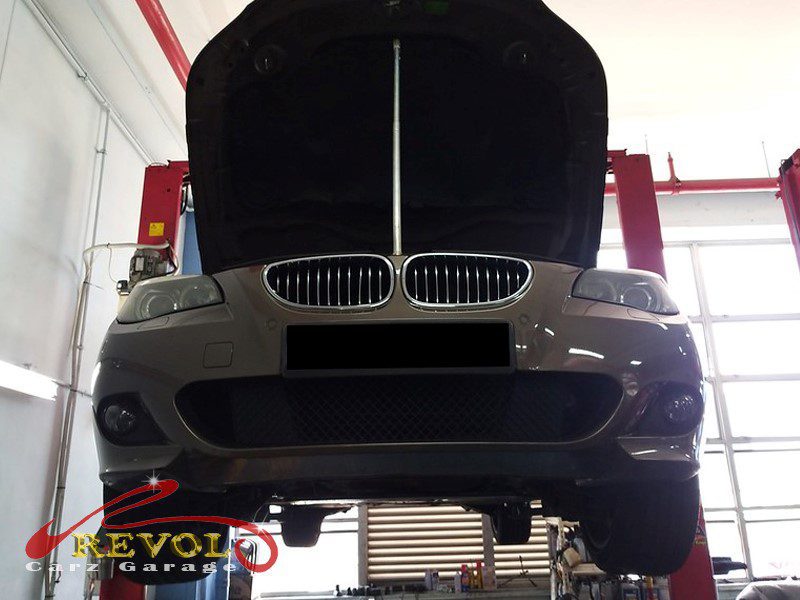

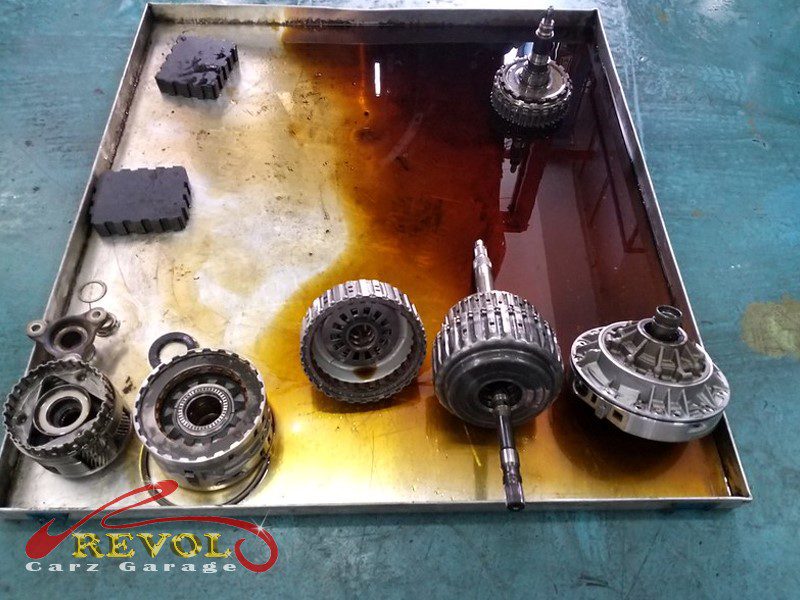

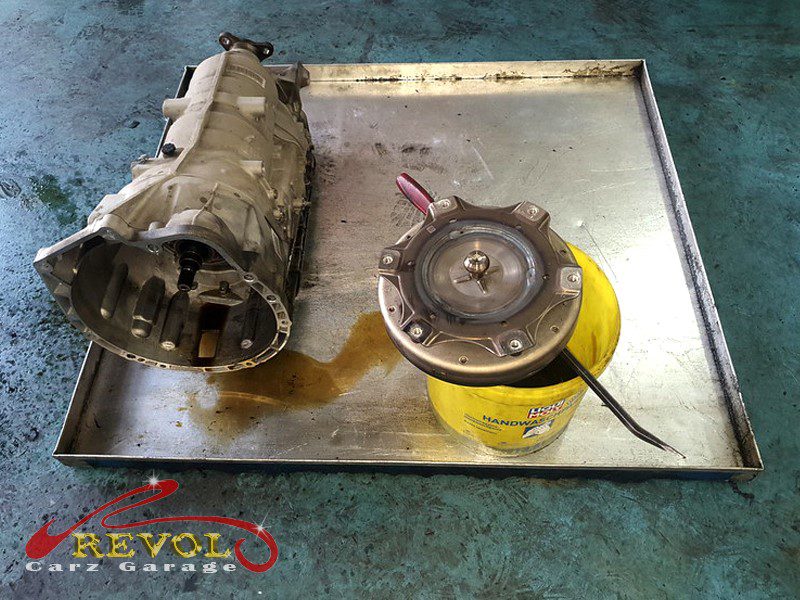

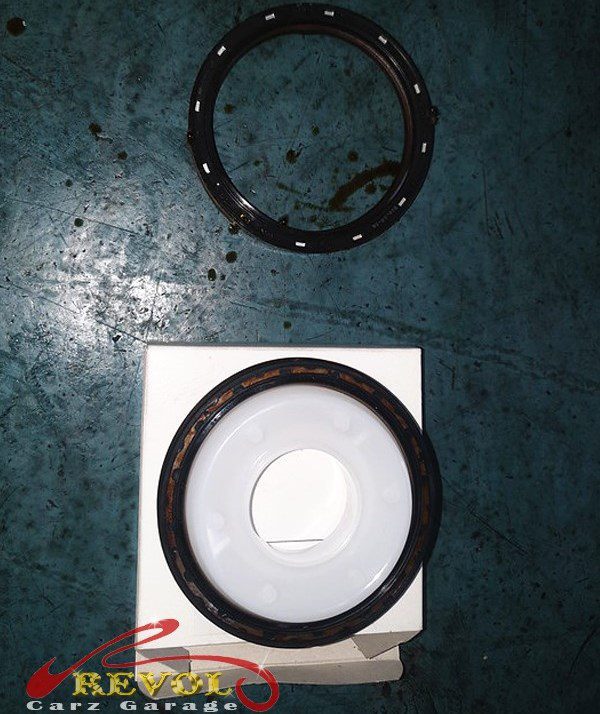

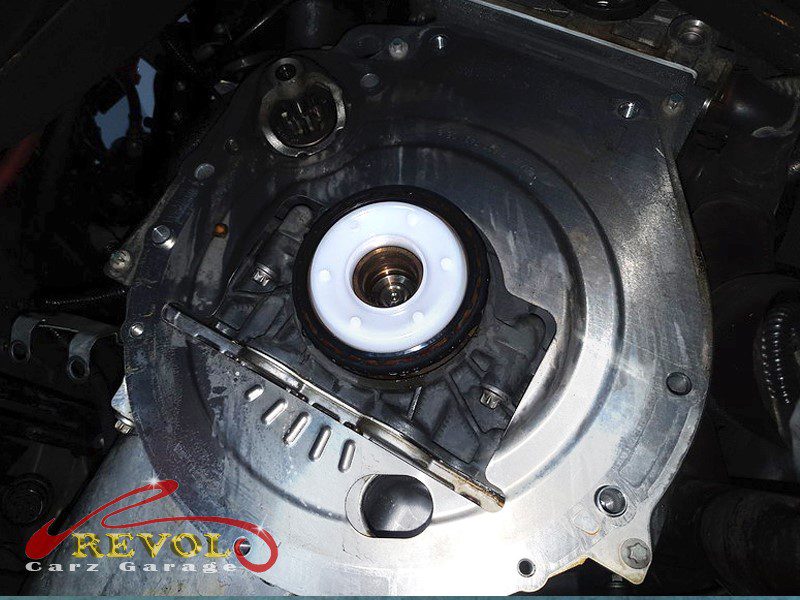

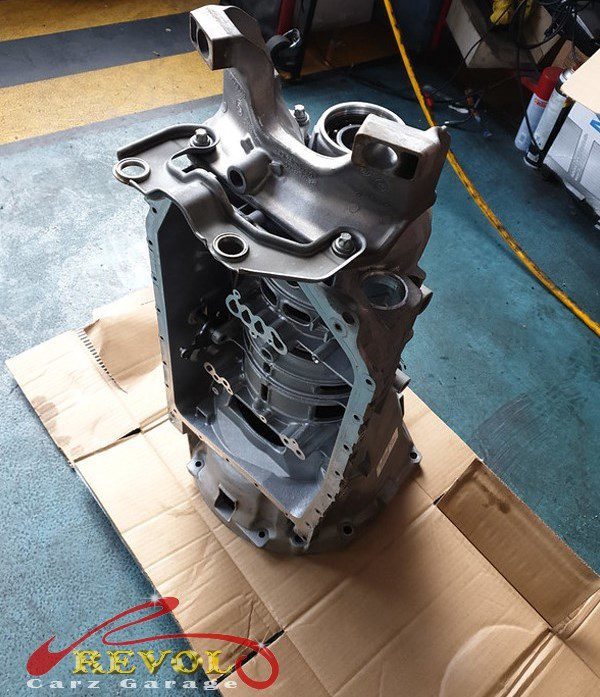

The gearbox was removed and opened up, the clutch packs and the seals inspected, and the worn friction and hardened seals renewed with genuine ZF-spec parts, the valve body cleaned and checked. The gearbox was rebuilt to the manufacturer's spec, every fastener torqued, refitted, and filled with the exact ZF-spec fluid and a new filter to the fill-to-temperature procedure. The adaptations were then reset and relearned through the proper procedure, and the fault codes cleared. A road test confirmed clean, crisp shifts through the range, no jerk, no delay, and the ratio fault gone.
The outcome

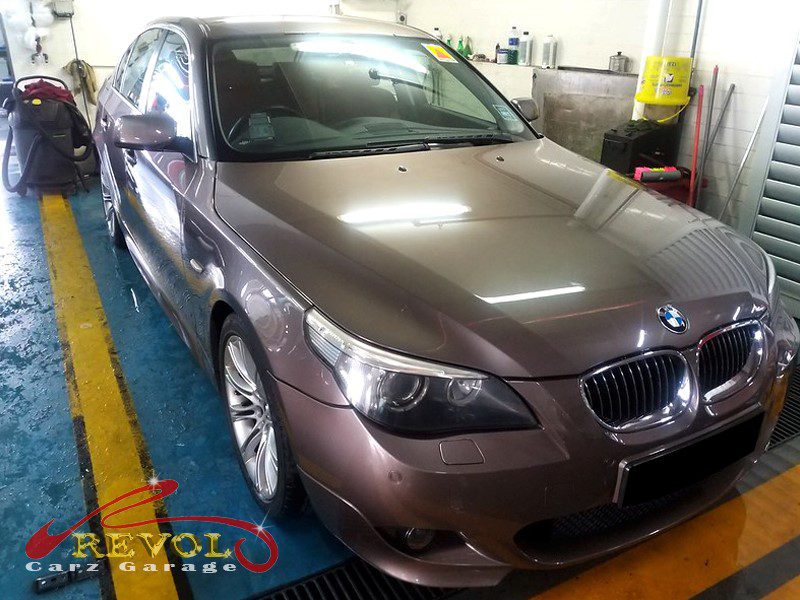

Crisp, smooth shifts through all eight gears, no jerk, no delay, fresh fluid and a new filter, and the gearbox adapted and the fault cleared. The 520i went home with the transmission overhauled. A clutch-ratio fault on a high-mileage automatic only gets worse, so a proper overhaul brought the gearbox back to health rather than the car going to scrap, and Mr Henry got another good stretch out of it.
