BMW Case Study · 94

BMW 316i drive belt set, replaced.

A BMW 316i came in with a squealing drive belt. The belt was glazed and the tensioner and idlers tired. All three replaced as a set, the engine quiet again.

Job done

Servicing Maintenance BMW Specialist

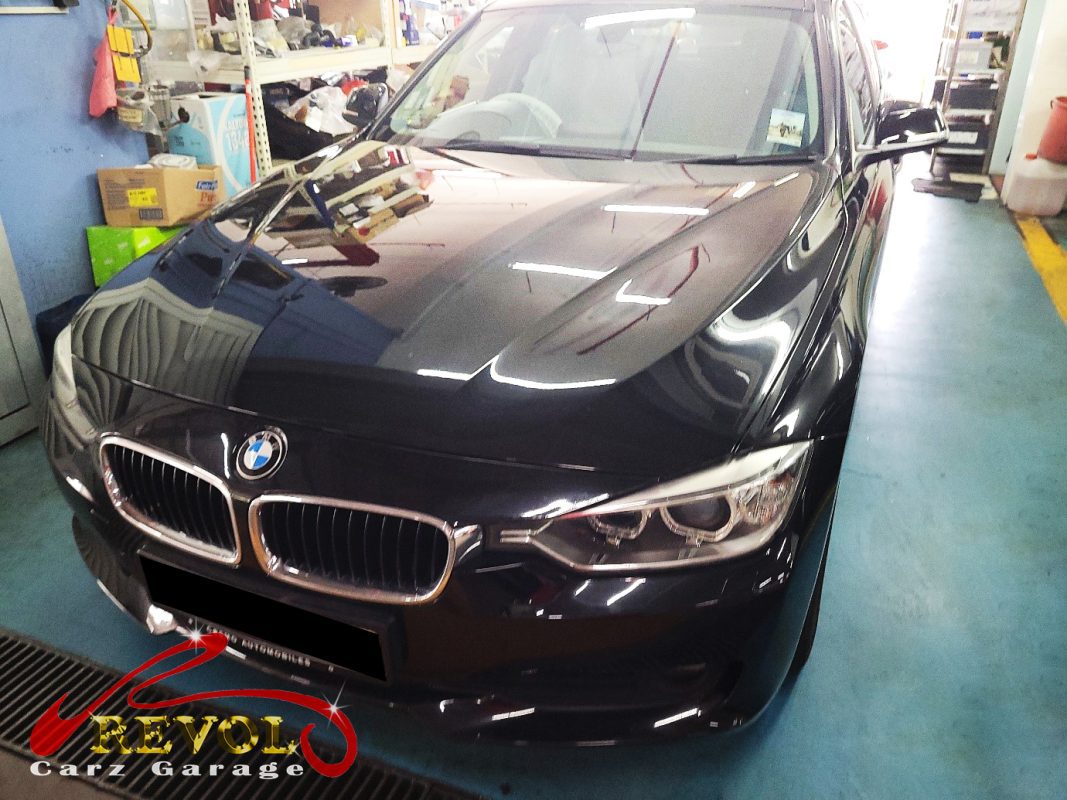

BMW 316i parked at the workshop, in for a squealing drive belt.

The brief

The 316i had a squealing drive belt, the kind of chirp or screech that comes up on a cold start or when the engine's working, and that's the belt telling you it's near the end. He brought it in. A squealing belt isn't just annoying, it means the belt's slipping, and a slipping belt that lets go can wrap up and damage other parts. The drive belt, the long serpentine belt at the front of the engine, runs the alternator, the power steering and the air conditioning compressor off the crankshaft, over a tensioner and idler pulleys. Over the miles the belt hardens, cracks and glazes so it slips and squeals, and the tensioner loses its spring and the idler bearings get rough. So a proper job isn't just the belt, it's the belt plus the tensioner and the idlers as a set, because a fresh belt on worn hardware soon squeals again.

The old drive belt on the BMW 316i, glazed and cracked from its miles.

The diagnosis

A check confirmed it, the belt was glazed and cracked from its miles, slipping under load, which is the squeal, and the tensioner had lost some of its spring with a rough pulley bearing, the idler on its way too. So it was a full drive belt set: the belt, the tensioner and the idler pulleys together, not a belt alone that would soon be chirping on the old hardware.

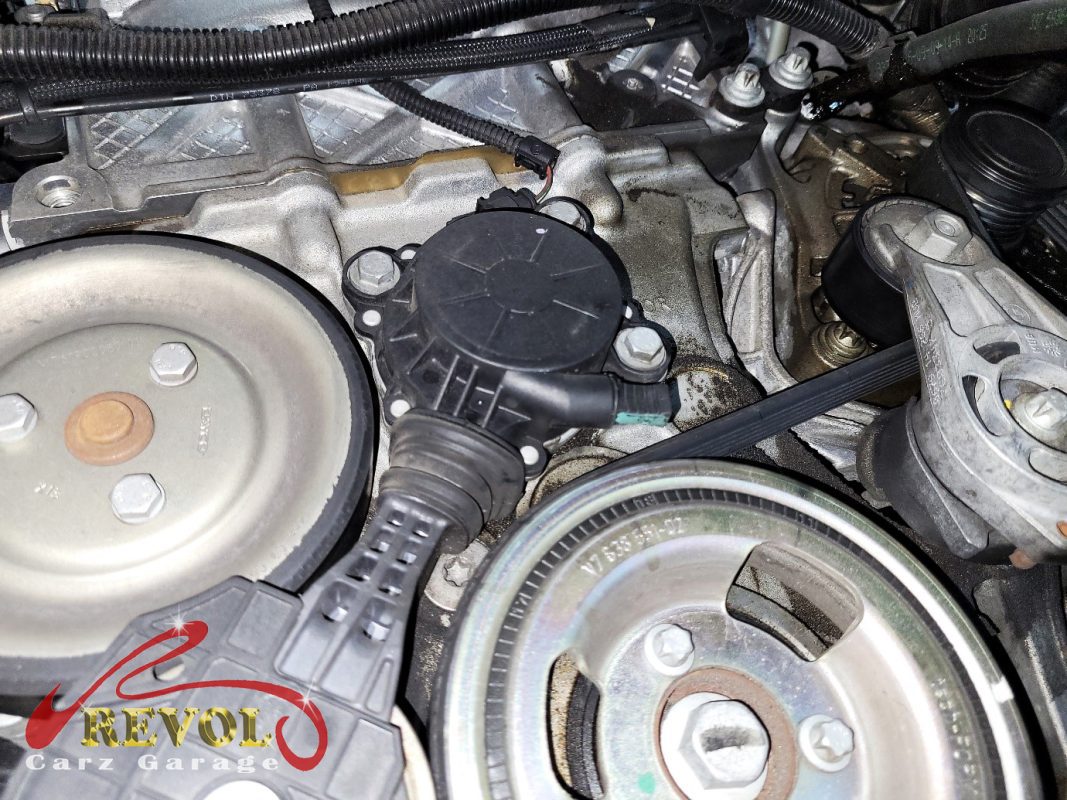

The old tensioner and idler pulleys removed alongside the belt.

The work

The old drive belt was removed, then the tensioner and idler pulleys, and a new genuine BMW-spec belt fitted along with a new tensioner and idlers, the routing checked against the diagram and the belt seated properly across every pulley. With it all back together the engine was run to confirm the belt tracked true and ran quiet. A road test confirmed no squeal, no chirp, and everything the belt drives working as it should.

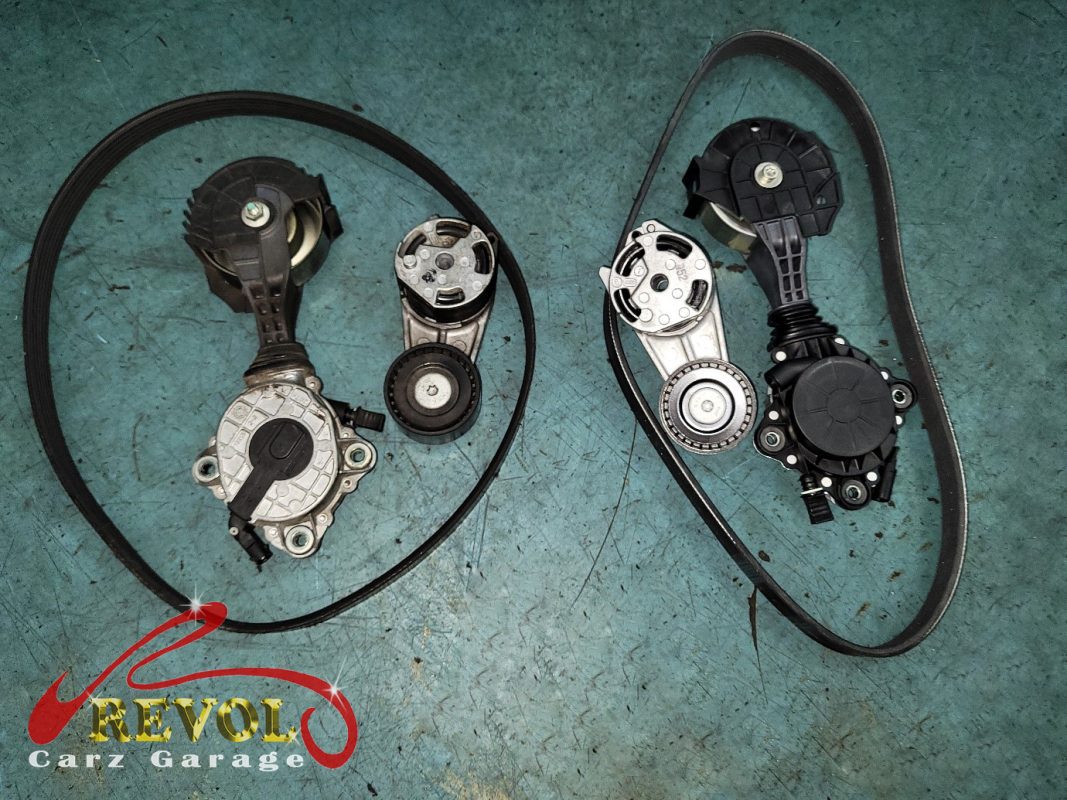

The new genuine BMW-spec drive belt, tensioner and idlers ready to fit.

The outcome

A fresh drive belt running quiet and true, a new tensioner holding it properly, no squeal, and the accessories all driven cleanly. The 316i went home with the belt sorted. A squealing belt is a slipping belt that's near the end, so changing the set put the running quiet and headed off the belt letting go and damaging other parts.
