BMW Case Study · 96

BMW Z4 oil sump, resealed.

A BMW Z4 came in with a pool of oil under it overnight. The sump gasket had let go. The pan was pulled, cleaned and resealed, the leak stopped.

Job done

Mechanical Repairs Engine Repairs BMW Specialist

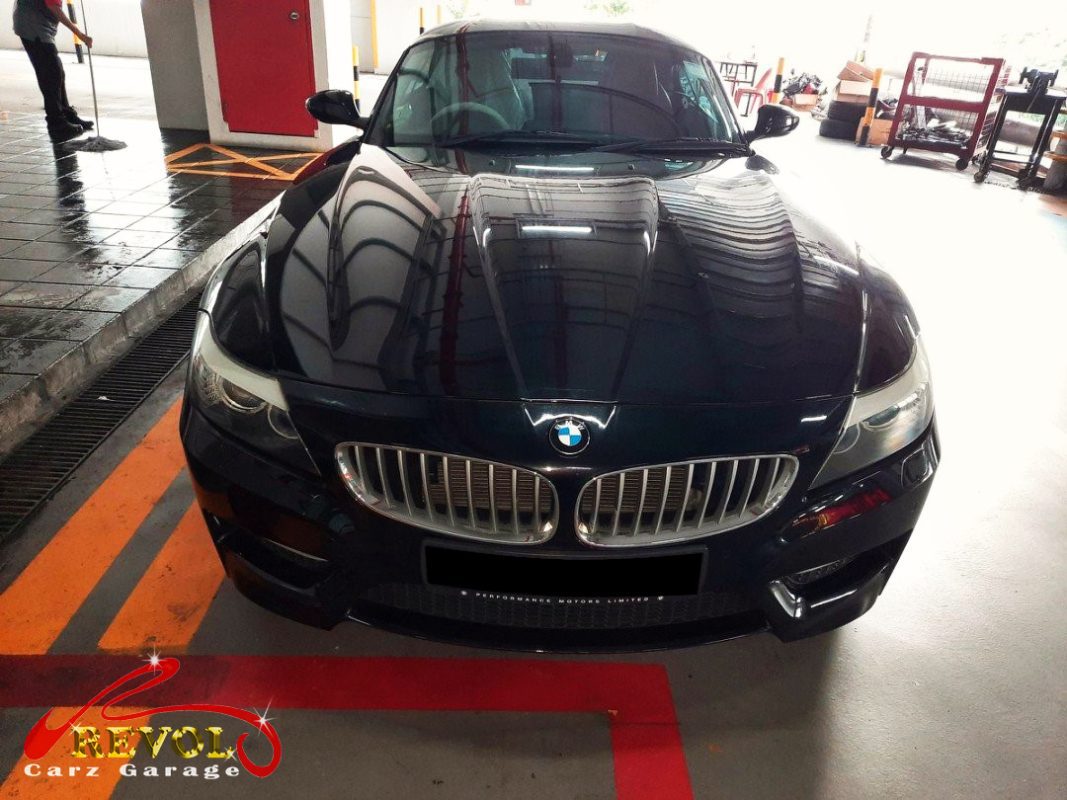

BMW Z4 parked at the workshop, in for an oil leak diagnosis.

The brief

The Z4's driver found a pool of oil under the car in the morning and brought it straight in. That's the right call, losing engine oil quietly is bad enough, but a puddle that size means a real leak, and an engine that runs low risks low oil pressure and serious damage. The trail pointed at the oil sump, the pan bolted to the bottom of the engine that holds the oil. It seals to the block with a gasket or sealant bead, and over the years the heat cycles harden it until it shrinks and cracks and the seal lets go, so oil weeps out the join, runs down the pan, and drips, building into a puddle overnight. A weeping sump doesn't reseal itself, and the leak only gets worse, so the pan has to come off and go back on with a fresh seal.

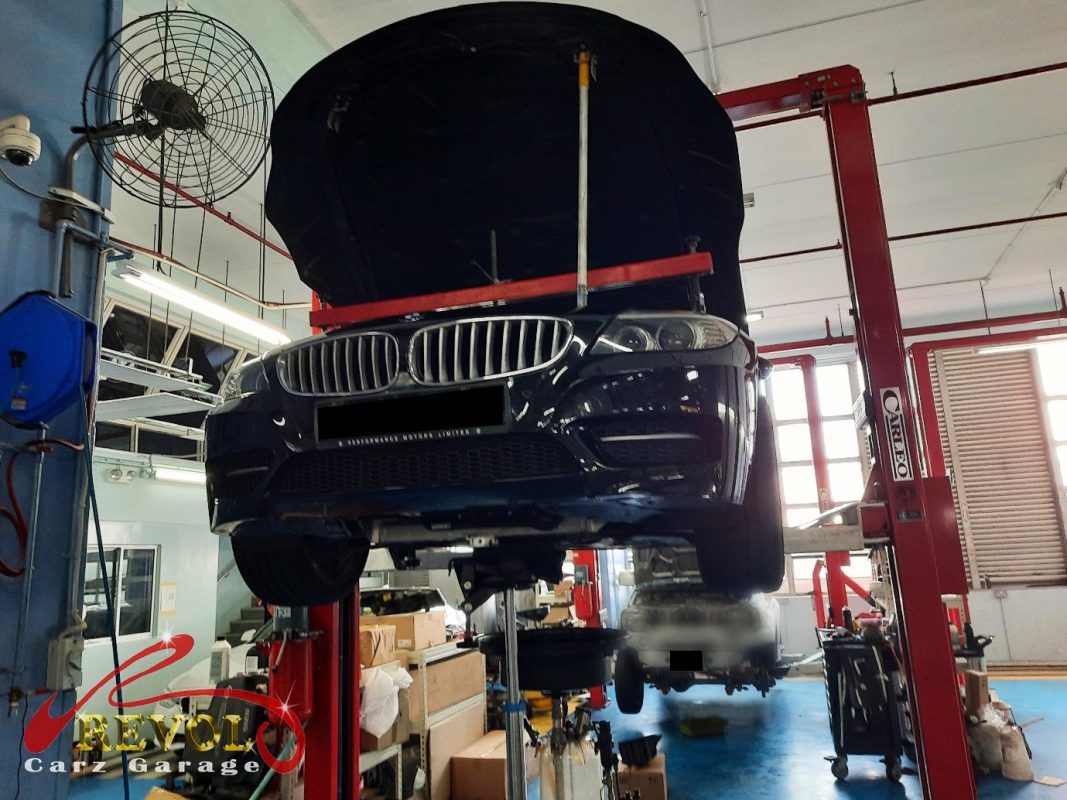

The oil leak traced to the sump gasket on the BMW Z4.

The diagnosis

With the engine cleaned off and run, the leak traced to the sump gasket, oil weeping from the seam between the pan and the block, not from the drain plug or anywhere higher up. The rest of the engine's seals checked out dry, so it was the sump gasket. That's a reseal: drop the sump, clean both mating faces back to bare metal, and seal it up properly the way the engine calls for, with a fresh gasket or sealant bead to spec.

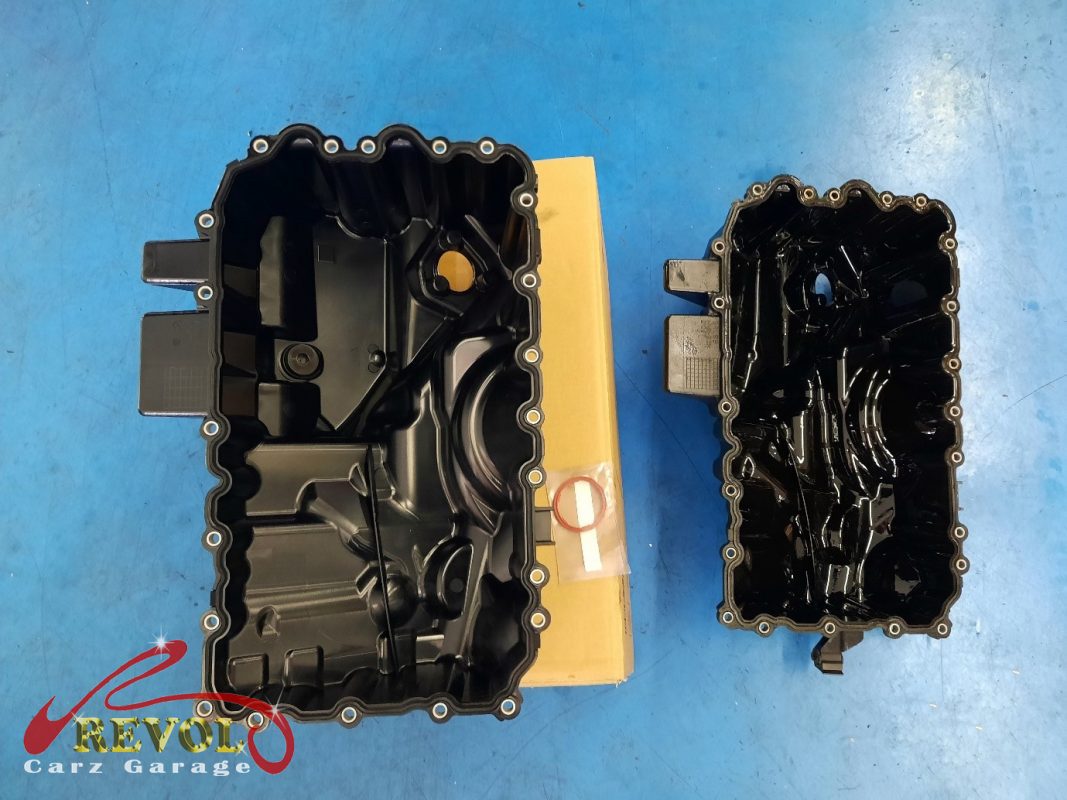

The sump pan removed and the mating faces cleaned back to bare metal.

The work

The undertray came off, the oil was drained, and the sump pan unbolted and removed. Both mating faces, on the pan and on the block, were cleaned right back so the new seal had a clean surface to bite on, the oil pickup checked clear, and the sump refitted with a fresh seal to the manufacturer's spec, every bolt torqued in sequence. Fresh oil to level, and the engine run and checked warm for any weep. A road test confirmed the sump was dry and the level held.

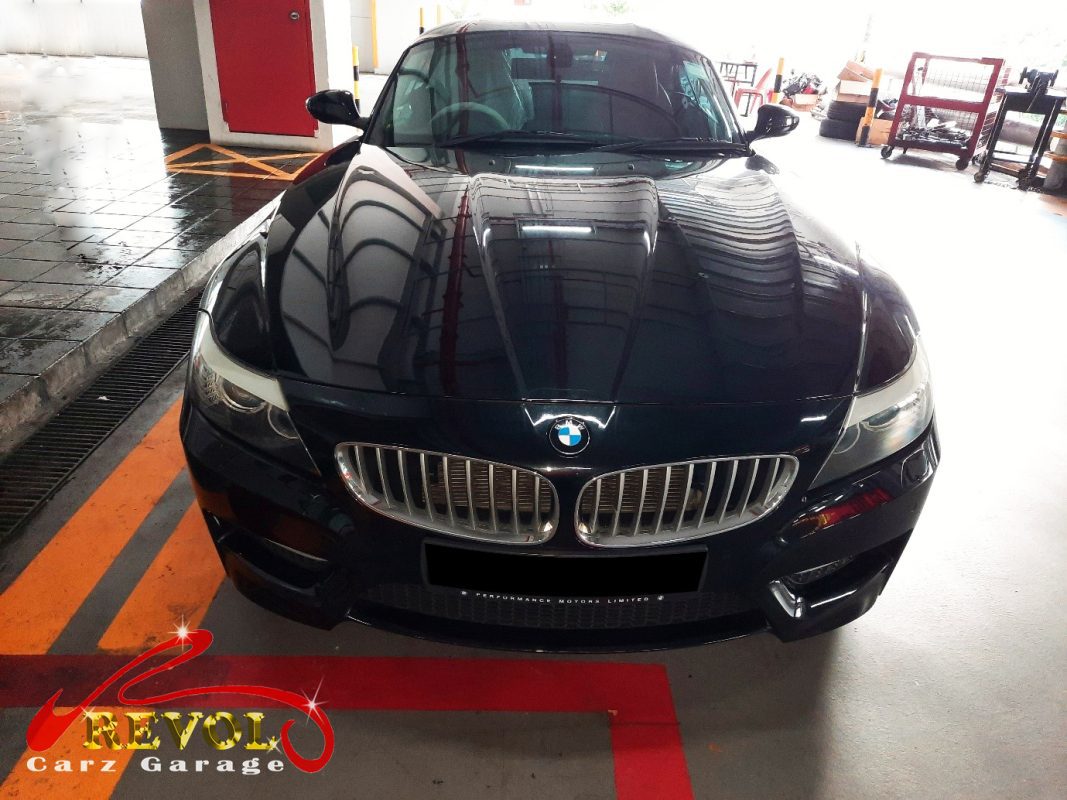

The sump refitted with a fresh seal.

The outcome

No more oil under the car, the sump sealed and dry, and the oil level holding between checks. The Z4 went home with the leak sorted at its source. A weeping sump gasket only worsens and quietly drinks oil, so pulling the pan and resealing it properly stopped the leak and kept the engine where it should be on oil.
