Mercedes-Benz Case Study · 115

Mercedes-Benz E250 transmission fluid, replaced.

A Mercedes-Benz E250 came in for a transmission fluid service. The old fluid was drained, the filter replaced, refilled with the correct Mercedes fluid and the level set at temperature.

Job done

Servicing Transmission Mercedes-Benz Specialist

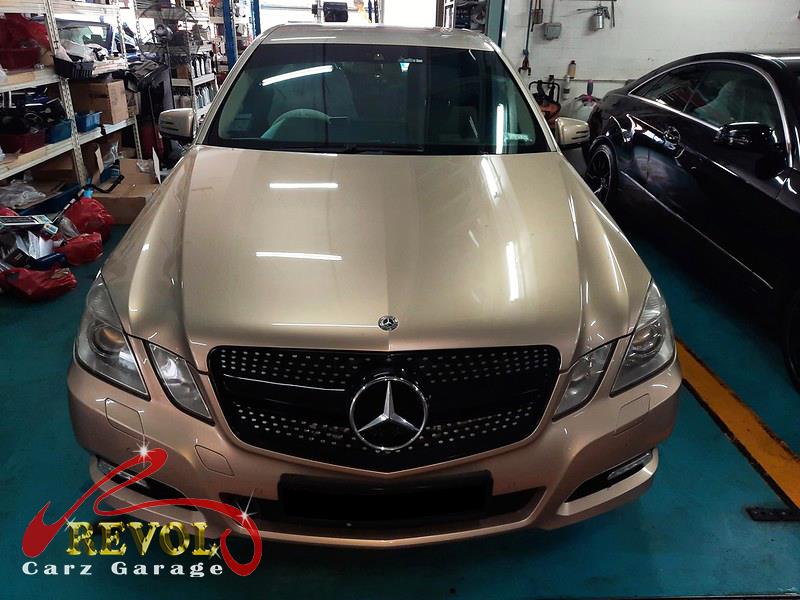

Mercedes-Benz E250 parked at the workshop for a transmission fluid service.

The brief

The E250 was due for its transmission fluid service, Mercedes calls for it at the 60,000 and 120,000 km marks, and the owner wanted it done on time. That's the right call, the fluid does the lubricating, cooling and clutch work in there, and keeping it fresh is what keeps the shifts crisp and the gearbox healthy. This is more than a drain and refill. The service means dropping the pan, replacing the transmission fluid filter with a fresh gasket, refilling with the exact Mercedes-spec fluid, and then setting the level with the gearbox at the right temperature, because it's a fill-to-temperature procedure, not a dipstick. Done right, it's the cheapest insurance there is on an automatic.

The old transmission fluid drained from the Mercedes-Benz E250.

The diagnosis

A check confirmed the gearbox was shifting fine, no slipping, no flare, no fault codes, just fluid that had reached its service interval. The pan and filter were due with it. So it was a straight fluid-and-filter service: drop the pan, fit the new filter, refill with the correct fluid, and set the level properly at temperature.

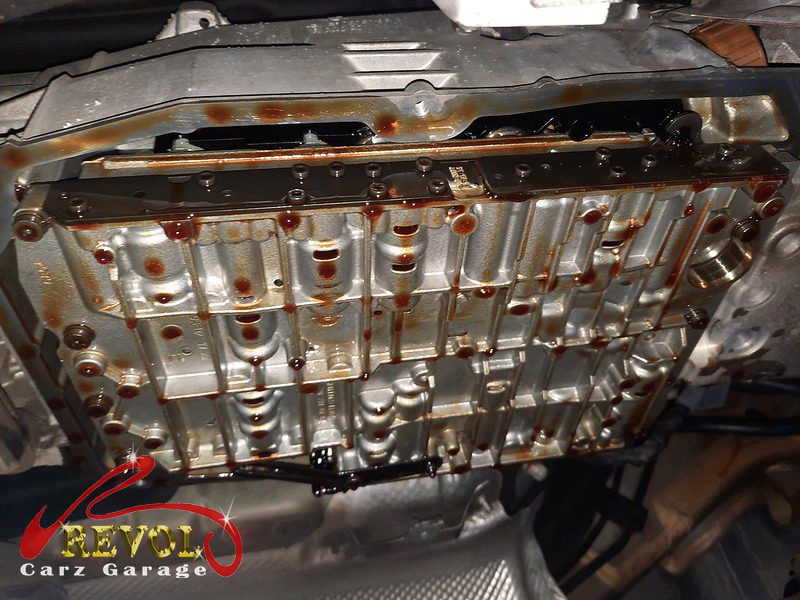

The transmission pan dropped and the old filter removed.

The work

The old transmission fluid was drained, the pan dropped and the transmission fluid filter replaced with a new genuine Mercedes unit and a fresh gasket, the magnets cleaned off. The gearbox was refilled with the exact Mercedes-spec fluid, then brought up to the specified temperature and the level set precisely the way the procedure calls for, with the fill plug torqued to spec, and the adaptations reset so the gearbox relearned on fresh fluid. A road test confirmed clean, crisp shifts through the range with smooth pull-away and no flare.

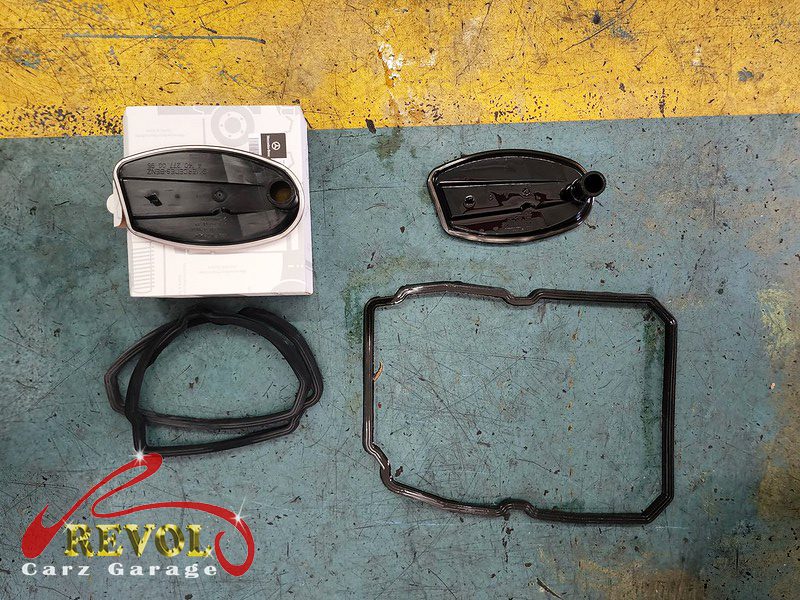

The new genuine Mercedes transmission filter and gasket ready to fit.

The outcome

Crisp shifts, smooth pull-away, no flare between gears, and the gearbox running cooler on fresh fluid. The E250 went home with the transmission serviced on schedule. Fluid that's done its interval loses its edge and lets the gearbox run hotter, so changing it, the filter and the gasket and setting the level right is the proactive job that keeps a good gearbox a good gearbox.

Due a service?

Transmission fluid due on your Mercedes?

If your car is at the 60,000 or 120,000 km mark and the transmission fluid is due, the team can do a proper pan, filter and fluid service with genuine parts. Drop us a message.
