Mercedes-Benz Case Study · 118

Mercedes-Benz B180 turbo valve, replaced.

A Mercedes-Benz B180 came in flat on boost, hesitating, with a hiss and a flutter from the engine. The turbo diverter valve had failed. Replaced, the boost and the response back.

Job done

Mechanical Repairs Engine Repairs Mercedes-Benz Specialist
Mercedes-Benz B180 parked at the workshop, in for a turbo boost diagnosis.

The brief

The B180 had gone flat: lazy off boost, hesitating when you asked for power, a hiss or flutter from the engine when you lifted off, and the check engine light on. He brought it in. That points at the turbo diverter valve. On a turbocharged engine like this, when you lift off the throttle the diverter valve opens to vent the boost pressure that's already built up, so the turbo doesn't stall against a closed throttle. The valve has a diaphragm or a solenoid that wears, and when it fails it leaks boost the whole time, or doesn't seal, so the engine never builds proper pressure, that's the flat, hesitant feel, and the leaking or fluttering air is the hiss. The engine management sees the boost it expected isn't there and lights the dash. A failed diverter valve doesn't recover, so it needs replacing.

The diagnosis

Diagnostics confirmed it, underboost and boost-deviation fault codes, and a check showed the diverter valve wasn't sealing, bleeding boost pressure constantly, which is exactly the flat response and the hiss. The turbo itself, the intercooler and the pipework checked out, it was the valve. That's a replacement. The valve's a sealed component, you don't rebuild it, so the call was a new genuine valve, fitted and the codes cleared.

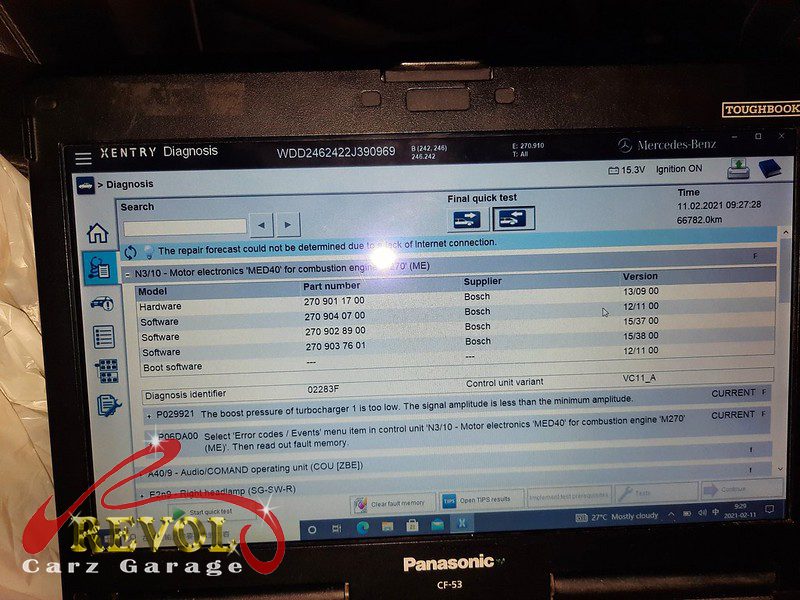

Diagnostics on the Mercedes-Benz B180 showing the underboost fault codes.

The work

The old turbo diverter valve was removed and a new genuine Mercedes-spec valve fitted with fresh seals, the boost hoses and clamps checked over while everything was apart. Then the fault codes were cleared and the engine's boost adaptations reset so it could relearn against a valve that was holding pressure. A road test confirmed strong, clean boost, no hesitation, no hiss or flutter, and the light staying off.

The old failed turbo diverter valve removed from the engine.

The outcome

Strong boost, clean throttle response, no hesitation, no hiss or flutter on lift-off, and no warning light. The B180 went home with the turbo system sealed and pulling properly again. A leaking diverter valve robs the engine of its boost and keeps the management chasing pressure that isn't there, so changing the valve and letting the engine relearn put the performance back.
