Mercedes-Benz Case Study · 150

Mercedes-Benz B200 engine oil leak, resolved.

A Mercedes-Benz B200 came in leaving oil puddles, with a burning smell, frequent top-ups and oil on the engine. The valve cover gasket had hardened. Replaced, sealed, dry.

Job done

Mechanical Repairs Engine Repairs Mercedes-Benz Specialist

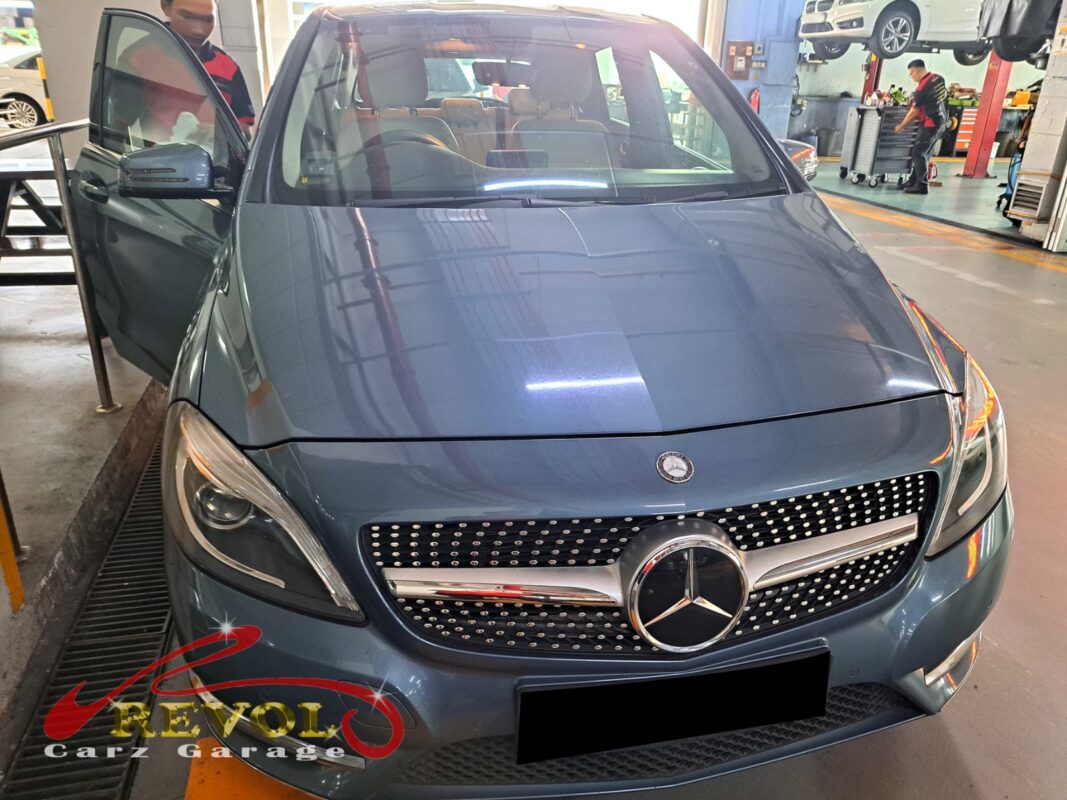

Mercedes-Benz B200 parked at the workshop, in for an oil leak inspection.

The brief

The B200 had been leaving oil puddles where it parked, there was a burning oil smell with the engine running, the owner was topping up oil between changes, and there was visible oil and wetness on the engine. He brought it in. Those symptoms point at an oil leak from the top of the engine, and on these the valve cover gasket is the usual culprit. The valve cover seals the camshafts and the valvetrain in, and the gasket between it and the cylinder head hardens over years of heat until it stops sealing, so engine oil weeps out along the seam. That's the spots on the ground, the wetness on the engine, and the burning smell when it drips onto something hot. Left long enough, a low oil level can affect the engine's running, so it's worth tracing and fixing rather than topping up.

Oil traces around the valve cover on the Mercedes-Benz B200.

The diagnosis

On the lift the leak traced cleanly to the valve cover gasket, weeping along the seam, with the other seals in the area, the front cover, the sump, dry. The gasket had hardened past sealing, the typical failure on these. That's a gasket replacement, take the valve cover off and reseal it. The cover itself was fine, so it was a fresh gasket.

The valve cover removed and the old hardened gasket exposed.

The work

The valve cover was removed, the old gasket taken off, and the mating faces cleaned back to bare metal. A new genuine Mercedes-spec valve cover gasket went on, the cover torqued back up to spec in the proper pattern, the oil that had tracked down cleaned off, and the engine topped to the correct level with the right spec oil. Then it was held at idle and checked to confirm the new seal was dry. A road test followed to confirm it stayed dry and the level held.

The new Mercedes-spec valve cover gasket ready to fit.

The outcome

Dry valve cover, no spots under the car, the oil level holding, no burning smell, and the engine bay clean. The B200 went home with the leak resolved. A valve cover gasket leak only spreads, and once it's letting the level drop the engine pays for it, so resealing it kept the job to a tidy one.
