Mercedes-Benz Case Study · 161

Mercedes-Benz E250 transmission fluid, filter and gasket, replaced.

A Mercedes-Benz E250 came in for a scheduled transmission service at the recommended interval. ATF, filter and pan gasket replaced, level set to spec, shifts smooth.

Job done

Transmission Service Mechanical Repairs Mercedes-Benz Specialist

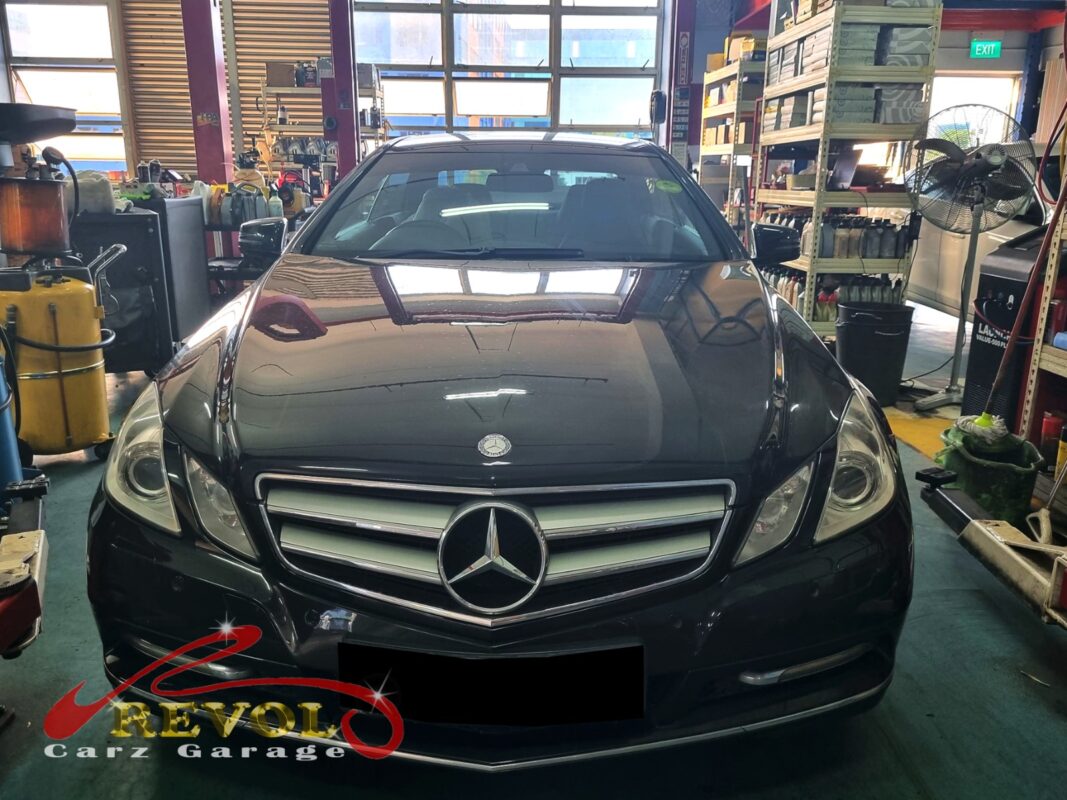

Mercedes-Benz E250 parked at the workshop, in for a scheduled transmission service.

The brief

The E250 had reached the mileage where the automatic transmission fluid is due for a change, and the owner had brought it in proactively rather than waiting for the shifts to go off. Good call, the gearbox is one of the most expensive things on the car and the fluid is what protects it. The ATF lubricates the gears and clutches, cools the transmission, and carries the hydraulic pressure that does the shifting. Heat and friction degrade it over time, so it loses its ability to protect and to shift cleanly, which is why it's a scheduled item. Changing it at the recommended interval, along with the filter and the pan gasket that seal the bottom of the box, keeps the transmission running smoothly and prevents the overheating that wears clutches.

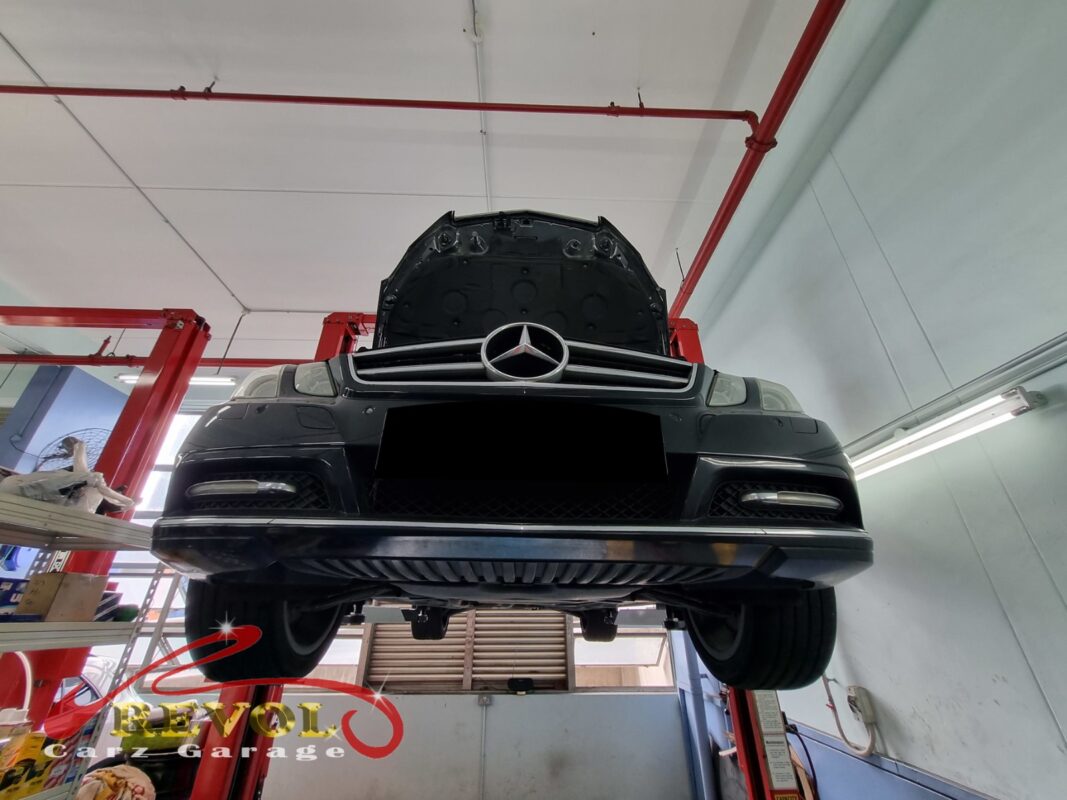

The transmission pan dropped on the Mercedes-Benz E250 for the ATF service.

The diagnosis

A check of the fluid showed it darkening and tired, right where you'd expect at this mileage, with no metal or burnt smell, just used. The transmission itself was shifting fine, no faults stored, so this was a service rather than a repair. Confirming clean, even fluid wear like that is useful in itself: it tells you the transmission is healthy and the change is being done at the right time, before any harm is done.

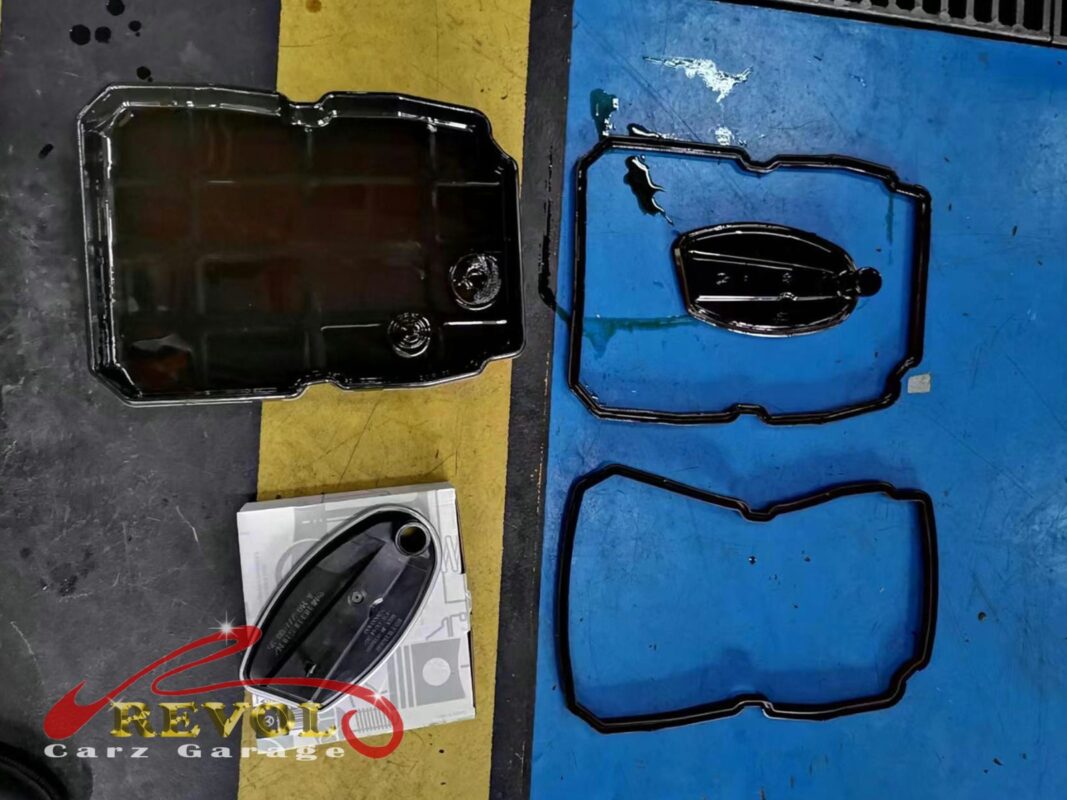

The old transmission filter and the tired fluid that came out.

The work

The transmission pan was dropped, the old fluid drained, and the old filter and gasket removed. The pan and the magnets were cleaned, a new genuine Mercedes-spec filter and pan gasket fitted, the pan torqued back up, and the box refilled with the correct ATF to the proper level following the fill procedure, with the fluid temperature checked so the level was set right. A road test followed to confirm the shifts stayed smooth and there was nothing leaking.

The new Mercedes-spec transmission filter and pan gasket ready to fit.

The outcome

Smooth, prompt shifts, fresh fluid at the correct level, and no leaks. The E250 went home good for the next transmission interval. ATF is a service item, and a transmission run on degraded fluid wears harder and shifts worse, so doing the full set on schedule is the cheap insurance against a far bigger repair down the line.

Due a service?

Transmission service due on your Mercedes?

If your car is at the mileage for an ATF change, the team can drop the pan, change the filter and gasket, and refill with the correct fluid to spec. Drop us a message.
