Mercedes-Benz Case Study · 175

Mercedes-Benz C180 ATF, replaced.

C180 had reached the 60,000 km transmission interval with shifts feeling slightly less crisp than new. Full ATF and filter change to Mercedes spec, pan reseal, fresh learn cycle.

Job done

Servicing Transmission Mercedes Specialist

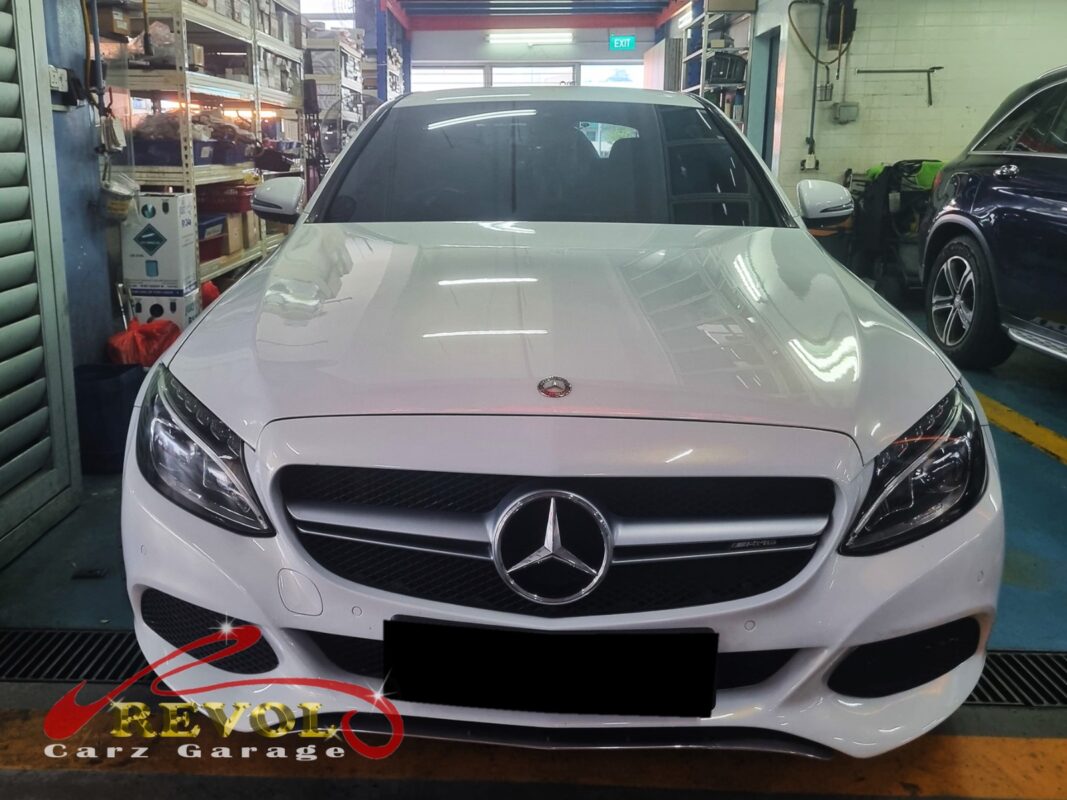

Mercedes-Benz C180 on the lift for an ATF replacement.

The brief

The C180 had crossed 60,000 km, the point Mercedes' schedule calls for a transmission service, and the owner had noticed the shifts feeling a touch less crisp than when the car was new. That is the standard cue for a full ATF and filter change.

Automatic transmission fluid does two jobs at once: it carries the hydraulic pressure that actually changes the gears, and it lubricates and cools the gearbox doing it. Over tens of thousands of kilometres it darkens, picks up fine wear material, and loses some of its sharpness, and the shifts start to feel a little softer. There was nothing wrong, just maintenance due on schedule before that softening turned into anything more.

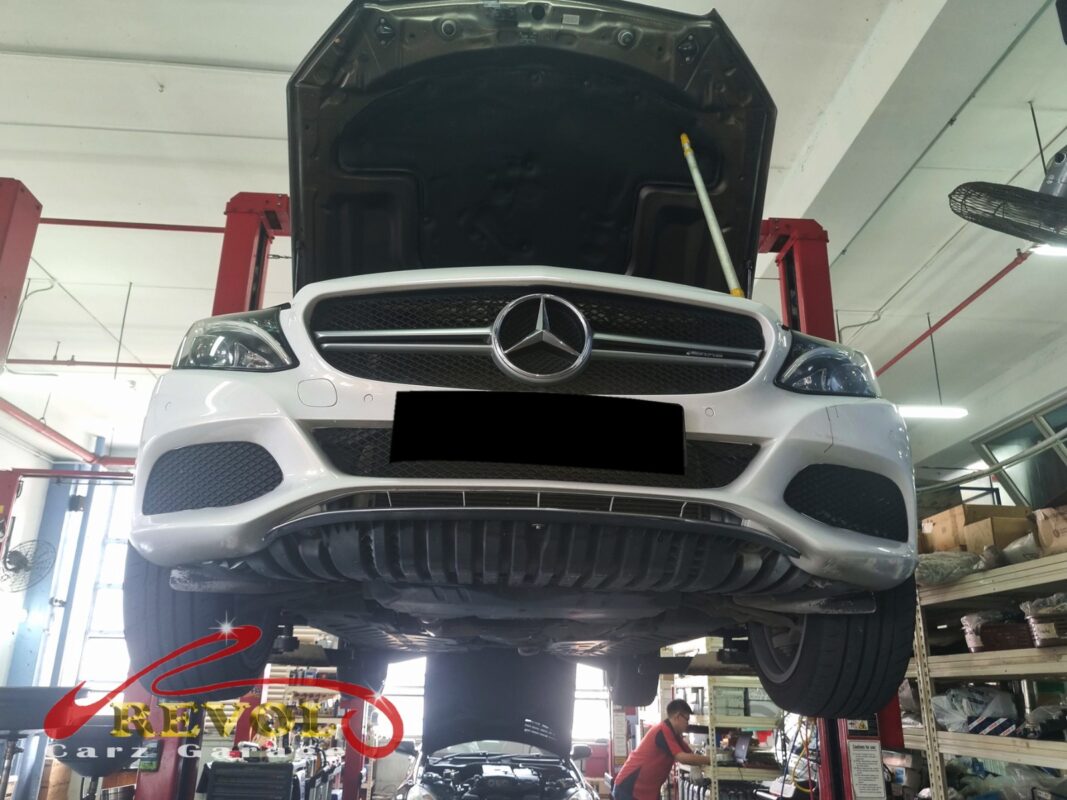

The C180 up on the two-post lift for its ATF service.
The C180 up on the two-post lift for its ATF service.

The diagnosis

With the pan dropped, the drained fluid told a healthy story: darker than fresh with a mild metallic glitter, exactly what you expect at this mileage, and the filter held matching debris, the pan magnet the usual fine wear material. A scan of the transmission control unit came back clean.

So this was a straightforward refresh, not a repair, which is what a 60,000 km ATF service should be: caught on time so there is nothing to fix, just fluid and a filter to renew.

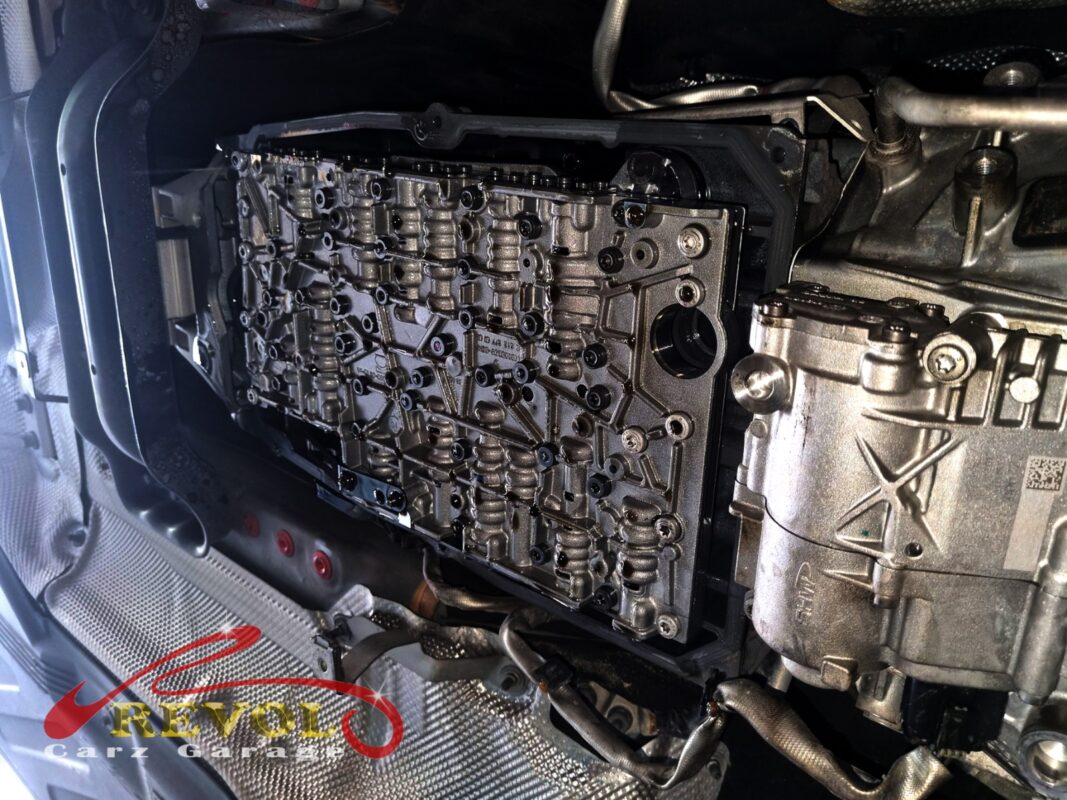

The transmission pan dropped, the valve body exposed for the fluid and filter service.
The transmission pan dropped, the valve body exposed for the fluid and filter service.

The work

The old fluid was drained, the transmission pan dropped, the internal filter replaced, and the pan magnet wiped clean. A new pan gasket went on, then the gearbox was refilled with the correct Mercedes-spec ATF to the level on the dipstick at temperature, the way the spec requires.

Finally a fresh adaptation learn cycle was run on the scan tool, so the transmission control unit relearned its shift points on the clean fluid rather than carrying over the old worn-fluid settings.

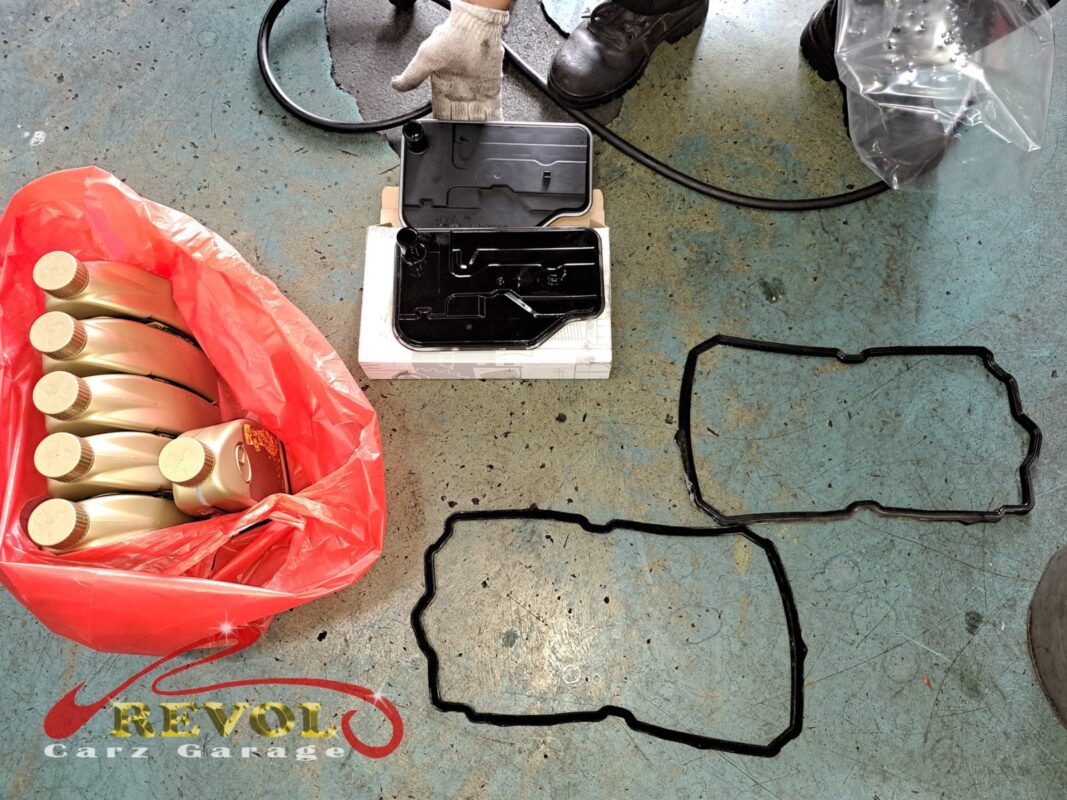

The new Mercedes-spec ATF, transmission filter and pan gasket ready to go in.
The new Mercedes-spec ATF, transmission filter and pan gasket ready to go in.

The outcome

Smoother shifts at low speed, no flare on hard upshifts, and the gearbox feeling like it did when the car was newer.

The C180 went home set for the next interval. For the owner, the value is in what did not happen: the gearbox is the most expensive single part of the drivetrain, and a fluid service on schedule is cheap insurance against the kind of wear that, left alone, eventually shows up as a slipping or harsh-shifting box that costs many times more to put right.
