Mercedes-Benz Case Study · 207

Mercedes-Benz B180 battery, replaced and registered.

B180 came in with slow morning cranks and a battery-low warning on the cluster. Battery tested at end of life on the load tester. New unit fitted, registered on STAR so the charging system handles it correctly.

Job done

Mechanical Repairs Electrical Mercedes Specialist
Mercedes-Benz B180 with the bonnet open for battery replacement.

The brief

The B180 was cranking slowly in the morning, the engine taking that bit longer to catch than it used to, and the cluster had started showing a battery-low warning. The owner brought it in before one of those mornings became the one where it didn't start at all and left him stuck in the driveway.

A car battery wears out, it's a consumable. Over the years it loses capacity, until one morning it can't deliver the punch the starter needs. The slow crank and the warning light are the battery telling you it's near the end. The smart move is to act on that warning rather than wait for the dead one.

The diagnosis

The battery went on the load tester, and the numbers were clear: state of health well down, capacity well below what the battery is rated for, and the voltage sagging too far under a cranking-load simulation. The tester's own verdict was replace.

We checked the rest of the charging side too, the alternator and the wiring, and all of that tested fine. It was just the battery, at the end of its life. Nothing else needed touching.

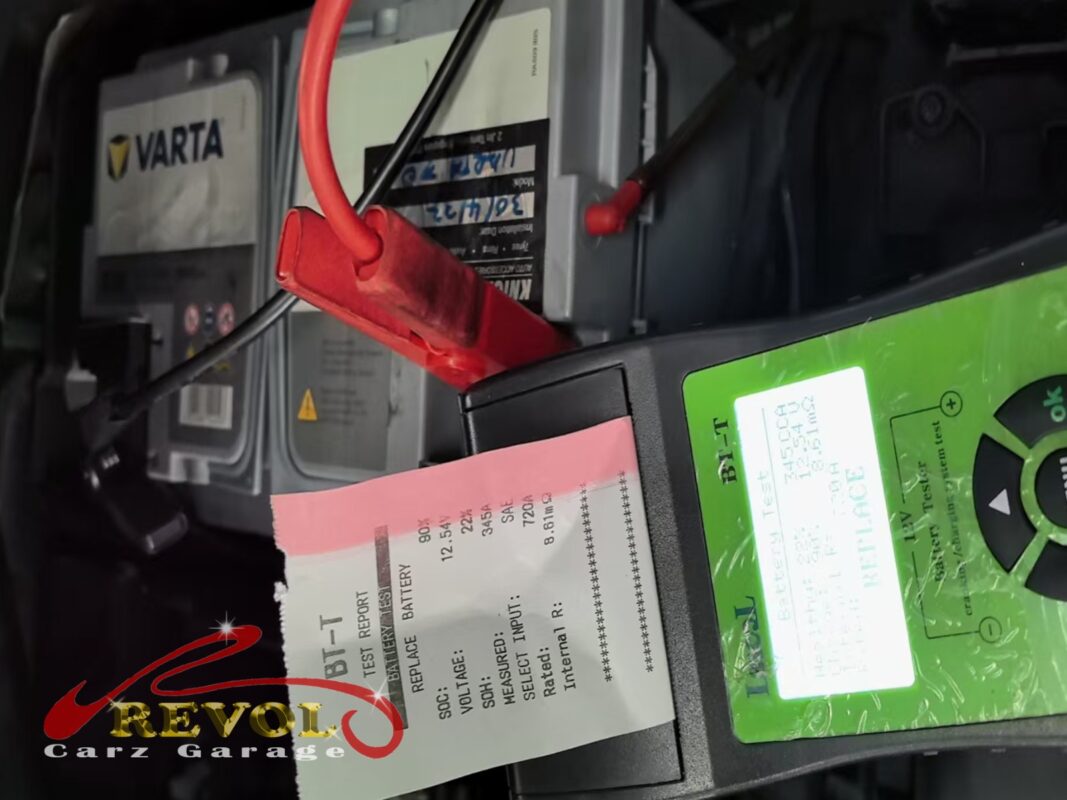

The load tester on the old VARTA battery, reading well below spec with a replace verdict.
The load tester on the old VARTA battery, reading well below spec with a replace verdict.

The work

The old battery was disconnected and removed, taking the usual care that a modern Mercedes needs around a battery swap so nothing in the electronics gets upset. A new Mercedes-spec AGM battery went in, the type the car is designed for.

Then the new battery was registered on STAR, which is the step a lot of people miss. The car keeps a record of its battery's age and type and charges it on a profile to match. Tell it there's a new one and it manages the new battery properly, leave it and the charging is wrong from day one. Last thing was clearing the cluster warning.

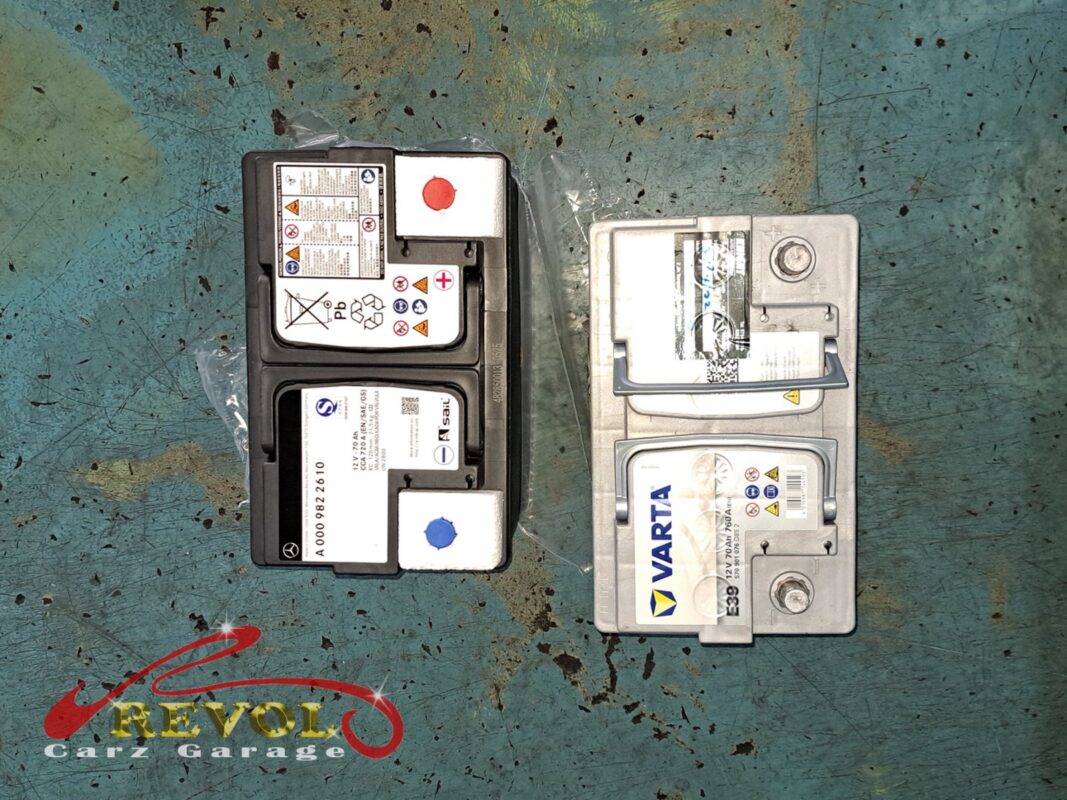

The new Mercedes-spec AGM battery (left) beside the old unit removed (right).
The new Mercedes-spec AGM battery (left) beside the old unit removed (right).

The outcome

Normal half-second crank in the morning, no cluster warnings, and the charging system working to the new battery's profile.

The B180 went home reliable again. A battery is the cheapest part on the car to plan for and the most annoying one to be caught out by, so swapping it on the warning light rather than on the breakdown is the way to do it. Registering it properly is what makes the new one last.
