Mercedes-Benz Case Study · 27

Mercedes-Benz C200 check engine light, traced and cleared.

A Mercedes-Benz C200 AMG came in with the check engine light on. The Mercedes diagnostic pointed at the mass air flow sensor reading wrong. Sensor replaced, adaptations reset, the light stayed off.

Job done

Diagnostics Mechanical Repairs Mercedes-Benz Specialist

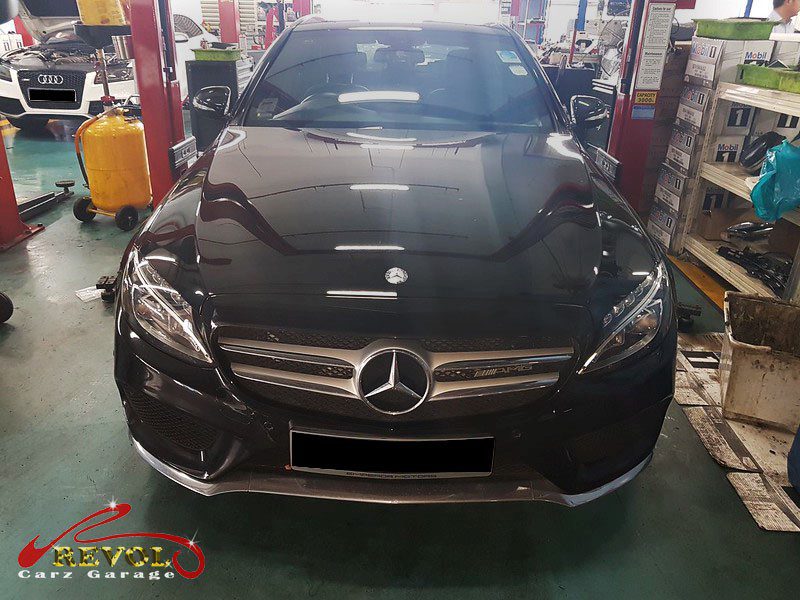

Mercedes-Benz C200 AMG at the workshop, in for a check engine light diagnosis.

The brief

Mr Alex's C200 AMG had the check engine light on. A check engine light can come from a long list of things, so the first job is a proper read, not a guess. He brought it in. We ran the Mercedes diagnostic system on it, because a generic code reader gives you a rough code, but the manufacturer software gives you the live data and the freeze-frame behind it, which is what tells you whether a sensor is actually faulty or just reporting a fault upstream. The light is the car telling you something is outside spec, and ignoring it lets a small fault turn into a driveability problem or a part that takes others down with it, so it needed reading and fixing at the source.

The Mercedes diagnostic system connected to the C200 reading the fault code.

The diagnosis

The Mercedes diagnostic pulled the stored fault and the live data showed the mass air flow sensor reading off, the airflow figure not matching what the engine was actually doing, which throws the fuel mixture out and sets the light. Wiring and connectors to it checked out, the sensor itself was the fault. A mass air flow sensor that's drifted doesn't come back, so the call was to replace it and reset the engine's fuel adaptations so it relearns on a sensor it can trust.

The live data showing the mass air flow sensor reading out of range.
The old mass air flow sensor removed from the intake.

The work

The old mass air flow sensor was removed and a new genuine Mercedes-spec sensor fitted, the intake checked for leaks while it was apart so nothing was throwing the new sensor off. The fault was cleared, the engine's fuel adaptations reset, and the air filter checked since a clogged one makes a MAF's life harder. A road test confirmed the light stayed off, the idle steady, and the throttle response back to normal with no hesitation.

The new genuine Mercedes-spec mass air flow sensor ready to fit.

The outcome

No check engine light, a steady idle, clean throttle response, smooth power, and the fuel trims back in range. The C200 went home running properly with the light out. Reading it on the Mercedes system meant we replaced the part that was actually faulty rather than throwing parts at a generic code, so it was one visit and done.

The new sensor installed and the fault cleared.
Got something similar?

Check engine light on your Mercedes?

If your check engine light is on, get it read properly before it becomes something bigger. The team can run a full Mercedes diagnostic and fix it at the source. Drop us a message.
