Mercedes-Benz Case Study · 89

Mercedes-Benz A180 front anti-roll bar links, replaced.

A Mercedes-Benz A180 came in with a knock and creak from the front over bumps. The anti-roll bar links had worn. Pair replaced, the front end quiet and tight again.

Job done

Mechanical Repairs Suspension Mercedes-Benz Specialist

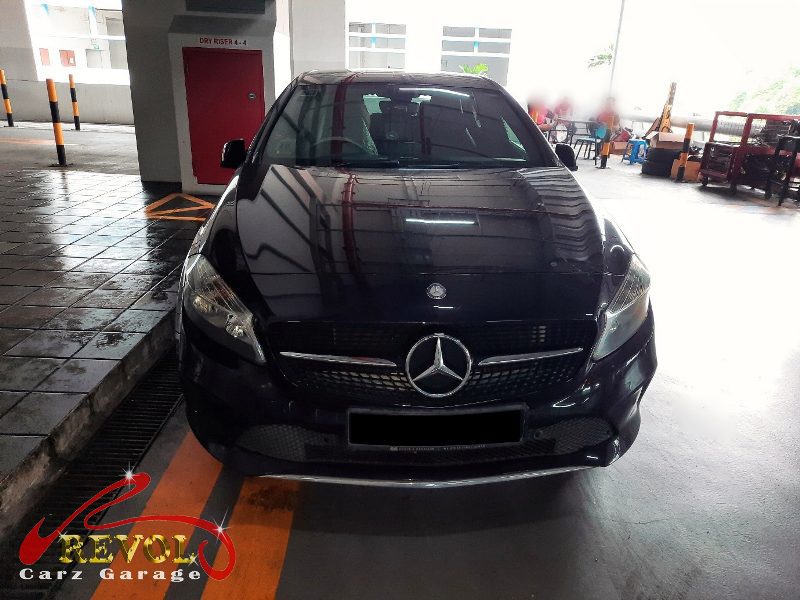

Mercedes-Benz A180 parked at the workshop, in for front suspension inspection.

The brief

The A180 had a knock and a creak coming off the front over bumps and uneven roads, the kind of front-end noise that wants checking before it leads to more. He brought it in for a maintenance look-over. The culprit was the front anti-roll bar links. The anti-roll bar runs across the front and ties the two sides of the suspension together so the car leans less in corners, and the links are the short rods with ball joints and bushings that connect that bar to the suspension. The joints wear and the bushings crack, so over a bump the link works loose and knocks or creaks, and the anti-roll bar can't do its job cleanly. A worn link only knocks louder, and it puts strain on the parts around it, so they need changing.

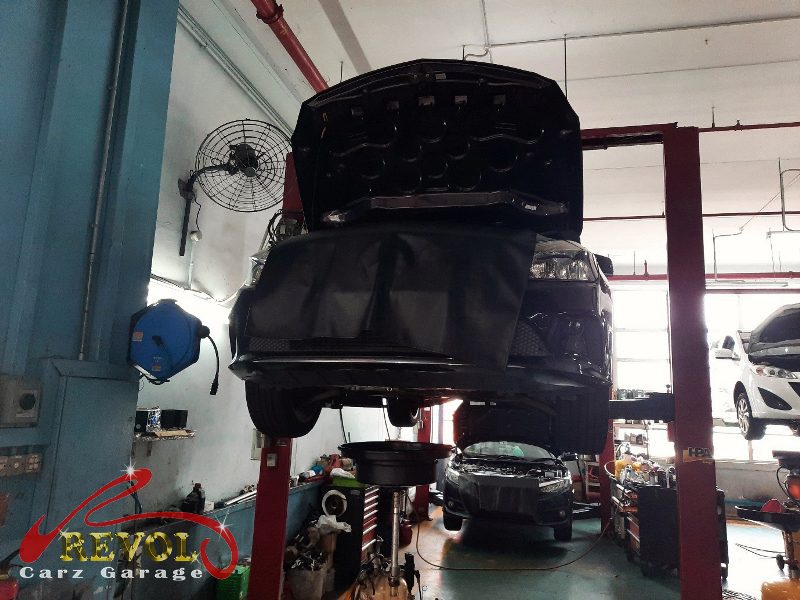

The front suspension checked on the Mercedes-Benz A180, the knock traced to the anti-roll bar links.

The diagnosis

On the lift the front suspension got the once-over. The anti-roll bar links were the culprit, the ball joints worn with play you could feel by hand and the bushings cracked, which is exactly what makes that knock and creak over bumps. The rest of the front, the arms, the bushes, the shocks, checked out. When the links on an axle have gone, you do the pair, they wear at much the same rate, and a fresh one next to a worn one just means you're back under there soon for the other side.

The old worn anti-roll bar links removed, ball joints loose.

The work

Both front anti-roll bar links were unbolted and removed, and a new pair of genuine Mercedes-spec links fitted, the ball joints torqued to the manual figures and seated properly, the fresh bushings checked. The rest of the front suspension was given a final check while everything was accessible. A road test confirmed the knock and the creak were gone, the front end quiet and tight over bumps and through corners.

The new pair of genuine Mercedes-spec anti-roll bar links ready to fit.

The outcome

No more knock or creak from the front, the anti-roll bar working properly again, and the car flat and composed through corners. The A180 went home with the noise sorted. Worn anti-roll bar links only knock louder and put strain on the parts around them, so doing the pair put the front end back to quiet, the small job that protects the bigger ones.

Got something similar?

Knock from the front of your Mercedes?

If your car knocks or creaks over bumps, the team can check the front suspension and put it right, anti-roll bar links or otherwise. Drop us a message.
