Mercedes-Benz Case Study

Mercedes-Benz CLA180 ABS sensor, replaced.

A Mercedes-Benz CLA180 came in with the ABS warning light on. An accurate diagnosis pinned it to one wheel speed sensor. Replaced on that corner, the warning cleared, no unnecessary parts changed.

Job done

Mechanical Repairs Brakes Mercedes-Benz Specialist

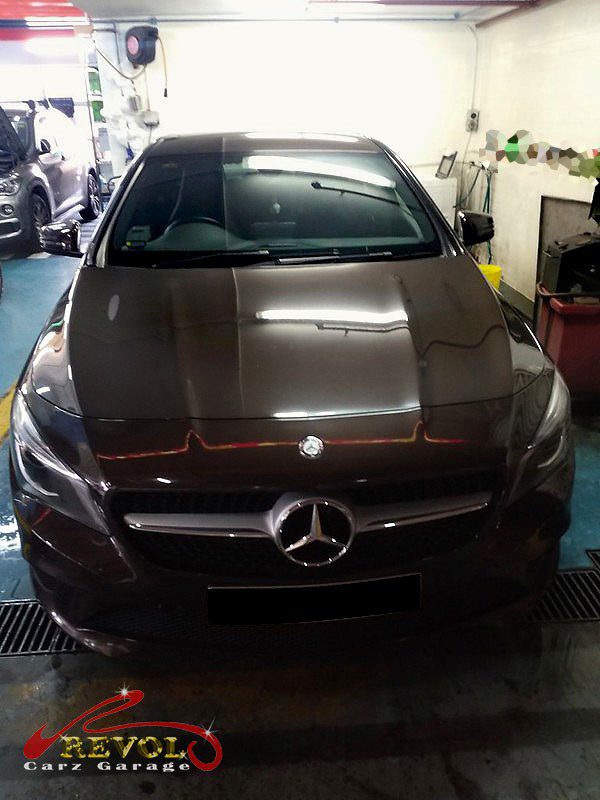

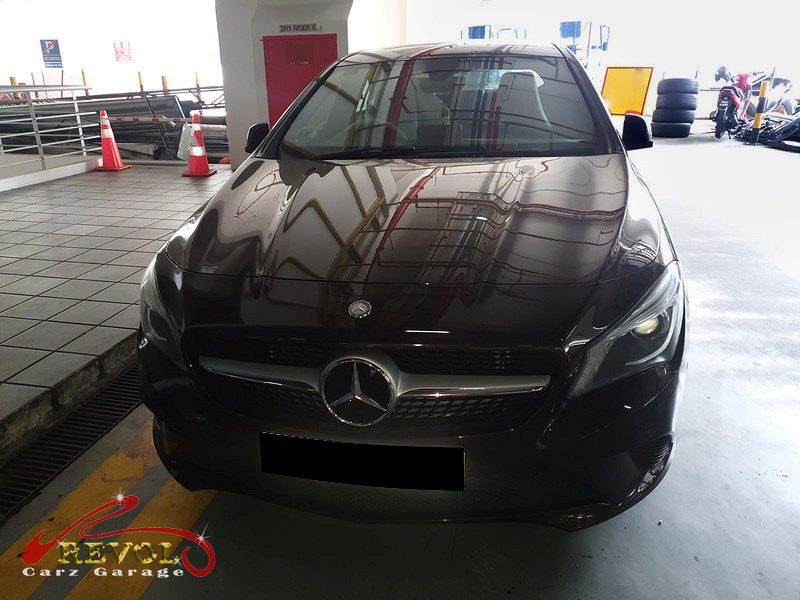

Mercedes-Benz CLA180 parked at the workshop, in for an ABS sensor diagnosis.

The brief

The CLA180 had its ABS warning light on. The right diagnostic is what saves you from replacing parts you don't need, so the team scanned it properly rather than guessing. He brought it in. The ABS warning usually means a wheel speed sensor. There's one at each wheel, and they tell the ABS module how fast each wheel is turning so it can step in if one locks under hard braking. The sensors sit down by the hubs, exposed to heat, water and road grime, and they fail, the element going or the wiring corroding. When one stops giving a clean signal the module can't trust the data, so it shuts ABS down and lights the dash. An accurate scan tells you which sensor, so you change that one and nothing else.

Diagnostic scan on the Mercedes-Benz CLA180 pointing to the failed wheel speed sensor.

The diagnosis

A diagnostic scan pulled the fault straight to a wheel speed sensor on one corner, no clean signal coming from it, which is exactly what trips the ABS light. The other three sensors, the wiring and the brakes themselves checked out, it was that one sensor and nothing more. That's a sensor replacement on the affected corner, you don't repair a failed speed sensor, so the call was a new genuine sensor, fitted and the codes cleared, no other parts touched.

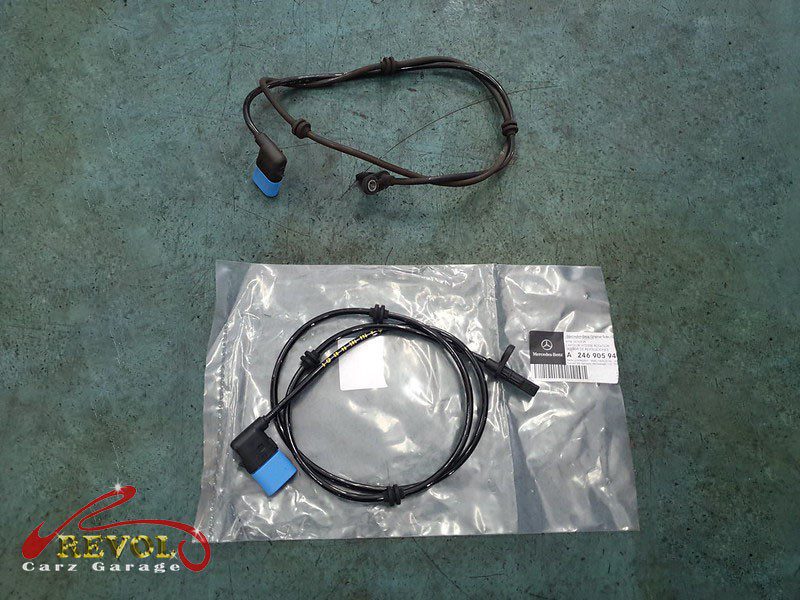

The old ABS sensor removed from the hub.

The work

The wheel came off, the failed ABS sensor was removed from the hub, the mounting cleaned up, and a new genuine Mercedes-spec wheel speed sensor fitted and routed properly so the wiring's protected. The system was scanned to confirm a clean signal from all four wheels and the stored ABS codes cleared. A road test confirmed the ABS warning light stayed off and the anti-lock system was active.

The new genuine Mercedes-spec wheel speed sensor ready to fit.

The outcome

No ABS warning, the anti-lock braking back online, a clean signal from every wheel, and only the one part that needed changing replaced. The CLA180 went home with the safety system working again. An accurate diagnosis pinpointed the faulty sensor, so changing that one and clearing the codes put the braking system right without changing anything that didn't need it.

Got something similar?

ABS light on your Mercedes?

If your ABS warning light is on, the team can scan it, find the faulty sensor, and put it right without changing parts you don't need. Drop us a message.
