Volkswagen Case Study · 109

Volkswagen Jetta fuel filter, replaced.

A Volkswagen Jetta came in due for a fuel filter change. The old, loaded filter was replaced with a genuine VW unit so clean fuel reaches the engine and the running stays crisp.

Job done

Servicing Maintenance Volkswagen Specialist

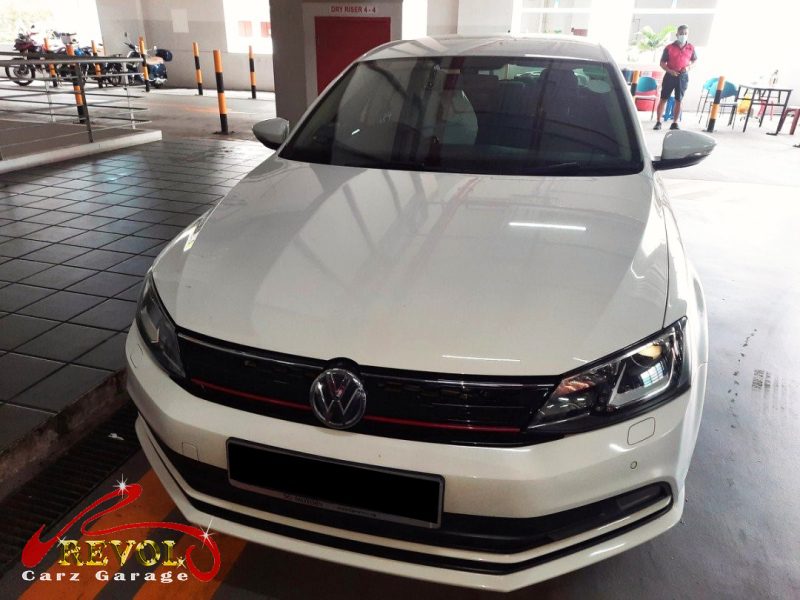

Volkswagen Jetta parked at the workshop for a fuel filter change.

The brief

The Jetta was due for a fuel filter change and the owner wanted it done before it caused trouble. That's the right call, the filter is a scheduled wear item, and a neglected one quietly chokes the fuel supply. The fuel filter sits between the tank and the engine and catches contaminants and impurities before they reach the injectors and the pump. Over the miles it loads up with everything it's trapped, and a clogged filter restricts the flow, so the engine gets starved at the worst moments: hesitation, a flat spot under load, hard starting, and eventually it can stress the fuel pump trying to pull fuel through a blocked filter. Changing it at the recommended interval keeps the fuel clean and the running crisp.

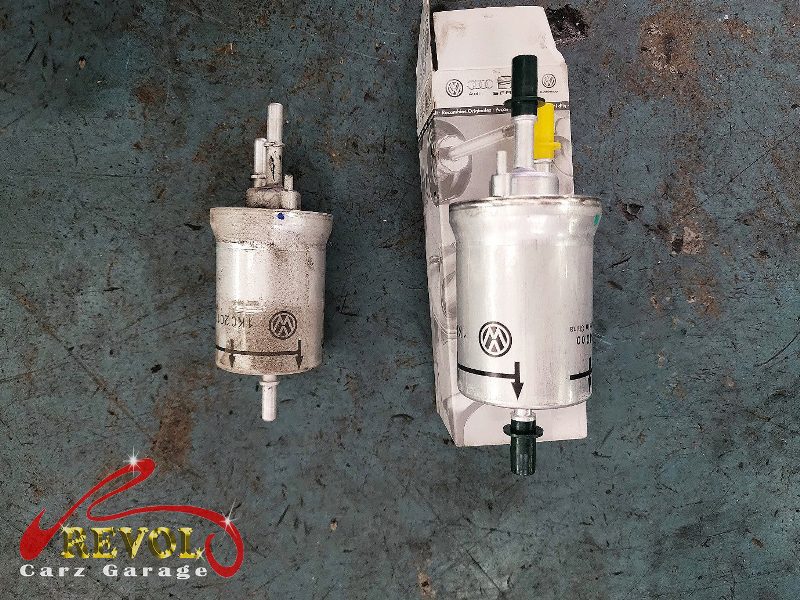

The old fuel filter removed from the Volkswagen Jetta, loaded with trapped debris.

The diagnosis

A check confirmed it, the filter had done its mileage and was loaded with the dirt it had caught, restricting the flow more than it should. The pump, the lines and the rest of the fuel system checked out, it just needed the filter renewed before the restriction got worse. So it was a straight filter replacement, the right interval, the correct part, done properly.

The new genuine VW-spec fuel filter ready to fit.

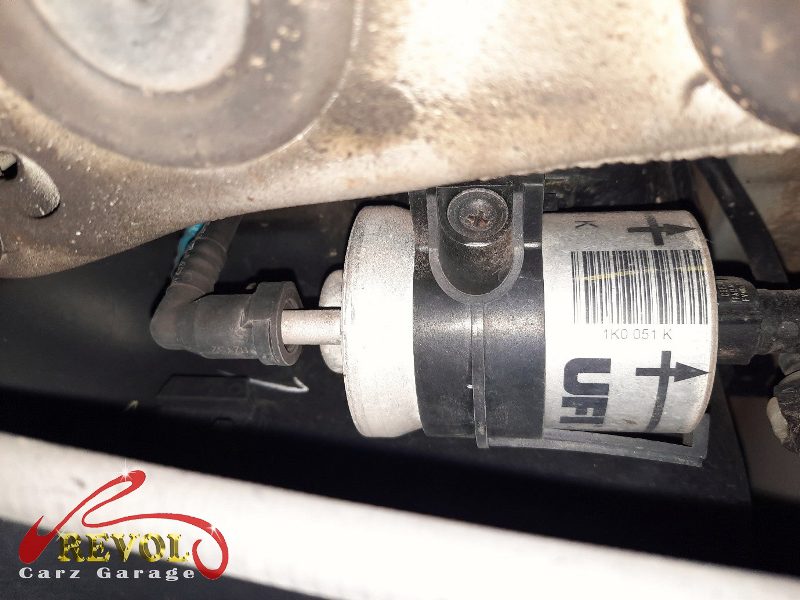

The new filter installed and the fuel system primed.

The work

The fuel system pressure was relieved, the old loaded filter removed, and a new genuine VW-spec fuel filter fitted with fresh seals, the connections checked for leaks as it went back together. The system was primed and the engine run to confirm the fuel was flowing cleanly with no air in the line. A road test confirmed a clean start, steady running, and no hesitation under load.

The fuel connections checked for leaks.

The outcome

Clean fuel reaching the engine, a crisp start, steady running, and no hesitation, with the fuel pump no longer fighting a blocked filter. The Jetta went home with the fuel filter sorted on schedule. A clogged filter only restricts harder and drags the pump down with it, so changing it on time is the small maintenance job that keeps the fuel side healthy.

The service completed and the car ready for the road.
Due a service?

Fuel filter due on your Volkswagen?

If your car is due a fuel filter change, or it's hesitating and hard to start, the team can check the fuel side and put it right. Drop us a message.
