Volkswagen Case Study · 110

Volkswagen Beetle ABS sensor, replaced.

A Volkswagen Beetle came in with a jumpy speedometer, cruise control dropping out and the ABS light on. A wheel speed sensor had failed. Replaced on the affected corner, the warnings cleared.

Job done

Mechanical Repairs Brakes Volkswagen Specialist

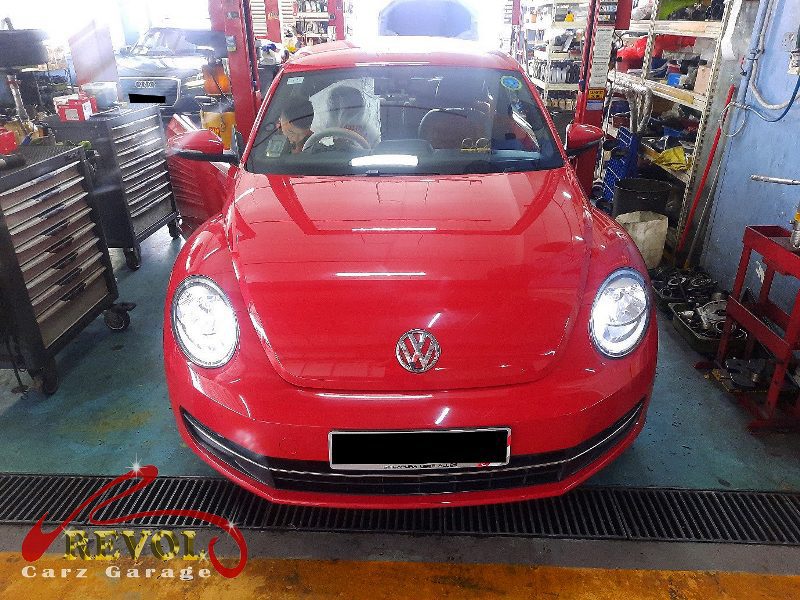

Volkswagen Beetle parked at the workshop, in for an ABS sensor diagnosis.

The brief

The Beetle had gone odd in a way that's easy to misread: the speedometer reading wrong or jumping around, the cruise control cutting out, and the ABS warning light on. He brought it in. That cluster usually traces back to a wheel speed sensor. There's a speed sensor at each wheel, and they don't just feed the ABS, the car's computers use those readings for the speedometer and for the cruise control too. When one sensor fails, the element goes or the wiring corrodes down by the hub, the data goes bad, so the speedo misreads, the cruise control gives up, and the ABS and traction lights come on. A failed sensor doesn't recover, so it needs replacing.

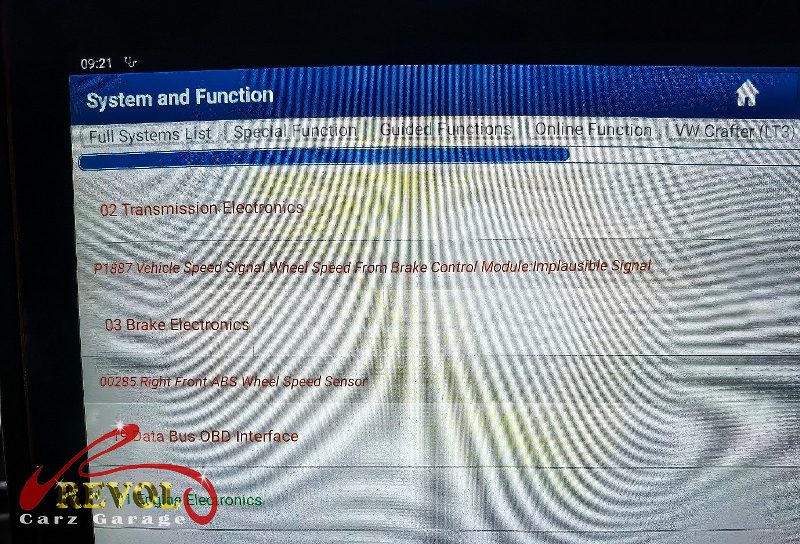

Diagnostic scan on the Volkswagen Beetle pointing to the failed wheel speed sensor.

The diagnosis

A diagnostic scan pulled the fault straight to a wheel speed sensor on one corner, no clean signal coming from it, which explains the speedo and the cruise dropping out, since they lean on that reading. The other three sensors and the brakes themselves checked out, it was that one sensor. That's a sensor replacement on the affected corner, you don't repair a failed speed sensor, so the call was a new genuine sensor, fitted and the codes cleared.

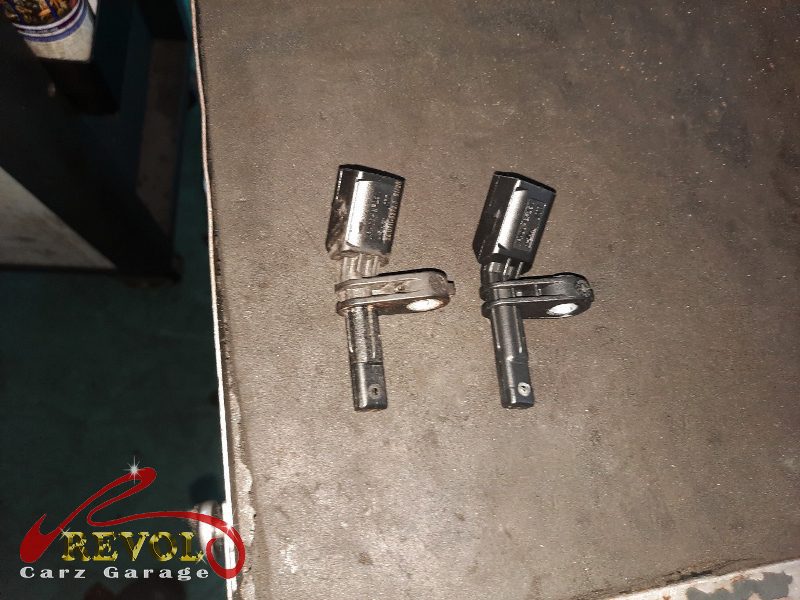

The old ABS sensor removed from the hub.

The work

The wheel came off, the failed sensor was removed from the hub, the mounting cleaned up, and a new genuine VW-spec wheel speed sensor fitted and routed properly so the wiring's protected. The system was scanned to confirm a clean signal from all four wheels and the stored fault codes cleared. A road test confirmed the speedometer reading true, the cruise control holding, and the ABS warning light off.

The new VW-spec wheel speed sensor ready to fit.

The outcome

A speedometer that reads true, cruise control that holds, no ABS or traction warning, and a clean signal from every wheel. The Beetle went home with the systems back to normal. One failed wheel speed sensor can throw the speedo and the cruise control as well as the ABS, so changing it on the affected corner and clearing the codes sorted the lot from a single fix.

Got something similar?

ABS light or odd behaviour on your Volkswagen?

If your speedo jumps, the cruise control drops out, or the ABS light's on, the team can scan it and put it right. Drop us a message.
