Volkswagen Case Study · 118

Volkswagen Jetta check engine light, resolved.

A Volkswagen Jetta came in with the check engine light on, running rough. A clogged fuel filter and perished fuel hoses were the cause. Both renewed, the light cleared.

Job done

Mechanical Repairs Engine Repairs Volkswagen Specialist

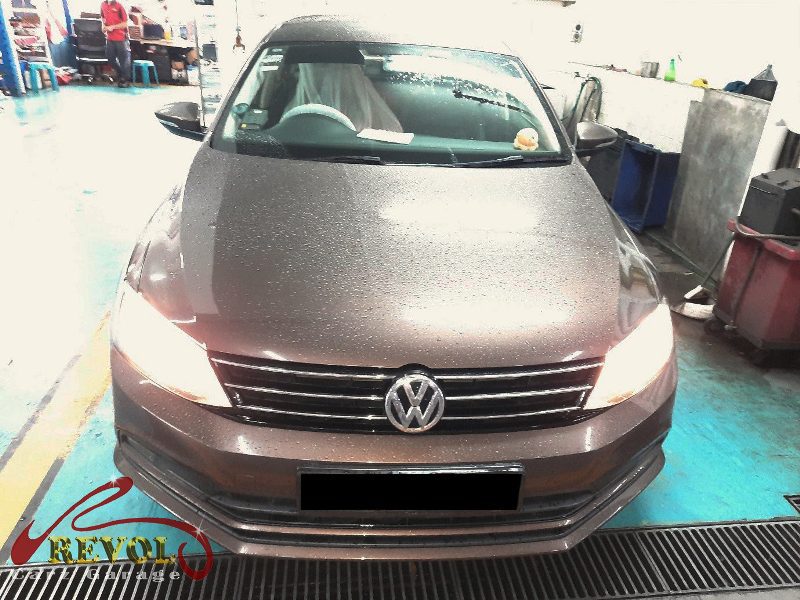

Volkswagen Jetta parked at the workshop, in for a check engine light diagnosis.

The brief

The Jetta had its check engine light on, with the engine running rough and a bit flat, the kind of warning you don't want to leave on a fuel system. He brought it in. The culprits were the fuel filter and the fuel hoses feeding the manifold. The filter catches dirt and water before it reaches the engine, and over the miles it loads up and restricts the flow, starving the engine and upsetting the fuelling. The rubber hoses that carry fuel age too, the rubber hardens and cracks, and a perished fuel hose is both a running problem and a real safety concern, fuel leaks near a hot engine are not something to leave. Between a choked filter and tired hoses the engine couldn't keep its fuelling clean, so the light came on. Both needed renewing.

Diagnostics on the Volkswagen Jetta showing the fuelling fault codes.

The diagnosis

Diagnostics confirmed fuelling-related fault codes, and a check found the fuel filter clogged with the dirt it had caught, restricting the flow, and the fuel hoses to the manifold hardened and cracking, a leak risk and a flow restriction in one. The pump and the rest of the fuel system checked out. So it was a fuel filter replacement plus new fuel hoses to the manifold, the right interval on the filter, fresh rubber where the old had perished, and the codes cleared.

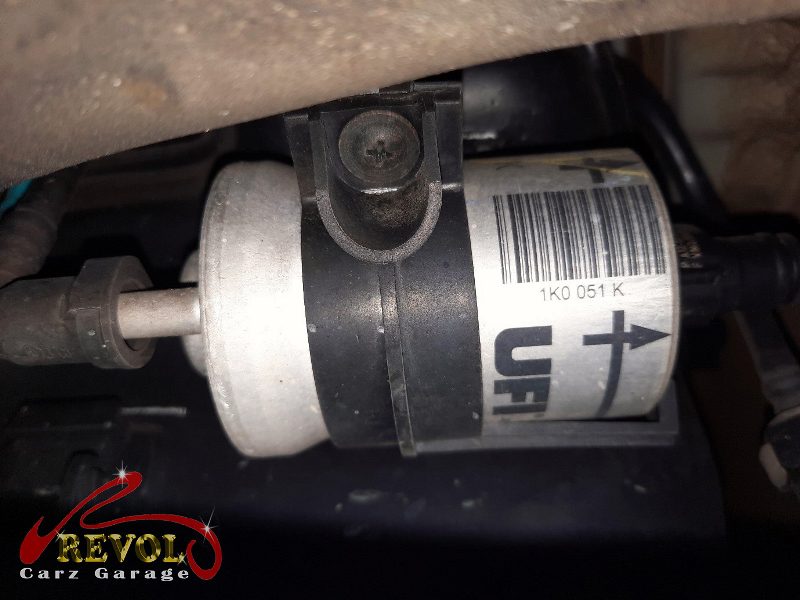

The old clogged fuel filter removed, loaded with trapped debris.

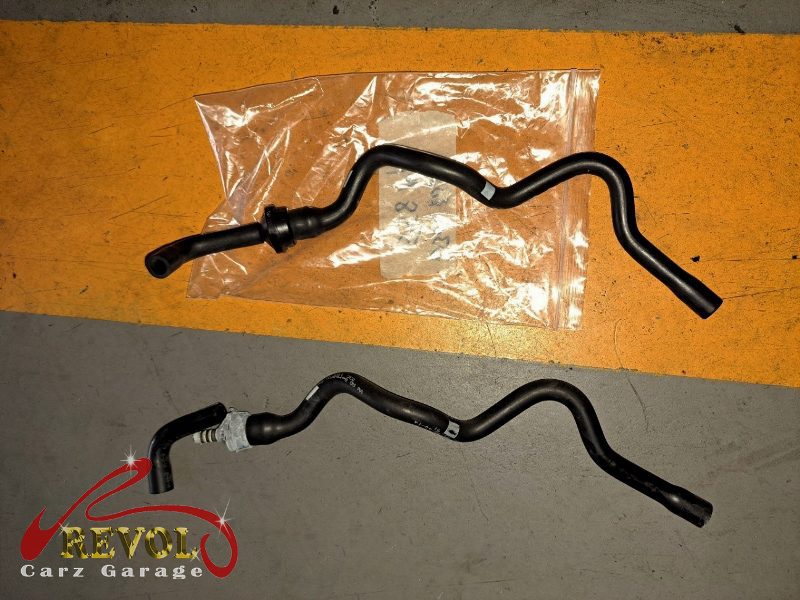

The perished, cracking fuel hoses to the manifold being replaced.

The work

The fuel system pressure was relieved, the clogged filter removed and a new genuine VW-spec fuel filter fitted, and the perished fuel hoses to the manifold replaced with fresh hose and new clamps, every connection checked for leaks. The system was primed and the engine run to confirm clean fuel flow with no air and no weep, and the stored fault codes cleared. A road test confirmed a clean start, steady running, no hesitation, and the check engine light staying off.

The new VW-spec fuel filter ready to fit.
The new fuel filter and hoses installed and the system primed.

The outcome

Clean fuel reaching the engine, a crisp start, steady running, no rough idle, no warning light, and no fuel-leak risk from old hoses. The Jetta went home with the fuel side sorted. A clogged filter and perished fuel hoses are a running problem and a safety problem together, so renewing both and clearing the codes fixed the light at its source.

The check engine light cleared and the car ready for the road.
Got something similar?

Check engine light on your Volkswagen?

If your check engine light is on or the engine's running rough, the team can run diagnostics and find the cause, fuel side or otherwise. Drop us a message.
