Volkswagen Case Study · 123

Volkswagen Golf engine mount set, replaced.

A Volkswagen Golf came in with vibration, the engine moving around, and a thump from the bay. The mounts had sagged. Full set replaced, the shake and the noise gone.

Job done

Mechanical Repairs Suspension Volkswagen Specialist

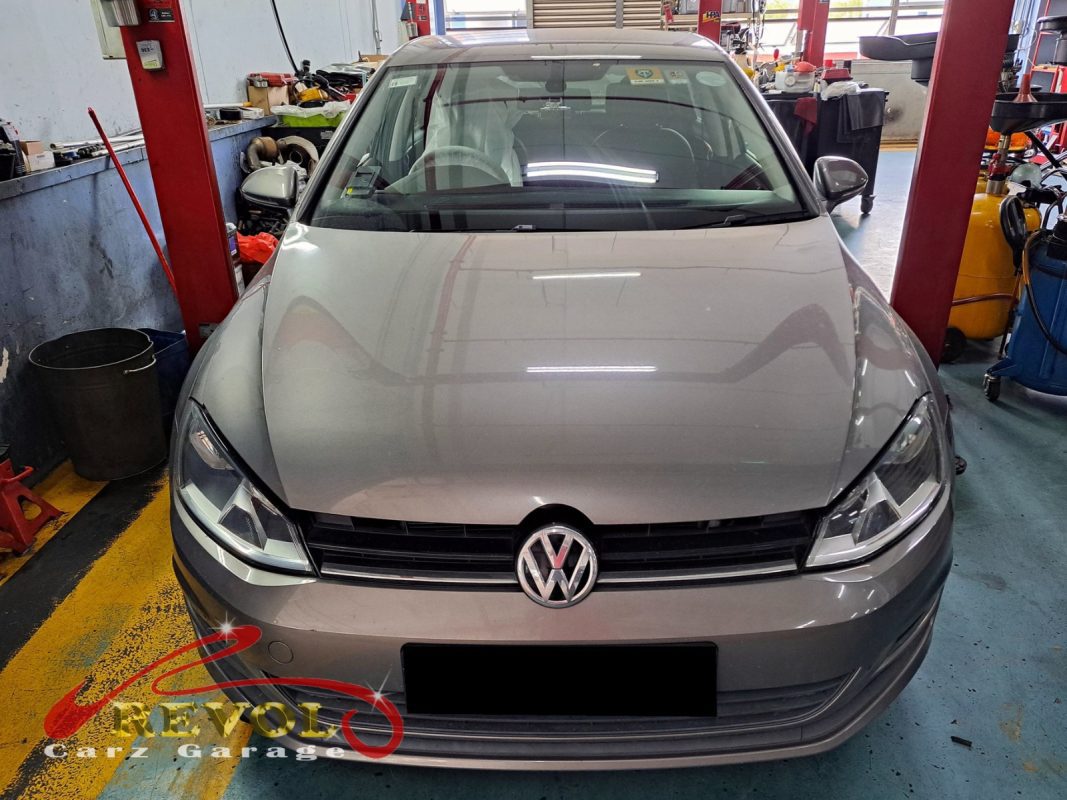

Volkswagen Golf parked at the workshop, in for engine mount inspection.

The brief

The Golf had developed unusual vibration through the cabin, the engine visibly moving more than it should, and a thump from the bay over bumps and on gear changes. He brought it in. That's the worn-engine-mount picture. The engine and gearbox sit on rubber mounts that hold their weight and absorb the shake, keeping it out of the cabin. As the rubber ages it sags and cracks, and once it does the drivetrain moves around more than it's meant to: the vibration comes straight through, the engine note climbs in the cabin, and the slack lets it knock against its stops. Mounts that have gone together produce exactly that, and left long enough the loose drivetrain stresses other parts, so they need changing as a set.

The worn engine mount with cracked and sunken rubber on the Volkswagen Golf.

The diagnosis

On the lift each mount got a pry-test. The engine mount and the gearbox mount had sunk visibly with cracked rubber, the play obvious under load. All of the drivetrain mounts were tired at the same time. When they go together like that, you do them as a set, fitting one fresh mount next to a sagging one just loads the new one harder, so the call was the full set.

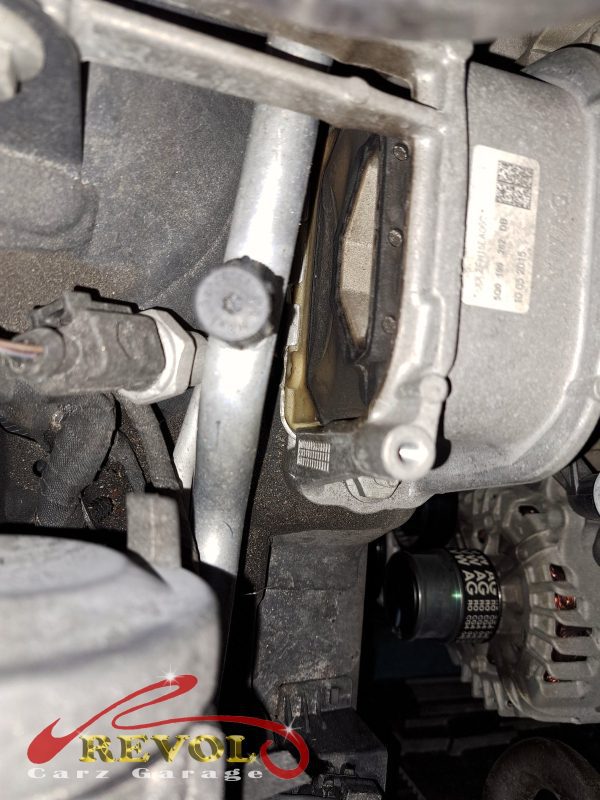

The gearbox mount removed showing the play under load.

The work

The engine and gearbox were taken onto transmission jacks to take their weight, and each tired mount came off in turn. New genuine VW-spec mounts went in across the set, every fastener torqued to the manual figures. With everything bolted up, the drivetrain was checked to be sitting square in the bay before the engine was let down to load onto the fresh mounts. A road test confirmed the vibration and the thump were gone.

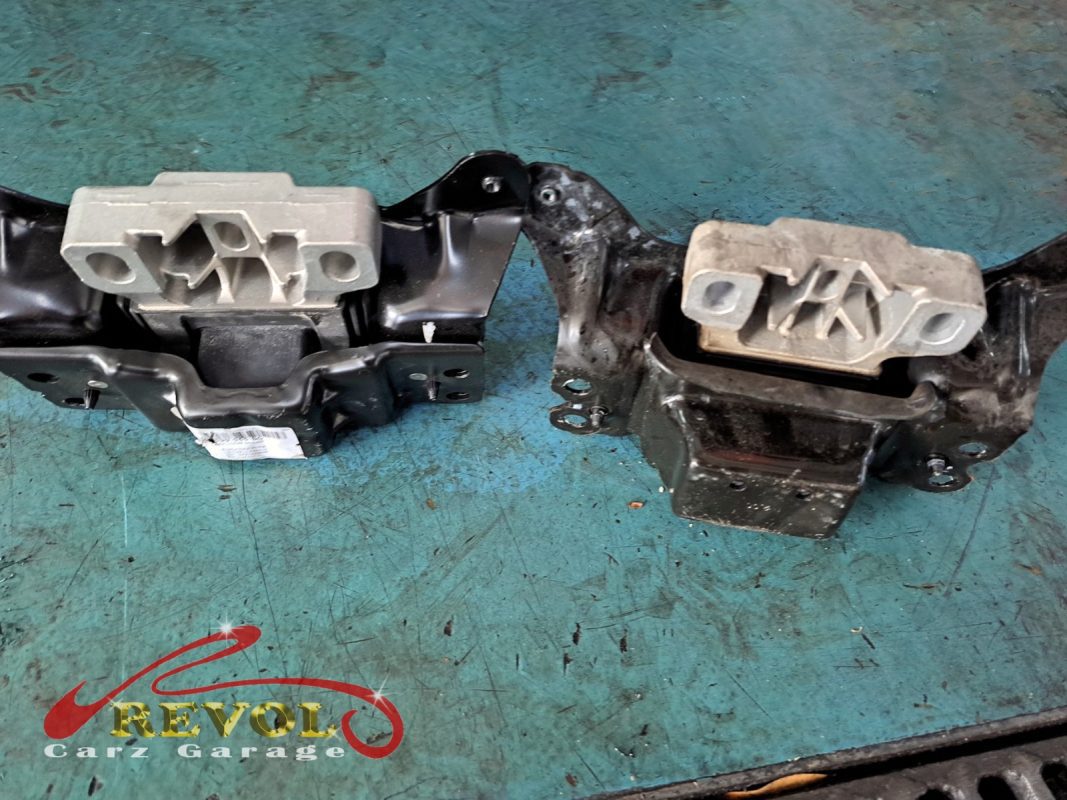

The new VW-spec engine and gearbox mounts ready to fit.

The outcome

Smooth at idle, no clatter on shifts or over bumps, no vibration through the cabin, and the engine note back to normal. The Golf went home with the drivetrain held properly again. Engine mounts wear as a set and they take the rest of the drivetrain's refinement down with them, so doing the whole set together resets the lot rather than chasing the next sagging one a few months later.
