Volkswagen Case Study · 130

Volkswagen Golf coolant pump, replaced.

A Volkswagen Golf came in overheating, losing coolant, with a noise from the engine bay. The coolant pump had failed. Replaced as a module with the thermostat, the system bled.

Job done

Mechanical Repairs Cooling System Volkswagen Specialist

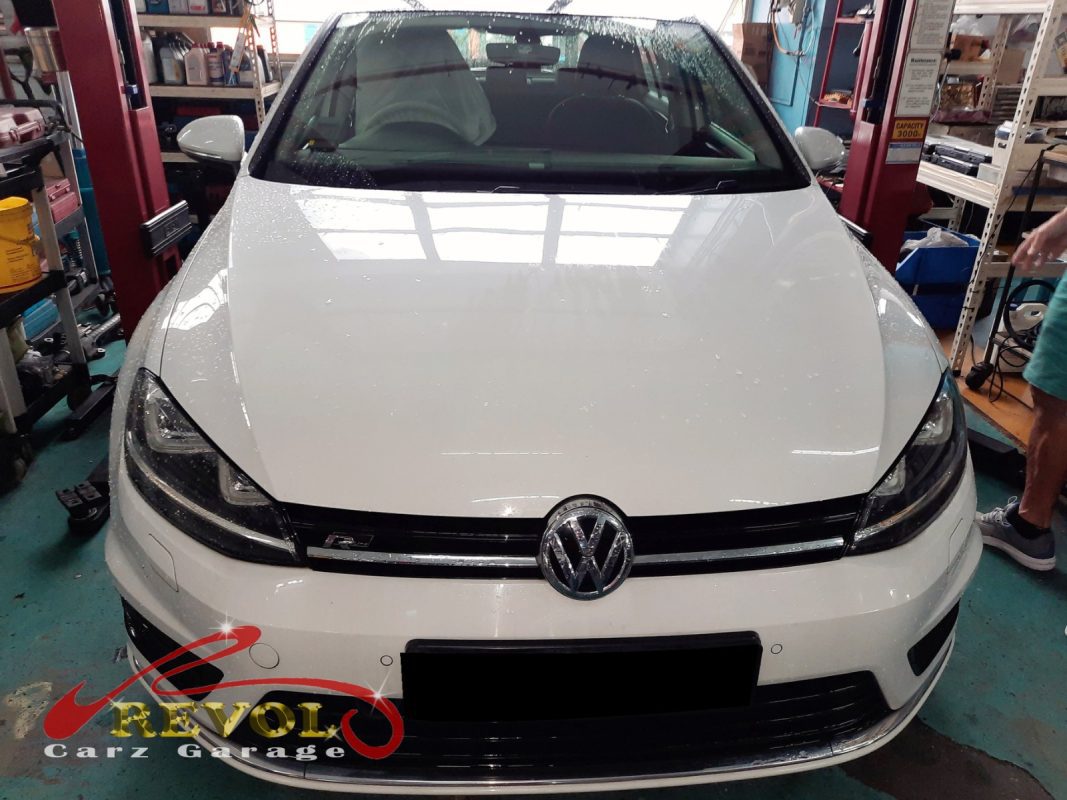

Volkswagen Golf parked at the workshop, in for cooling system inspection.

The brief

The Golf was running hot, the temperature climbing higher than it should, the coolant level dropping, and there was a noise coming off the engine bay. The owner stopped driving it and brought it in, which is exactly right with an overheating engine. That points at the coolant pump. The pump is what circulates coolant through the engine and the radiator so the heat actually goes somewhere. When it fails, the bearing gets noisy, the seal weeps coolant, and the impeller stops moving enough water, so the engine overheats. On this engine the pump and the thermostat are built into one module, so when the pump goes you change the lot as a unit. A failing coolant pump only gets worse, and an overheat can cost a head gasket, so it needs doing.

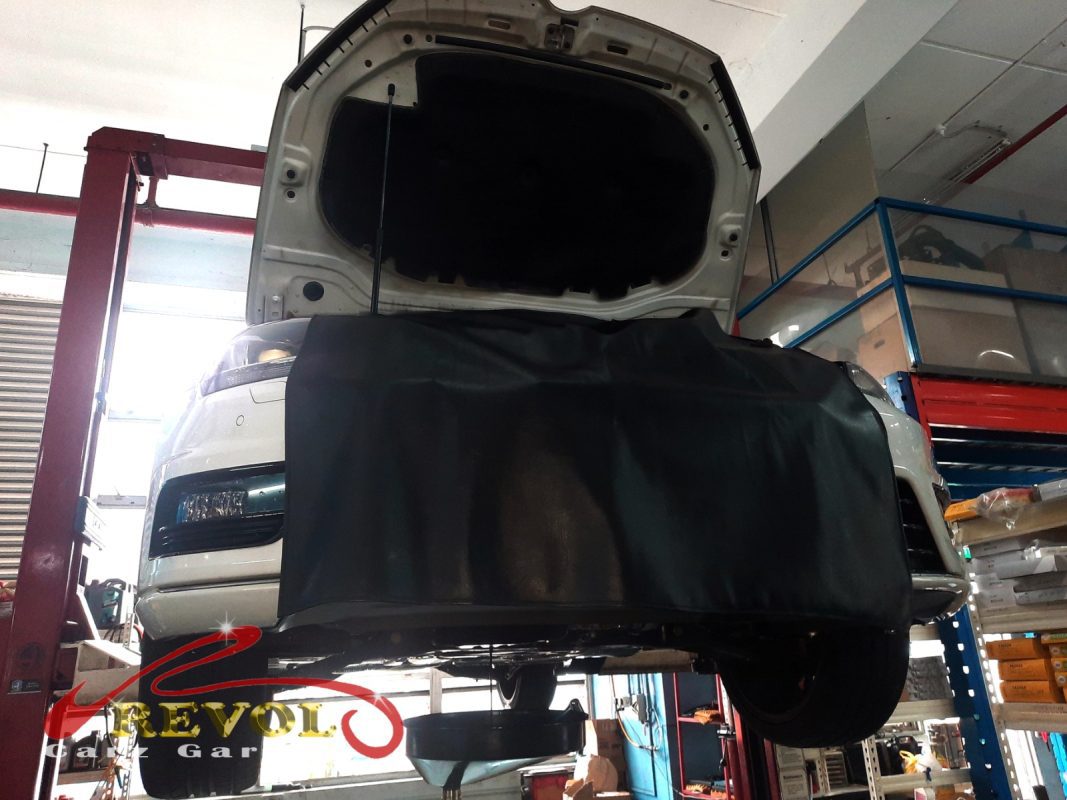

The cooling system checked on the Volkswagen Golf with the engine overheating.

The diagnosis

A check of the cooling system traced it to the coolant pump module, the bearing rough and the seal weeping, with the impeller not moving water properly, so the engine couldn't shed heat. The radiator, the hoses and the rest of the system checked out. That's a pump module replacement, with the integrated thermostat going along with it and a fresh seal, rather than chasing a weep that's only going to get worse.

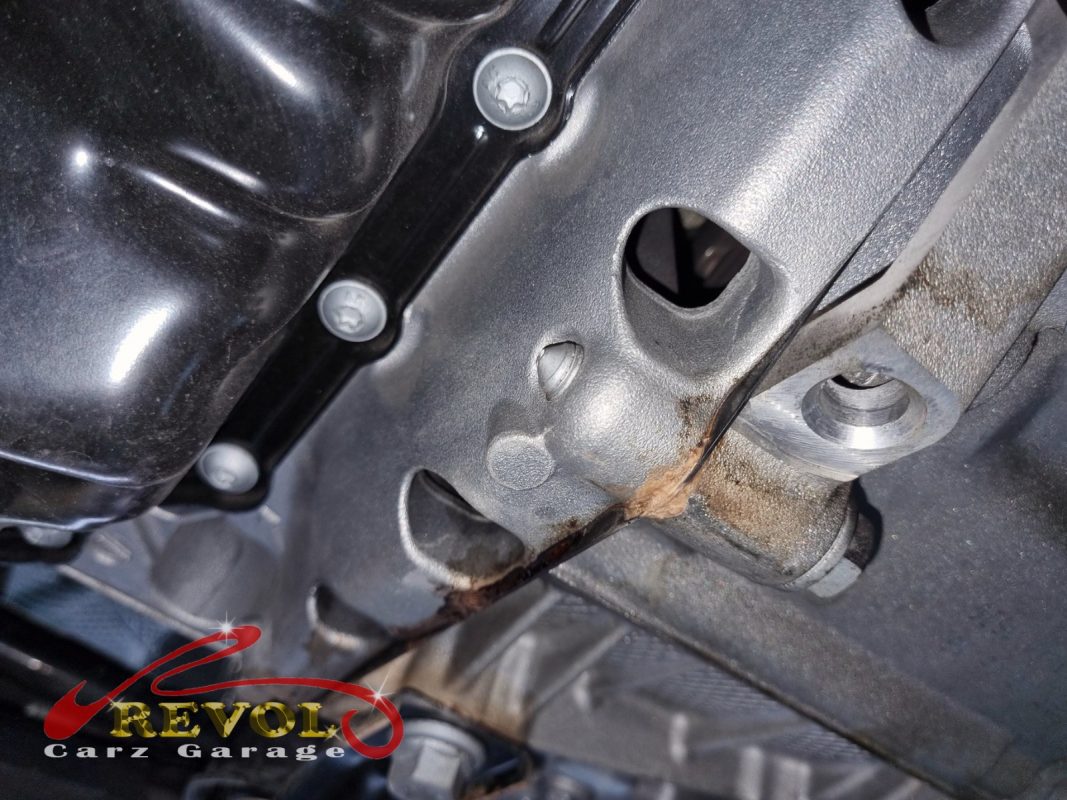

The old coolant pump and thermostat module removed from the engine.

The work

The cooling system was drained, the old coolant pump and thermostat module removed, and a new genuine VW-spec module fitted with a fresh seal and the drive belt set back up properly. The system was refilled with the correct coolant, the air bled out the proper way so no pockets were left, and held under pressure to confirm the seals were dry. A road test confirmed the gauge sat steady through traffic and at speed with no overheating and no noise.

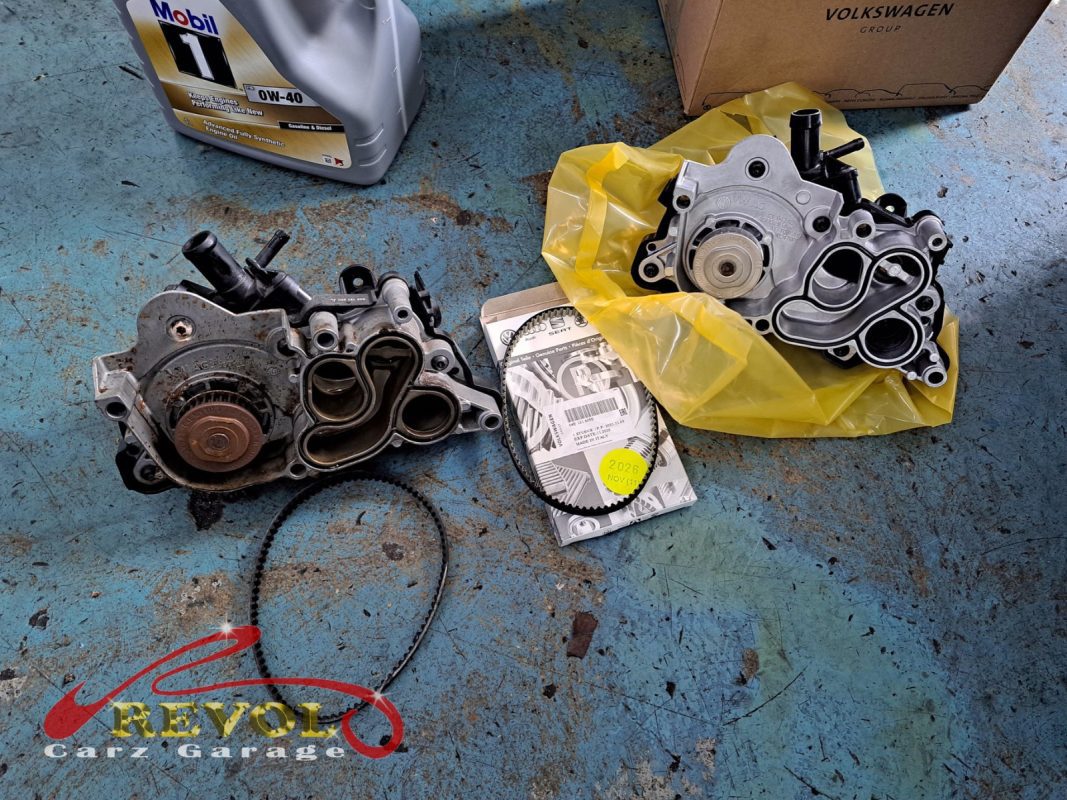

The new VW-spec coolant pump module ready to fit.

The outcome

Gauge steady, no coolant loss, the engine warming up on time, and no noise from the bay. The Golf went home with the cooling system circulating properly again. A coolant pump that's noisy and weeping only fails harder, and the failure at the end is an overheat that can take the head gasket with it, so changing the module kept it to a tidy job.

Got something similar?

Volkswagen overheating?

If your car is overheating, losing coolant, or there's a noise from the engine bay, stop driving and have it checked. The team can check the cooling system and put it right. Drop us a message.
