Volkswagen Case Study · 166

Volkswagen Touran aircon compressor, replaced.

Touran had warm air at the vents instead of cold, grinding from the front when AC engaged, and refrigerant pressure dropping. Compressor at end of life. Replaced, system flushed, recharged.

Job done

Aircon Mechanical Repairs Volkswagen Specialist

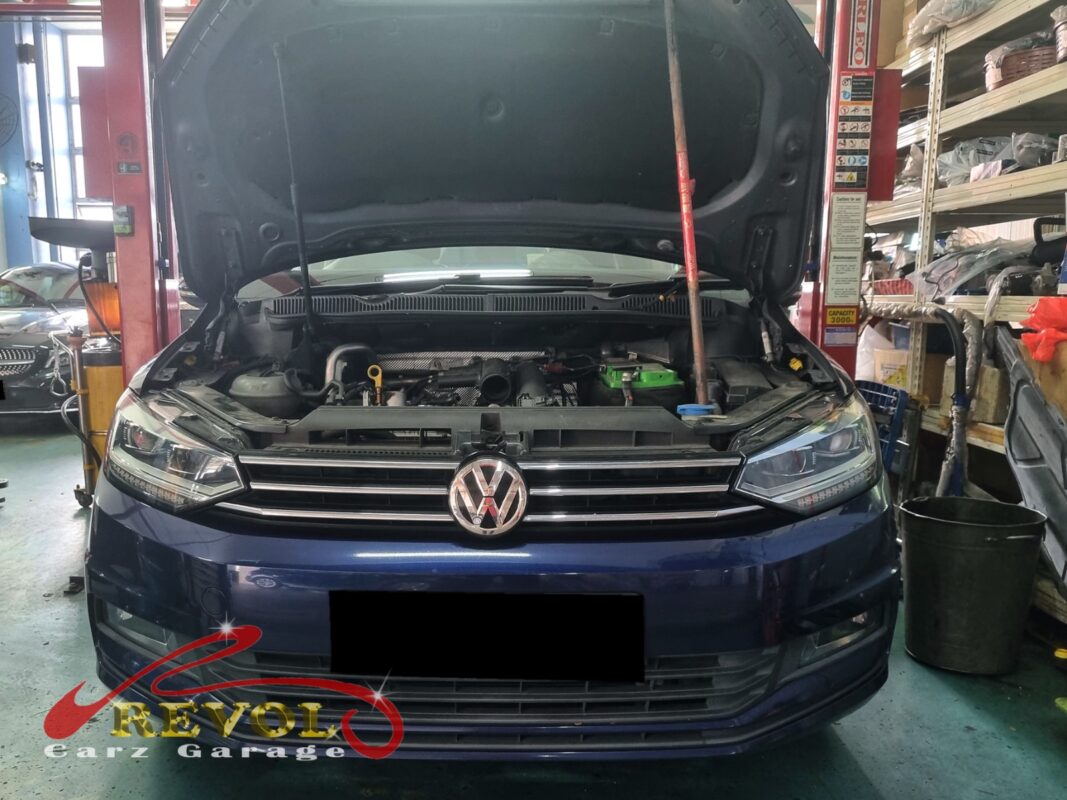

Volkswagen Touran with the engine bay open for aircon compressor replacement.

The brief

The Touran's aircon was blowing warm instead of cold, the front of the engine bay produced a grinding noise whenever the AC compressor engaged, and a check showed the refrigerant pressure was dropping. Three converging signs of a compressor at the end of its life.

The aircon compressor is the pump that drives the whole loop, squeezing the refrigerant so it can shed heat at the condenser. It runs off the engine belt through a clutch. When the clutch bearing wears out it grinds, and a failing compressor sheds metal into the system, which contaminates it. So this isn't a regas job, it's a compressor with a flush.

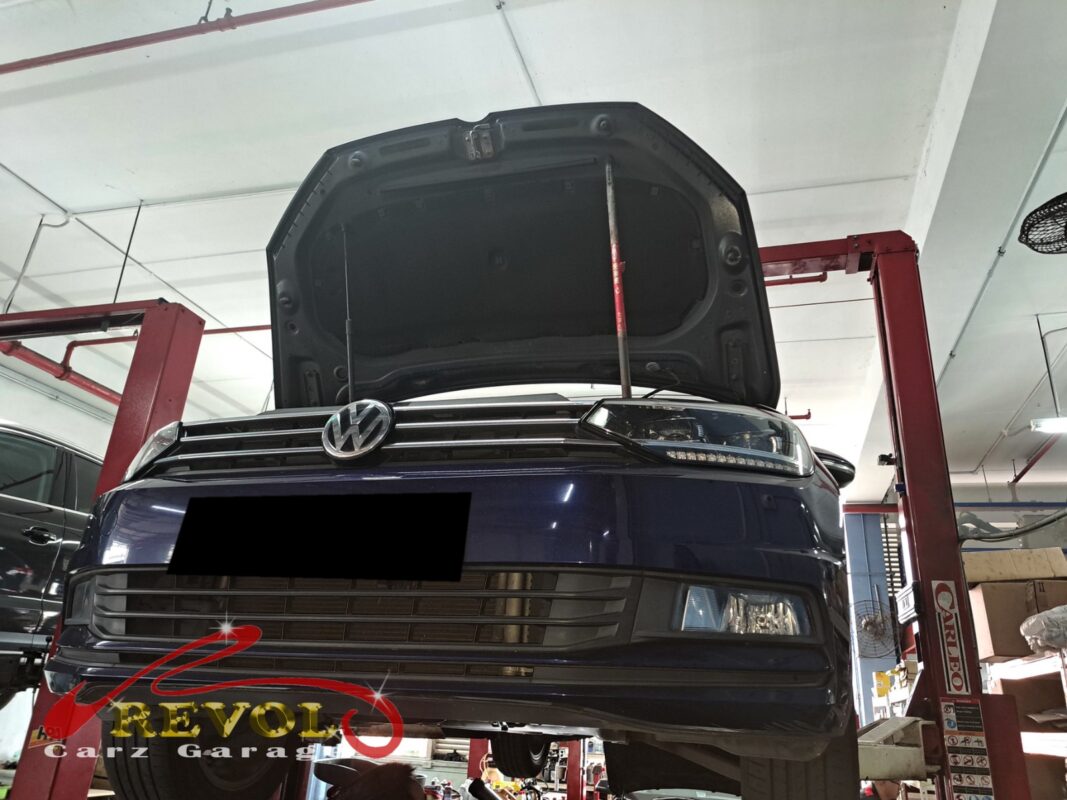

The Touran up on the two-post lift, hood open, in for the warm aircon and the grinding noise.
The Touran up on the two-post lift, hood open, in for the warm aircon and the grinding noise.

The diagnosis

The pressure check showed the AC system low on refrigerant. Listening at the compressor confirmed the bearing grinding as the clutch engaged, the internal damage.

That metal contamination is the key thing: a new compressor on its own would be killed by the debris the old one left in the lines, so the loop has to be flushed at the same time. Replacement, not a clean, with a flush.

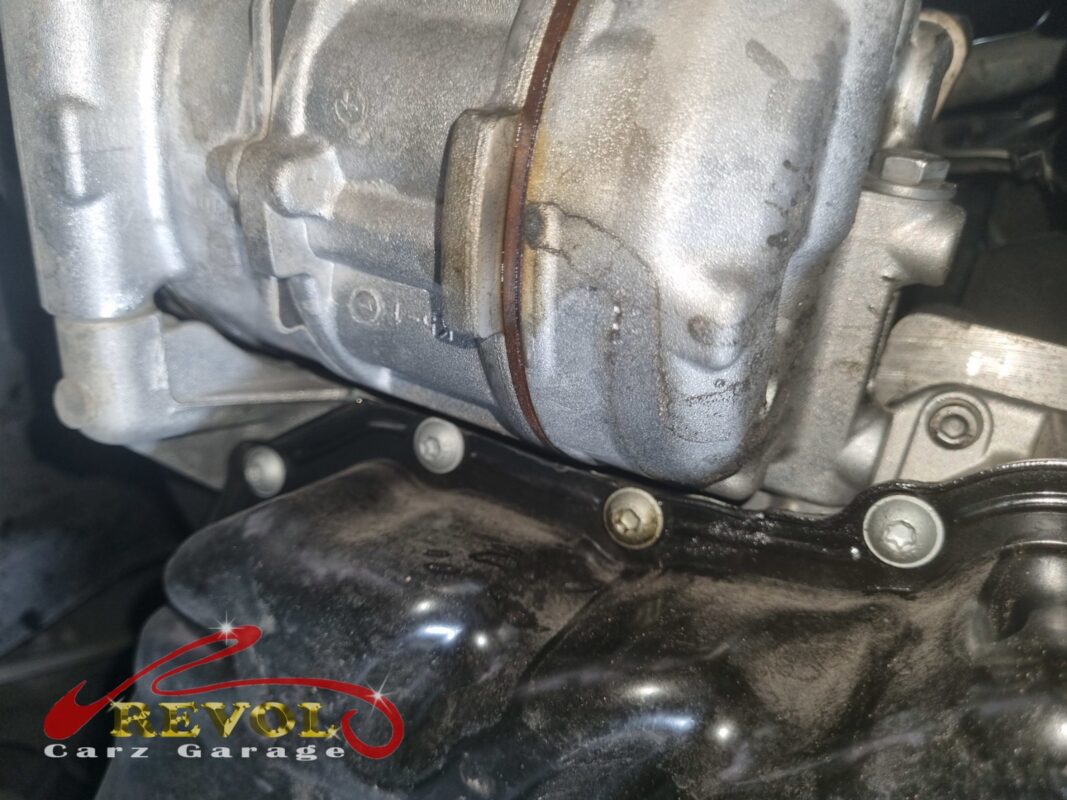

The AC compressor in place on the engine, the drive belt around its clutch pulley.
The AC compressor in place on the engine, the drive belt around its clutch pulley.

The work

The remaining refrigerant was recovered, the failed compressor came off, and the AC lines and condenser were flushed to clear the metal debris. A new VAG-spec compressor went on with a fresh receiver-drier.

Then the system was vacuumed to a long, deep pull to draw out every trace of air and moisture, and recharged with the correct weight of refrigerant and the right oil charge.

A check at the vents confirmed cold air at idle, with no grinding when the AC engaged.

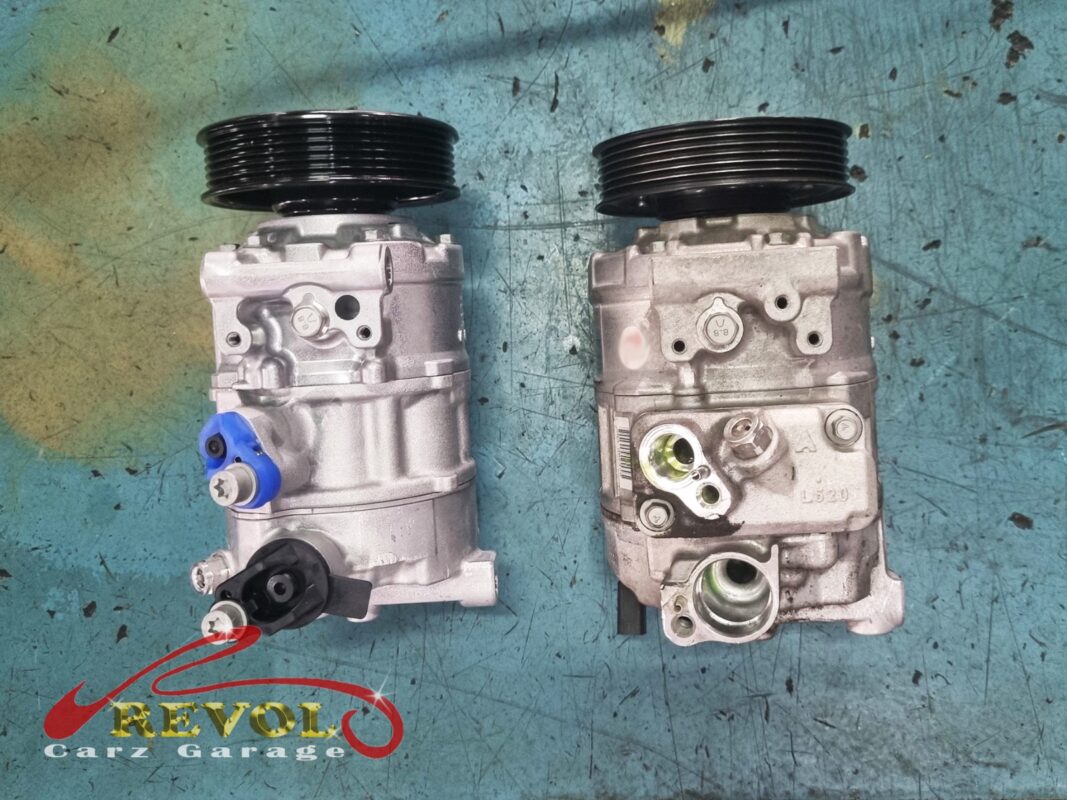

The old AC compressor (right, grimy) beside the new VAG-spec replacement (left).
The old AC compressor (right, grimy) beside the new VAG-spec replacement (left).

The outcome

Cold air at the vents at idle, no grinding when the AC engages, and the system holding its pressure.

The Touran went home with the aircon working the way it should. Doing the flush properly, rather than just bolting on a new compressor, is what stops the second compressor failing the same way as the first, and on a family MPV in Singapore an aircon that actually keeps up is not optional.
