The brief

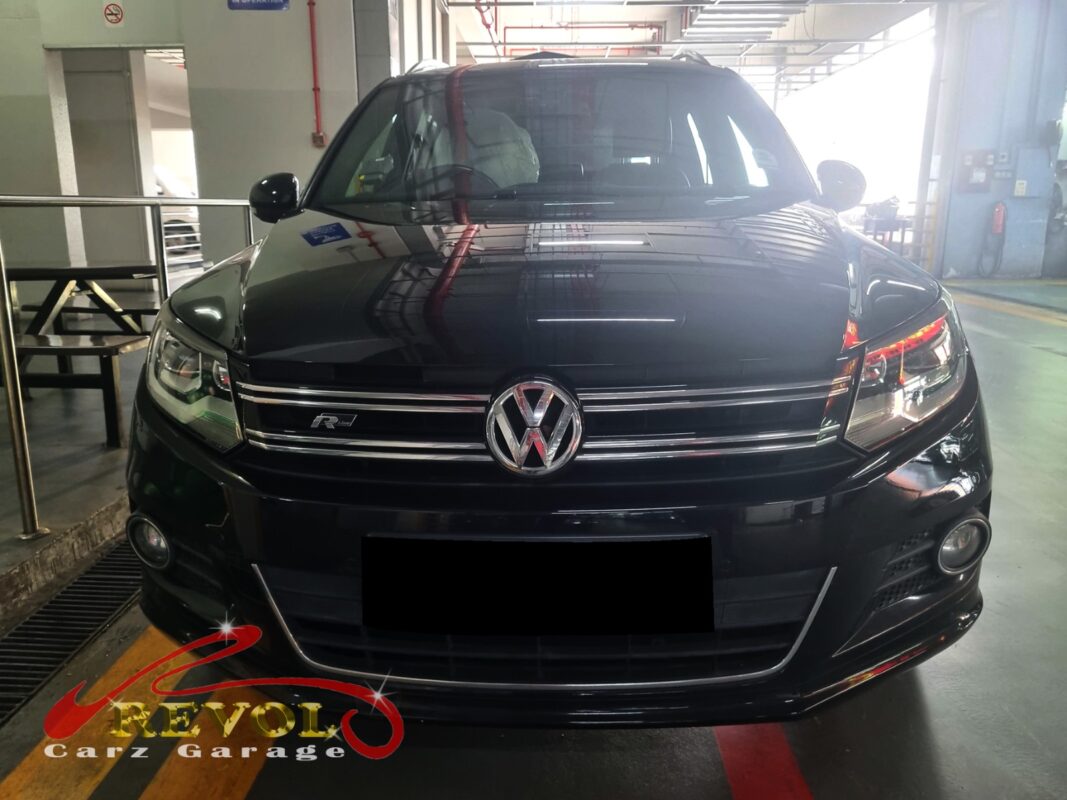

The Tiguan came in with the ABS warning light steady on the dash, and the traction control symbol kept flickering on whenever the road got wet.
The owner had also noticed the brake pedal felt a bit different. Not unsafe, just less crisp under the foot than usual at city speeds.
That combination is a giveaway. The ordinary brakes were still pulling the car up fine, but the ABS system had stopped trusting its own data and quietly taken itself offline. When it does that, the pedal feel shifts a little because the electronics are no longer fine-tuning each wheel.
So this was a sensor problem, not a brake problem. The friction parts were doing their job.
The diagnosis
First stop was the scan tool. It flagged the left-front wheel speed sensor as reading intermittent, dropping out of range several times on every drive.
We checked the wiring next. Resistance from the sensor connector back to the ABS module measured within spec, so the harness was fine. That ruled out a chafed wire or a corroded connector, which would have made the job a different one.
A bench test on the sensor itself told the rest of the story. The little magnetic element inside was producing a weak, inconsistent pulse as the tone ring passed it, which is what these sensors do when they have aged out from years of road dust, water spray, and the occasional knock from kerbside parking.
Sensor replacement was the right call. The harness gets left alone.
The work

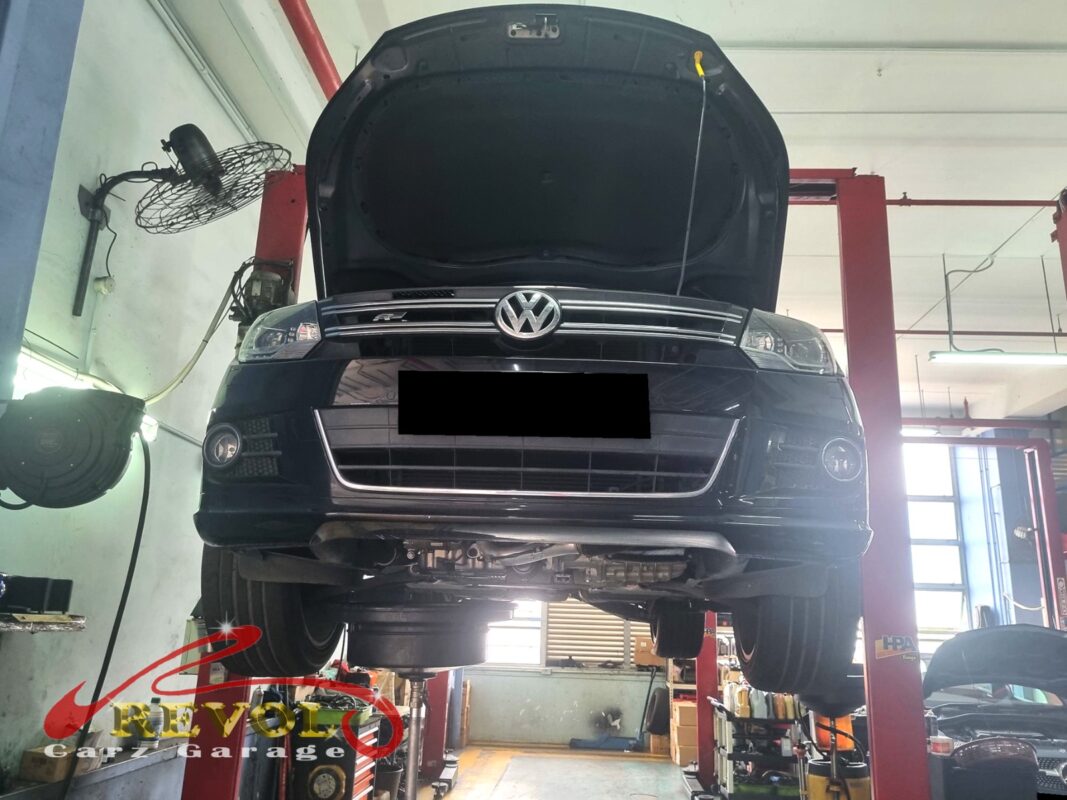

Up on the lift, wheel off, and the failed sensor unclipped from its mount at the hub. The lead at the wheel arch connector came off cleanly.
We cleaned the mounting hole carefully. If a new sensor seats on top of grit or rust scale instead of flush against the hub face, the signal ends up a few percent off, which the module reads as another fault. Worth the extra two minutes.

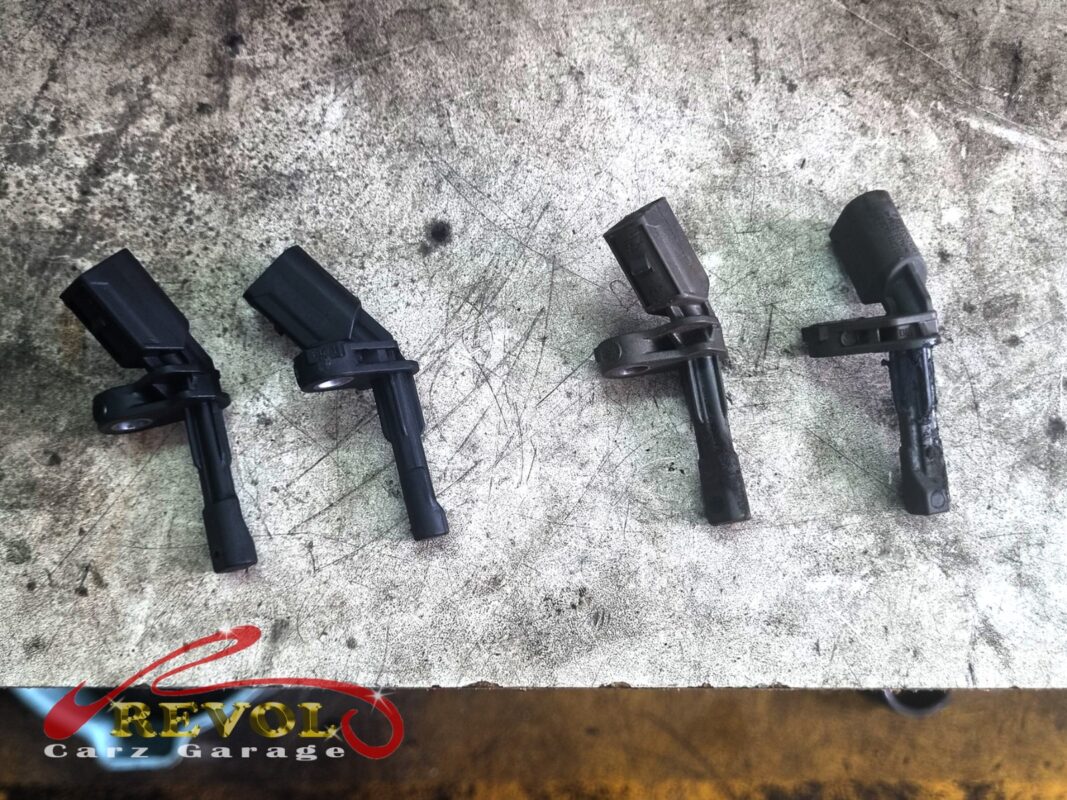

A new VAG-spec sensor went in next. We routed the lead clear of the brake line and away from the suspension's travel path so it cannot chafe on full lock or full droop, then secured the harness clip back into its factory retainer.
Last step was on the scan tool: cleared the stored fault and ran an ABS module recalibration so the module records the new sensor's baseline reading in its reference table. Without that step, the module would have flagged the new sensor's slightly different output as suspicious.
The outcome
ABS warning light off, and it stayed off for a 20-minute road test that covered city stop-start traffic and a stretch of expressway.
The traction control stayed quiet on the same damp roads that had been setting it off before. Brake pedal feel came back to firm and crisp from the very first application.
No warnings reappeared the next morning on a cold start either, which is usually when an intermittent sensor fault shows itself if you have not actually fixed it.
For the owner, the practical win is that the whole safety net is back online. Stability control, hill-hold, trailer sway control: these all rely on the same wheel speed data, so they were all dialled back while the sensor was misbehaving. Now they work again.
