Volkswagen Case Study · 182

Volkswagen Passat driveshaft cover, repaired.

Passat had grease tracking down the driveshaft area, knocking from underneath, and a burning smell when grease hit hot exhaust. Driveshaft boot had split. Cover repaired, boot replaced.

Job done

Mechanical Repairs Drivetrain Volkswagen Specialist
Volkswagen Passat on the workshop lift for driveshaft boot replacement.

The brief

The Passat had grease tracking down around a driveshaft, a knock coming from underneath, and now and then a faint burning smell, the kind you get when grease drips onto a hot exhaust. The driveshaft boot, the rubber cover over the joint, had let go.

That boot does one job: it holds the grease in around the CV joint and keeps water and grit out. When it splits, the joint slings its grease out as the shaft spins, which is the mess and the smell, and dirt starts working its way in. Left long enough, the joint runs dry and starts to knock for real, and then you're replacing the whole driveshaft. Caught early, it's just the boot.

The diagnosis

Underneath, the boot had split along one of its folds and was flinging grease out as the shaft turned. The good news was the timing: the CV joint under it still felt tight with no notchiness, so the grit hadn't done its damage yet. The knock was the joint starting to complain about running low on grease, not a joint that was finished.

So this was a boot job, not a driveshaft job. Clean it out, reseal it, pack fresh grease into the joint, and it's good for the long run.

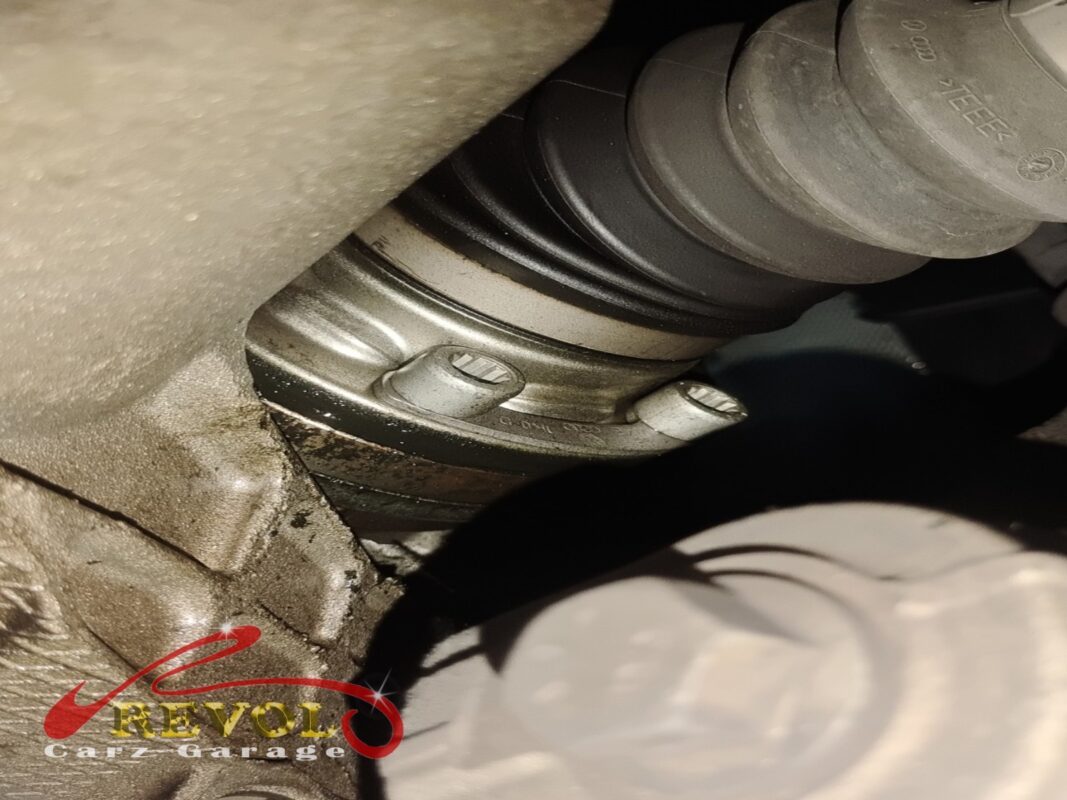

The inner driveshaft joint and its boot under the car, grime and grease around the housing.
The inner driveshaft joint and its boot under the car, grime and grease around the housing.

The work

The driveshaft section came out, the joint was opened up and the old grease and any grit washed out, and the joint checked over properly with it apart. It was sound. A new VAG-spec boot went on, the joint packed with the correct fresh grease, and the cover reseated with its clamps and the fasteners torqued.

The shaft went back in, and the joint was turned by hand to confirm it ran smooth and silent.

A road test confirmed the knock was gone and there was no more grease being thrown around.

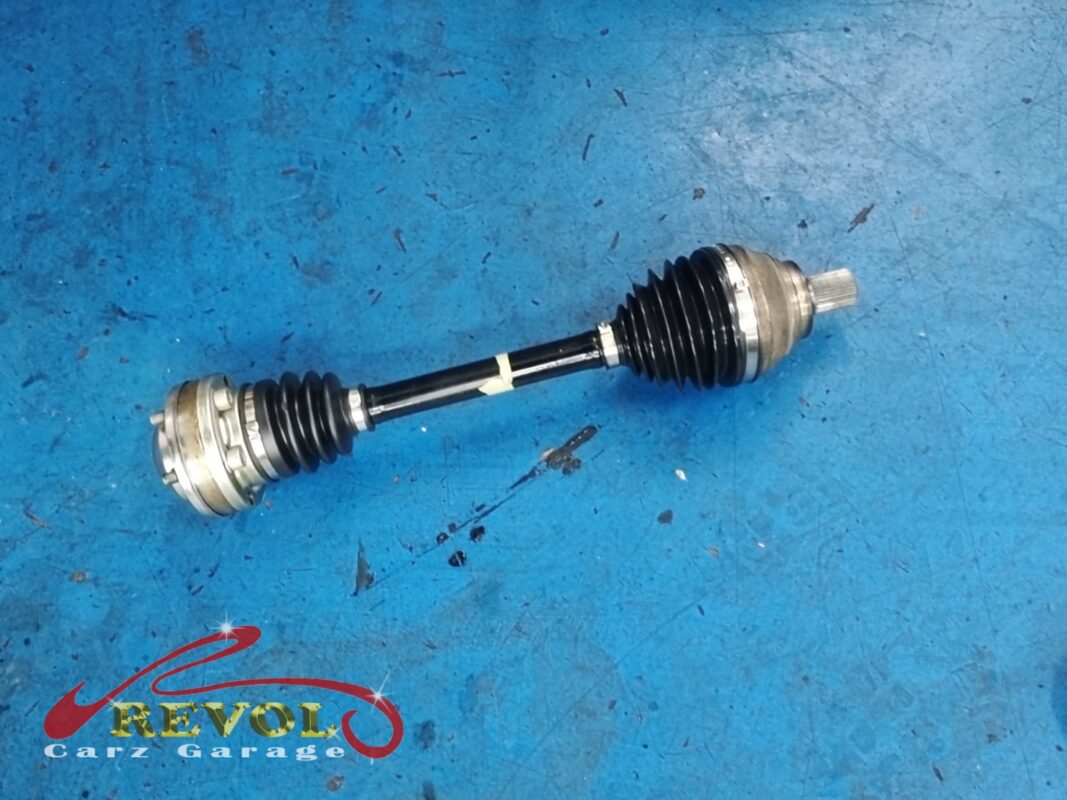

The driveshaft out of the car, both CV joints opened up and resealed with new boots.
The driveshaft out of the car, both CV joints opened up and resealed with new boots.

The outcome

No knock from underneath, no grease tracking down the shaft, and no burning smell.

The Passat went home with the joint sealed up and packed properly. Acting on the grease and the noise before the grit got into the joint meant a boot and a clean-out rather than a new driveshaft, which is the job this turns into if it's left.
