Volkswagen Case Study · 189

Volkswagen Polo ABS sensor, replaced.

Polo came in with an erratic ABS warning that came and went, traction control disabling itself intermittently, and one rear sensor reading dropouts on the scanner. Sensor replaced, system reset.

Job done

Mechanical Repairs Brakes Volkswagen Specialist
Volkswagen Polo in the workshop with the rear wheel off for ABS sensor diagnosis.

The brief

The Polo's ABS warning had been coming and going, on for a drive and then clearing, then back again. Twice the traction control had switched itself off under harder braking. That on-off pattern usually means a sensor with a marginal connection rather than one that's failed outright.

The ABS reads how fast each wheel is turning from a small sensor at the hub. If one of those signals goes flaky, the ABS can't trust its picture of the road, so it puts up the warning and steps back, and the traction control, which uses the same readings, drops out with it. A sensor signal that flickers in and out is exactly what makes the warning come and go like this.

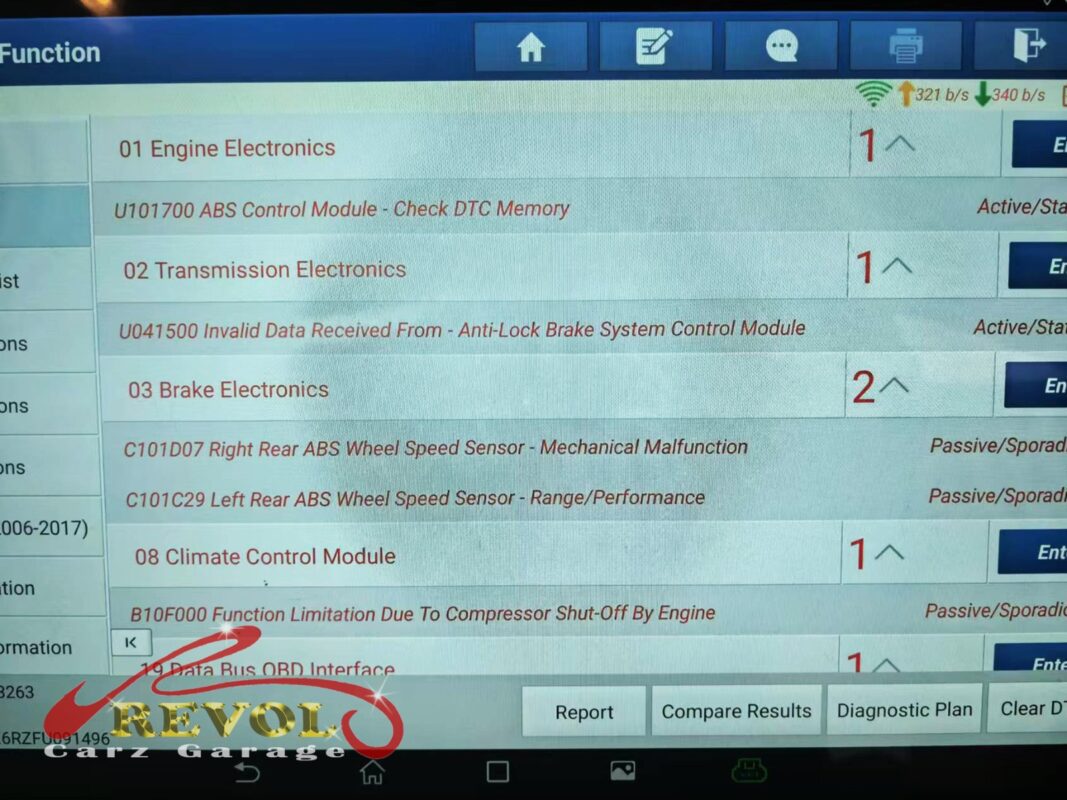

The diagnostic scan: faults logged on both rear ABS wheel speed sensors, one mechanical, one range and performance.
The diagnostic scan: faults logged on both rear ABS wheel speed sensors, one mechanical, one range and performance.

The diagnosis

On the scanner the faults sat in the brake module, and they were on the rear wheel speed sensors, one logging a mechanical malfunction and the other a range and performance fault. A meter check at the connectors showed the readings going in and out of spec when the wiring was flexed by hand, so the sensors themselves were the weak link, not the harness.

That makes it a sensor replacement. A flaky wheel speed sensor only gets worse, and you don't want the ABS dropping out mid-stop, so the affected rear sensors were getting changed.

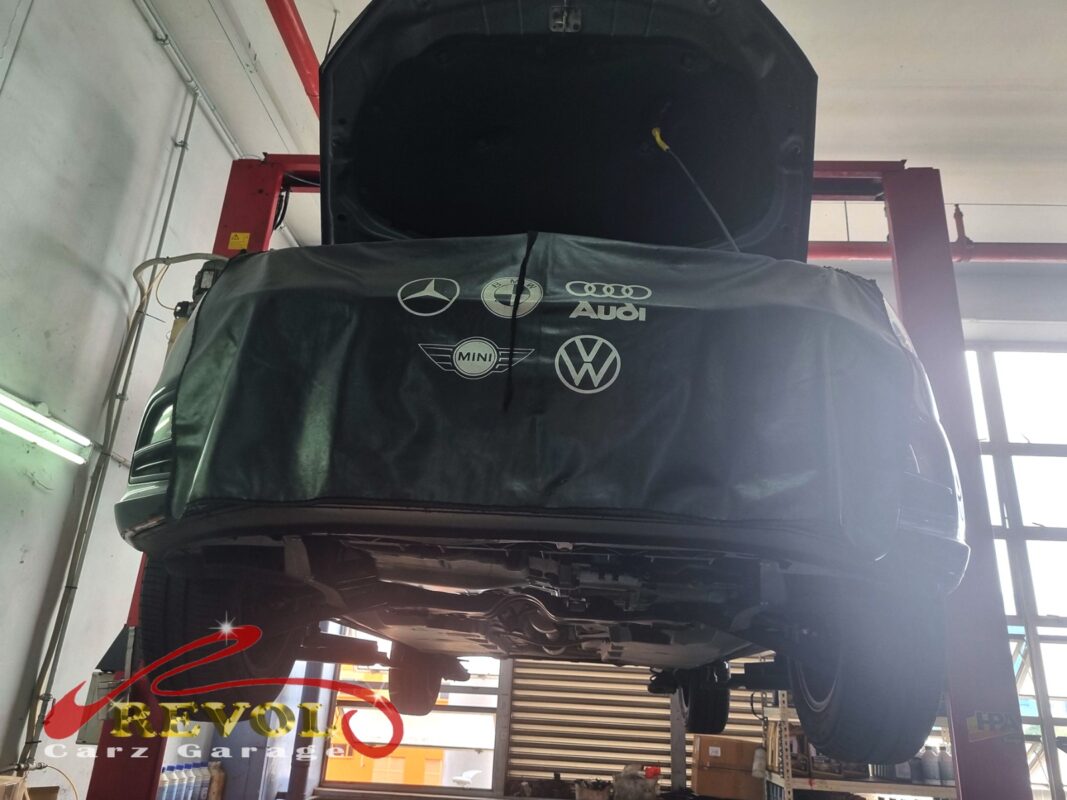

The Polo up on the two-post lift, front covered, in for the ABS sensor work.
The Polo up on the two-post lift, front covered, in for the ABS sensor work.

The work

The car went up, the rear wheel speed sensors were unbolted from the hubs and new VAG-spec sensors fitted with fresh O-rings, the harness clipped back into its proper run so nothing rubs.

Then the stored faults were cleared from the brake module and the system checked over.

A road test with a series of braking events confirmed nothing came back.

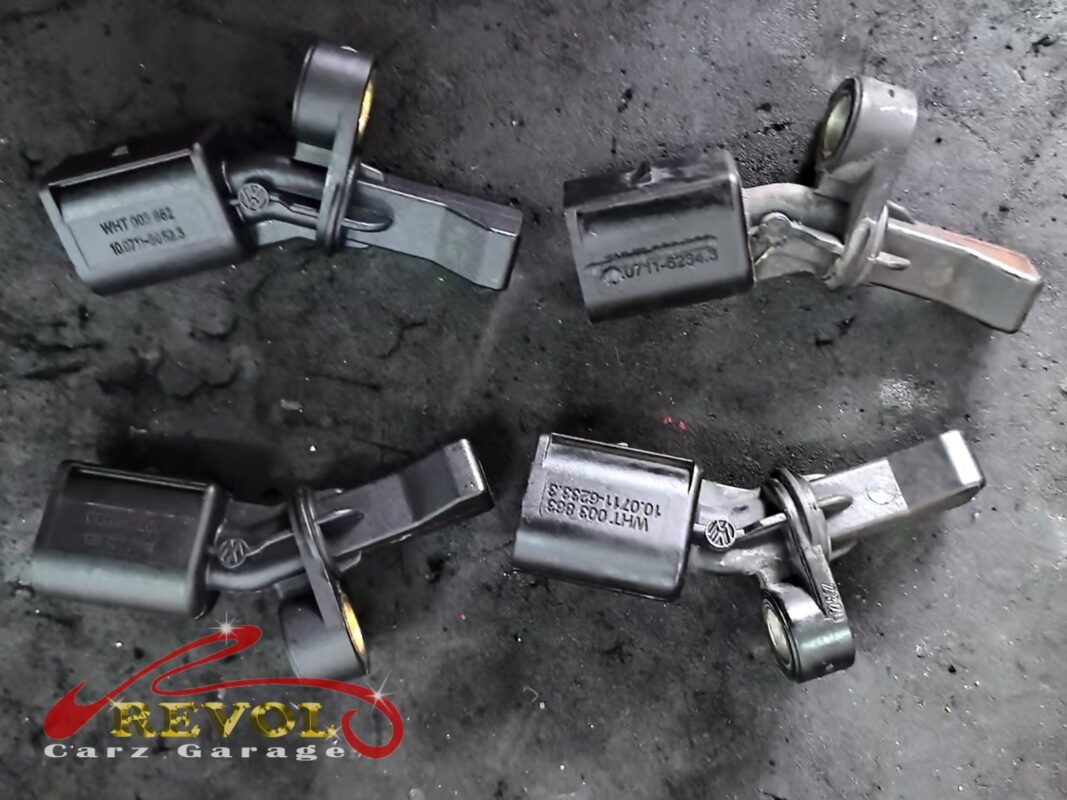

The wheel speed sensors that came off, laid out on the bench.
The wheel speed sensors that came off, laid out on the bench.

The outcome

ABS warning off, traction control back online, and no codes returning after a full drive cycle and plenty of braking.

The Polo went home with the braking electronics working properly again. A wheel speed sensor that flickers is the kind of fault that's easy to ignore until the ABS quits at the wrong moment, so sorting it now put the safety systems back where they should be.
