Volkswagen Case Study · 209

Volkswagen Jetta water pump, replaced.

Jetta needed coolant top-ups every fortnight and a small puddle had started showing up overnight. Pump shaft seal was the leak path. New pump, refilled, no more drops on the floor.

Job done

Mechanical Repairs Cooling System Volkswagen Specialist
Volkswagen Jetta on the workshop lift for water pump replacement.

The brief

The Jetta's coolant level had been dropping enough that the owner was topping up the expansion tank every fortnight, and a small puddle had started showing up under the front overnight. He brought it in before it climbed onto the temperature gauge.

Coolant doesn't go anywhere on its own, so a level that needs topping up every two weeks is leaking somewhere. The water pump pushes coolant around the engine and through the radiator, spinning on a shaft that runs through a seal, and when that seal wears, coolant weeps out past it a little every time the engine runs. That's the puddle. Lose enough and the level gets low enough to overheat the engine, and an engine running hot is one you don't want to keep driving.

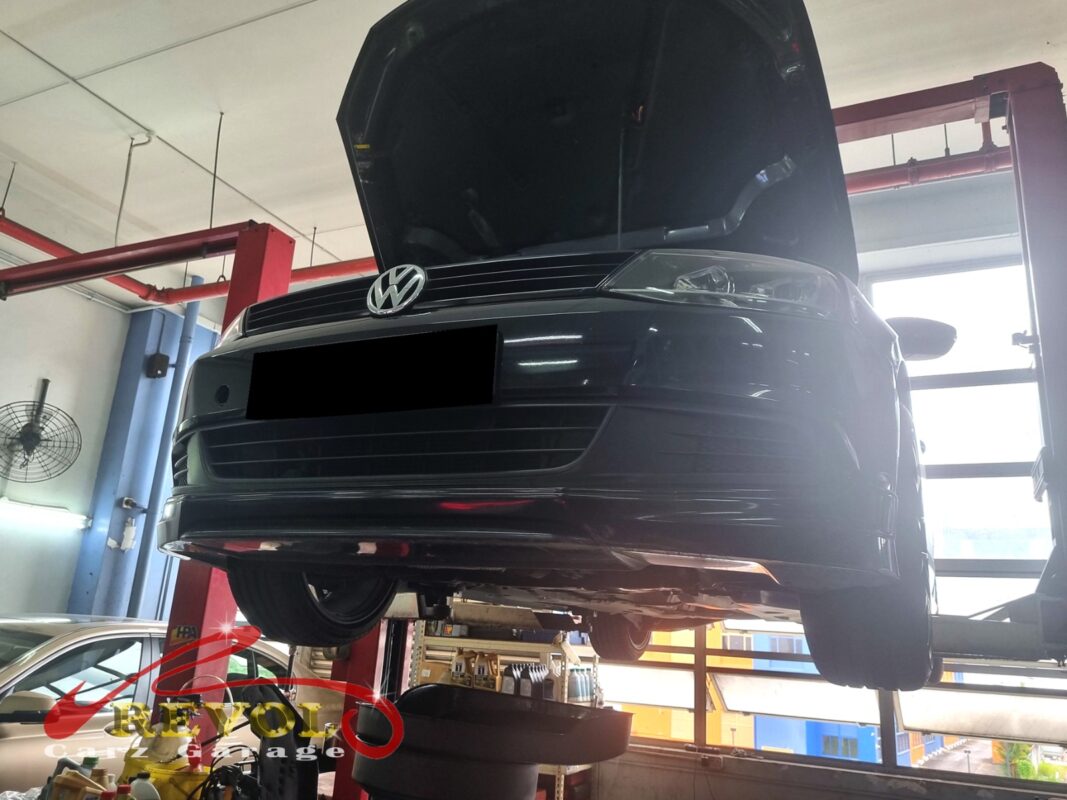

The Jetta up on the two-post lift, bonnet open, in for the coolant leak.
The Jetta up on the two-post lift, bonnet open, in for the coolant leak.

The diagnosis

A pressure test traced the leak directly to the water pump shaft seal. The hoses, the radiator, the expansion tank and the thermostat all checked out clean.

That's a pump replacement, not a peripheral fix. The seal is part of the pump, and a pump that's started weeping only weeps more, so the unit gets changed.

Bright green leak-detection dye in the coolant, marking the trail down from the water pump.
Bright green leak-detection dye in the coolant, marking the trail down from the water pump.

The work

The cooling system was drained, the pump's drive belt section released, and the failed pump removed. A new VAG-spec water pump went on with a fresh seal, the belt set back up, and the system refilled with the correct coolant, the air bled out the proper way, and held under pressure to confirm the seals were dry.

A road test confirmed the level held and there was nothing dripping.

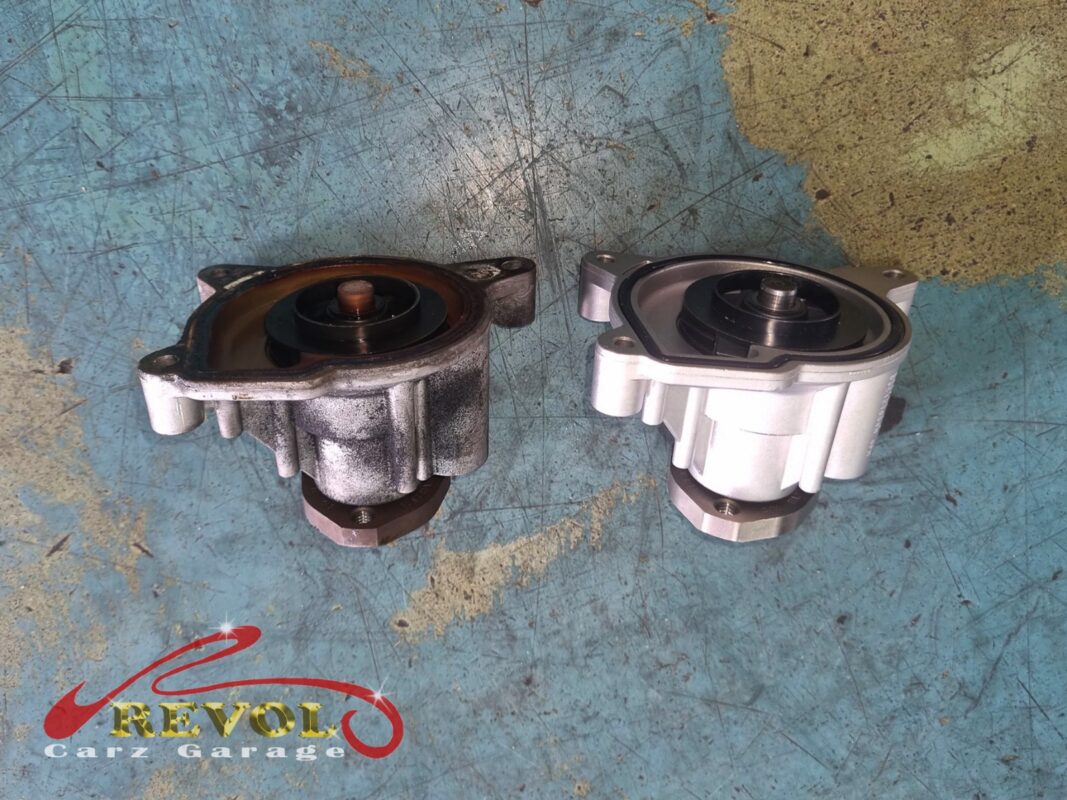

The old water pump (left, stained) beside the new VAG-spec replacement (right), with a fresh seal.
The old water pump (left, stained) beside the new VAG-spec replacement (right), with a fresh seal.

The outcome

No drips, the level holding cleanly, and the gauge steady through the road test.

The Jetta went home with the cooling system tight again. A weeping water pump only gets worse, and the failure at the end is an overheat that can cost a head gasket, so catching it on the first puddle kept it to a straightforward job.
