Volkswagen Case Study · 221

Volkswagen Passat ABS sensor, replaced.

A Passat came in with the ABS warning light on and the traction control disabled. A failed front wheel speed sensor was the cause. Replaced and codes cleared.

Job done

Mechanical Repairs Brakes Volkswagen Specialist
Volkswagen Passat in the workshop with the front wheel off for ABS sensor diagnosis.

The brief

The Passat's ABS warning light had come on and stayed on, and the traction control had disabled itself in the process. The owner could feel the difference under harder braking and brought the car in to get the system back online.

The ABS reads how fast each wheel is turning from a small sensor at the hub. When one of those signals fails, the ABS can't trust its picture of the road, so it puts up the warning and steps back, and the traction control, which uses the same readings, drops out with it. A warning that comes on and stays on, rather than flickering, usually means the sensor has failed outright rather than just going marginal.

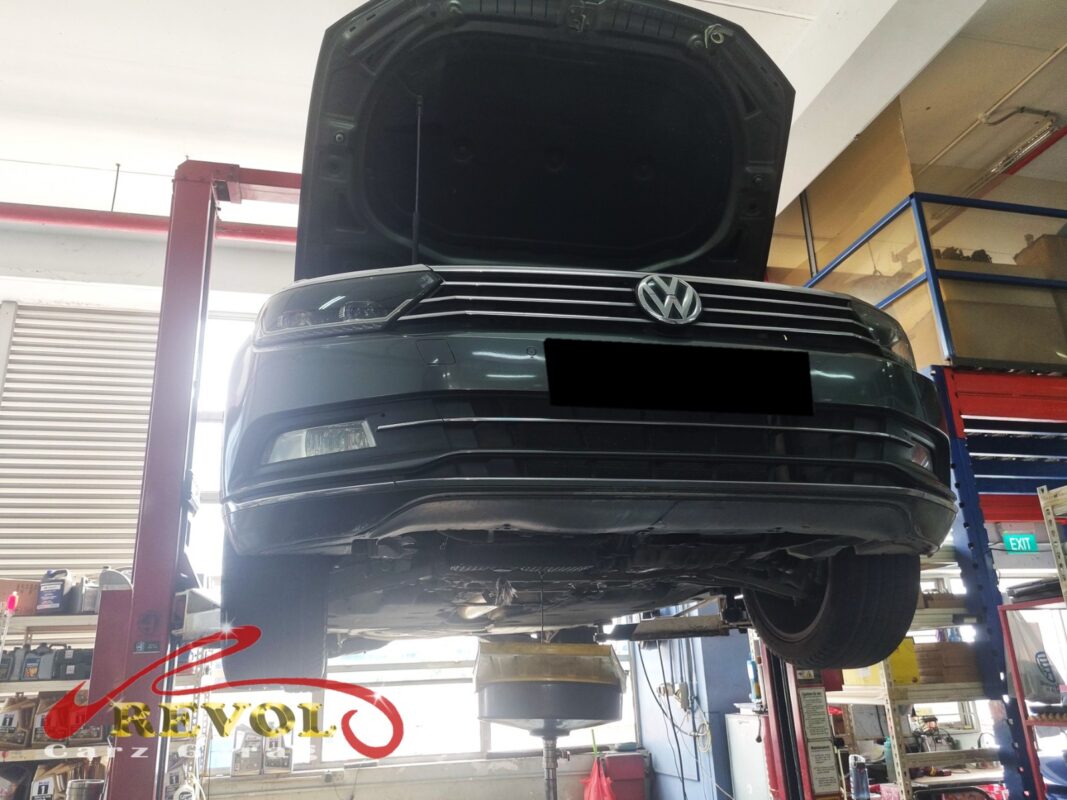

The Passat up on the two-post lift, bonnet open, in for the ABS warning.
The Passat up on the two-post lift, bonnet open, in for the ABS warning.

The diagnosis

On the scanner the codes pointed cleanly at one sensor, the left front wheel speed sensor, with a string of faults logged against it, from open circuit to mechanical malfunction. A meter check at the connector confirmed the sensor itself was the failed component, with the harness and the tone ring it reads off both fine.

That makes it a sensor replacement. A failed wheel speed sensor doesn't recover, so the sensor was getting changed.

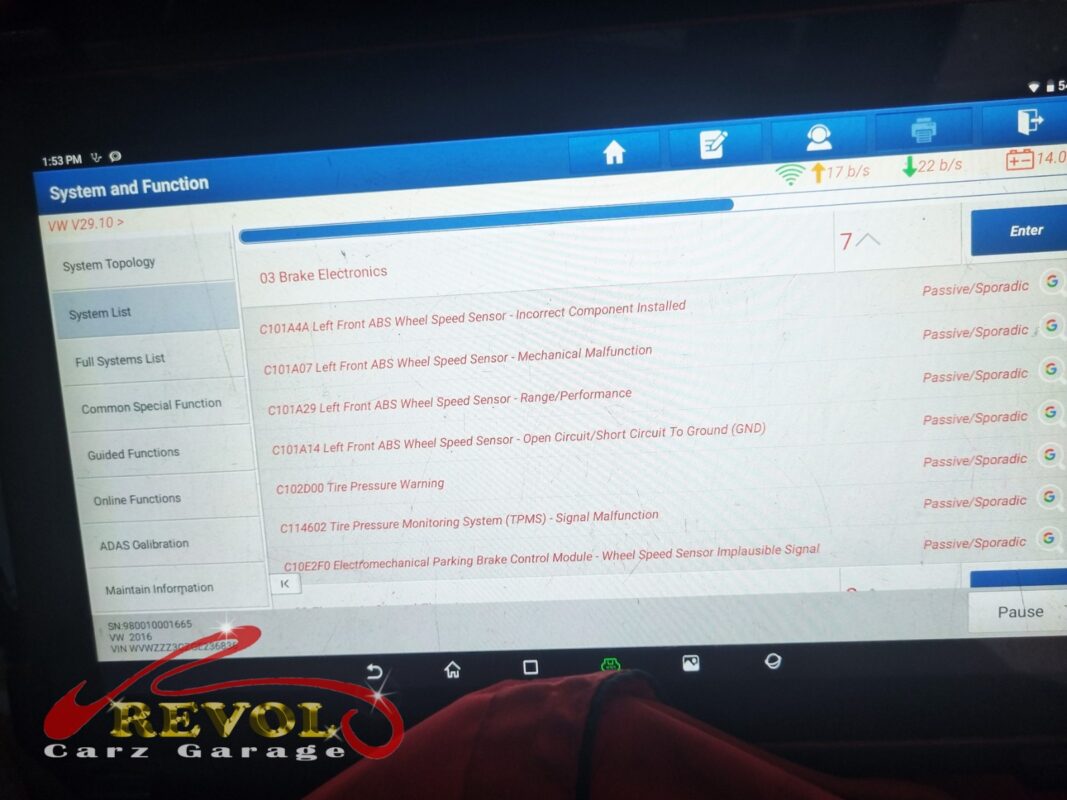

The diagnostic scan: a string of faults all on the left front ABS wheel speed sensor.
The diagnostic scan: a string of faults all on the left front ABS wheel speed sensor.

The work

The car went up, the failed wheel speed sensor was unbolted from the hub and a new VAG-spec sensor fitted with a fresh O-ring, the harness clipped back into its proper run so nothing rubs. Then the stored faults were cleared from the brake module and the system checked over.

A road test with a series of braking events confirmed nothing came back.

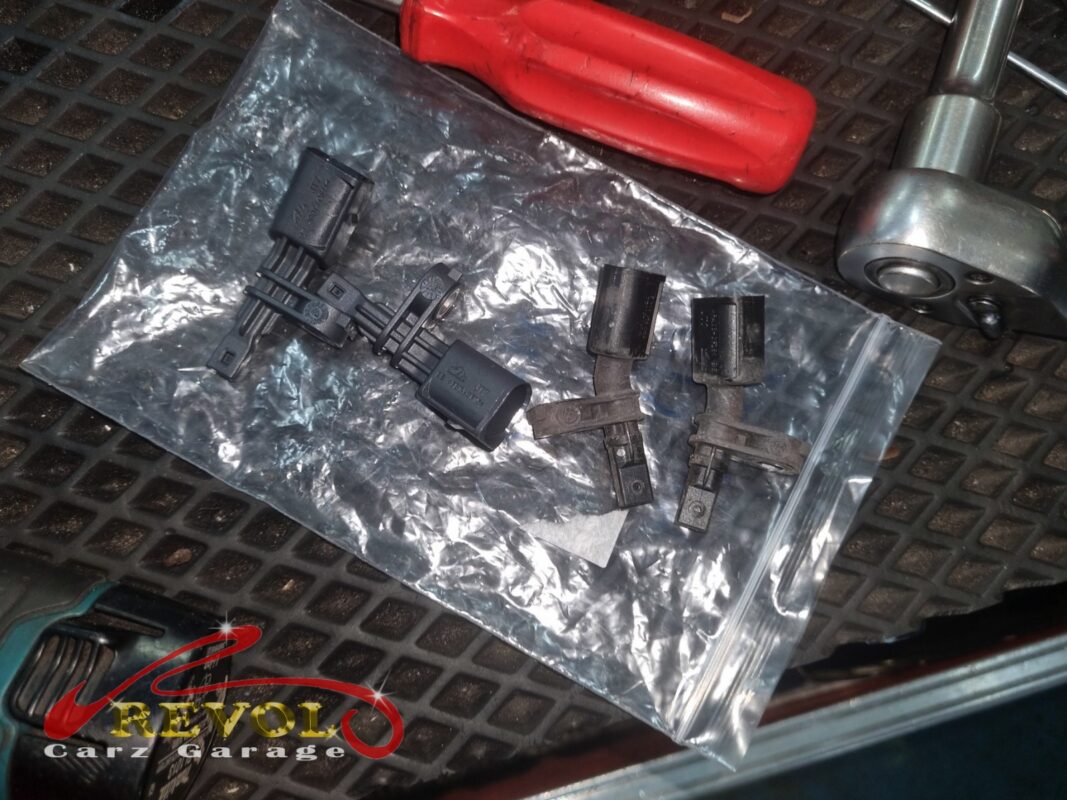

Wheel speed sensors removed and bagged, the failed front one among them.
Wheel speed sensors removed and bagged, the failed front one among them.

The outcome

ABS warning off, traction control back online, and no codes after a full drive cycle.

The Passat went home with the braking electronics working properly again. The ABS and traction control are there for the moment you need them, so getting the failed sensor changed and the system back online put the safety net back where it should be.
