Volkswagen Case Study · 54

Volkswagen Passat front brakes, pads and discs replaced.

A Volkswagen Passat came in with worn front brakes, the pads down and the discs scored. Both replaced as an axle set with quality parts, the braking sharp and quiet again.

Job done

Mechanical Repairs Brakes Volkswagen Specialist

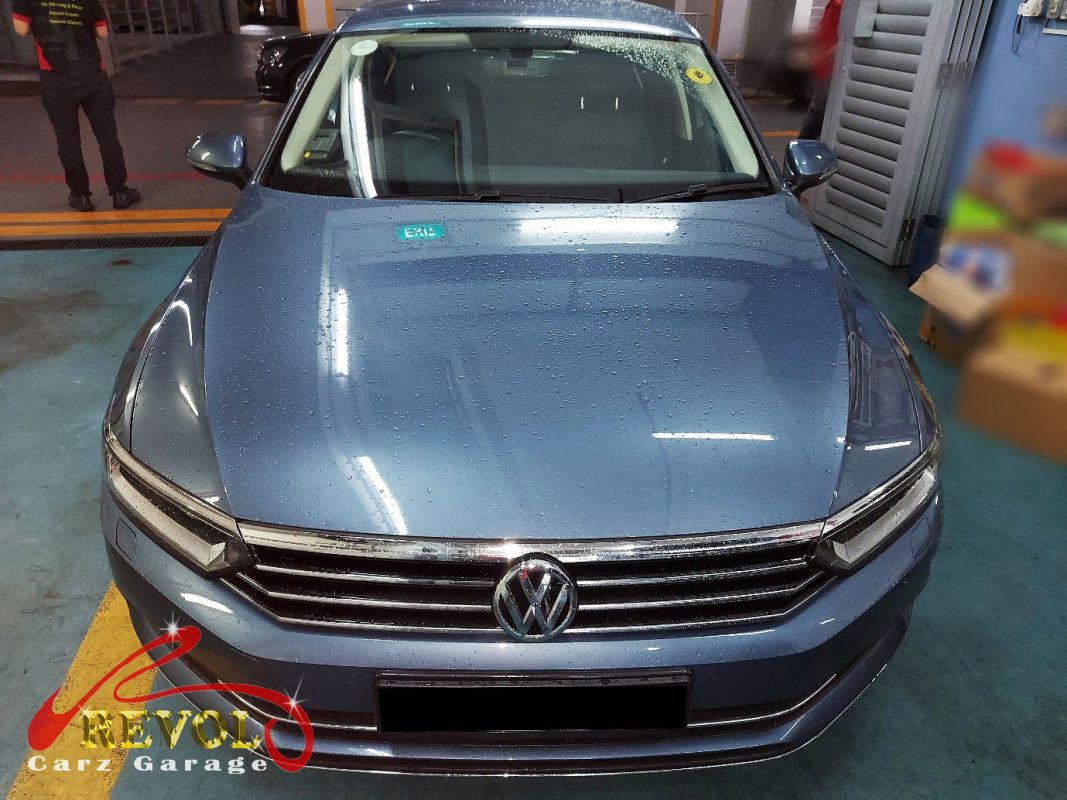

Volkswagen Passat parked at the workshop, in for front brake inspection.

The brief

The Passat's front brakes had run their course, picked up on a check with the pads worn low and the discs scored, and a squeal under braking saying the same thing. He had both done, which is the right call, worn pads and discs aren't something to risk. The pads are the wear item, designed to be used up and replaced, and the discs they clamp wear too, thinning and scoring over their life. When the pads go right down, the wear runs into the disc surface, scoring it. By that point you're not just changing pads, the discs are scored past serviceable, so the front needs pads and discs together.

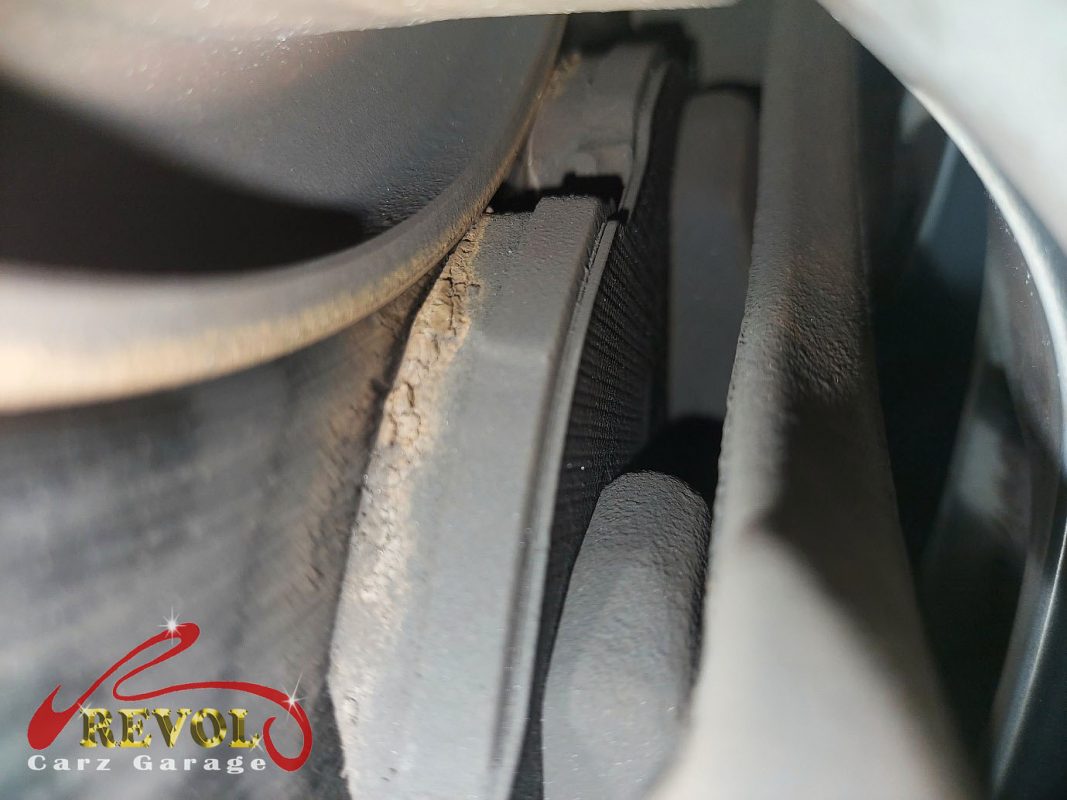

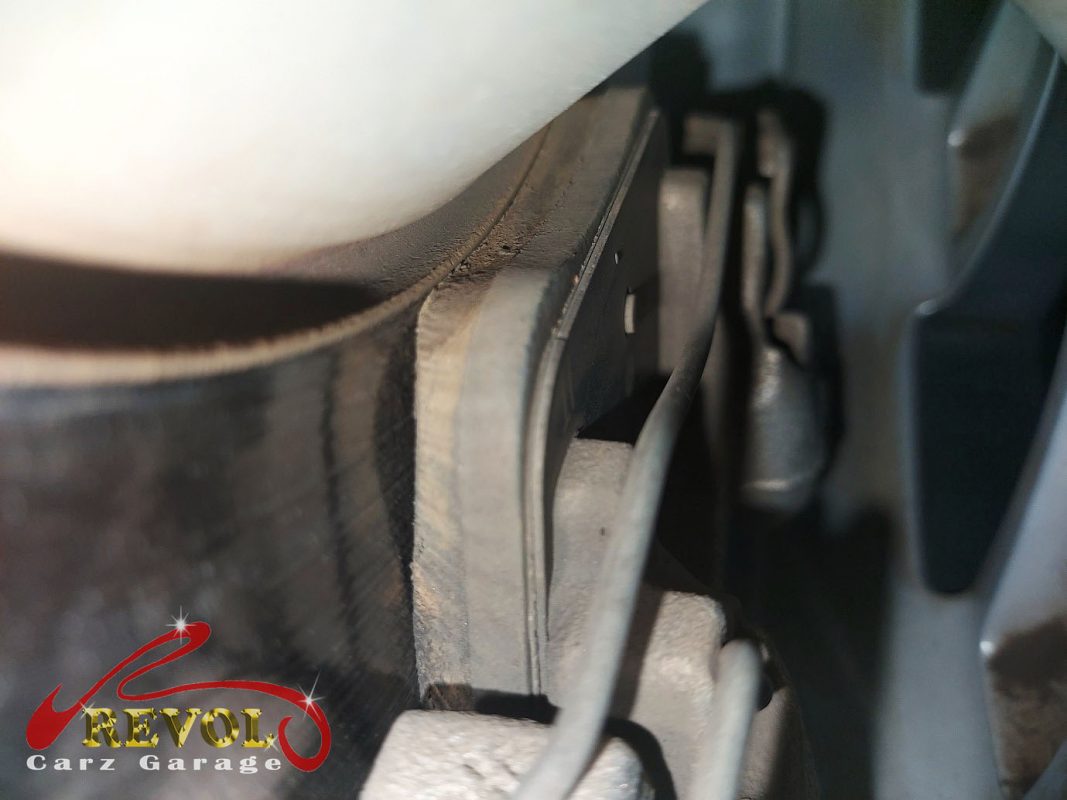

The worn front pads and scored disc on the Volkswagen Passat.

The diagnosis

On the lift the front brakes told the story: the pads worn near the end, and the discs scored and below minimum thickness. The calipers and slides were freed off and checked, they were fine, just the pads and discs gone. The rears still had life. So it was a front axle set: new genuine VW-spec pads and discs on both sides together, because you don't fit fresh pads to a scored, undersized disc, and you do the pair so both sides bite the same.

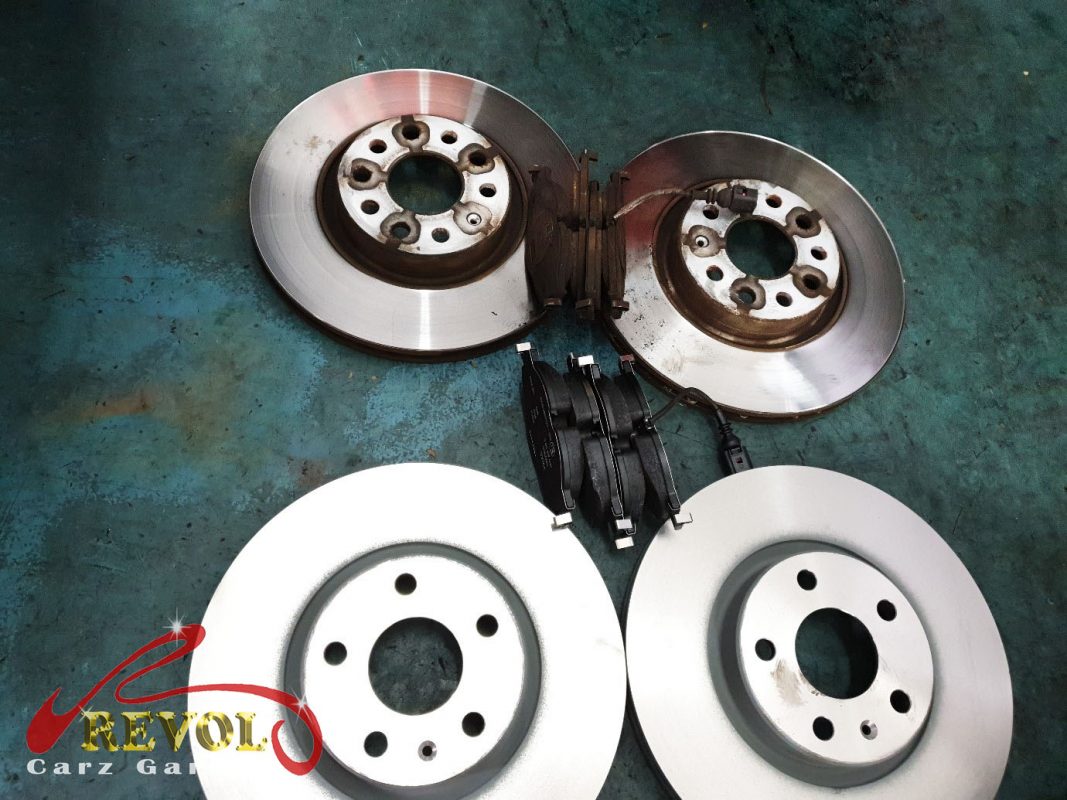

The old front discs removed alongside the new set.

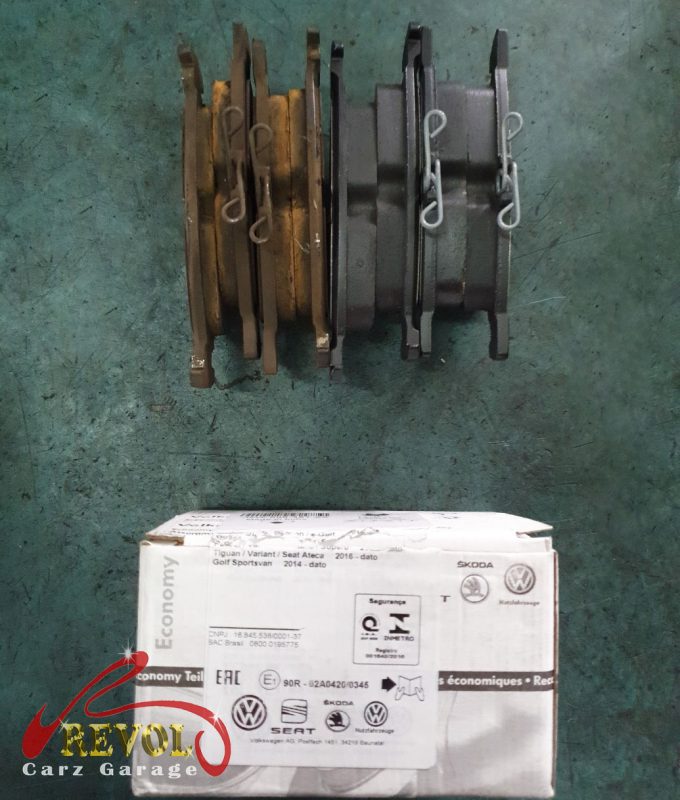

The new genuine VW-spec front discs and pads ready to fit.

The work

Both front discs and the worn pads were removed, the hubs cleaned up, and a new genuine VW-spec set of discs and pads fitted, the calipers and slide pins cleaned and greased so they move freely, every fastener torqued to spec. The pads were bedded in properly so they'd grip evenly from the start. A road test confirmed quiet, even, progressive braking with a firm pedal and no pulling.

The new front brakes installed and the calipers serviced.

The outcome

Quiet brakes, a firm pedal, even bite, sharp progressive stopping, and the squeal gone. The Passat went home stopping properly again. Worn pads turn into scored discs the longer they're left, so doing the front pads and discs as an axle set put the braking back where it should be, the safety job you don't put off.

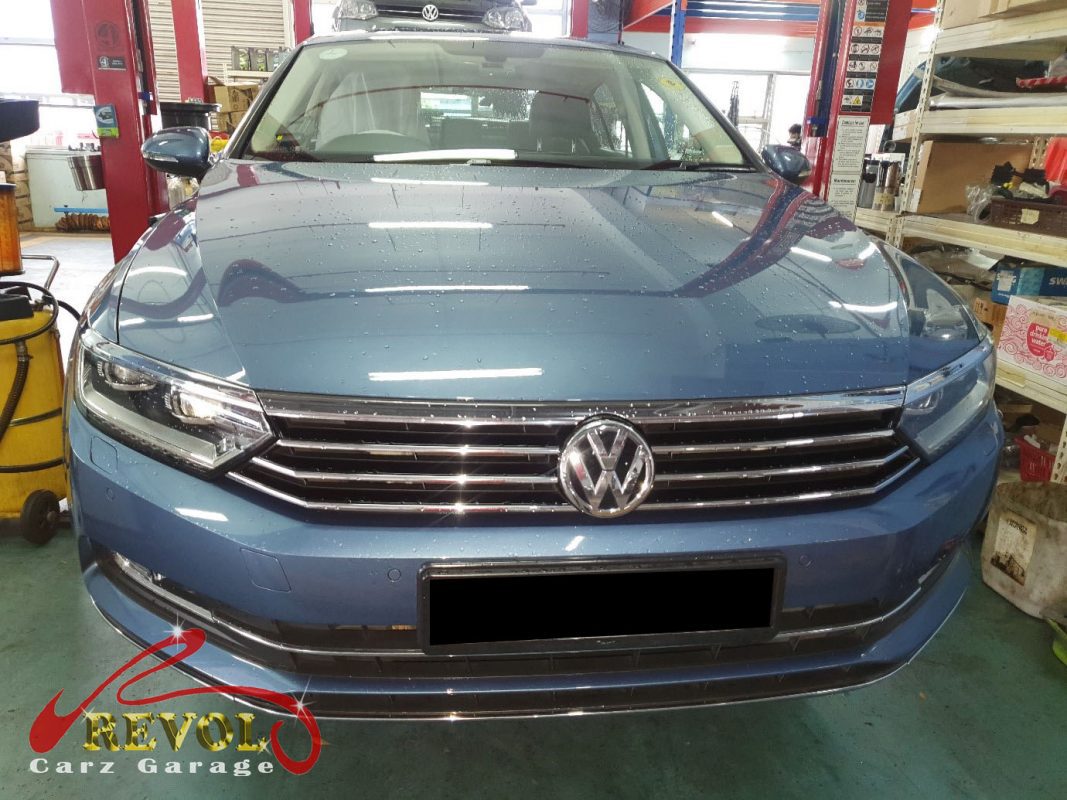

The brakes bedded in and the car ready for the road.
