Volkswagen Case Study · 96

Volkswagen Golf front brakes, pads and disc replaced.

A Volkswagen Golf came in squealing and grinding under braking. The front pads were worn and the discs scored. Both replaced as an axle set, the braking sharp and quiet again.

Job done

Mechanical Repairs Brakes Volkswagen Specialist

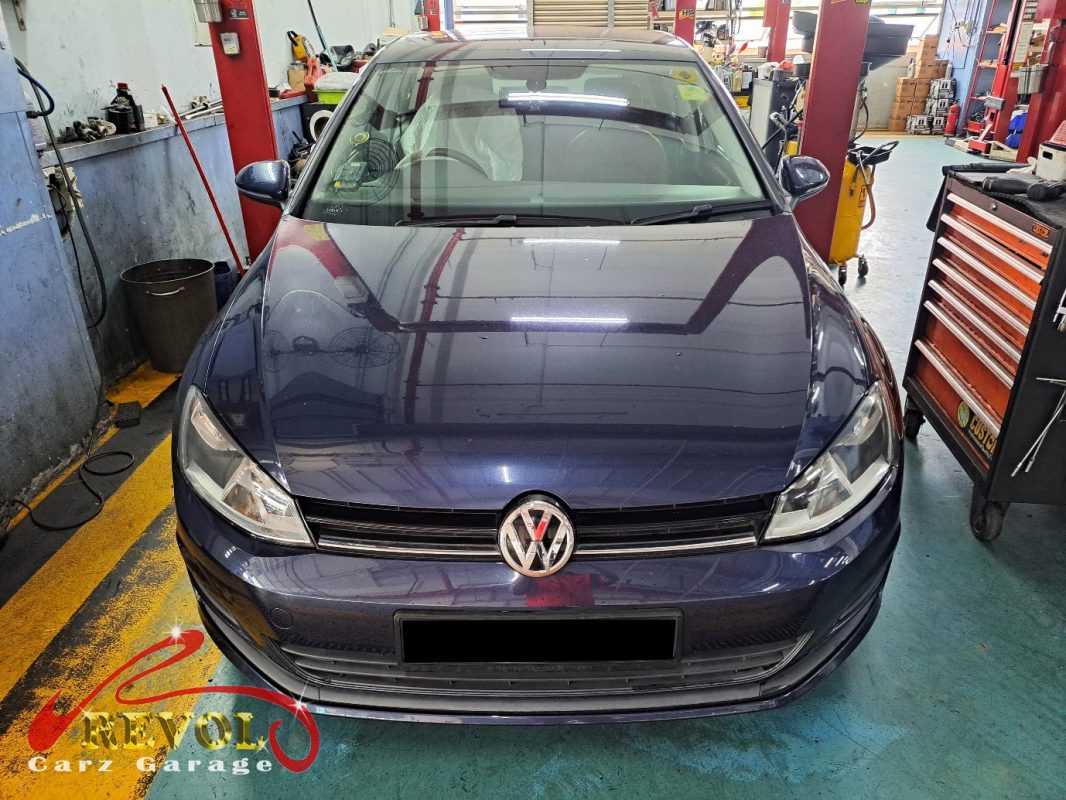

Volkswagen Golf parked at the workshop, in for front brake inspection.

The brief

The Golf had started squealing under braking and then grinding, the noise that means the front brakes have run through their friction material. He brought it in, which is the right call, grinding brakes are metal on metal and they don't stop the car the way they should. The front brakes do most of the work on any car. The pads are the wear item, designed to be used up and replaced, and the discs they clamp wear too, thinning and scoring over their life. When the pads go right down, the squeal turns to a grind as the backing plate contacts the disc, which gouges the disc surface. By that point you're not just changing pads, the discs are scored past serviceable, so the front needs pads and discs together.

The worn front pads and scored disc on the Volkswagen Golf.

The diagnosis

On the lift the front brakes told the story: the pads worn down to the backing plate, and the discs scored and below minimum thickness from running on metal. The calipers and slides were freed off and checked, they were fine, just the pads and discs gone. The rears still had life. So it was a front axle set: new pads and new discs on both sides together, because you don't fit fresh pads to a scored, undersized disc, and you do the pair so both sides bite the same.

The old front discs removed alongside the new set.

The work

Both front discs and the worn pads were removed, the hubs cleaned up, and a new genuine VW-spec set of discs and pads fitted, the calipers and slide pins cleaned and greased so they move freely, every fastener torqued to spec. The pads were bedded in properly so they'd grip evenly from the start. A road test confirmed quiet, even, progressive braking with a firm pedal and no pulling.

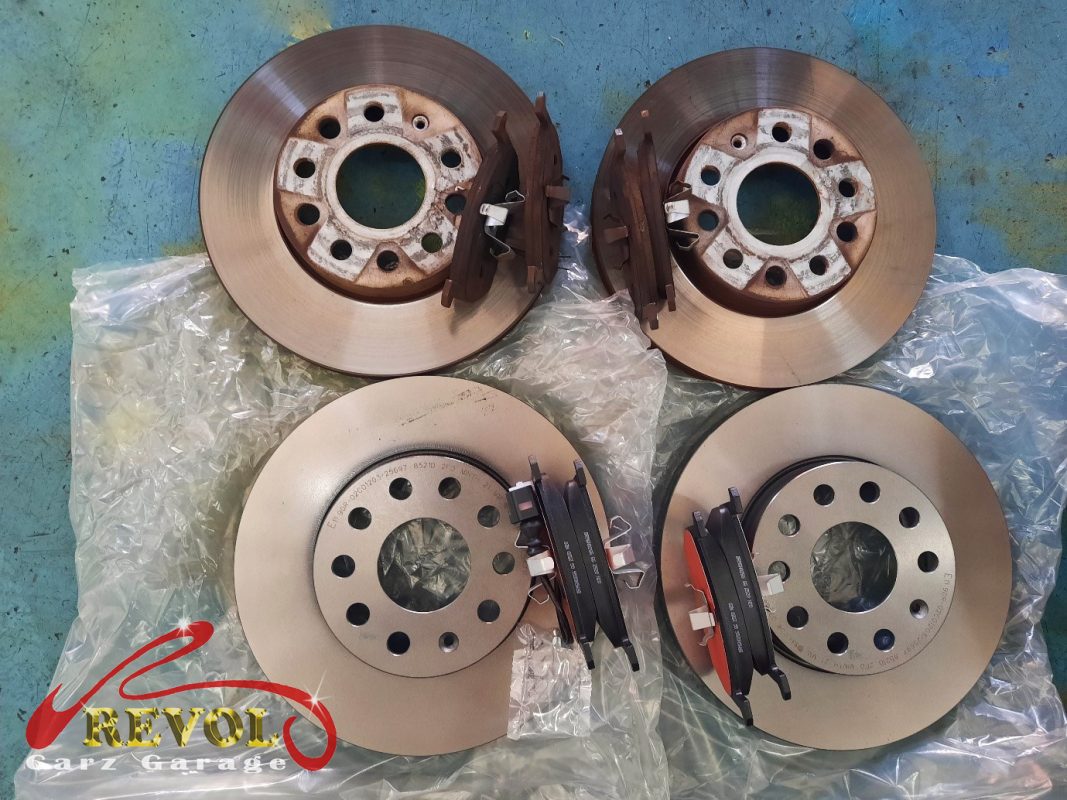

The new genuine VW-spec front discs and pads ready to fit.

The outcome

Quiet brakes, a firm pedal, even bite, sharp progressive stopping, and no squeal or grinding. The Golf went home stopping properly again. Worn-out pads turn into scored discs the longer they're left, so doing the front pads and discs as an axle set put the braking back where it should be, the safety job you don't put off.
