Volkswagen Case Study · 98

Volkswagen Touran coolant tank, replaced.

A Volkswagen Touran came in losing coolant, with a coolant odour and the level low. The plastic coolant tank had cracked. Replaced with the cap, the system bled and pressure tested.

Job done

Mechanical Repairs Cooling System Volkswagen Specialist

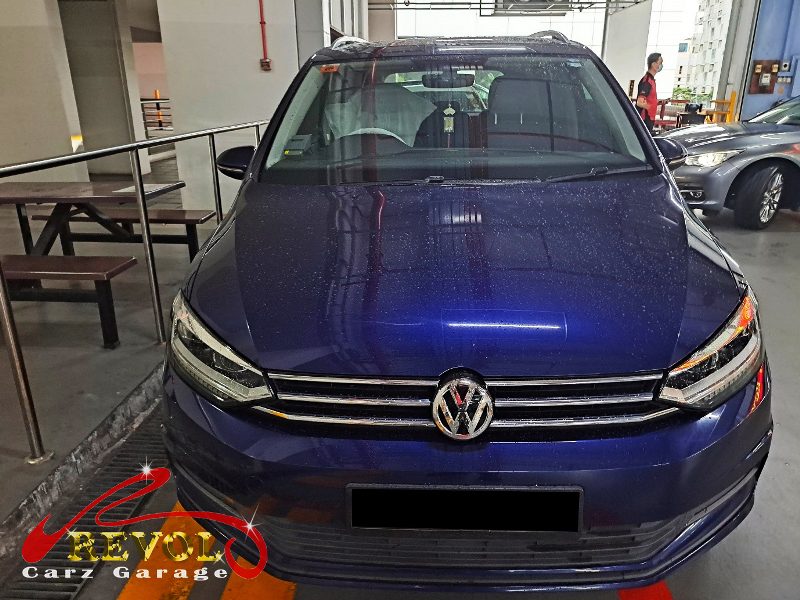

Volkswagen Touran parked at the workshop, in for a coolant leak diagnosis.

The brief

The Touran was losing coolant, the level low, a sweet coolant smell about the car, and the temperature edging up. He brought it in, which is exactly right, coolant that disappears is going somewhere and a slow leak turns into an overheat the day it lets go. When one of these loses coolant, the coolant tank is the usual culprit. The tank holds the coolant that expands when the engine's hot and lets the system breathe, and it sits under pressure and heat cycles its whole life. The plastic gets brittle with age and cracks, often at a seam or around the cap neck, and it weeps coolant that you smell more than see. A cracked tank only splits worse, so it needs replacing.

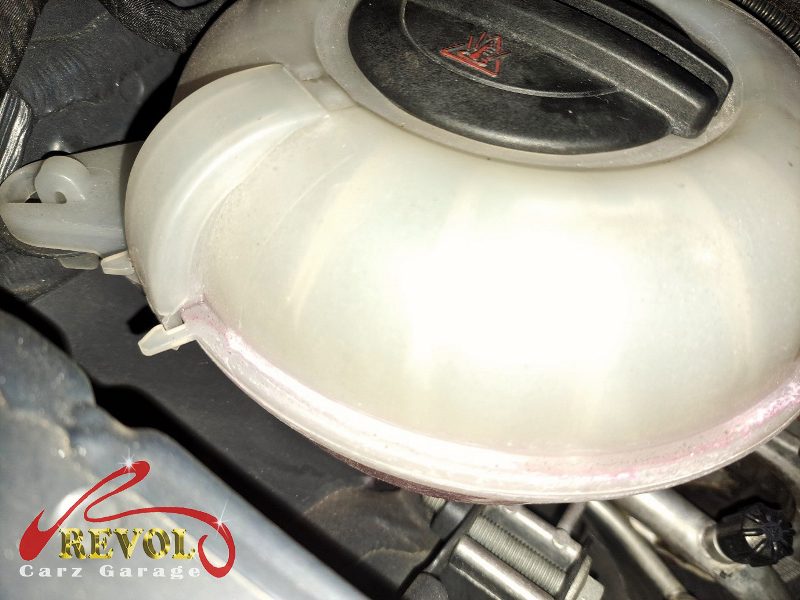

Pressure test on the Volkswagen Touran cooling system finding the leak.

The diagnosis

A pressure test on the cooling system pinpointed it, the coolant tank was weeping from a hairline crack and losing pressure slowly, which is the disappearing coolant and the odour. The radiator, the hoses, the water pump and the rest of the system held fine. That's a tank replacement, with a fresh cap, rather than chasing a crack in brittle plastic that's only going to spread.

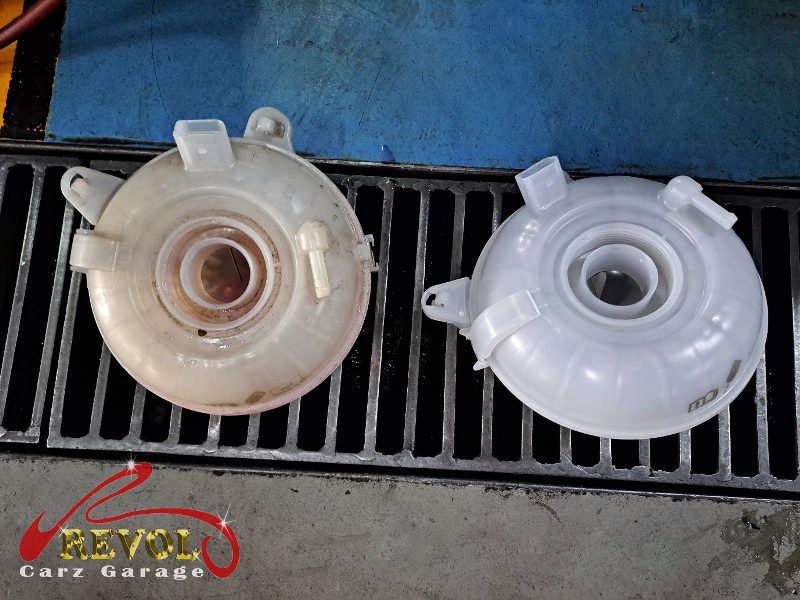

The old cracked coolant tank removed from the engine bay.

The work

The cooling system was drained enough to get at the tank, the old cracked coolant tank removed, and a new genuine VW-spec tank fitted with a fresh cap and the level sensor transferred over properly. The system was refilled with the correct VW coolant, bled the proper way so no air pockets were left, and pressure tested again to confirm it held with no weep. A road test confirmed the gauge sat steady and the level stayed put.

The new genuine VW-spec coolant tank and cap ready to fit.

The outcome

No more coolant loss, no odour, the level holding between checks, the gauge steady, and the system holding pressure as it should. The Touran went home with the leak resolved. A cracked coolant tank only splits further, and the failure at the end is a sudden coolant dump and an overheat, so changing the tank kept it to a tidy, planned job.
