Volkswagen Case Study · 26

Volkswagen Golf drive shaft, replaced.

A Volkswagen Golf came in for an oil change, and the mechanic spotted a failing drive shaft with a split CV boot. The shaft was replaced alongside the oil change, the front end safe again.

Job done

Servicing Suspension Volkswagen Specialist

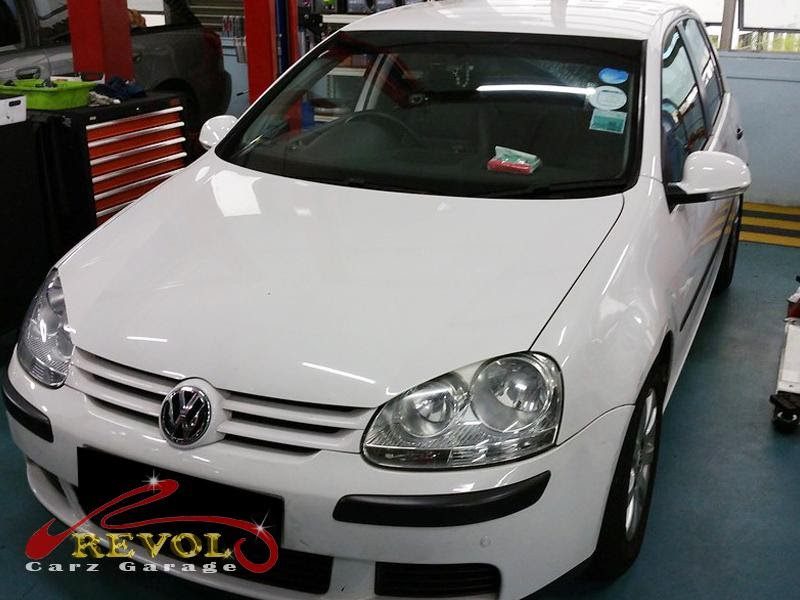

Volkswagen Golf on the ramp at the workshop for an oil change.

The brief

Anna's Golf came in for a straightforward oil change, and while it was up on the ramp the mechanic noticed a drive shaft on its way out. Two jobs in one visit: the oil change, and a drive shaft before it let go on the road. The drive shaft sends power from the gearbox to the front wheel, and at each end there's a CV joint, a constant-velocity joint, sealed inside a rubber boot packed with grease. When the boot splits, the grease flings out and dirt and water get in, so the joint runs dry and wears, which is the clicking you hear on full lock. Left long enough the joint fails completely and the wheel loses drive. A worn CV joint with a split boot is replaced, usually as a complete drive shaft, because it's the safe, lasting fix.

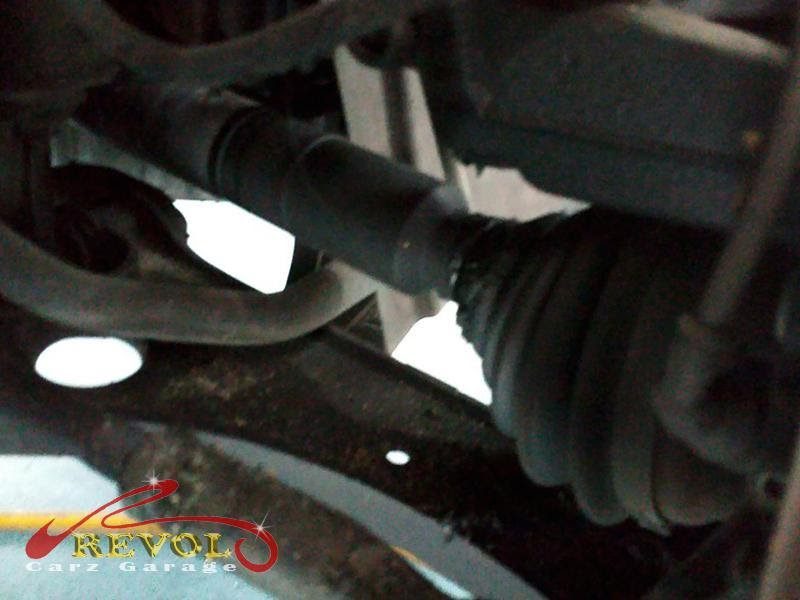

The split CV boot spotted on the Volkswagen Golf drive shaft, grease flung around the arch.

The diagnosis

On the ramp the drive shaft showed a split CV boot with grease flung around the inside of the wheel arch, and the joint had play and would click on full lock, which is a joint running dry and wearing out. The other shaft, the gearbox and the rest of the front were sound. The oil and filter were due, that's what it came in for. So it was an oil change plus a drive shaft replacement: the routine job done, and the failing shaft swapped before it stranded her.

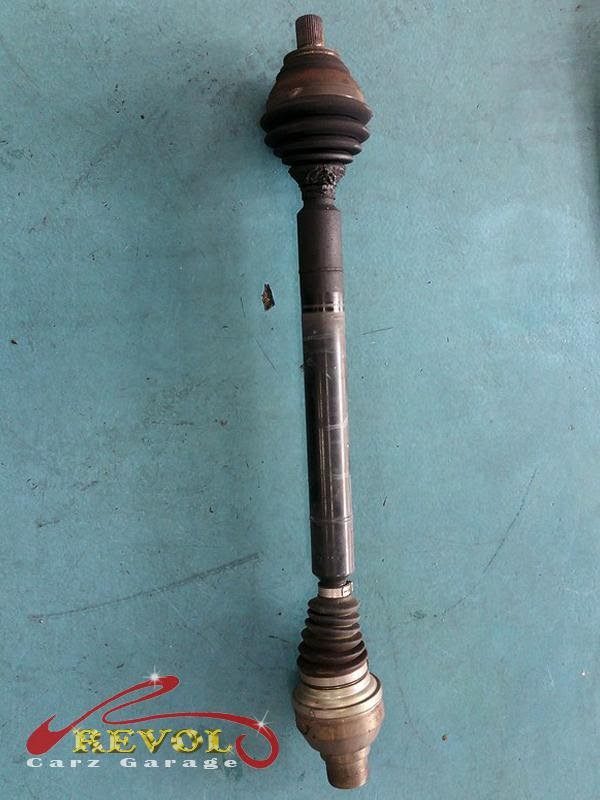

The failing drive shaft removed from the front of the car.

The work

The engine oil was drained and refilled with the correct VW-spec oil and a new oil filter. The failing drive shaft was removed and a new genuine VW-spec shaft fitted, the joints and boots fresh and properly greased, every fastener torqued to the manual figures and the hub nut renewed. The other side's boots were checked while it was apart. A road test confirmed no clicking on full lock, smooth drive, and no vibration.

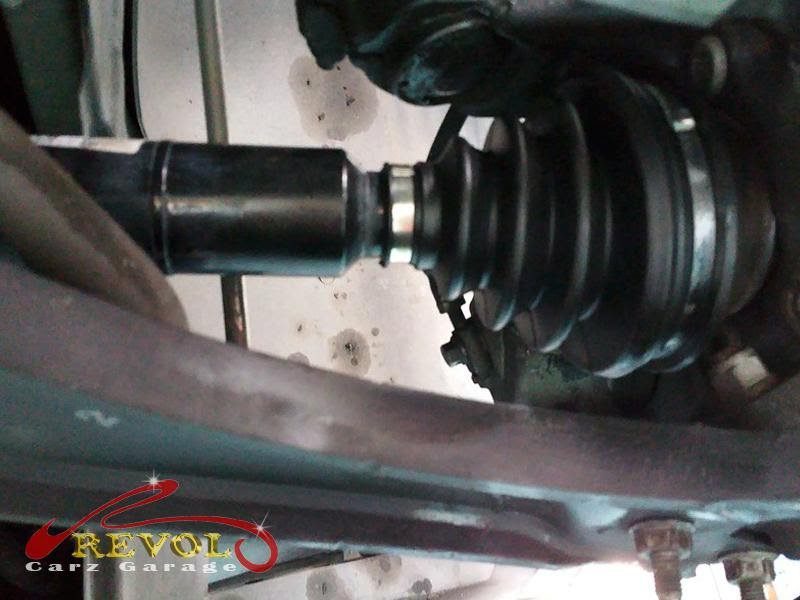

The new genuine VW-spec drive shaft ready to fit.

The outcome

No clicking on turns, smooth drive, no vibration, fresh oil and filter, and a front end that's safe again. The Golf went home with the oil done and the drive shaft sorted. A split CV boot only ends one way, with the joint failing and the wheel losing drive, so catching it at the oil change and replacing the shaft kept a small job small.
