BMW 5 Series, resprayed and back to its best.

This BMW 5 Series came in with oxidised, scratched paintwork. The owner sent it in for a full exterior respray to bring the car back to life.

In the workshop

Spray Painting Panel Respray BMW
BMW 5 Series, fully resprayed to a deep gloss finish at Revol Carz.

What the car came in for

The paintwork on this BMW 5 Series had seen better days. Oxidation had left it dull and there were scratches across several panels, so the owner sent the car in for a full exterior respray.

Over the course of a week the team dismantled the necessary parts, examined the surface for scratches and dents and patched them, wet-sanded the body smooth, masked off the non-painted surfaces, and resprayed the car in the booth before buffing it to a deep shine. The photos below follow the car from arrival to the finished reveal.

Vehicle
BMW 5 Series
Work done
Full exterior respray
Finish
Resprayed and polished
In the workshop
7 days

From masking to the reveal

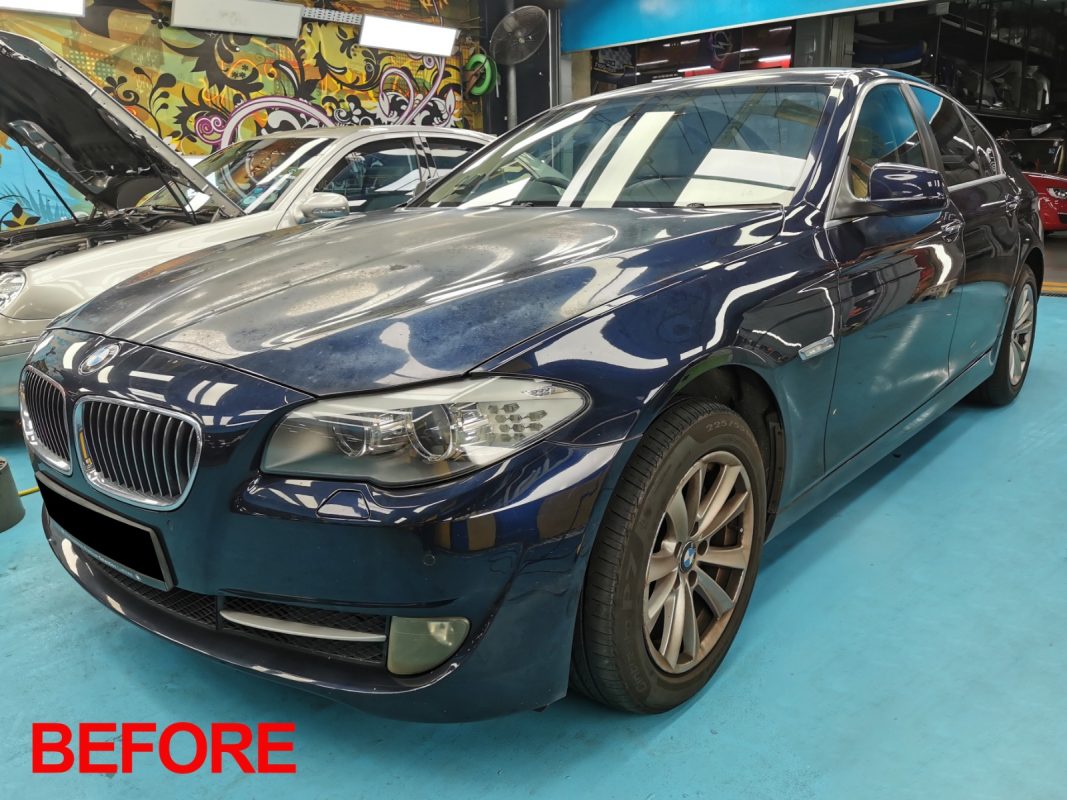

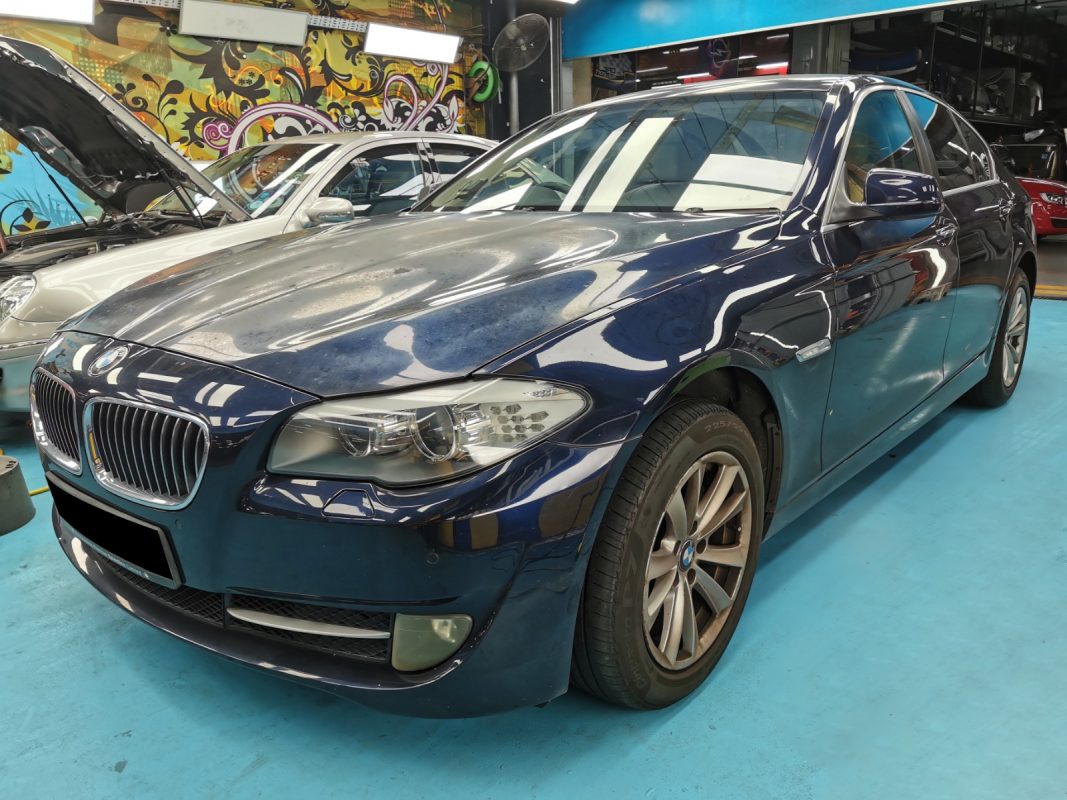

The BMW 5 Series as it arrived at Revol Carz before the respray.
Day 1: the 5 Series arrives for a full exterior respray.

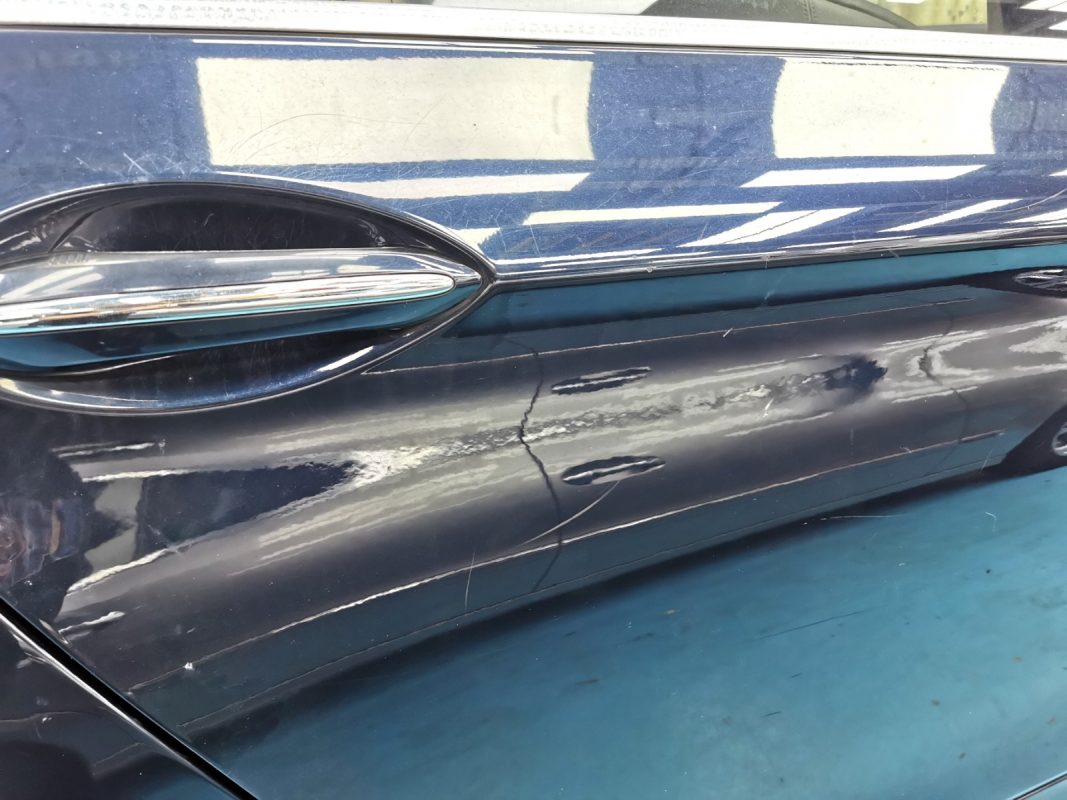

The BMW 5 Series from another angle at intake.
Day 1: another look at the car at intake.

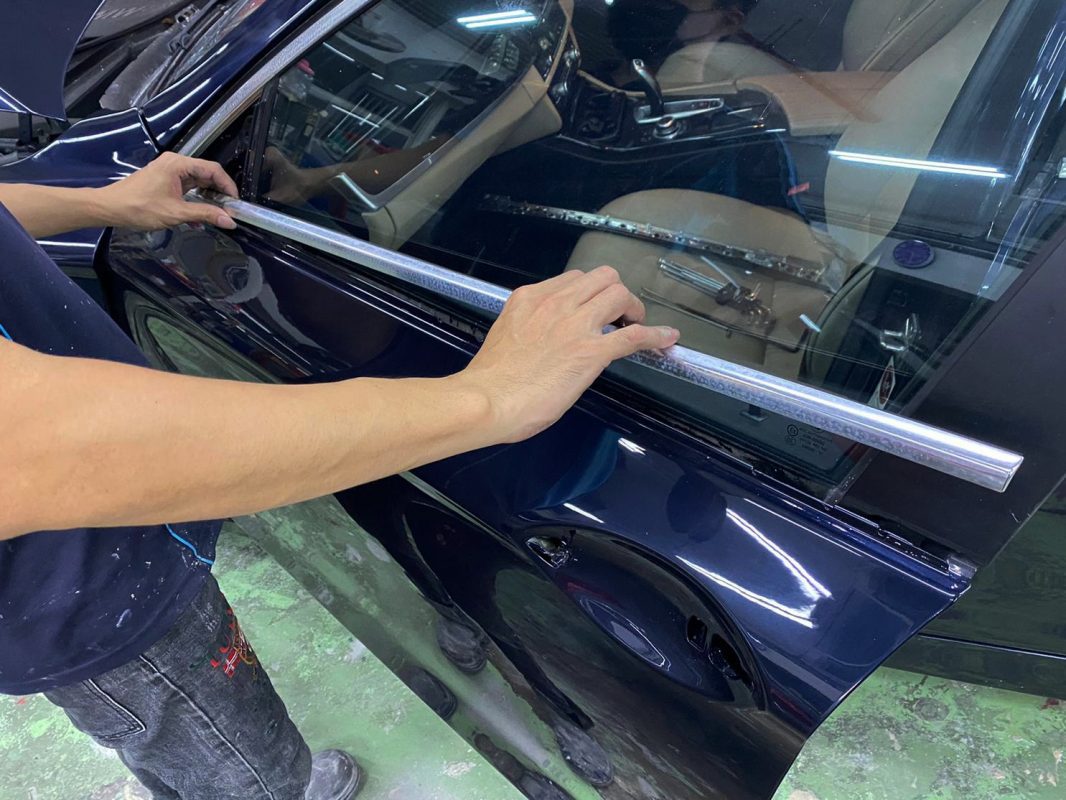

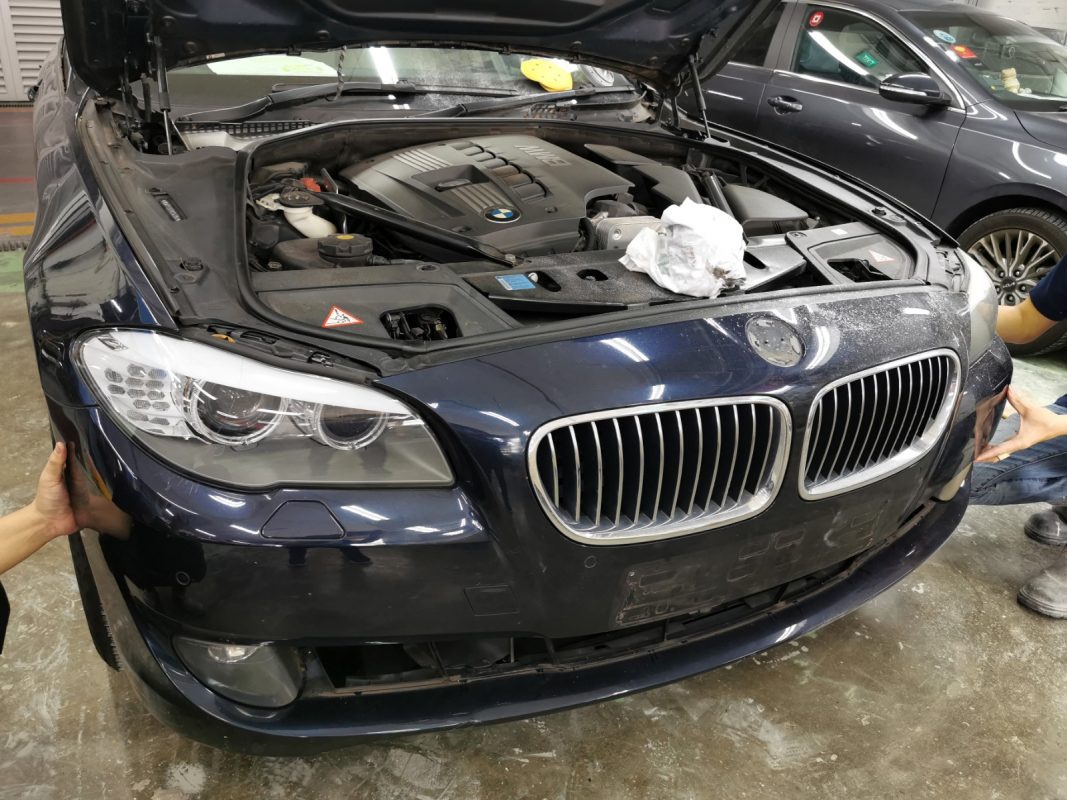

Parts being dismantled from the 5 Series in preparation for spraying.
Day 2: the necessary parts are dismantled before prep.
The car's surface inspected and patched where the paintwork was imperfect.
Day 3: the surface is inspected and imperfections patched.

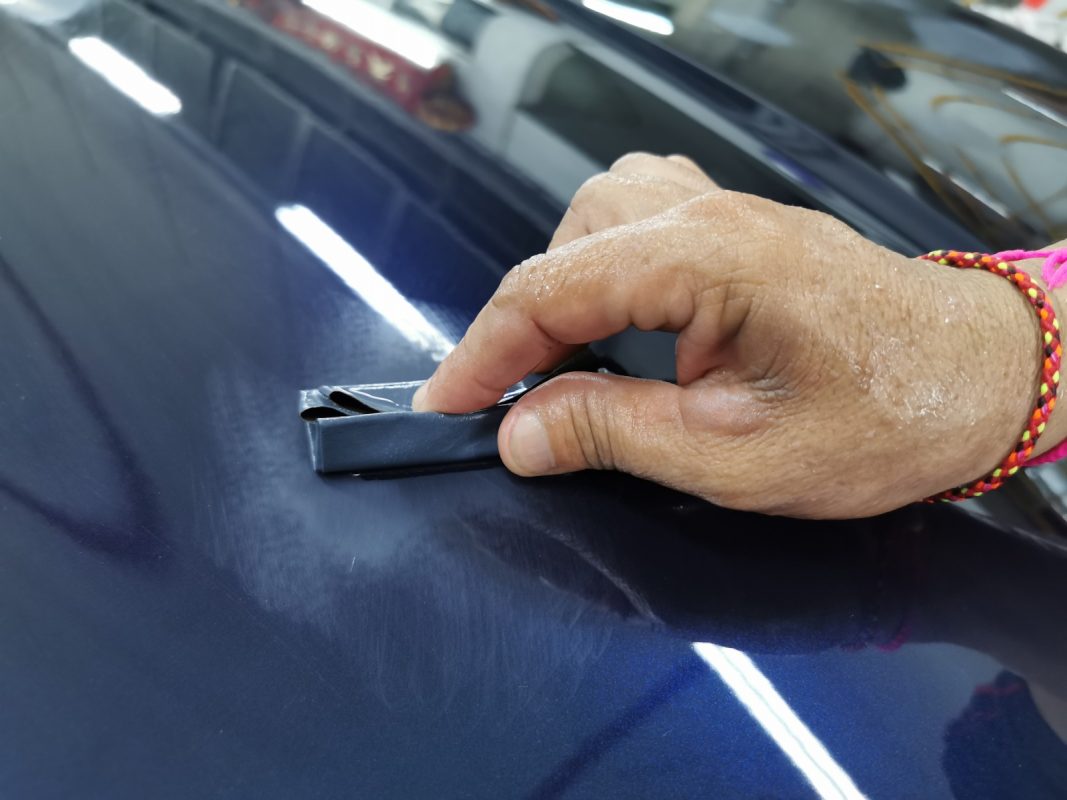

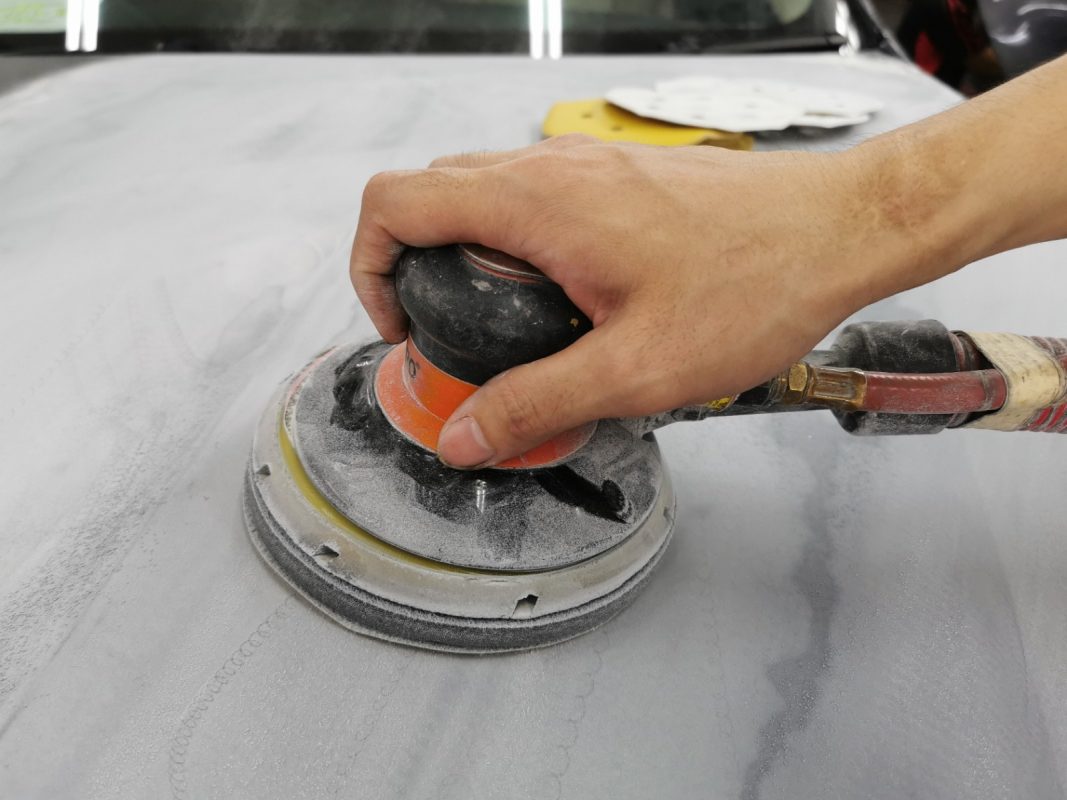

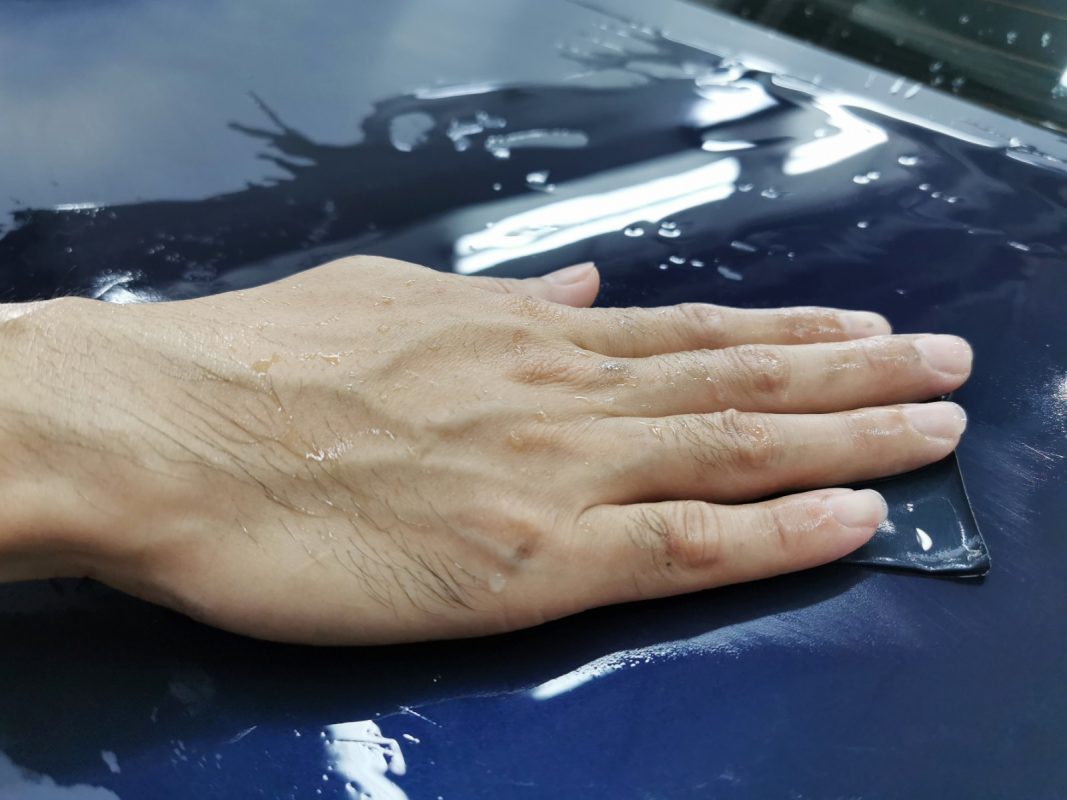

Wet-sanding the 5 Series panels to smooth the existing paintwork.
Day 4: wet-sanding the panels to smooth the old paintwork.

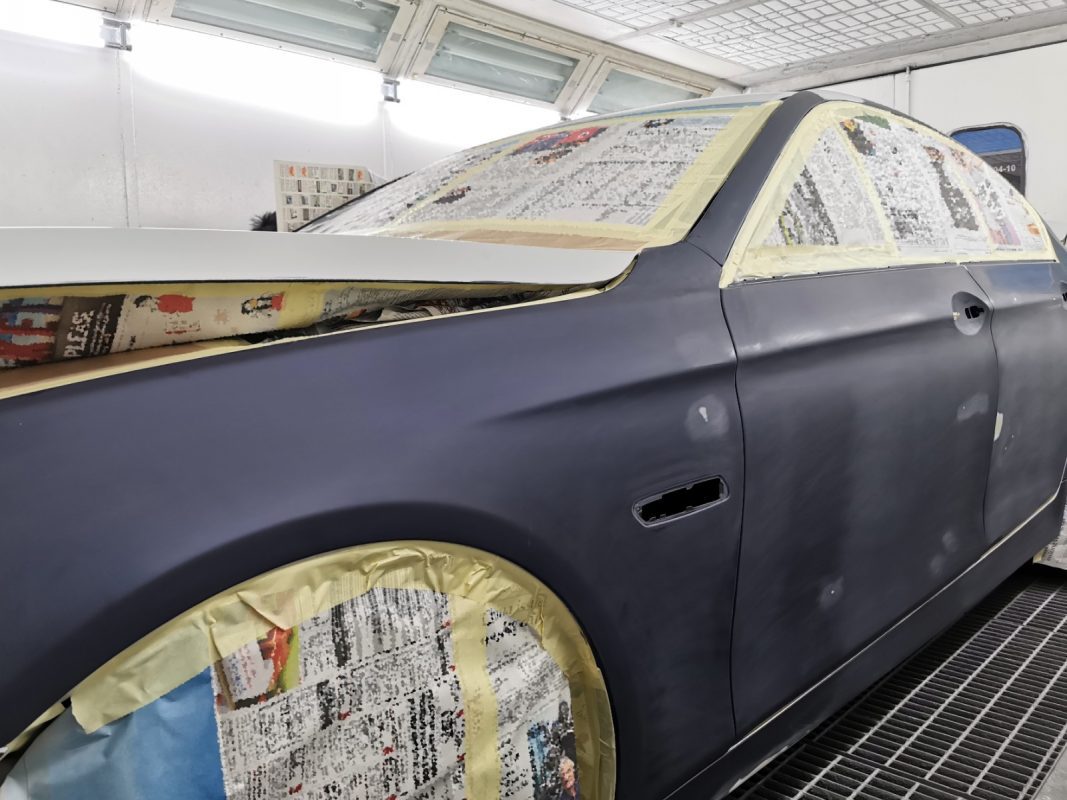

Non-painted surfaces being masked off on the 5 Series before spraying.
Day 5: non-painted surfaces masked off before the booth.

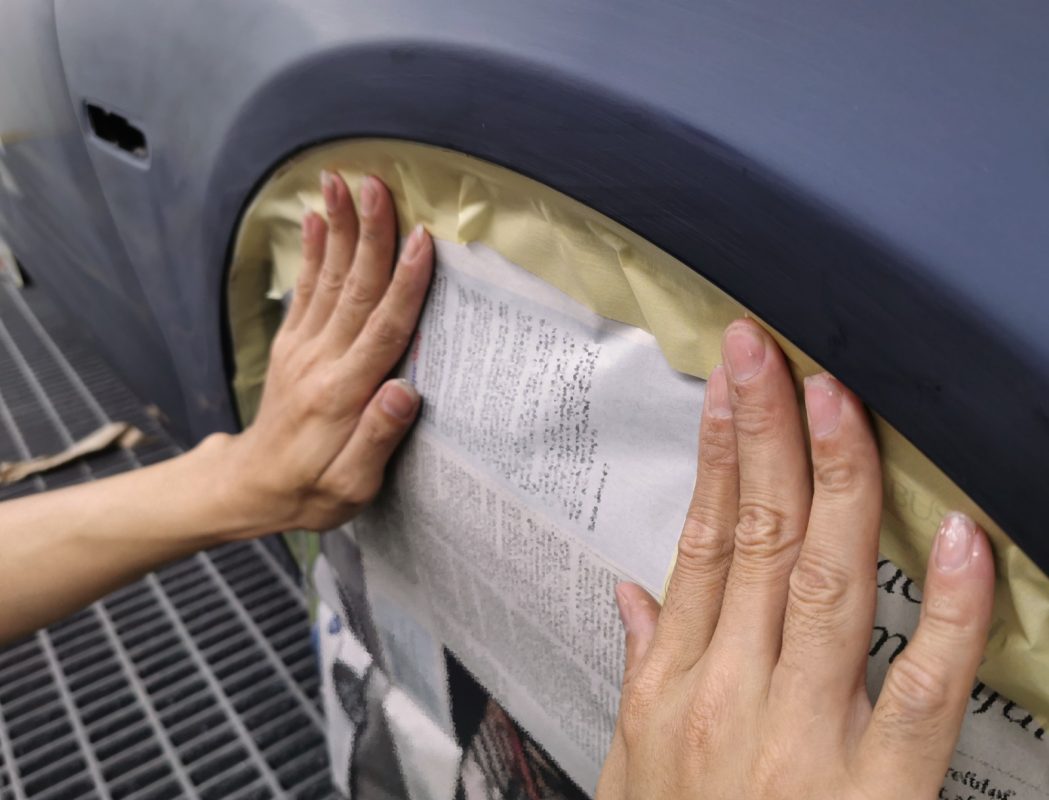

The 5 Series fully masked and ready for the spray booth.
Day 5: the car fully masked and ready to spray.
The 5 Series after spraying in the booth.
Day 6: the car after spraying in the booth.
Buffing the new paint on the 5 Series to bring up the shine.
Day 6: buffing the fresh paint to a deep shine.
The BMW 5 Series after the full respray.
Day 7: the finished respray revealed.
Glossy body panels on the 5 Series after polishing.
Day 7: glossy panels after the final polish.

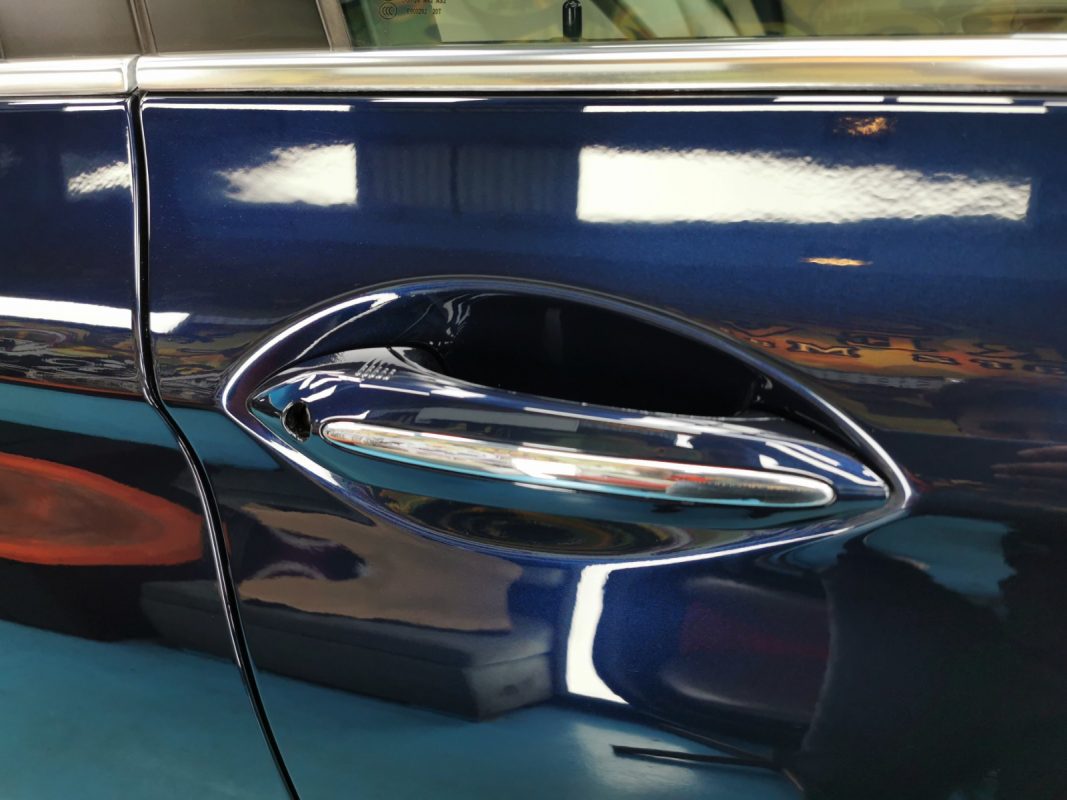

A finished detail of the resprayed 5 Series.
Day 7: a closer look at the finished paintwork.

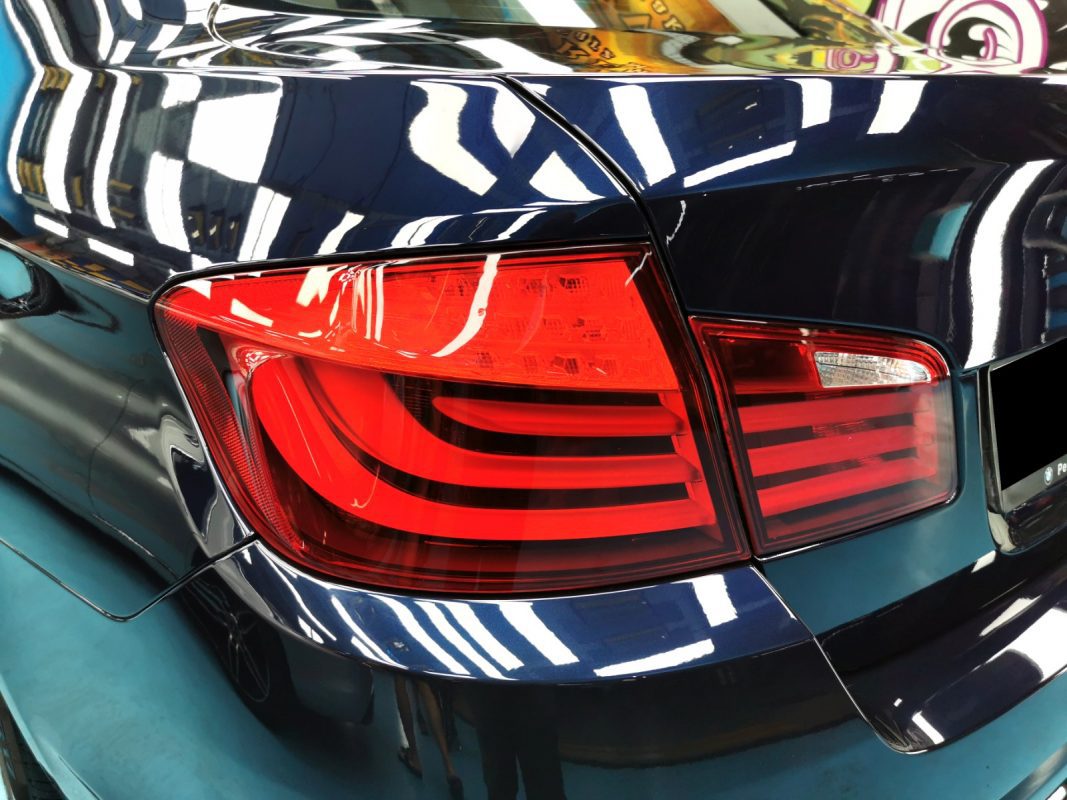

The BMW 5 Series ready for collection after the respray.
Day 7: the 5 Series ready for the owner to collect.

What a full respray involves

A full respray is mostly preparation. Before any colour goes on, the team patches chips, wet-sands the whole body smooth, and masks off every surface that should not be painted. A sound, even foundation is what makes the final finish look right.

  • Chips patched and the body wet-sanded smooth
  • Every non-painted surface masked before spraying
  • Full exterior coat applied in a dedicated spray booth
  • Wet-sanded and buffed to an even, deep shine

Once the car is sprayed in the booth, the paint is wet-sanded and buffed to bring up the shine, and the trim and parts are refitted. The result is an even, glossy finish across every panel.
