BMW 5 Series, resprayed and back to a clean finish.

This BMW 5 Series came in with deep scratches, paint peel-off, stone chips, and dents. Over seven days the team resprayed the full exterior and sealed it with ZeTough Ceramic Paint Protection.

In the workshop

Spray Painting Panel Respray BMW ZeTough Ceramic
BMW 5 Series after a full respray at Revol Carz, finished and glossy.

What the car came in for

This BMW 5 Series arrived at Revol Carz in poor paint condition: deep scratches, areas of paint peel-off, stone chips across the body, and visible dents. The owner wanted a new coat of paint that would bring the car back to the standard it left the factory in.

Over seven days the car was stripped down, its surfaces patched and wet-sanded, masked, then resprayed and polished. The job finished with a ZeTough Ceramic Paint Protection coating to keep the new paint protected and looking its best. The photos below follow that process from the day the car arrived through to the before and after reveal.

Vehicle
BMW 5 Series
Work done
Full body respray
Finish
ZeTough Ceramic Paint Protection
In the workshop
7 days

From strip-down to the reveal

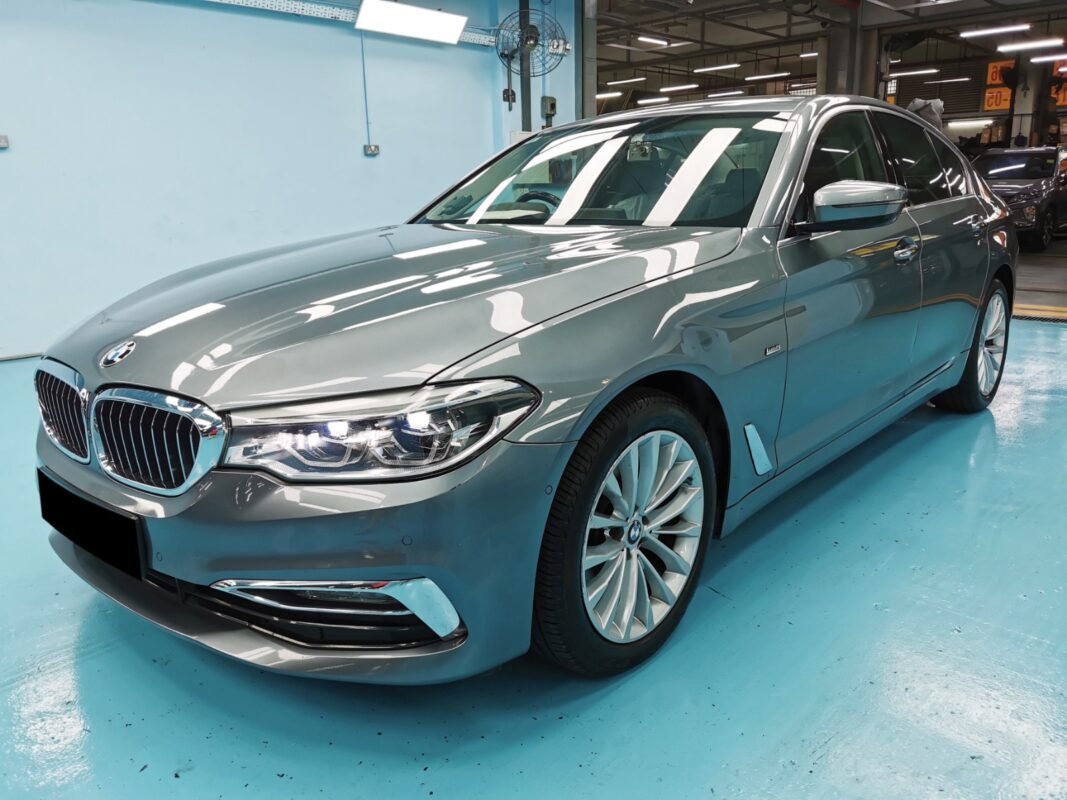

The BMW 5 Series as it arrived, showing deep scratches and paint damage on the front.
Day 1: the BMW 5 Series arrives with deep scratches, paint peel-off, stone chips, and dents.

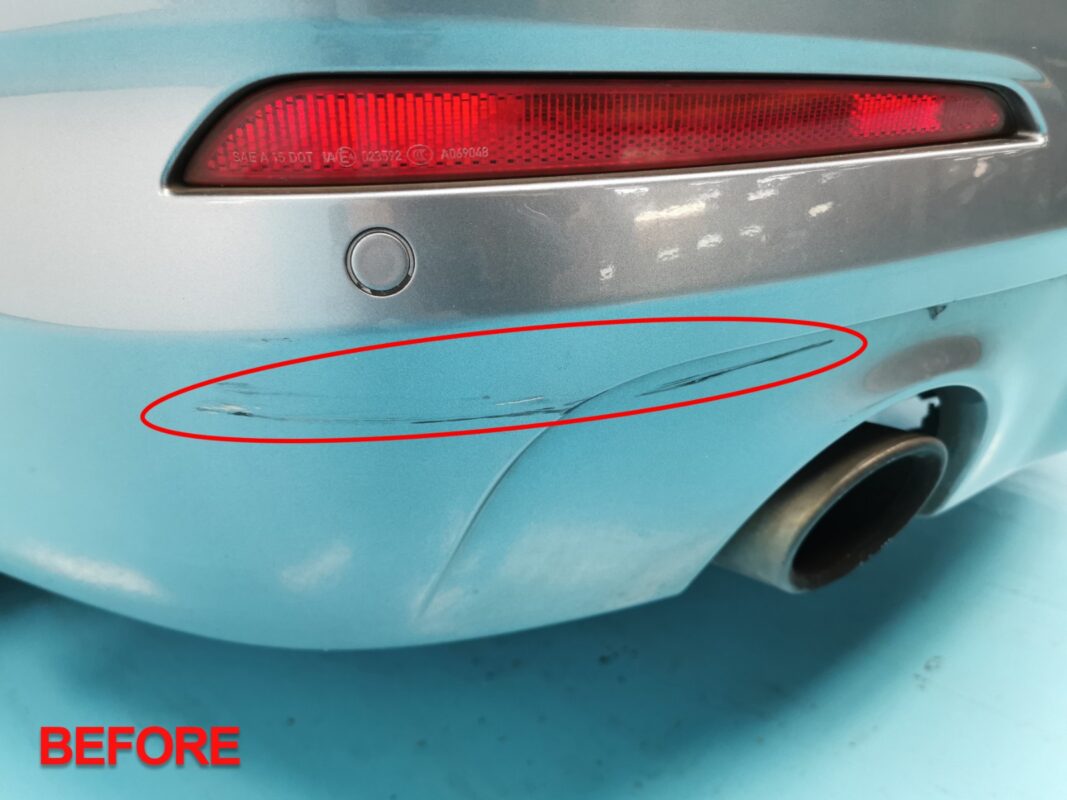

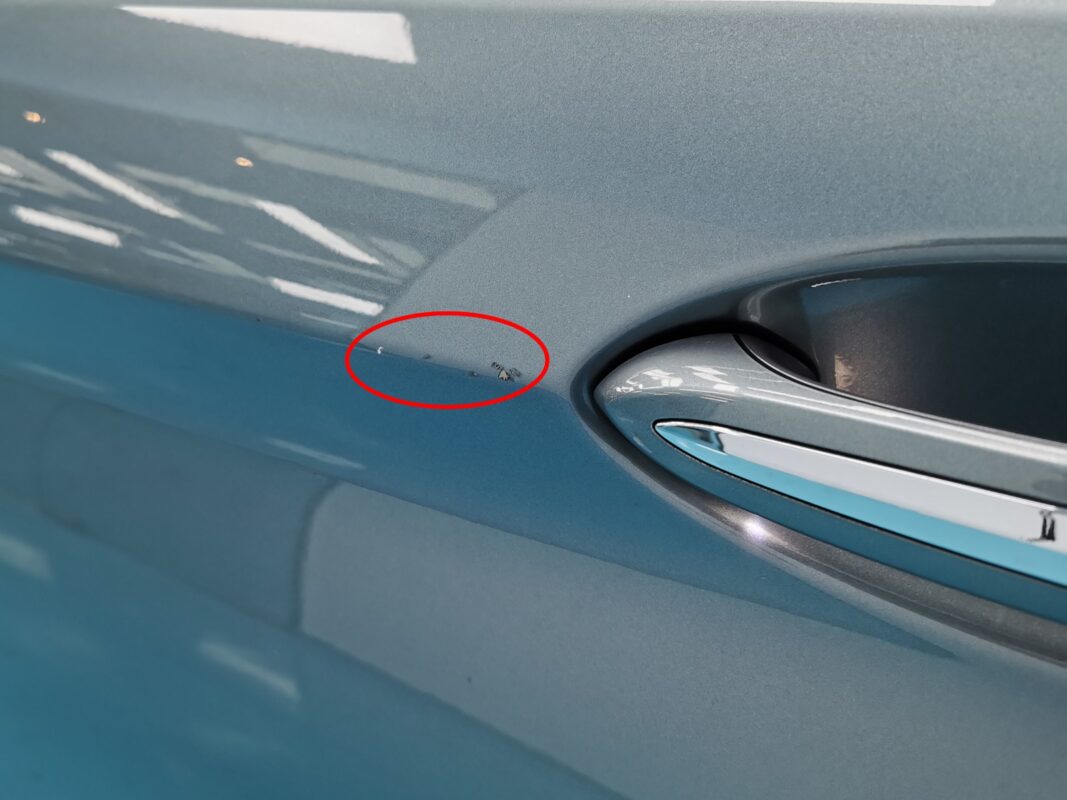

Paint peel-off and stone chips on the BMW 5 Series body panels, before any work.
Day 1: close-up of the paint damage and stone chips that brought the car in.

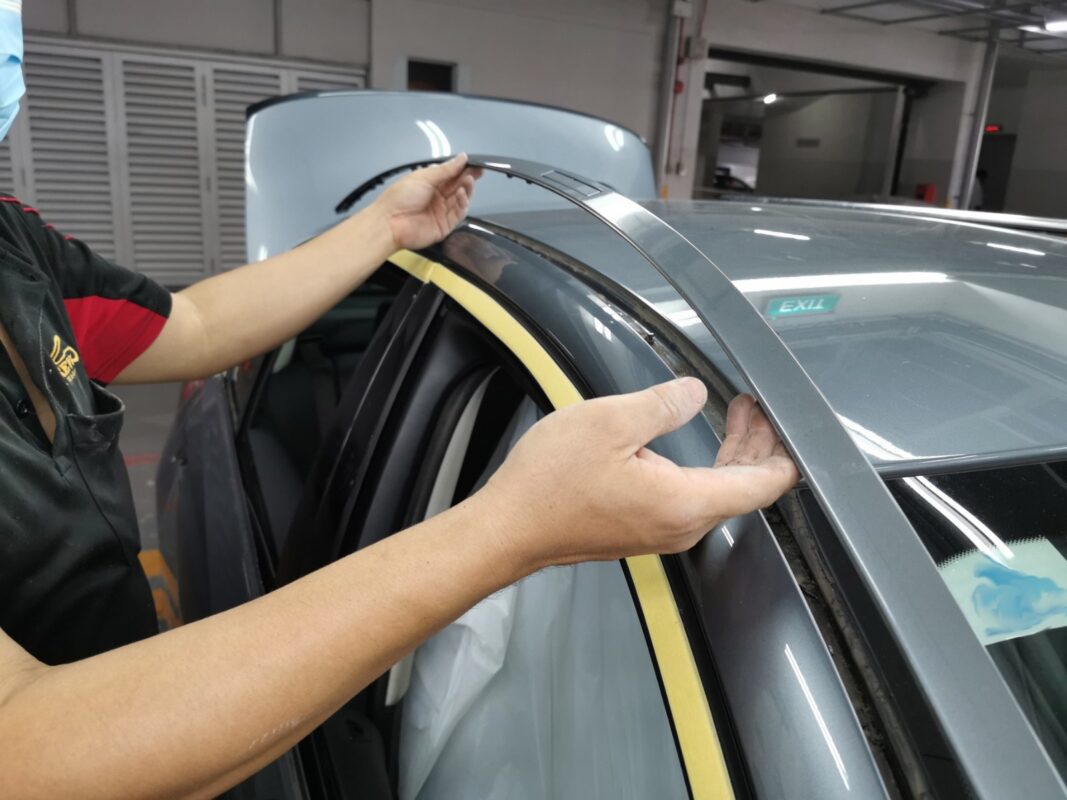

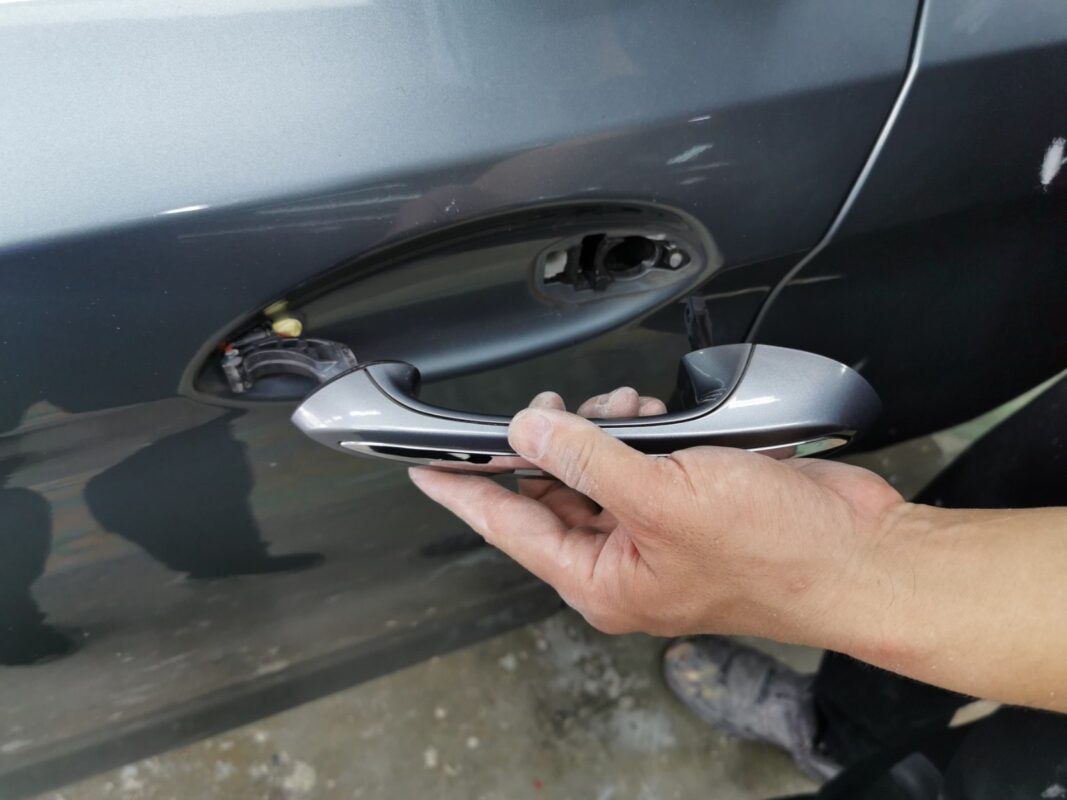

Components being removed from the BMW 5 Series during strip-down for the respray.
Day 2: strip-down begins, components removed ahead of surface preparation.
Panels and parts disassembled from the BMW 5 Series, ready for surface preparation.
Day 2: panels disassembled so every edge and surface can be properly resprayed.
The BMW 5 Series masked and surface-prepped ahead of the spray booth.
Day 5: surface smoothed and levelled, thorough masking begins.

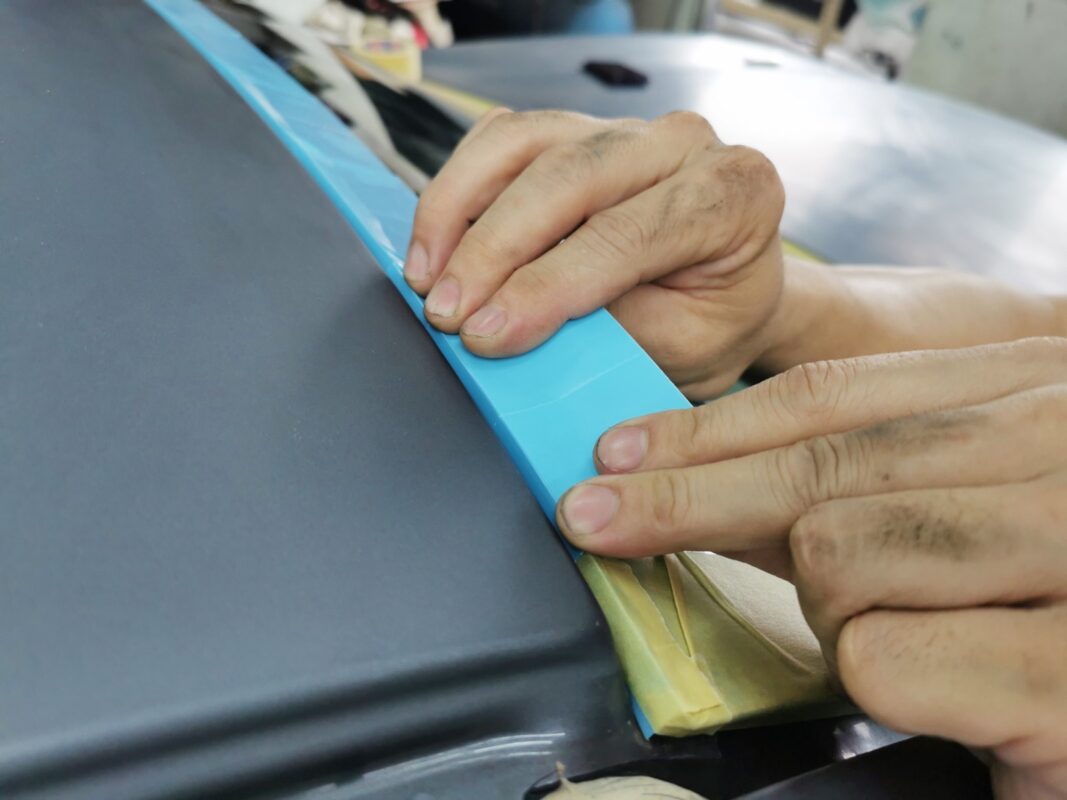

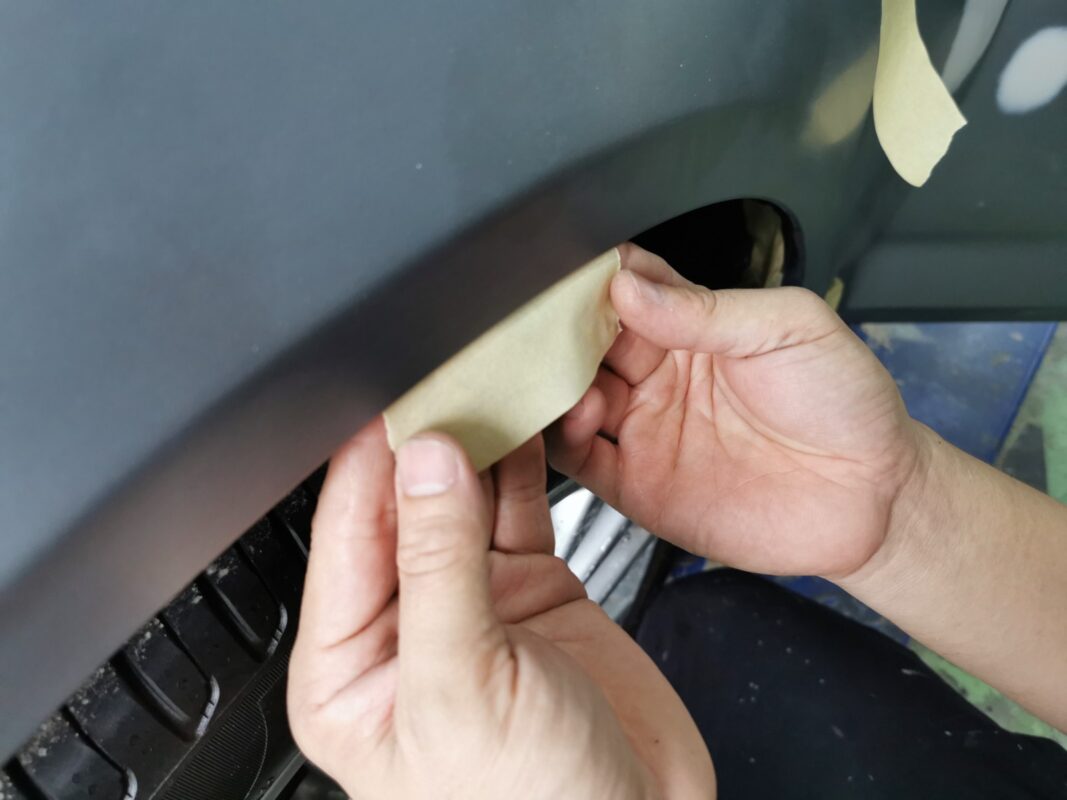

Careful masking applied to the BMW 5 Series to protect unsprayed areas.
Day 5: masking ensures paint reaches only the right areas.

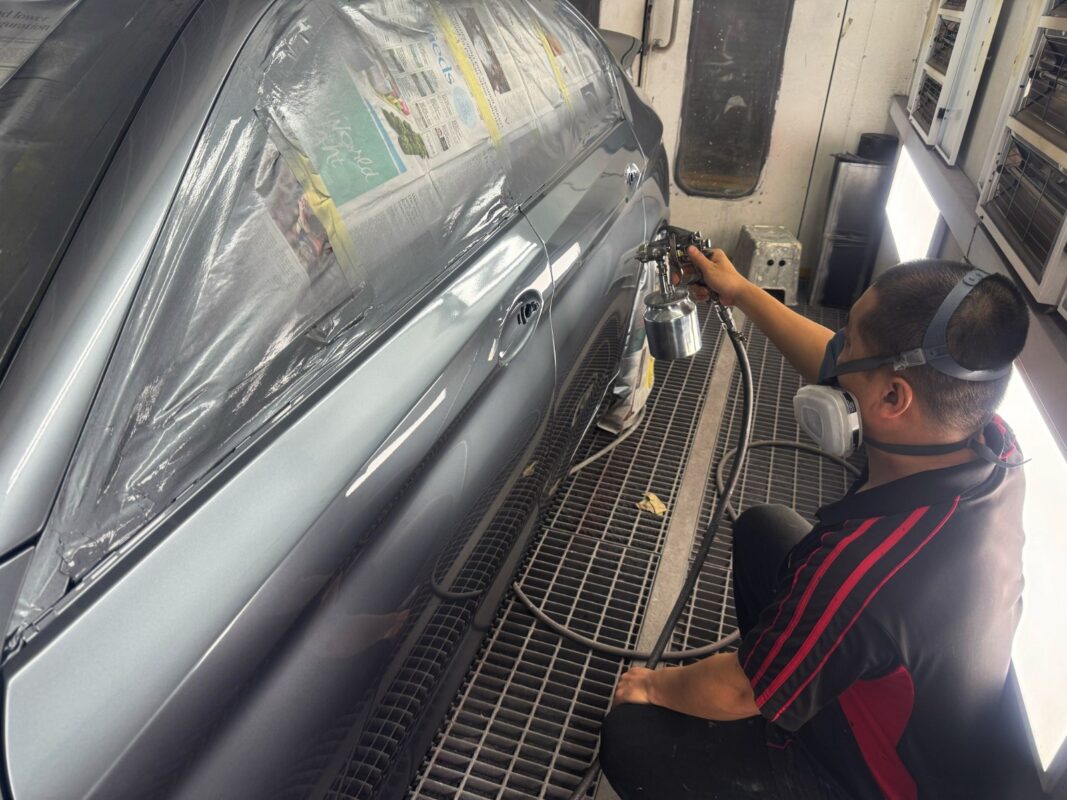

A Revol Carz painter applying the new coat to the BMW 5 Series in the spray booth.
Day 6: the new coat goes on in the spray booth.
The spray booth at Revol Carz, new paint being laid on the BMW 5 Series panels.
Day 6: another panel painted, the respray covering the full exterior.

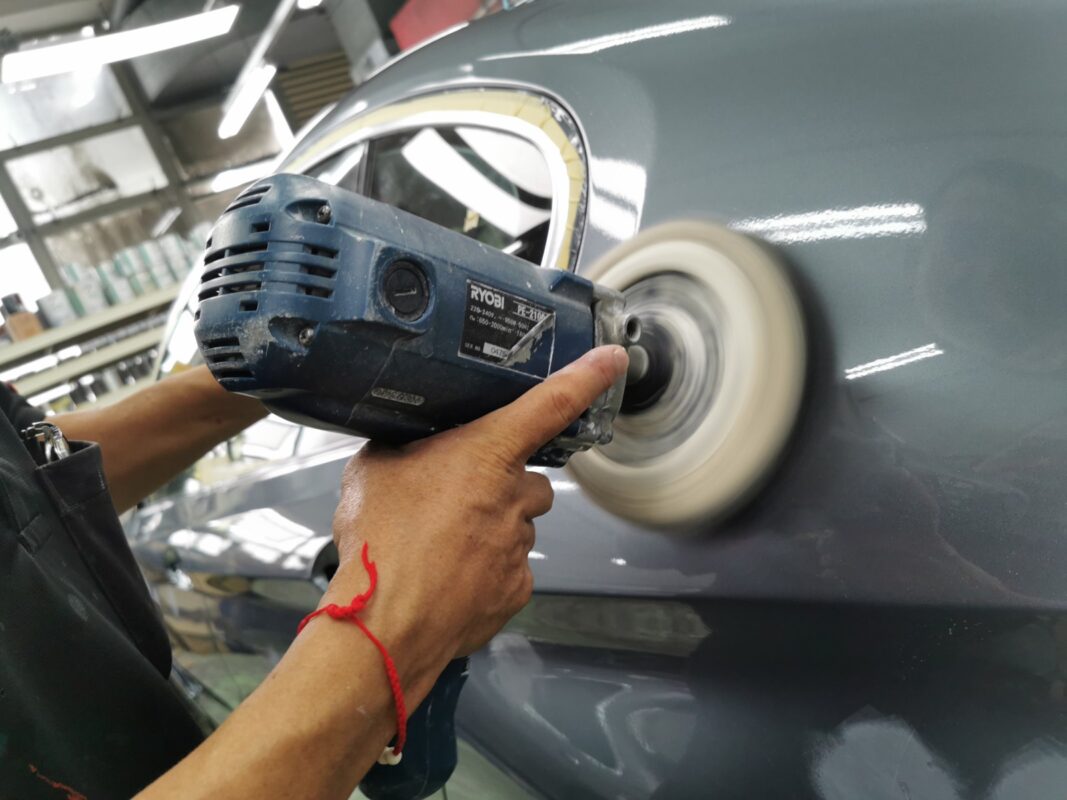

Wet sanding and polishing the BMW 5 Series after the paint coat to bring up smoothness.
Day 6: wet sanding and polishing to remove any blemishes and bring up the gloss.

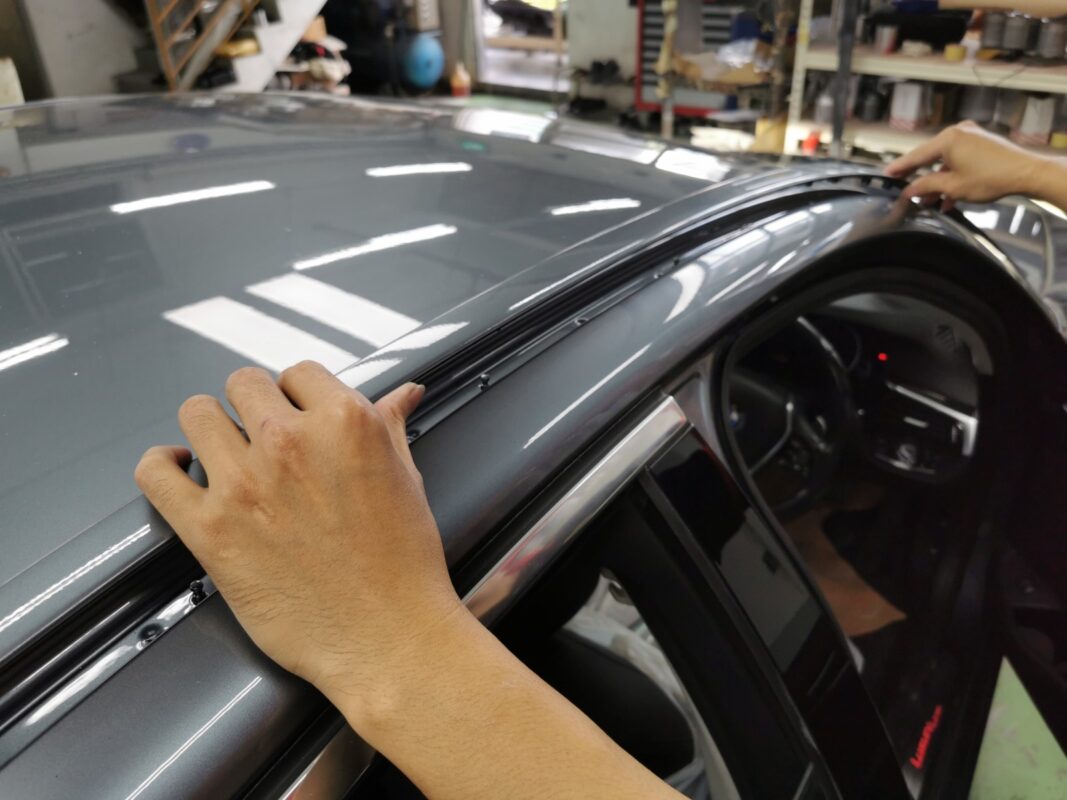

Reassembly of the BMW 5 Series after painting, parts being refitted carefully.
Day 6: parts refitted as the car is reassembled after painting.
The BMW 5 Series after full respray, first finished look in the workshop.
Day 7: the finished BMW 5 Series, back in showroom condition.
Another angle of the finished BMW 5 Series, showing the even new paintwork.
Day 7: a closer look at the fresh, even paintwork.

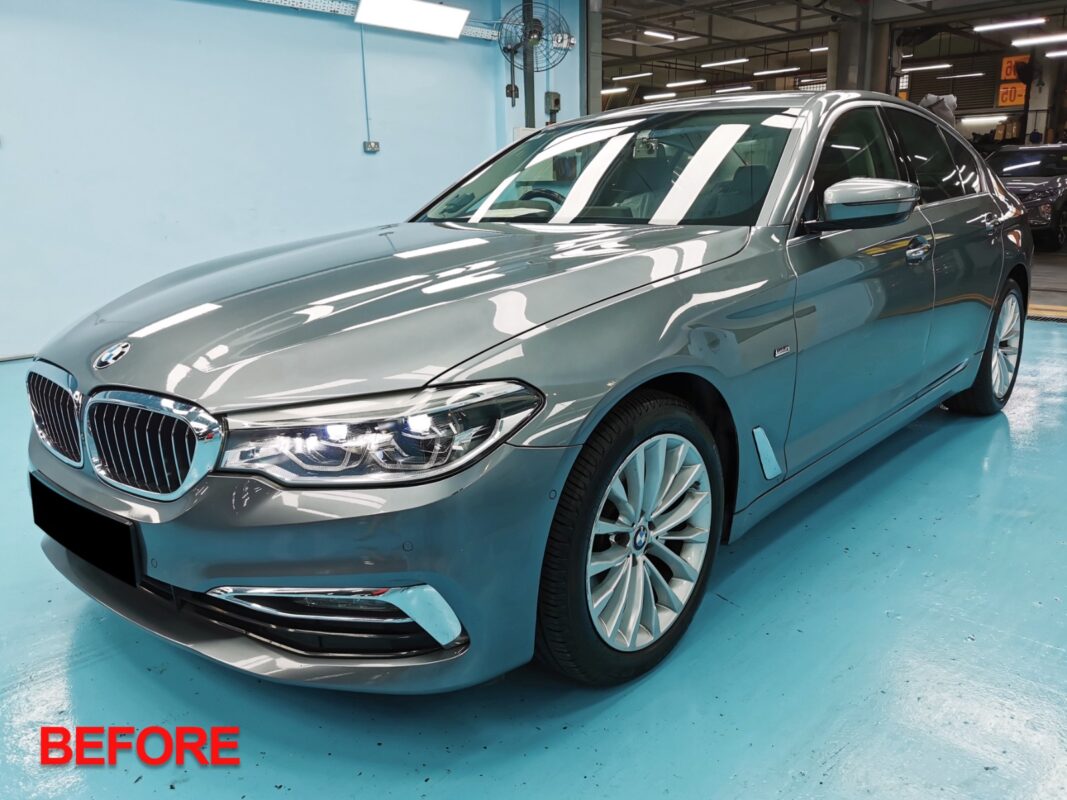

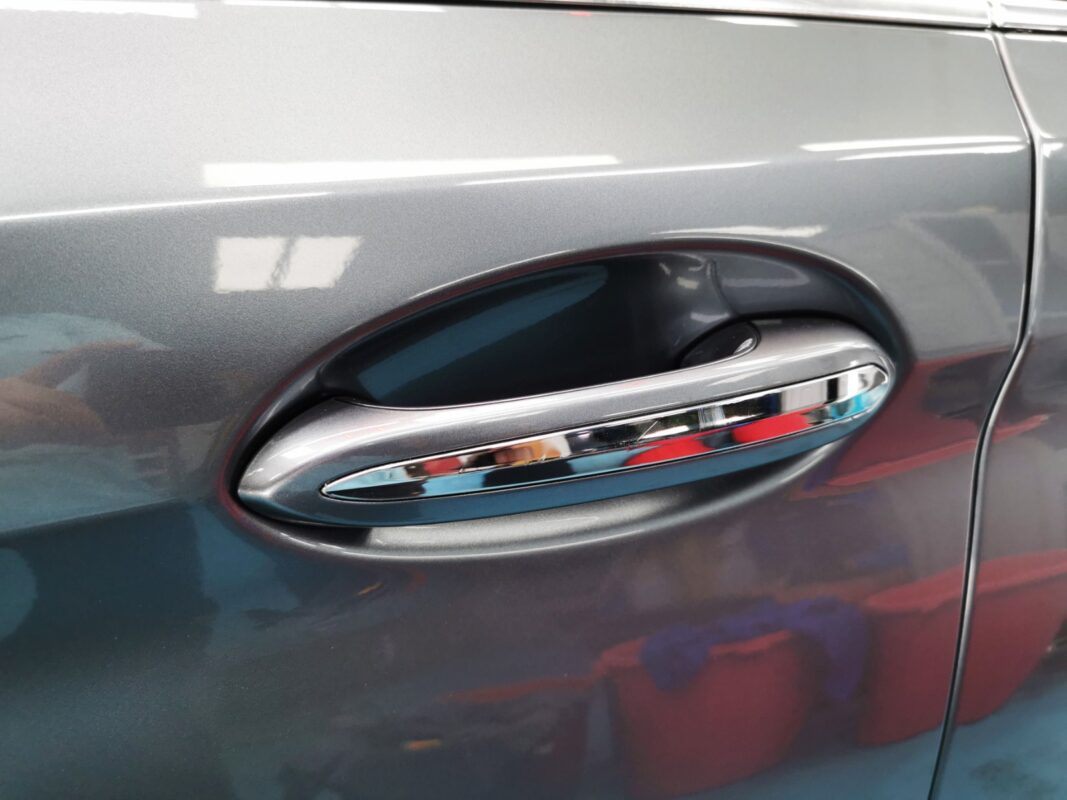

Before: the BMW 5 Series at the start, with deep scratches and paint peel-off.
Before: the BMW 5 Series on arrival, paintwork worn and damaged.

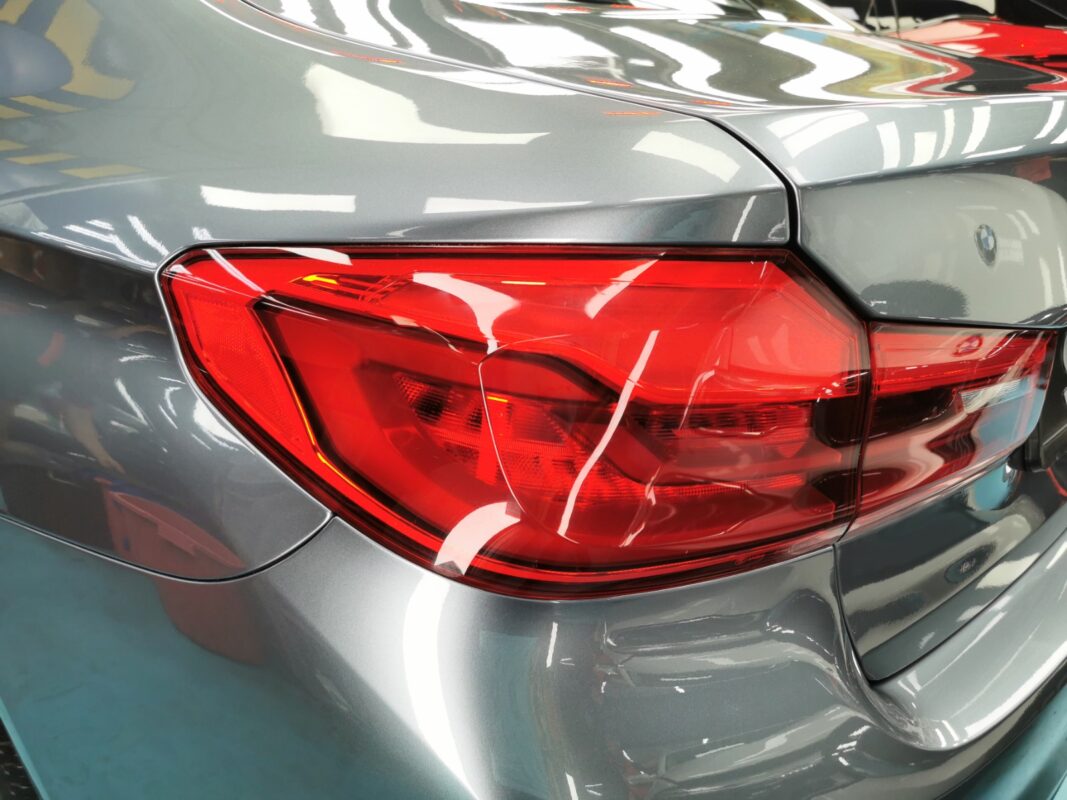

After: the BMW 5 Series fully resprayed and sealed with ZeTough Ceramic Paint Protection.
After: the full respray and ZeTough Ceramic coating complete.

What a full respray involves

A full respray is not just a coat of paint over the existing surface. The quality of the result depends on the preparation: stripping panels and trim, assessing every surface for chips and dents, applying filler and sanding it back, then wet-sanding the whole car until the foundation is smooth enough to take paint evenly.

  • Surface stripped, patched, and wet-sanded smooth before any paint
  • Primer coat for a stable, long-lasting foundation
  • Oven-baked, then wet-sanded and polished to a deep shine
  • Sealed with a ZeTough Ceramic Paint Protection coating

At Revol Carz the panels are primed, wet-sanded again, and carefully masked before the paint goes on. After spraying and baking, the paint is wet-sanded once more and polished to a deep shine before reassembly. A ZeTough Ceramic Paint Protection coating is then applied to seal the new paintwork and protect it from chips, UV, and weathering.
