BMW 5 Series, resprayed back to a showroom finish.

This BMW 5 Series came in with scarred, dull paintwork across the whole car. Over seven days it was stripped down, patched, wet-sanded, sprayed, polished, and sealed with a ZeTough Ceramic coating.

In the workshop

Spray Painting Panel Respray BMW ZeTough Ceramic
BMW 5 Series, glossy and freshly resprayed, photographed outside Revol Carz.

What the car came in for

This BMW 5 Series arrived at Revol Carz with scarred paintwork, dull paint, and blemishes across the body. The owner wanted the car fully resprayed and protected, restoring it to the kind of even, deep finish it had when it left the factory.

Over seven days the car was stripped down, its panels patched and wet-sanded smooth, then masked, sprayed, and polished. The photos below follow the job from the day it arrived through to the before and after reveal, with a ZeTough Ceramic Paint Protection coating applied at the end.

Vehicle
BMW 5 Series
Work done
Full body respray
Finish
ZeTough Ceramic Paint Protection
In the workshop
7 days

From strip-down to the reveal

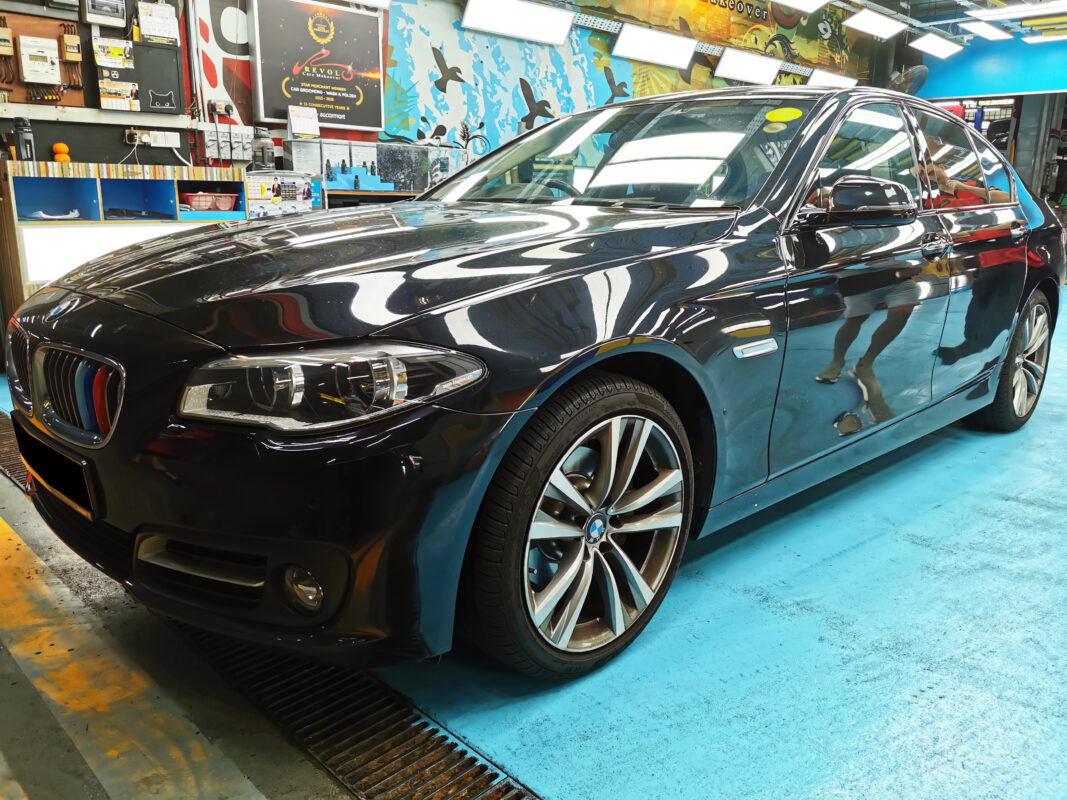

The BMW 5 Series as it arrived at Revol Carz, front three-quarter view showing dull paintwork.
Day 1: the BMW 5 Series arrives for a full respray.
Side view of the BMW 5 Series on arrival, paintwork worn and scarred.
Day 1: the extent of the paintwork wear, seen from the side.

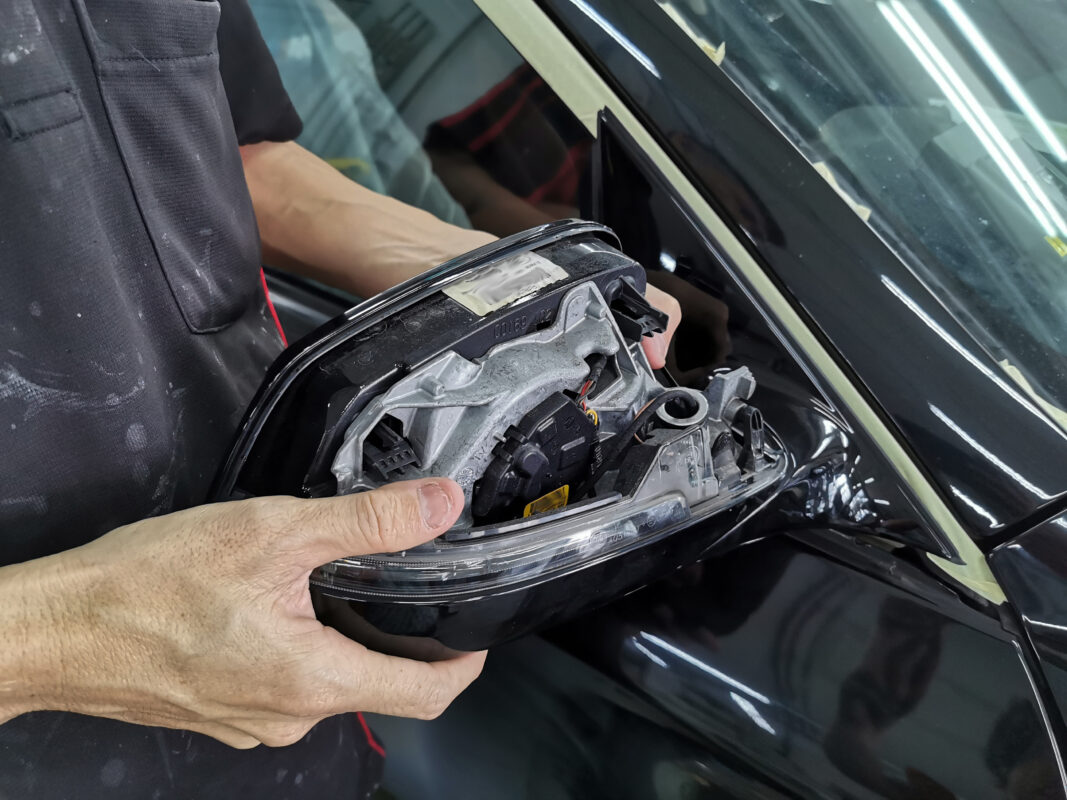

The BMW 5 Series with panels removed as strip-down begins.
Day 2: strip-down begins, panels removed for full access.

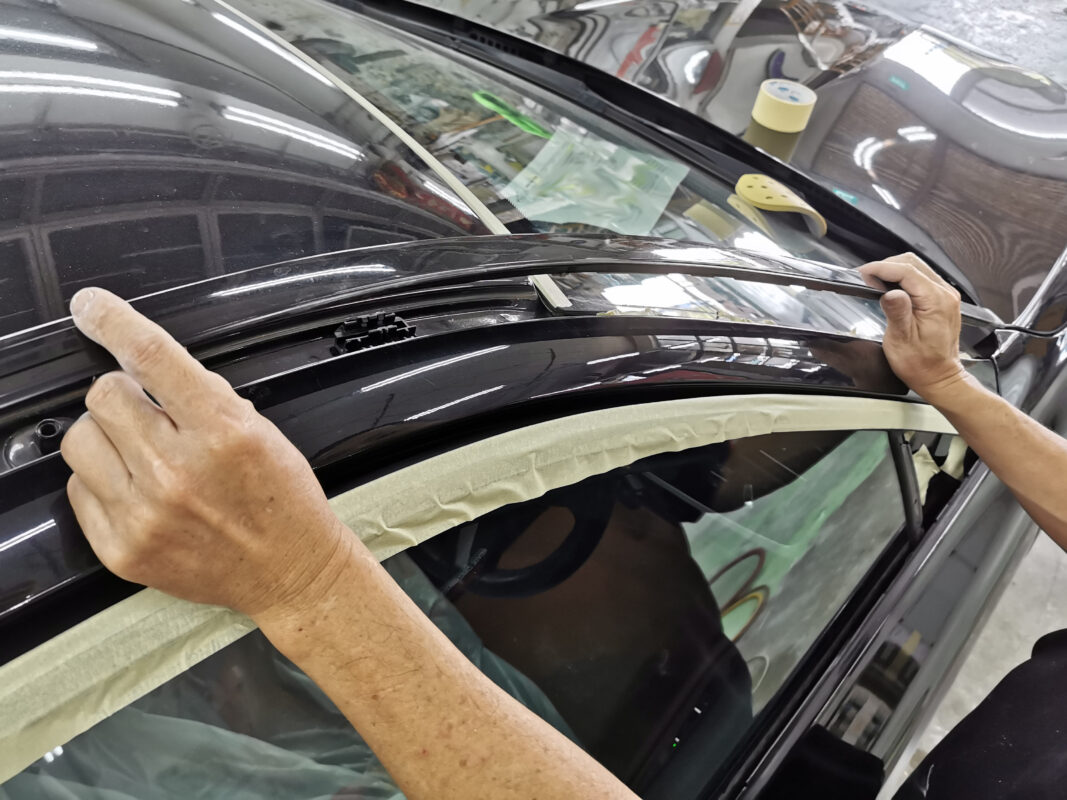

Trim and parts dismantled during Day 2 strip-down.
Day 2: trim and components dismantled so every edge can be painted.

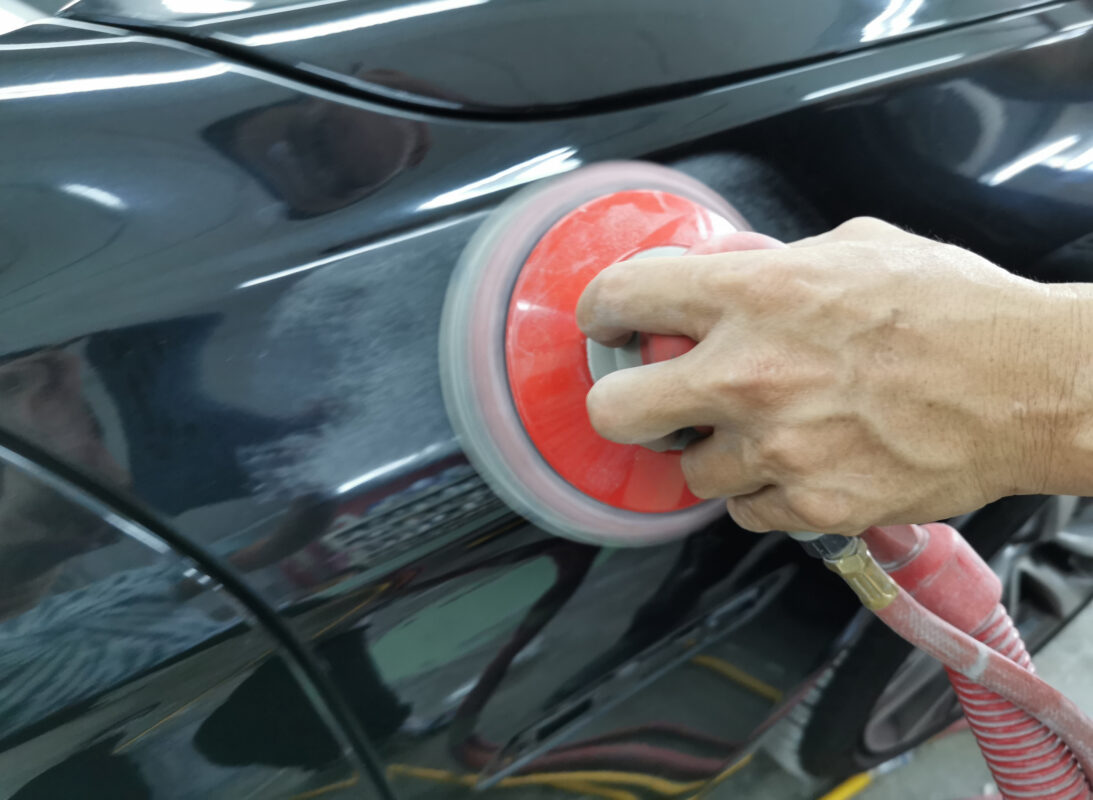

The BMW 5 Series body being inspected for surface imperfections on Day 3.
Day 3: the body is checked for imperfections before any filler is applied.

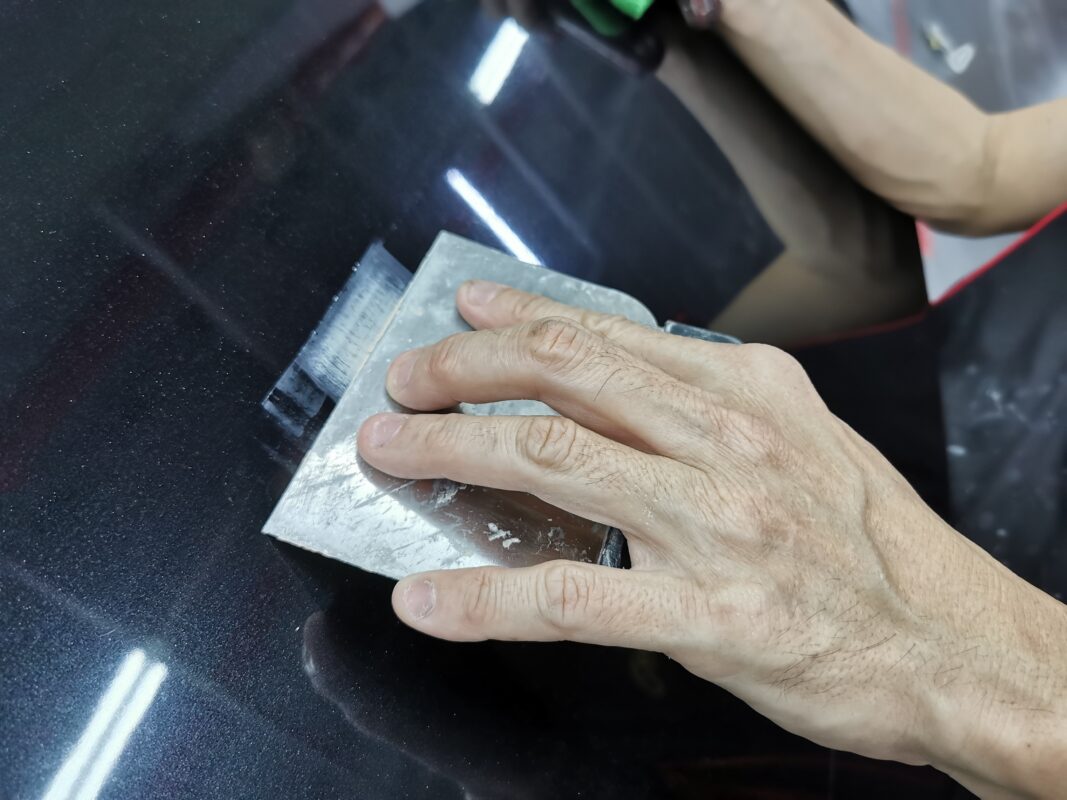

Patching and repairing panel blemishes before the spray.
Day 3: patching and repairing uneven areas to build a smooth foundation.

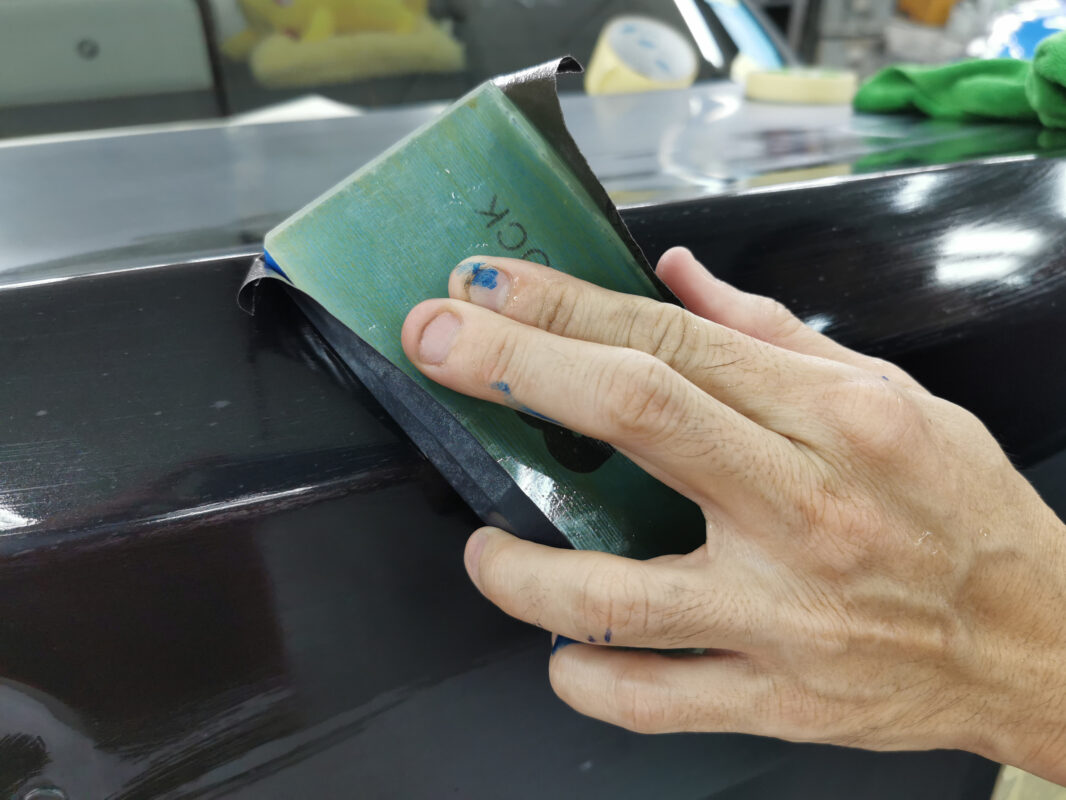

Wet-sanding a panel on the BMW 5 Series to create a smooth foundation.
Day 4: wet-sanding a panel until the surface is perfectly level.

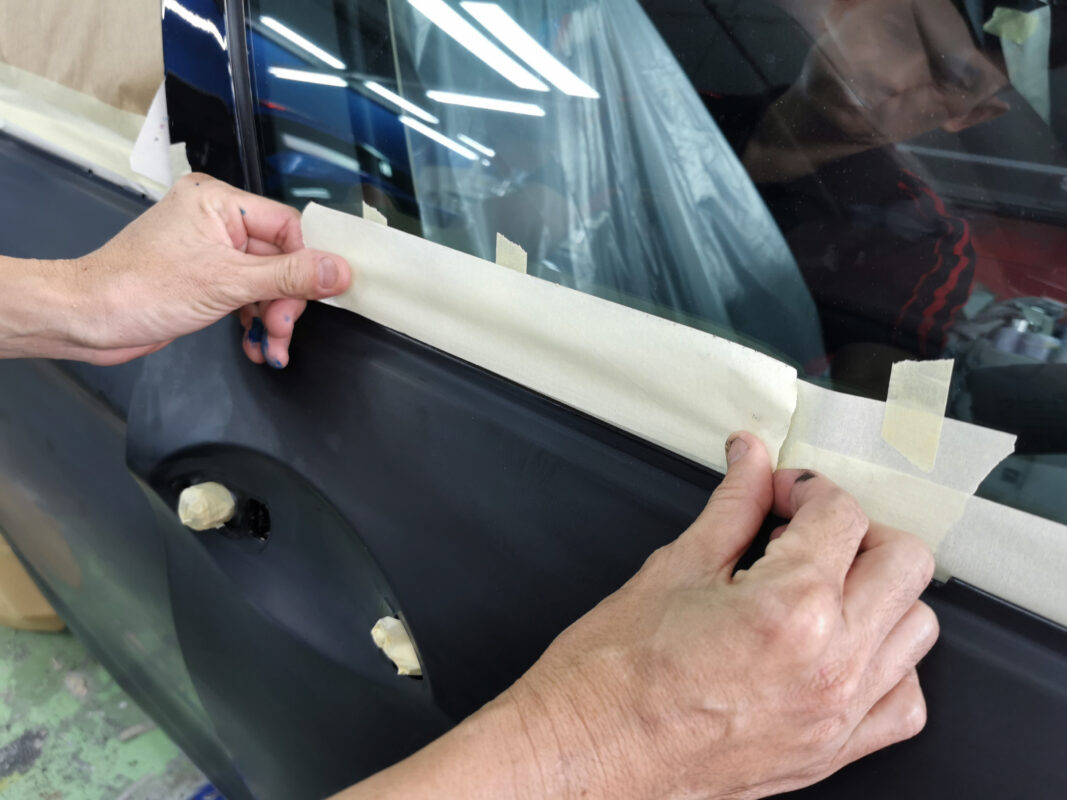

Masking non-painted surfaces on the BMW 5 Series ahead of the spray booth.
Day 5: masking non-painted surfaces before entering the spray booth.

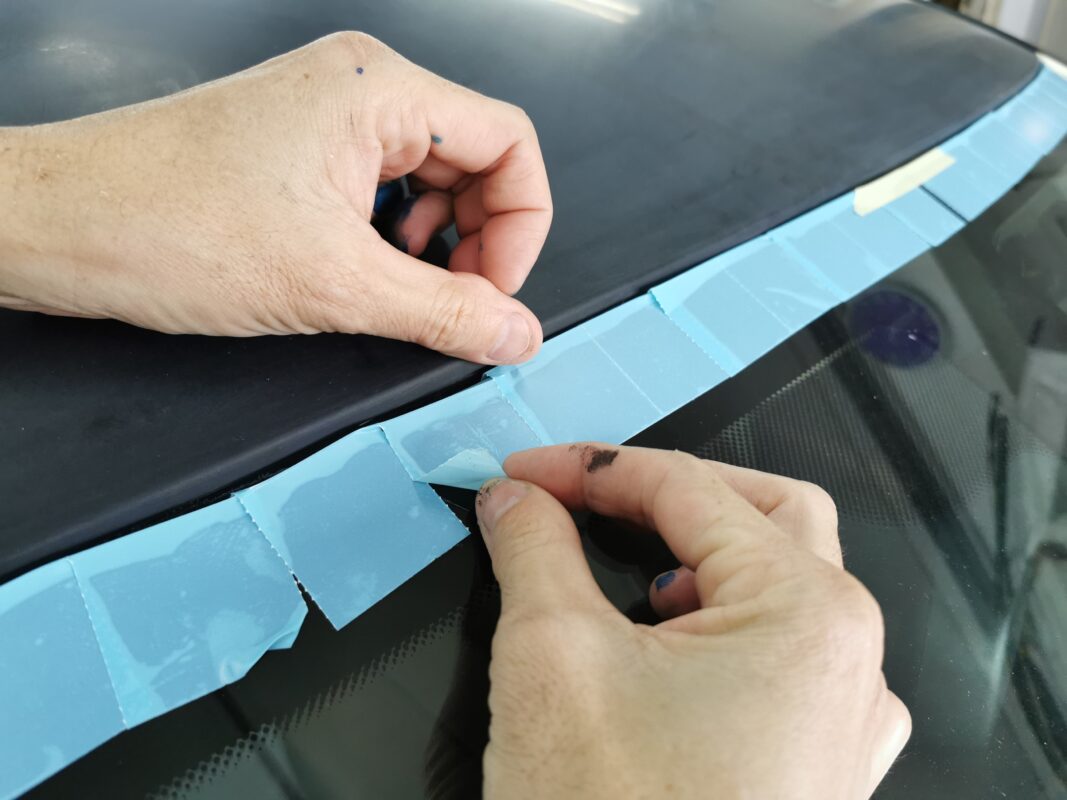

Masking detail showing bumper and trim carefully covered.
Day 5: bumper and trim covered with paper and tape for precise masking.

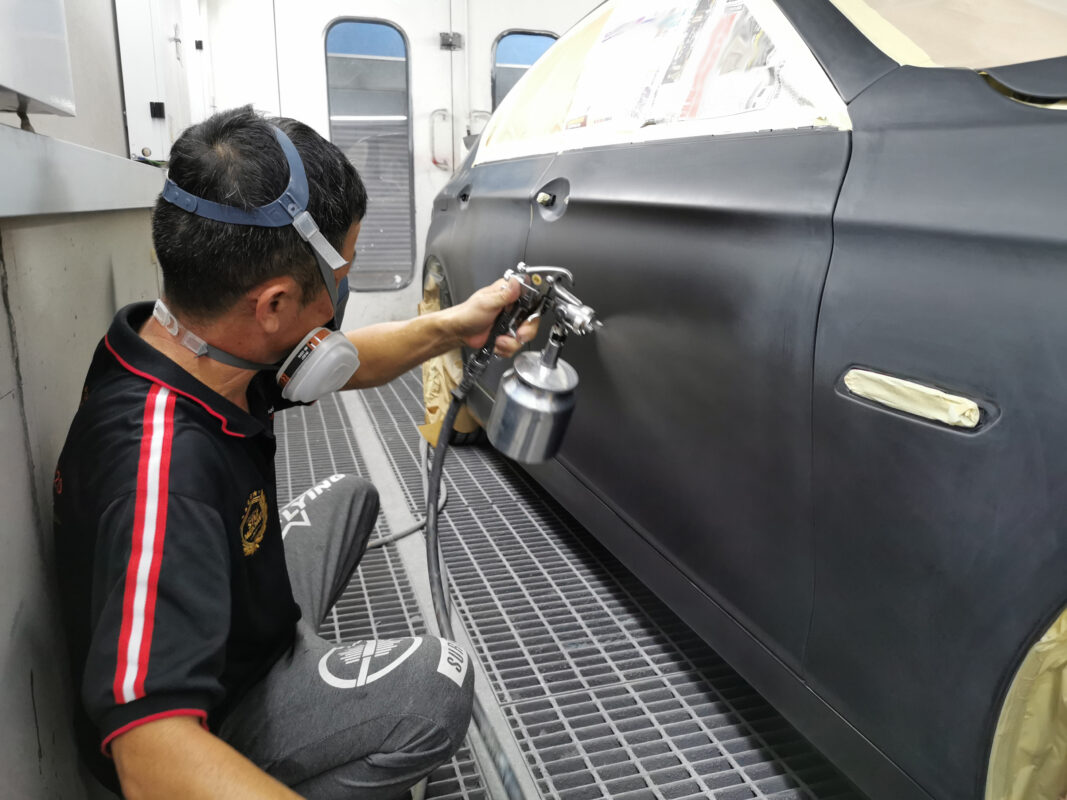

Spray painting underway on the BMW 5 Series inside the booth.
Day 6: the new coat goes on inside the spray booth.
Compound polishing the BMW 5 Series to bring up a mirror-shine.
Day 6: compound polishing the finish to a deep, mirror-like shine.

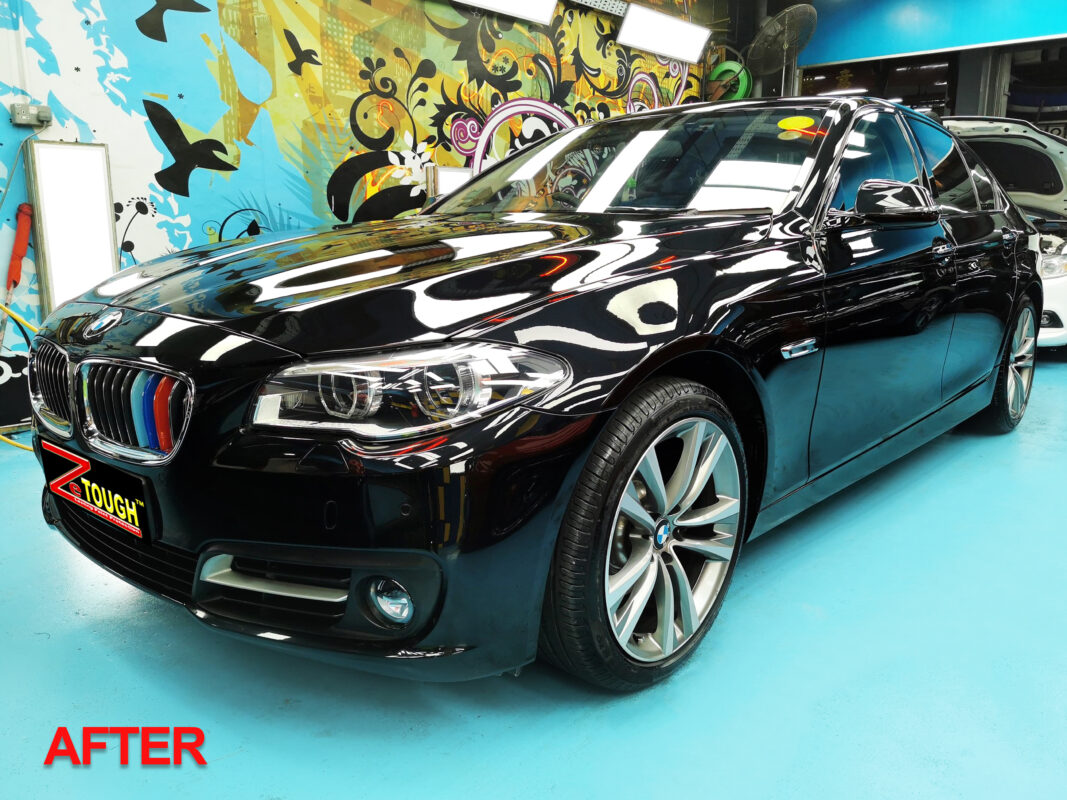

The BMW 5 Series from a second angle after the respray is complete.
Day 7: the finished car from a second angle, respray complete.
Before: the BMW 5 Series paintwork as it was when it arrived.
Before: the original paintwork condition on arrival.

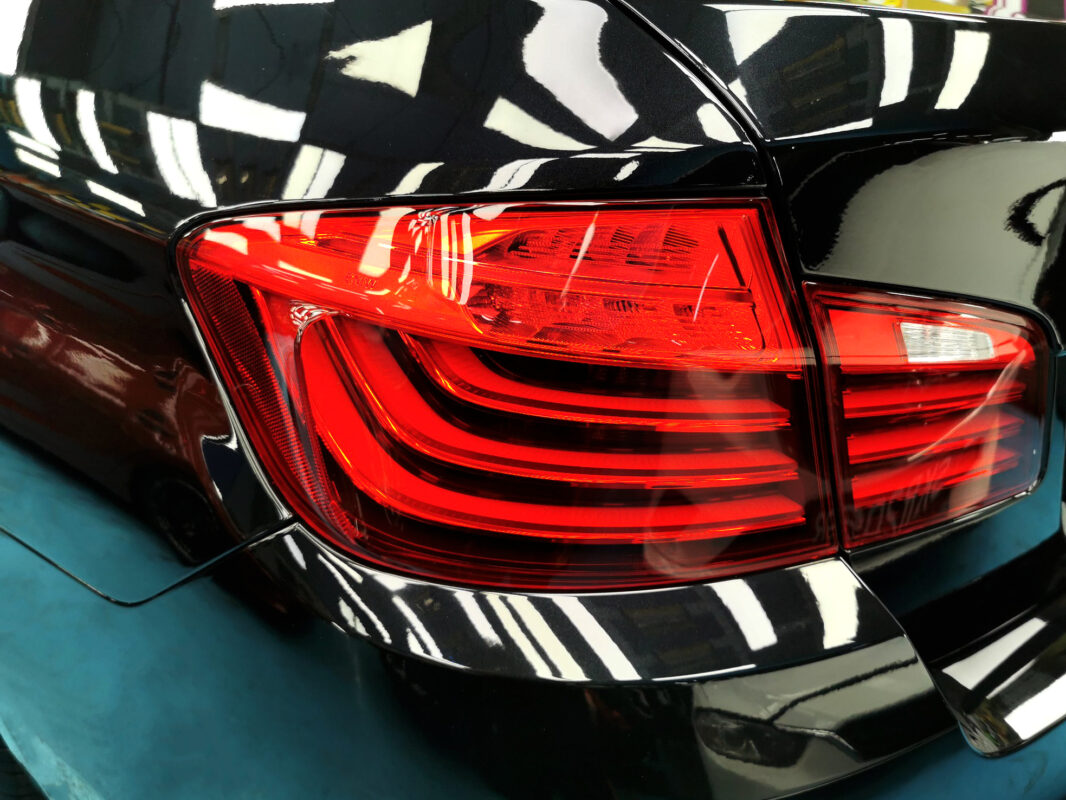

After: the same car, fully resprayed and sealed with a ZeTough Ceramic coating.
After: fully resprayed and sealed with a ZeTough Ceramic Paint Protection coating.

What a full respray involves

A full respray is not just a change of colour. The result depends on what happens before any paint goes on: dismantling trim and parts, checking every panel for imperfections, patching and filling uneven areas, and wet-sanding until the surface is perfectly smooth.

  • Surface stripped, patched, and wet-sanded smooth before any paint
  • Primer coat for a stable, long-lasting finish
  • Polished to a deep, even shine after spraying
  • Sealed with a ZeTough Ceramic Paint Protection coating

At Revol Carz the panels are primed, wet-sanded again, then carefully masked before spraying. After the coat is laid the paint is sanded once more, polished to bring up the shine, and the car is reassembled. A ZeTough Ceramic Paint Protection coating seals the new finish and keeps it glossy for years.
