Mazda 6, fully resprayed from strip-down to reveal.

This Mazda 6 came in for a full body respray. Over six working days the car was stripped, patched, wet-sanded, sprayed, polished, and sealed with a ZeTough Ceramic Paint Protection coating.

In the workshop

Spray Painting Panel Respray Mazda ZeTough Ceramic
Mazda 6 after a full body respray at Revol Carz, glossy finish.

What the car came in for

This Mazda 6 came to Revol Carz for a complete full body respray. The owner wanted the paintwork restored properly, with every panel stripped back, checked, and refinished rather than painted over surface imperfections.

The car was with the team for six working days. It was stripped down, the panels inspected and patched, the entire surface wet-sanded smooth, then sprayed, oven-baked, polished, and reassembled. A ZeTough Ceramic Paint Protection coating was applied on top to seal and protect the new finish.

Vehicle
Mazda 6
Work done
Full body respray
Finish
ZeTough Ceramic Paint Protection
In the workshop
6 days

From strip-down to the reveal

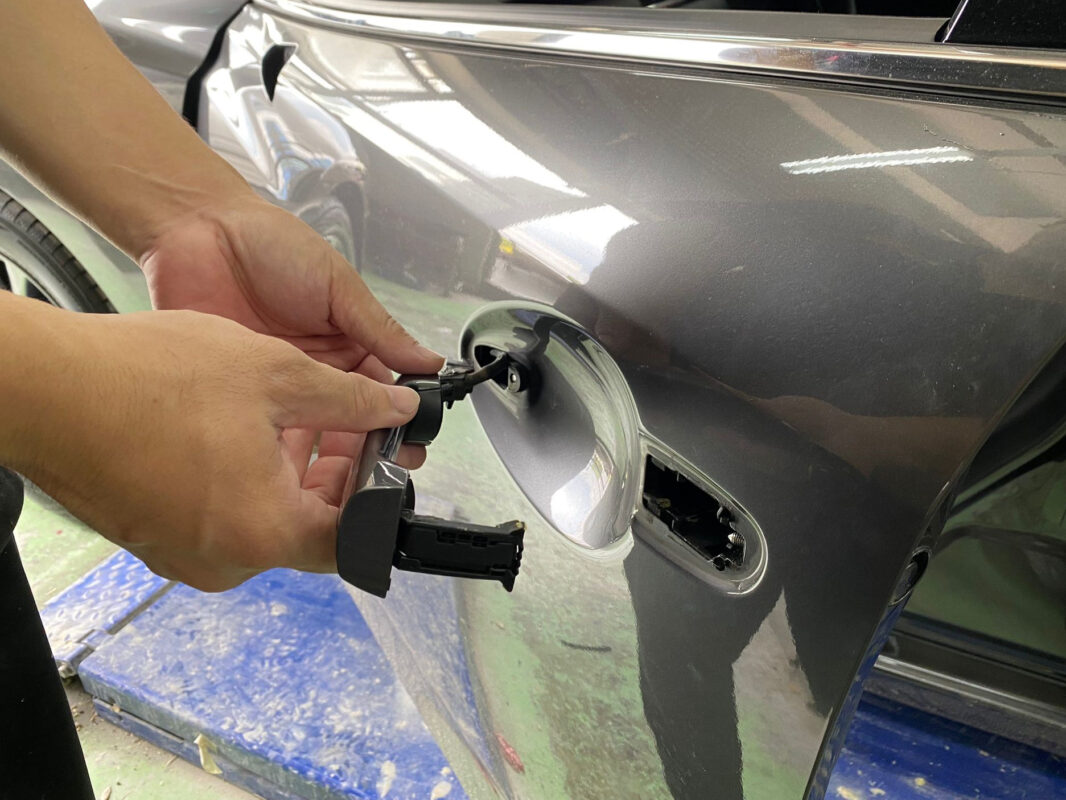

The Mazda 6 as parts are removed on day two of the strip-down at Revol Carz.
Day 2: the Mazda 6 is stripped down, panels and parts removed.

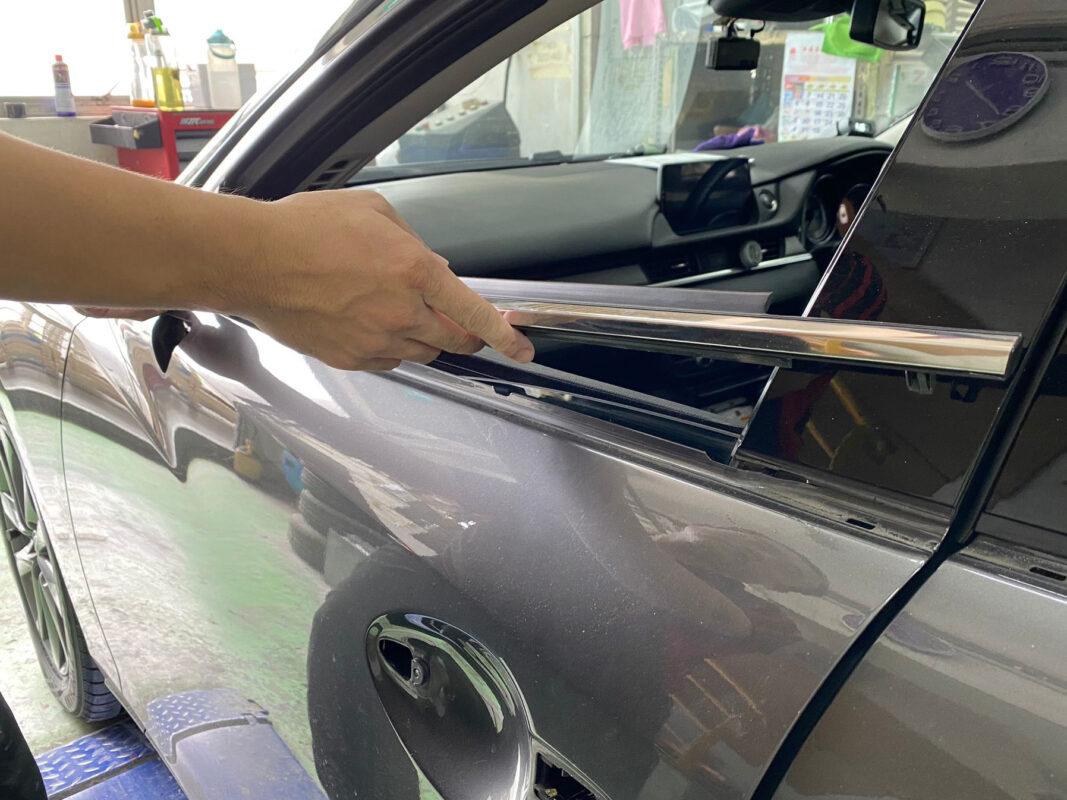

Panels being dismantled on the Mazda 6 during strip-down.
Day 2: dismantling continues so every edge can be painted.

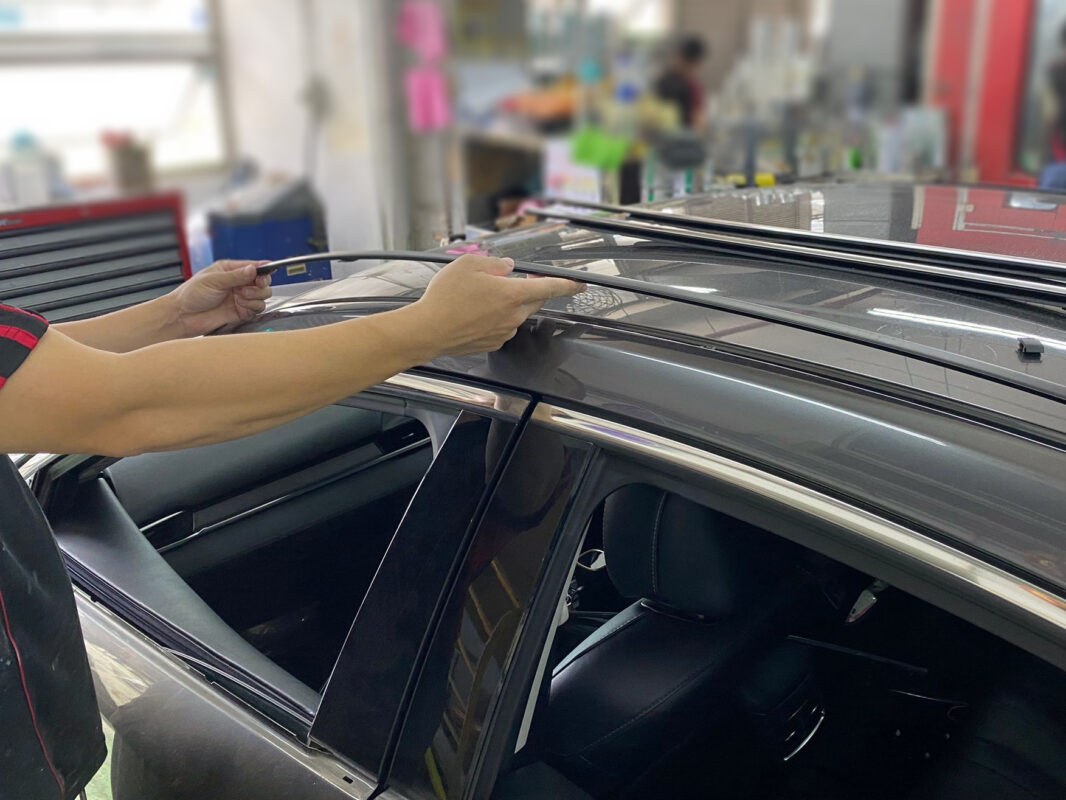

The Mazda 6 stripped further, ready for bodywork inspection.
Day 2: strip-down complete, car ready for bodywork assessment.

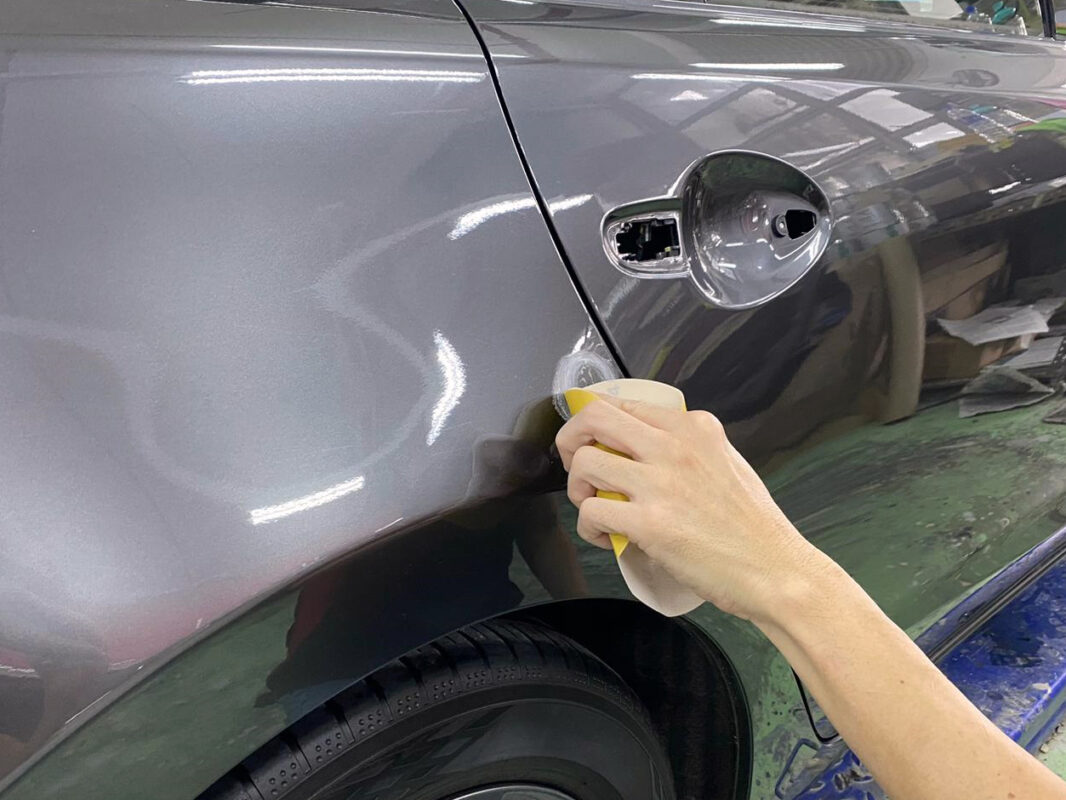

A technician examining the Mazda 6 surface for scratches and dents on day three.
Day 3: the surface is checked thoroughly for scratches and dents.

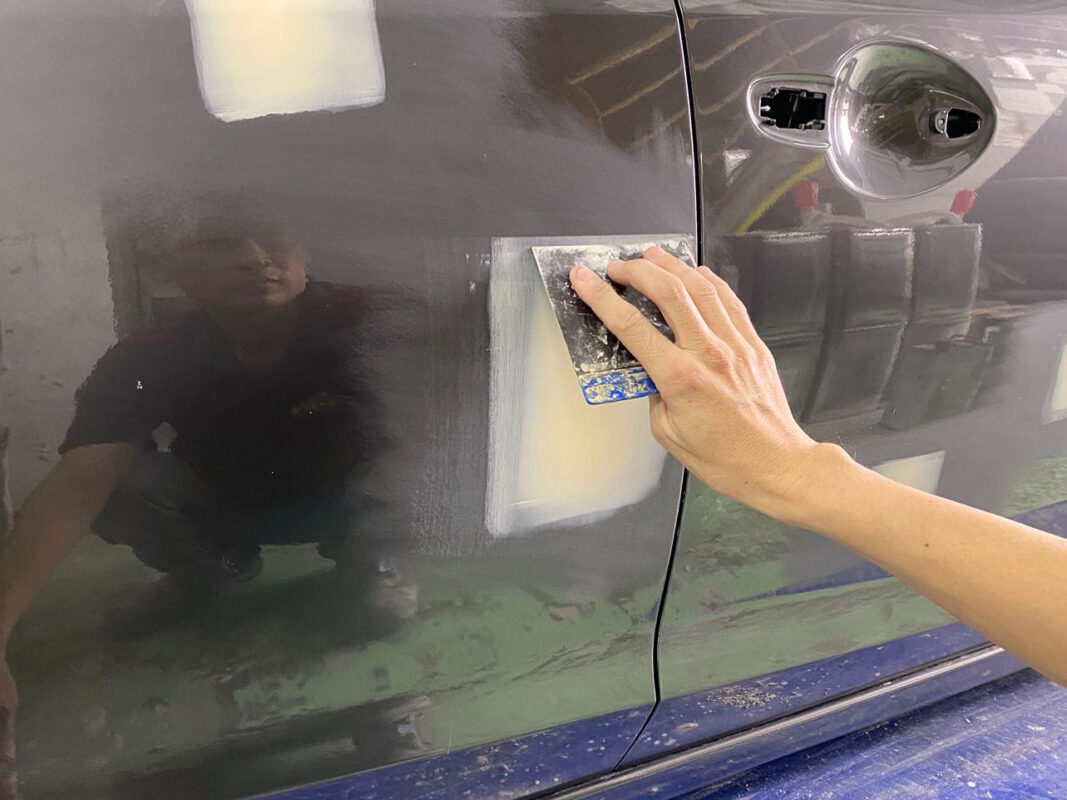

Patching and repairing imperfections on the Mazda 6 bodywork.
Day 3: imperfections patched and repaired before painting.

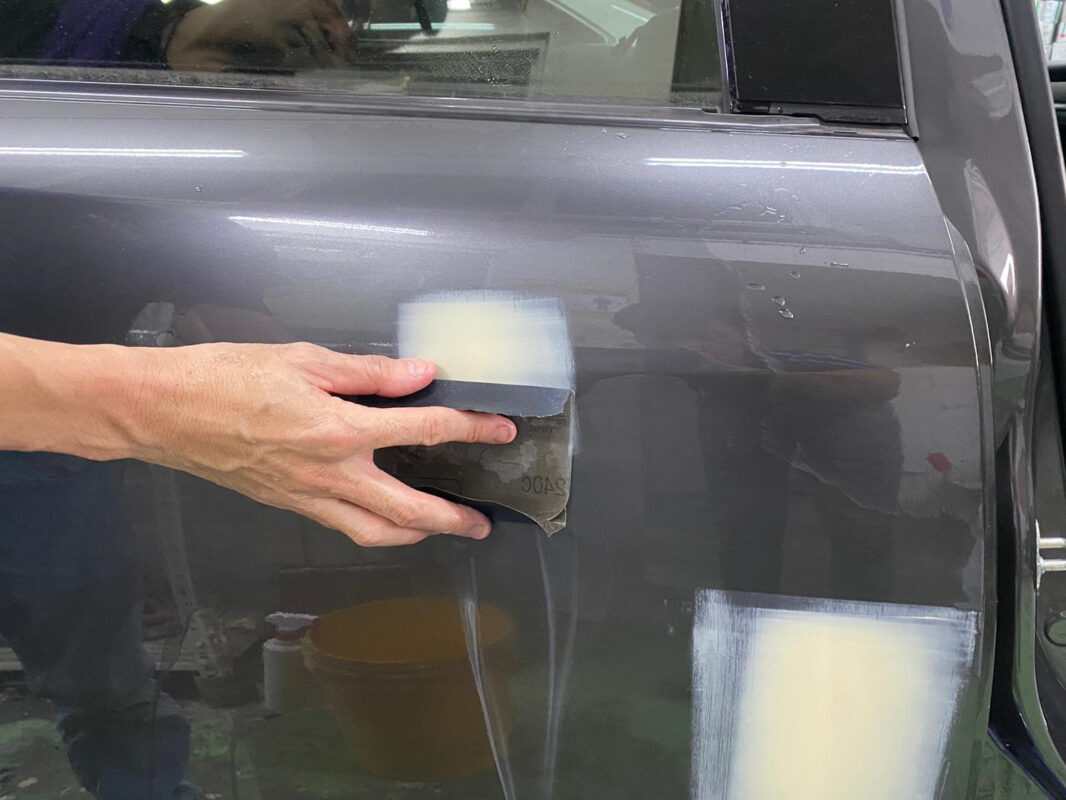

Wet-sanding the Mazda 6 panels on day four to create a smooth, level surface.
Day 4: wet-sanding the entire surface smooth and level.

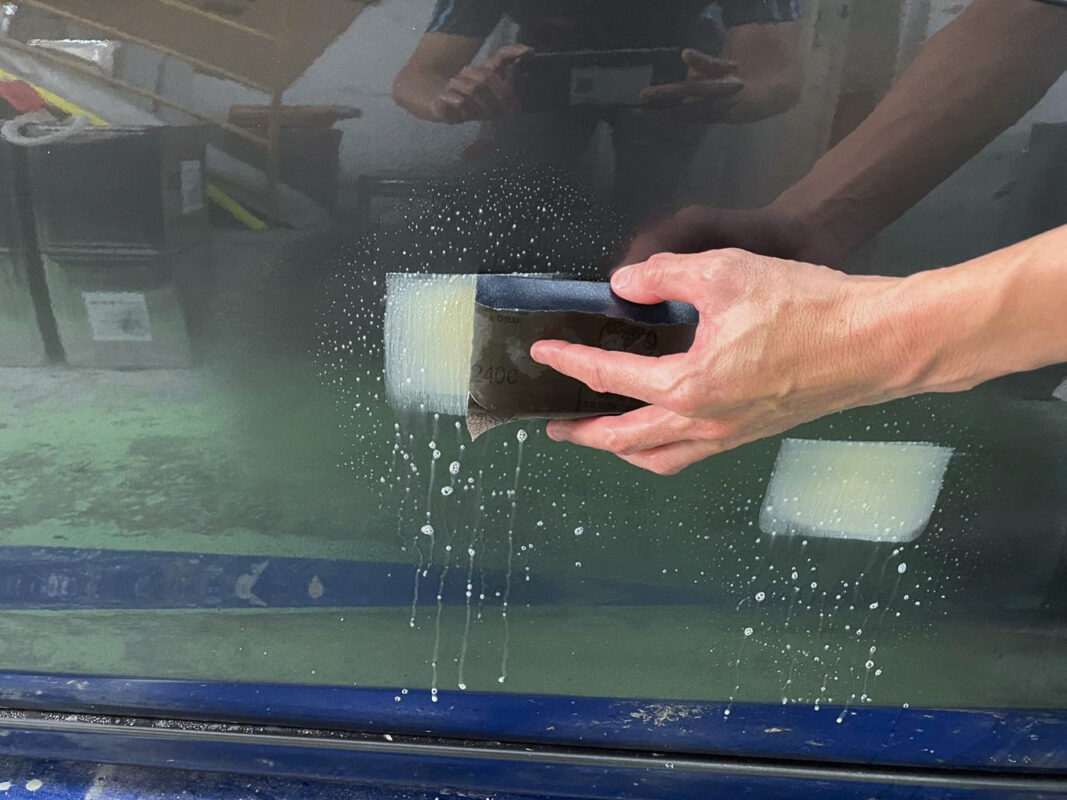

Masking off non-painted surfaces on the Mazda 6 before the spray booth.
Day 4: masking off trim and glass to protect non-painted areas.

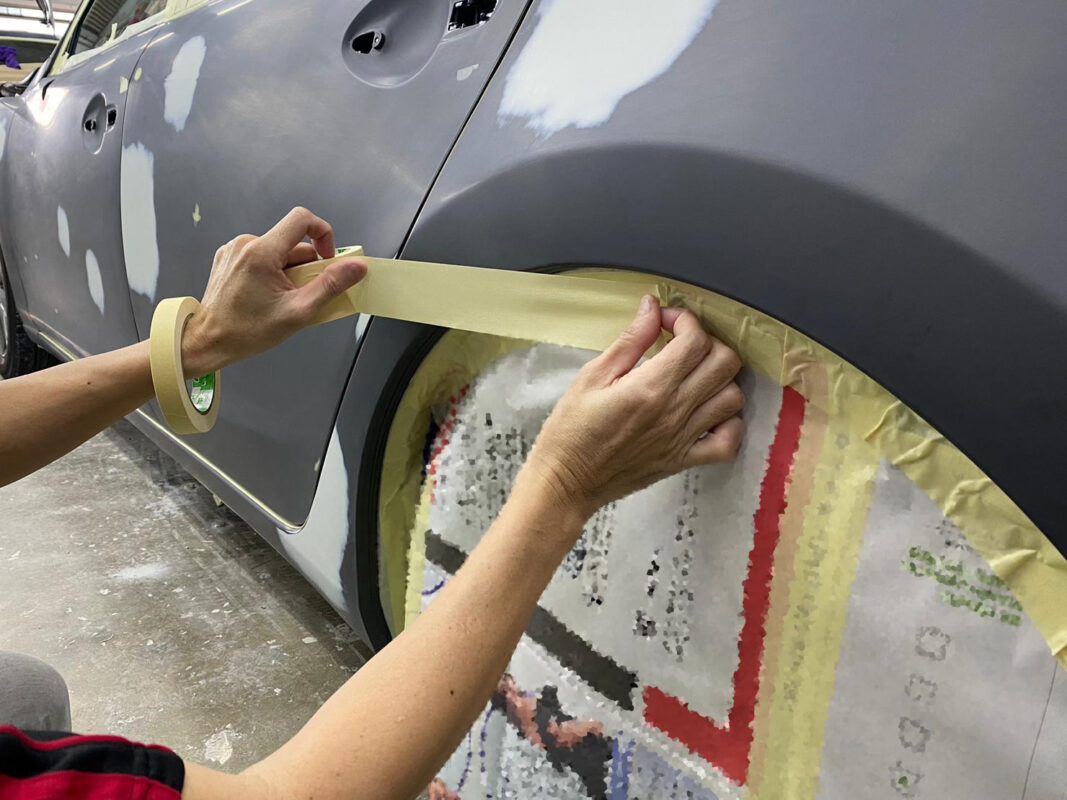

Final masking on the Mazda 6 complete, car ready for spraying.
Day 5: masking complete, the Mazda 6 is ready for the spray booth.

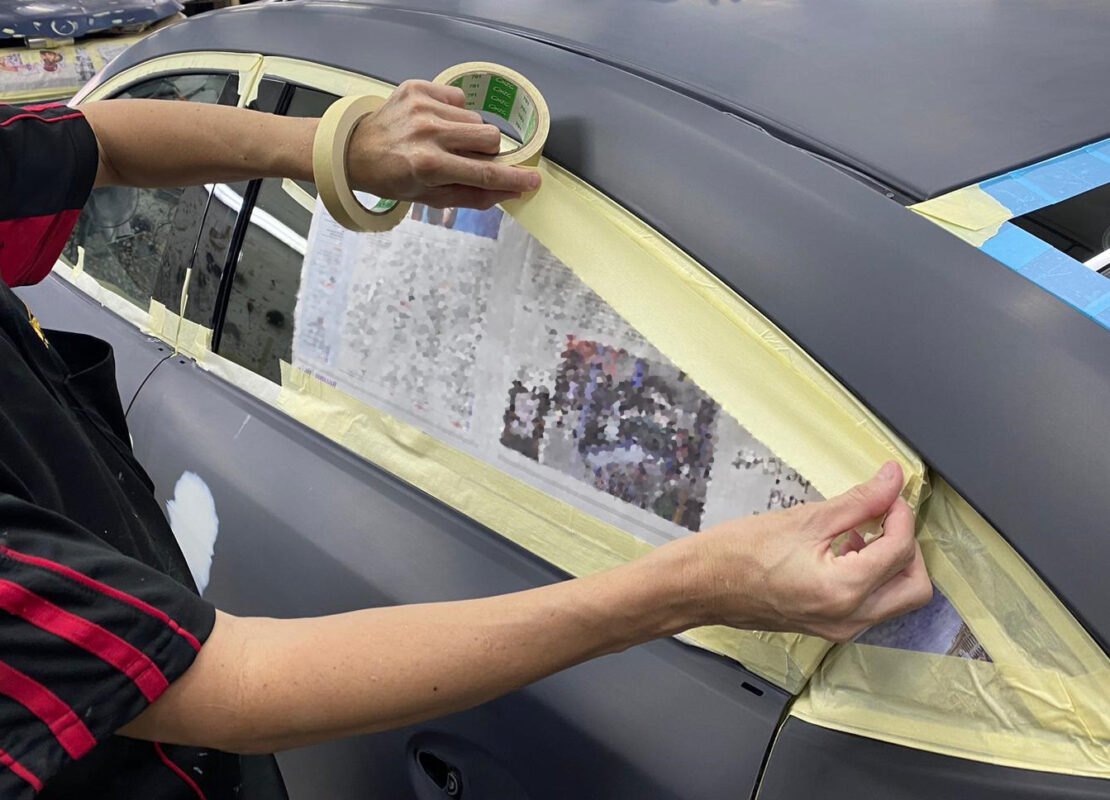

The Mazda 6 in the spray booth receiving its new paint coat.
Day 5: the new coat is laid on in the spray booth.

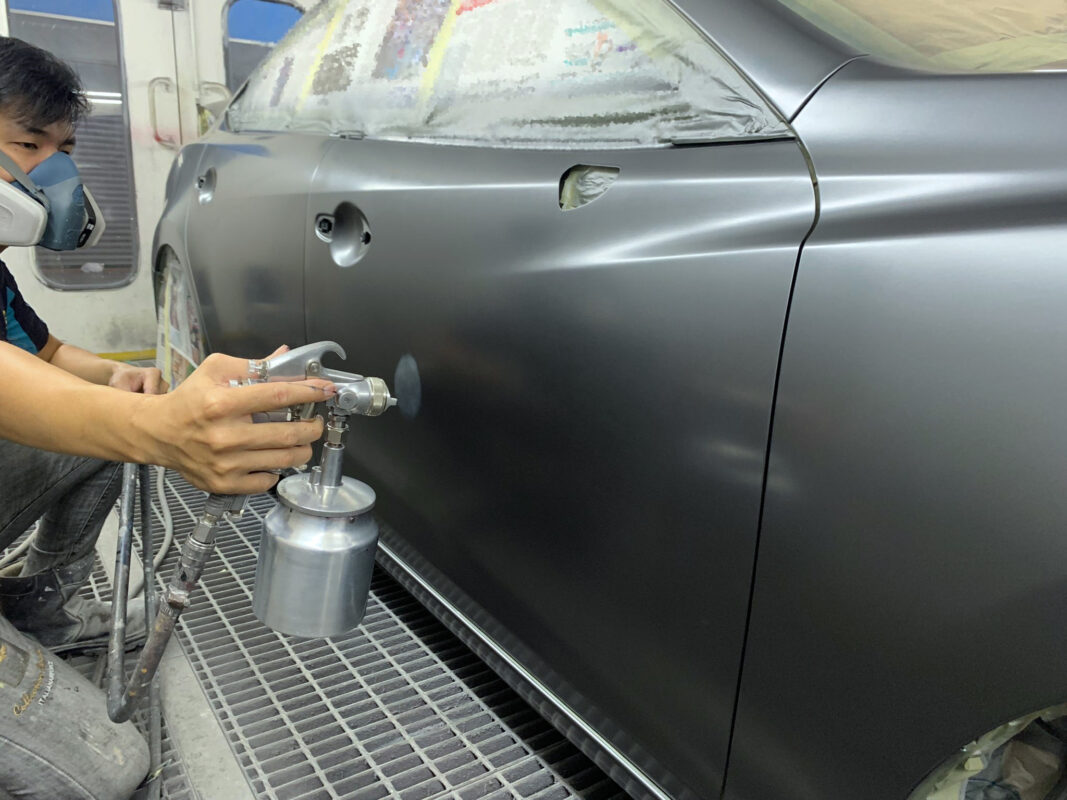

Sanding the freshly baked paint on the Mazda 6 on day six.
Day 6: the paint is oven-baked then sanded to refine the surface.

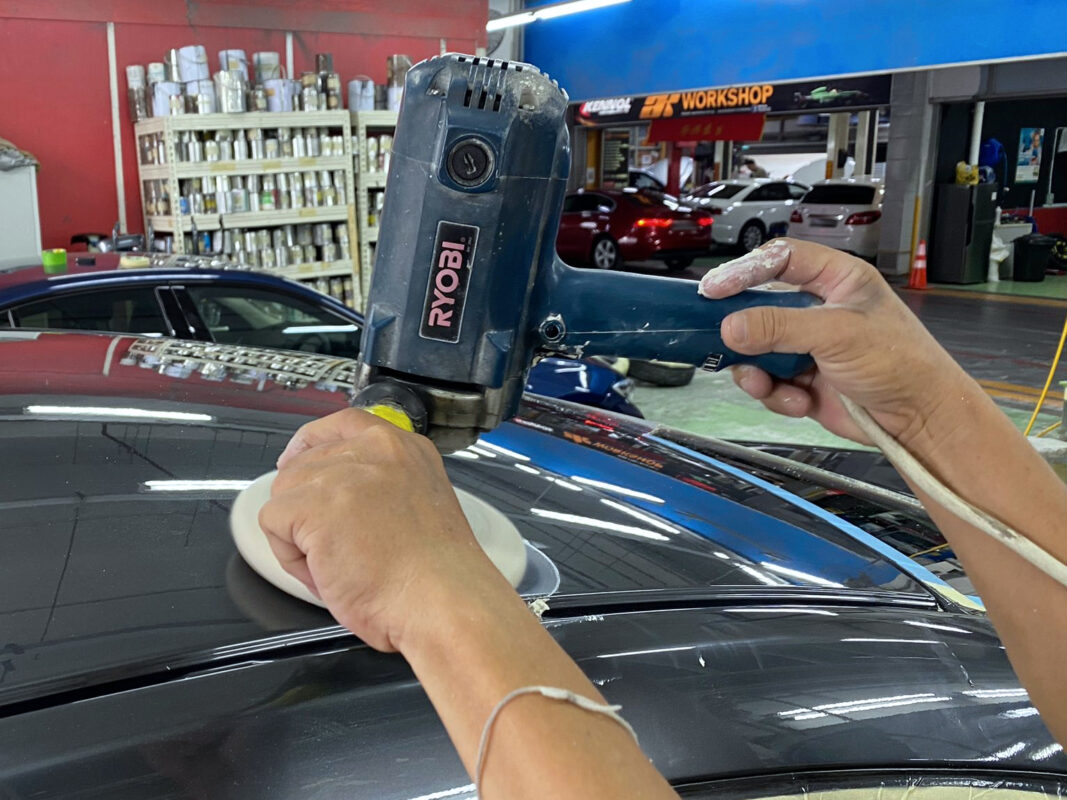

Machine-polishing the Mazda 6 panels to bring up the gloss.
Day 6: machine-polishing brings up the shine.

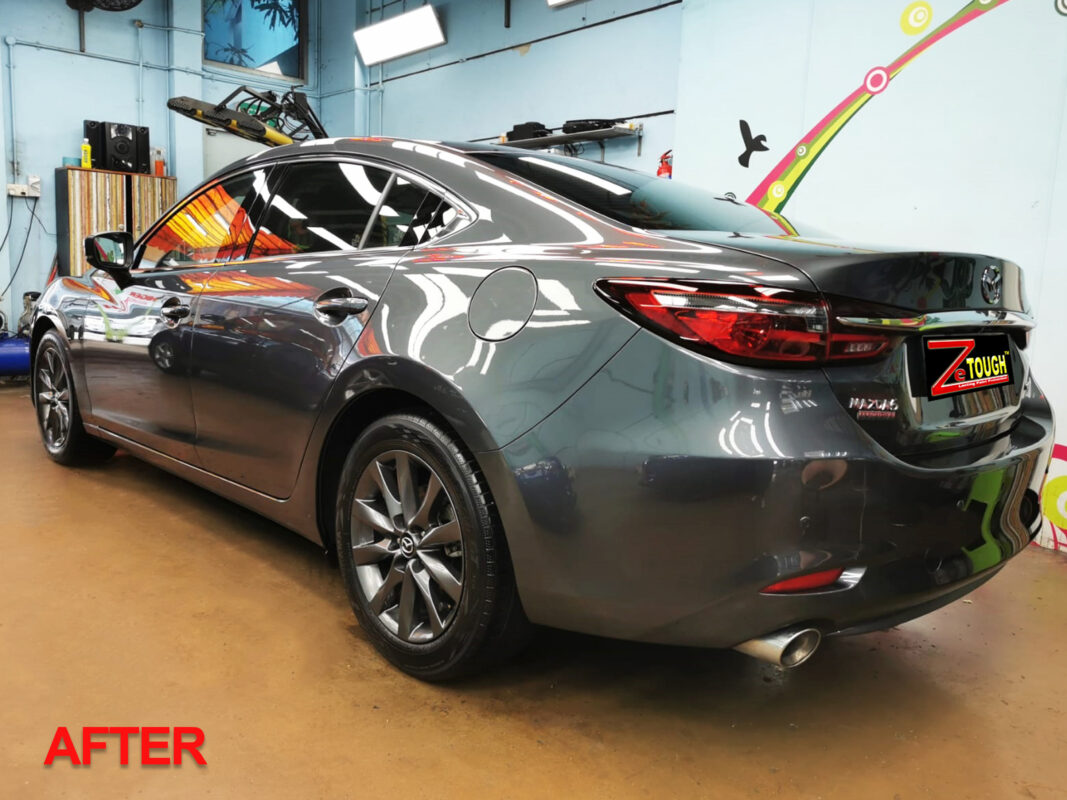

The Mazda 6 reassembled after painting, parts refitted.
Day 7: parts are refitted and the car is reassembled.

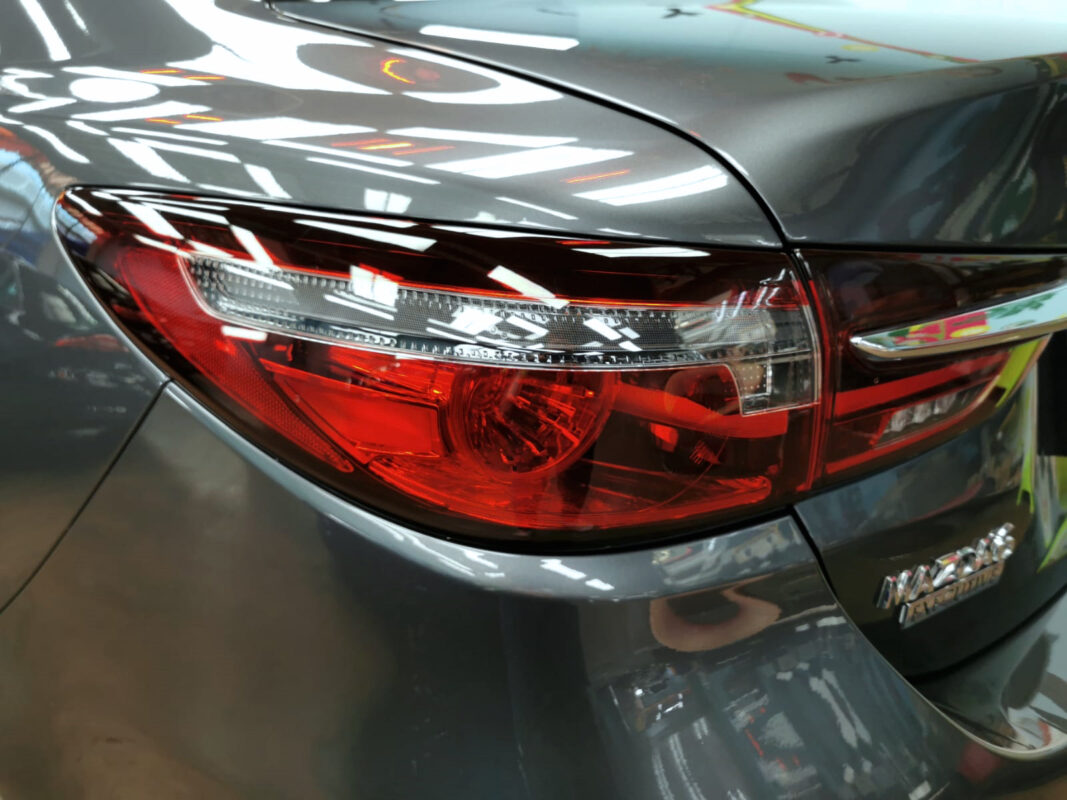

Before: the Mazda 6 at the start of the respray process.
Before: the Mazda 6 before the respray.

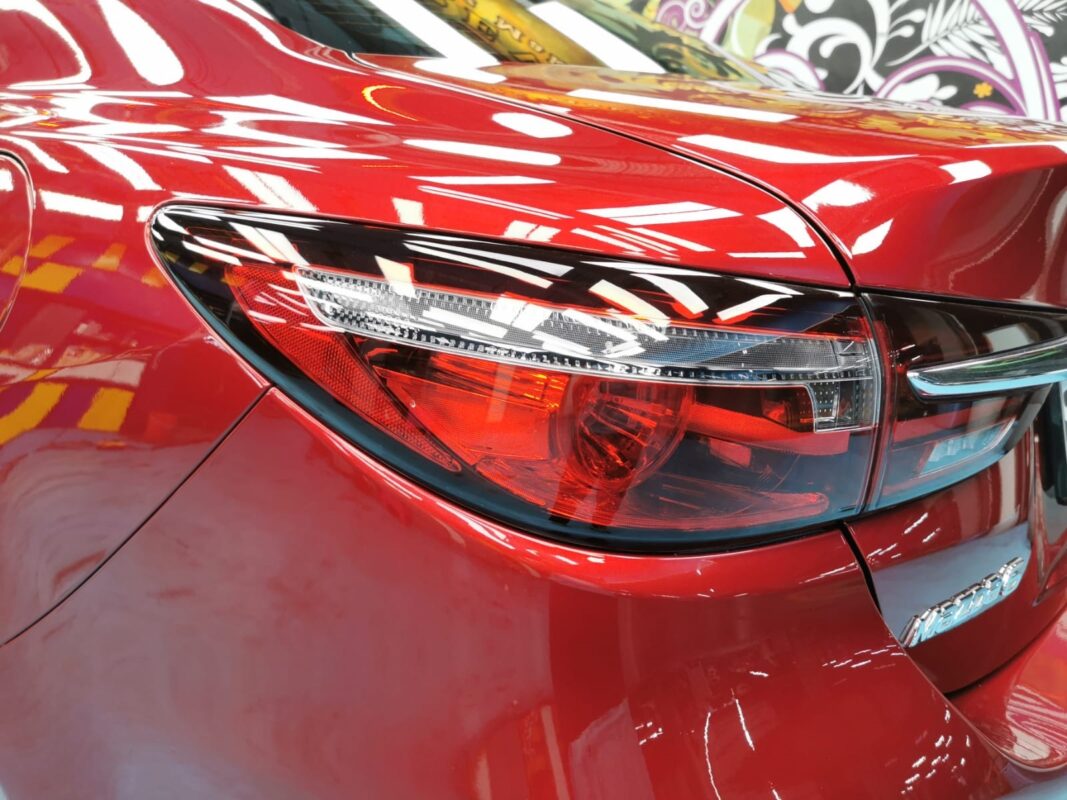

After: the Mazda 6 after a full respray and ZeTough Ceramic coating at Revol Carz.
After: the Mazda 6 after a full respray and ZeTough Ceramic Paint Protection.

What a full respray involves

A full respray starts long before any paint is sprayed. The car is stripped of its trim, lights, and panels so every surface edge is accessible. The bodywork is then checked for dents, chips, and scratches, each one filled, patched, and sanded back level.

  • Strip-down so every panel edge and hidden seam gets painted
  • Surface patched, primed, and wet-sanded before spraying
  • Oven-baked paint, then sanded and polished to a deep gloss
  • Sealed with a ZeTough Ceramic Paint Protection coating

At Revol Carz the surface is primed and wet-sanded repeatedly until it is perfectly smooth. Only then does the car go into the spray booth. Once the coat is laid and oven-baked, the paint is sanded again, machine-polished to a deep gloss, and the car is reassembled. A ZeTough Ceramic Paint Protection coating on top keeps the new paint sealed and protected.
